Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe
Discontinued model
Data version 1988-12

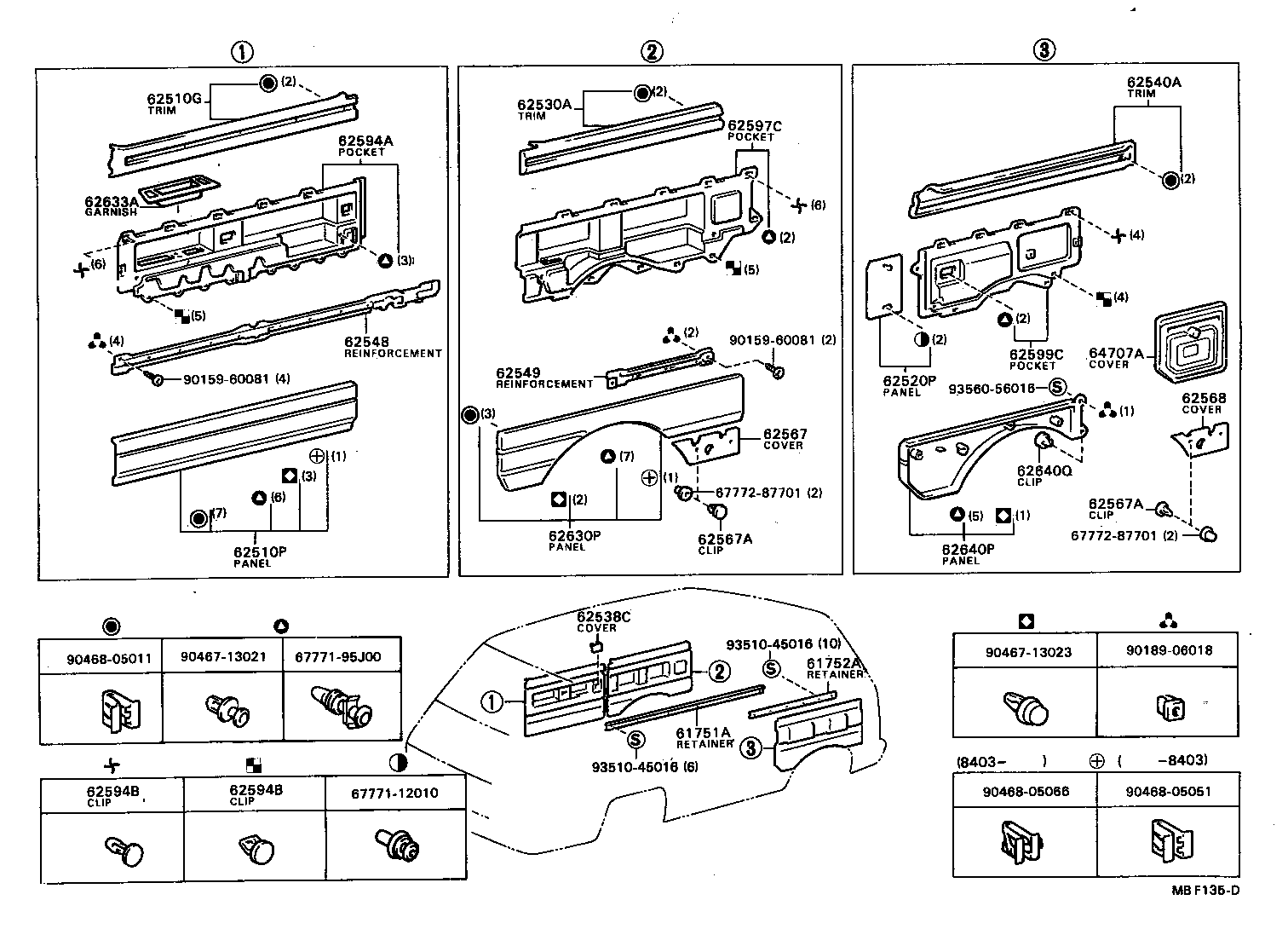

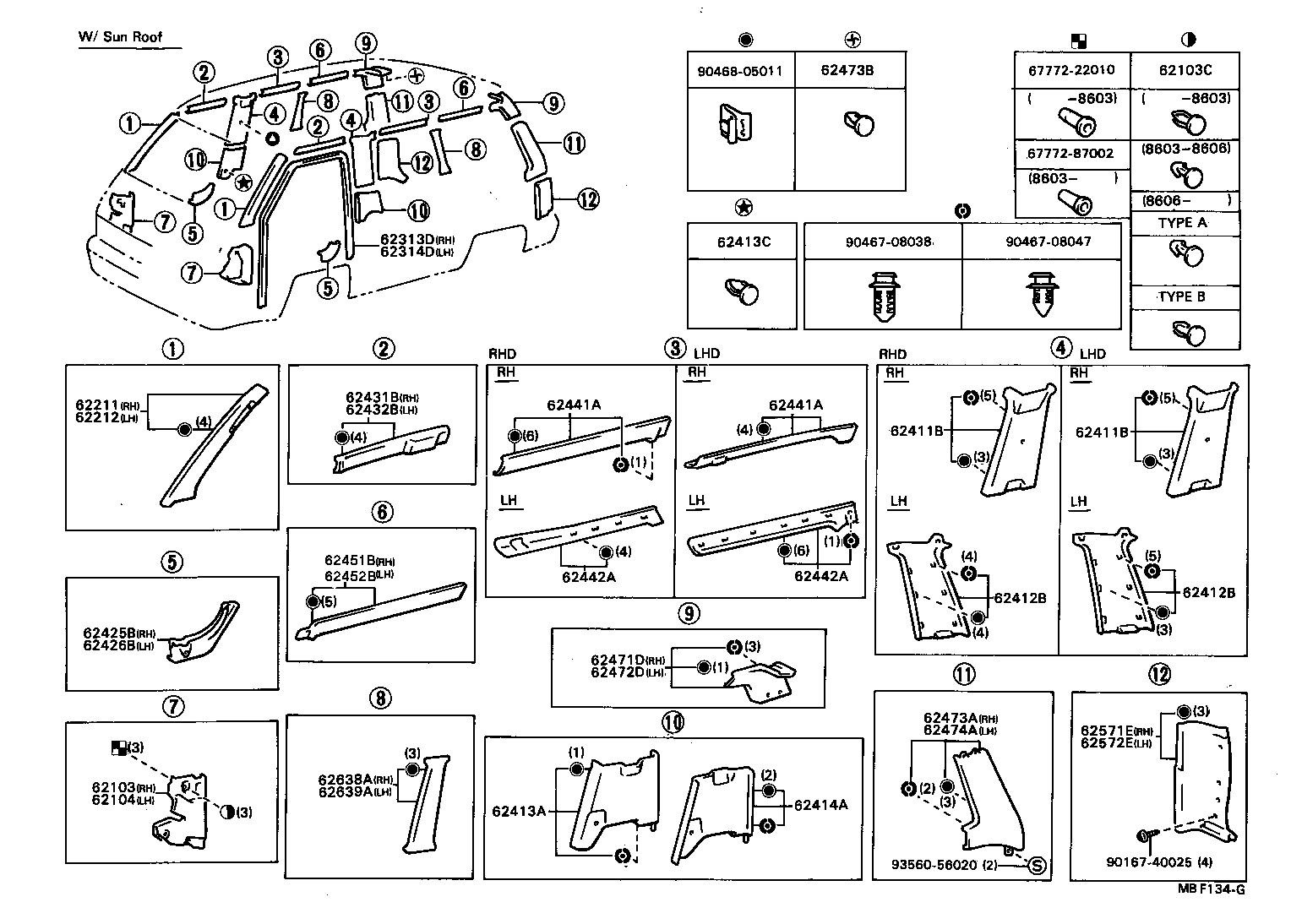

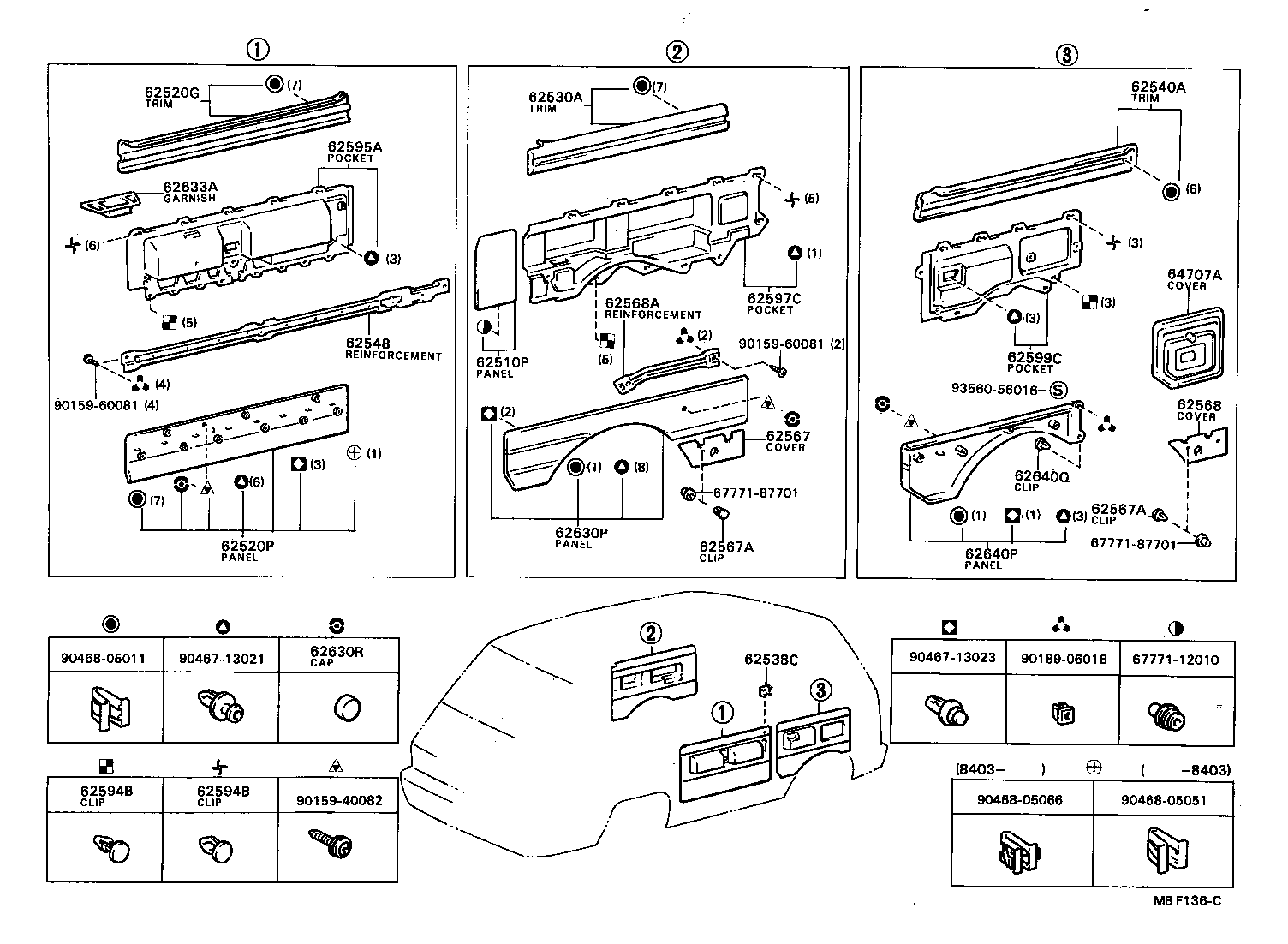

Inside Trim Board
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61751A | Retainer, Quarter Trim, RH |
| 61752A | Retainer, Quarter Trim, LH |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411E | Plug, Hole (FOR SEAT BELT) |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62425B | Cover, Center Pillar Garnish, NO.3 RH |
| 62426B | Cover, Center Pillar Garnish, NO.3 LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62441A | Garnish, Roof Side Rail, NO.2 RH |
| 62442A | Garnish, Roof Side Rail, NO.2 LH |
| 62451B | Garnish, Roof Side Rail, NO.3 RH |
| 62452B | Garnish, Roof Side Rail, NO.3 LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62473A | Board, Rear Pillar, RH |
| 62473B | Clip (FOR REAR PILLAR BOARD) |
| 62474A | Board, Rear Pillar, LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520G | Trim Assy, Side NO.1, LH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62530A | Trim Assy, Side NO.2, RH |
| 62538C | Cover, Quarter Trim, Hole |
| 62540A | Trim Assy, Side NO.2, LH |
| 62548 | Reinforcement, Quarter Trim, NO.1 |
| 62549 | Reinforcement, Quarter Trim, NO.2 |
| 62567 | Cover, Quarter Trim, Rear Lower RH |
| 62567A | Clip(FOR QUARTER TRIM REAR LOWER COVER) |
| 62568 | Cover, Quarter Trim, Rear Lower LH |
| 62568A | Reinforcement, Quarter Trim, NO.3 |
| 62571E | Garnish, Rear Pillar, Lower RH |
| 62572E | Garnish, Rear Pillar, Lower LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62594B | Clip(FOR QUARTER TRIM POCKET) |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62597C | Pocket, Quarter Trim, NO.3 |
| 62599C | Pocket, Quarter Trim, NO.4 |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630R | Cap (FOR QUARTER TRIM) |
| 62633A | Garnish, Quarter Trim, RH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 64707A | Cover Sub-assy, Quarter Trim Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
