Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe
Discontinued model
Data version 1988-12
Front Door Panel & Glass
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

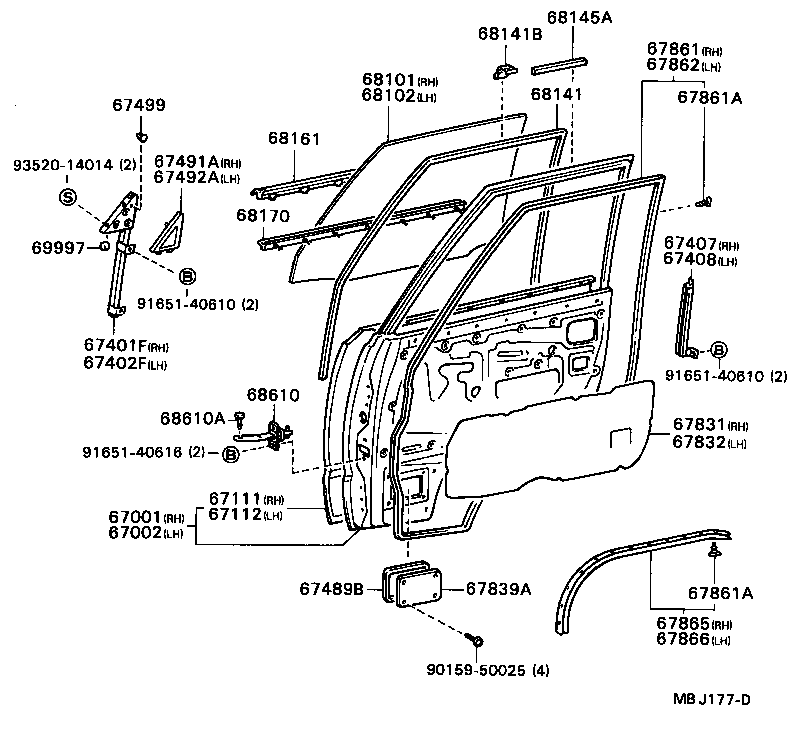

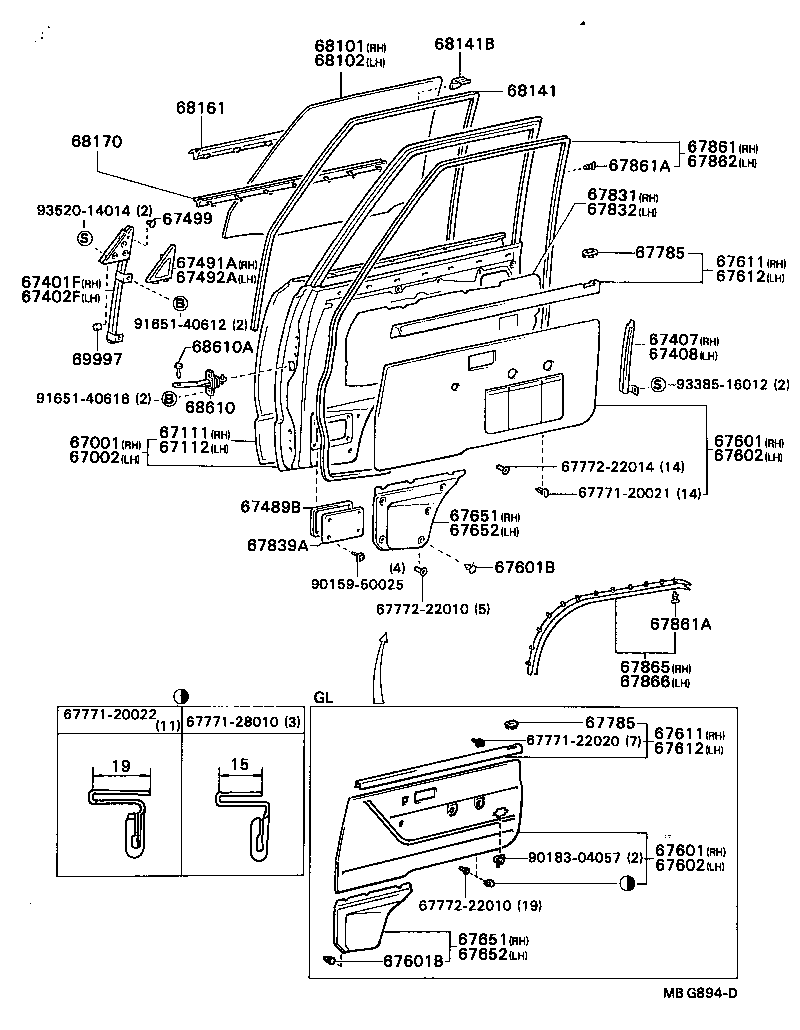

| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67407 | Frame Sub-assy, Front Door, Rear Lower RH |
| 67408 | Frame Sub-assy, Front Door, Rear Lower LH |
| 67489B | Packing, Front Door Lower Cover |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |

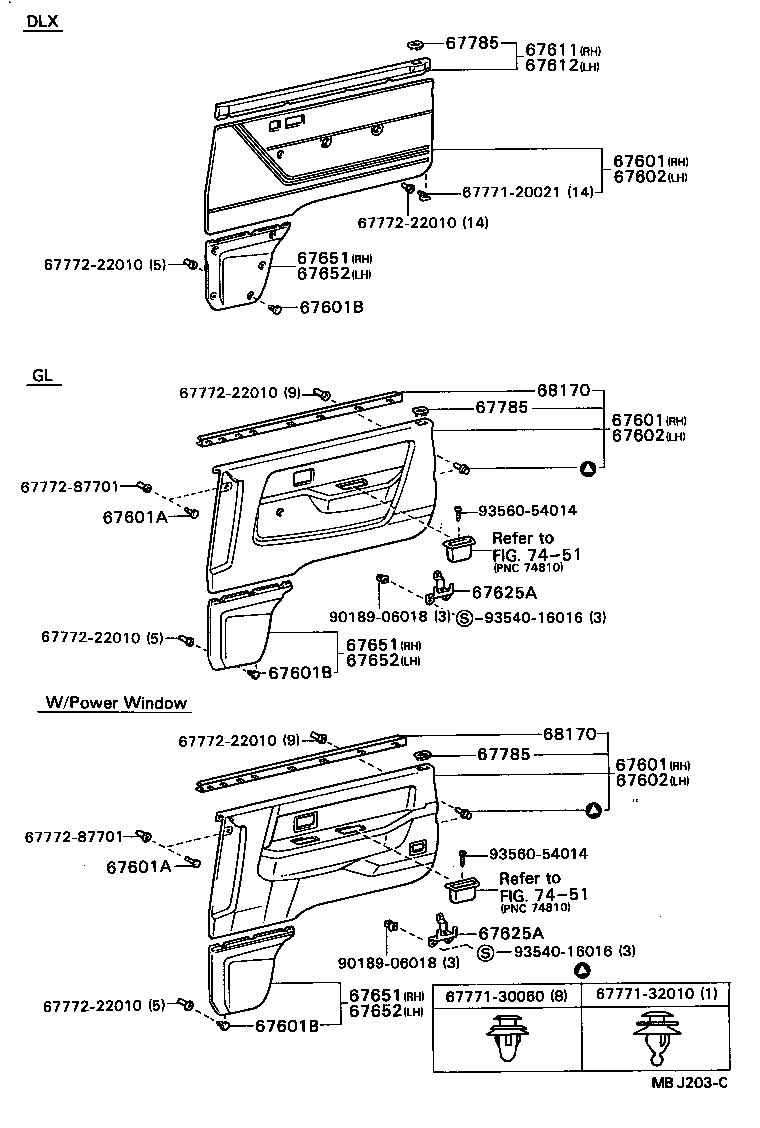

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67611 | Board, Front Door Trim, Upper RH |
| 67612 | Board, Front Door Trim, Upper LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67651 | Board, Front Door Trim, Lower RH |
| 67652 | Board, Front Door Trim, Lower LH |
| 67785 | Holder, Front Door Locking Button Collar |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67839A | Cover, Front Door Service Hole, Lower |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 67865 | Weatherstrip, Front Door, Lower RH |
| 67866 | Weatherstrip, Front Door Lower, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68141B | Clip, Door Glass Run |
| 68145A | Cushion, Front Door Window |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
| 68610A | Pin(FOR FRONT DOOR CHECK) |
| 69997 | Spacer, Front Door Glass Guide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
