Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

21 part groups · 2 illustrations

Illustrations

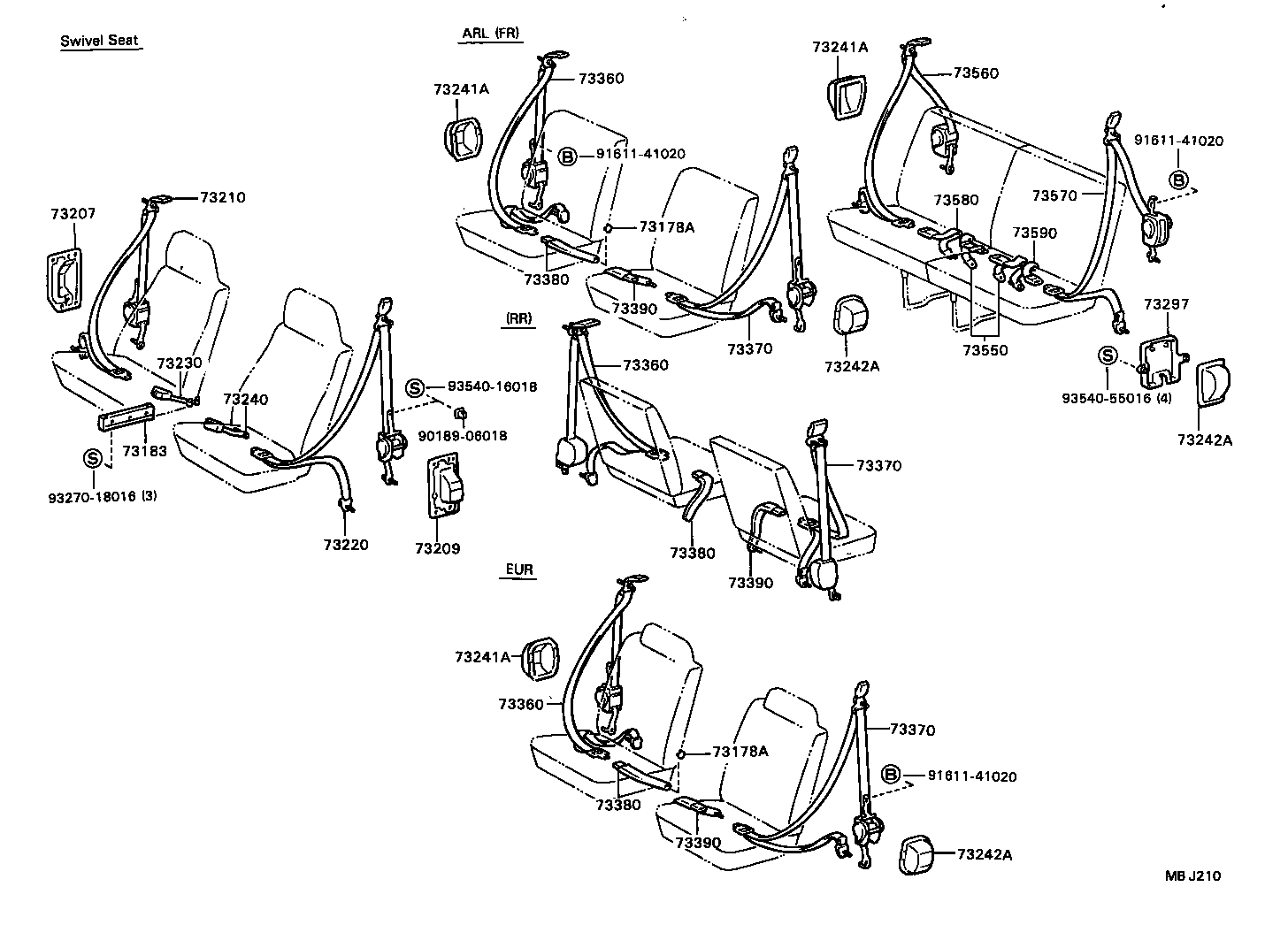

Figure MBE634 MBE634 1982-11 → — Figure MBJ210 MBJ210 1985-08 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73183 Guide, Front Seat Lap Belt, Inner
73207 Cover Sub-assy, Seat Belt Retractor, RH
73209 Cover Sub-assy, Seat Belt Retractor, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73241A Case, Seat Belt Retractor, RH
73242A Case, Seat Belt Retractor, LH
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
