Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

24 part groups · 2 illustrations

Illustrations

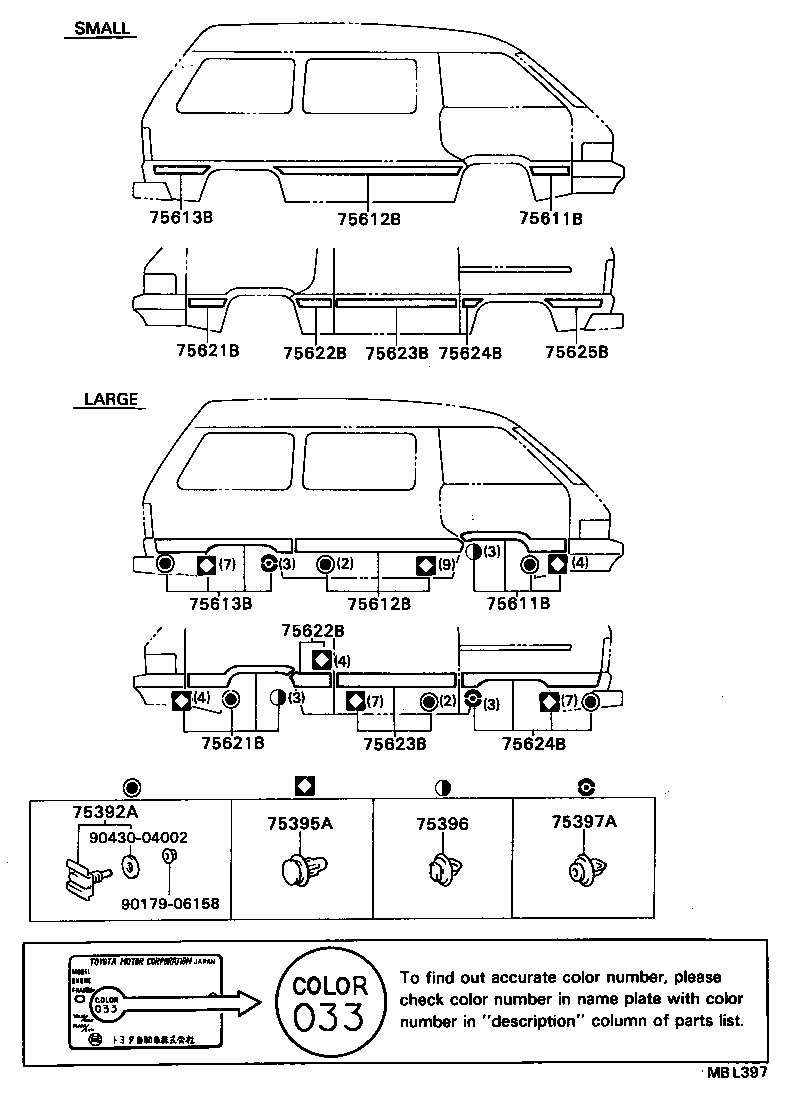

Figure MBE595C MBE595C 1982-11 → — Figure MBL397 MBL397 1985-08 → —

Part groups

PNCDescription
75392A Retainer, Outside Moulding, NO.1
75395A Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75397A Clip, Outside Moulding, NO.3
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75557 Joint, Roof Drip Side Finish Moulding
75578B Cover, Roof Drip Moulding End, Rear RH
75579B Cover, Roof Drip Moulding End, Rear LH
75595B Cover, Roof Drip Side Moulding End, Front
75611B Moulding, Side Panel, NO.1 RH
75612B Moulding, Side Panel, NO.2 RH
75613B Moulding, Side Panel, NO.3 RH
75621B Moulding, Side Panel, NO.1 LH
75622B Moulding, Side Panel, NO.2 LH
75623B Moulding, Side Panel, NO.3 LH
75624B Moulding, Side Panel, NO.4 LH
75625B Moulding, Side Panel, NO.5 LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75953 Plate, Front Door Scuff, Inside RH
75954 Plate, Front Door Scuff, Inside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
