Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

13 part groups · 2 illustrations

Illustrations

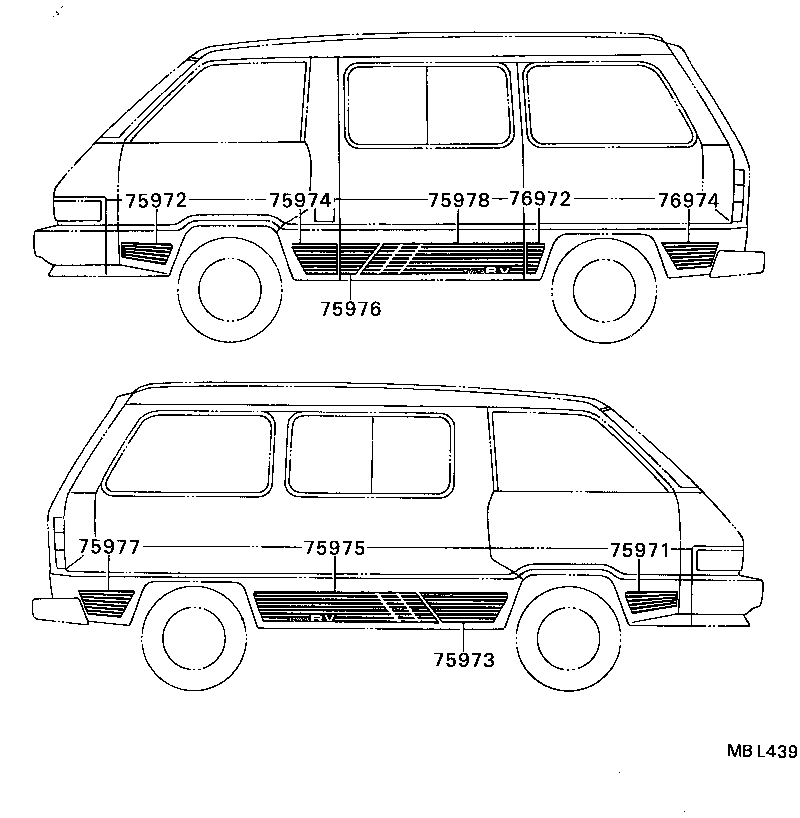

Figure MBL121A MBL121A 1986-08 → — Figure MBL439 MBL439 1987-01 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
75979 Stripe, Fuel Filler Opening Lid
76971 Stripe, Side, RH NO.5
76972 Stripe, Quarter, Rear LH
76973 Stripe, Side, RH NO.6
76974 Stripe, Side, LH NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
