Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 7 illustrations

Illustrations

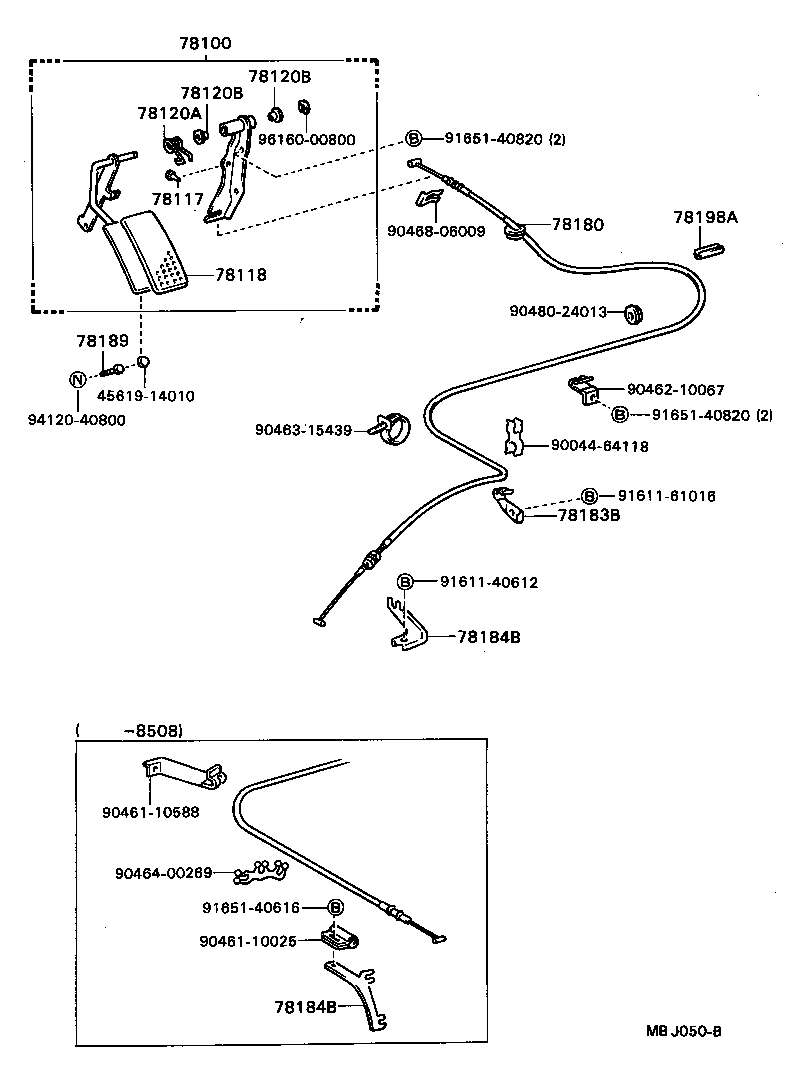

Figure MBE642A MBE642A 1982-11 → 1985-01 Figure MBE643D MBE643D 1982-11 → — Figure MBL399A MBL399A 1986-08 → — Figure MBE601B MBE601B 1983-05 → 1985-01 Figure MBF142B MBF142B 1983-05 → — Figure MBJ049B MBJ049B 1985-01 → — Figure MBJ050B MBJ050B 1985-01 → —

Part groups

PNCDescription
78011 Bracket Sub-assy, Accelerator Pedal Support
78100 Link Assy, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78118 Pad, Accelerator Pedal
78120 Rod, Accelerator Link
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120B Bush (FOR ACCELERATOR LINK ROD)
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78198A Protector, Accelerator Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
