Factory parts data · Europe

Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 8 illustrations

Illustrations

Figure MEC540F

MEC540F 1982-11 → —

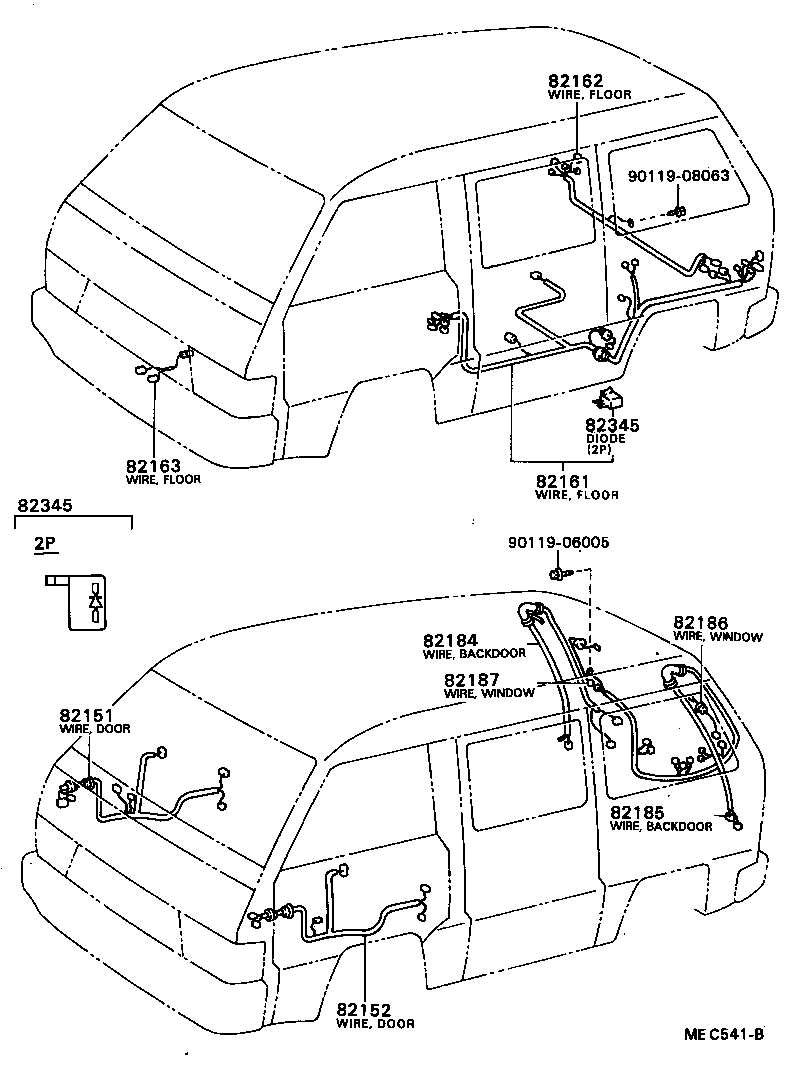

Figure MEC541B

MEC541B 1982-11 → —

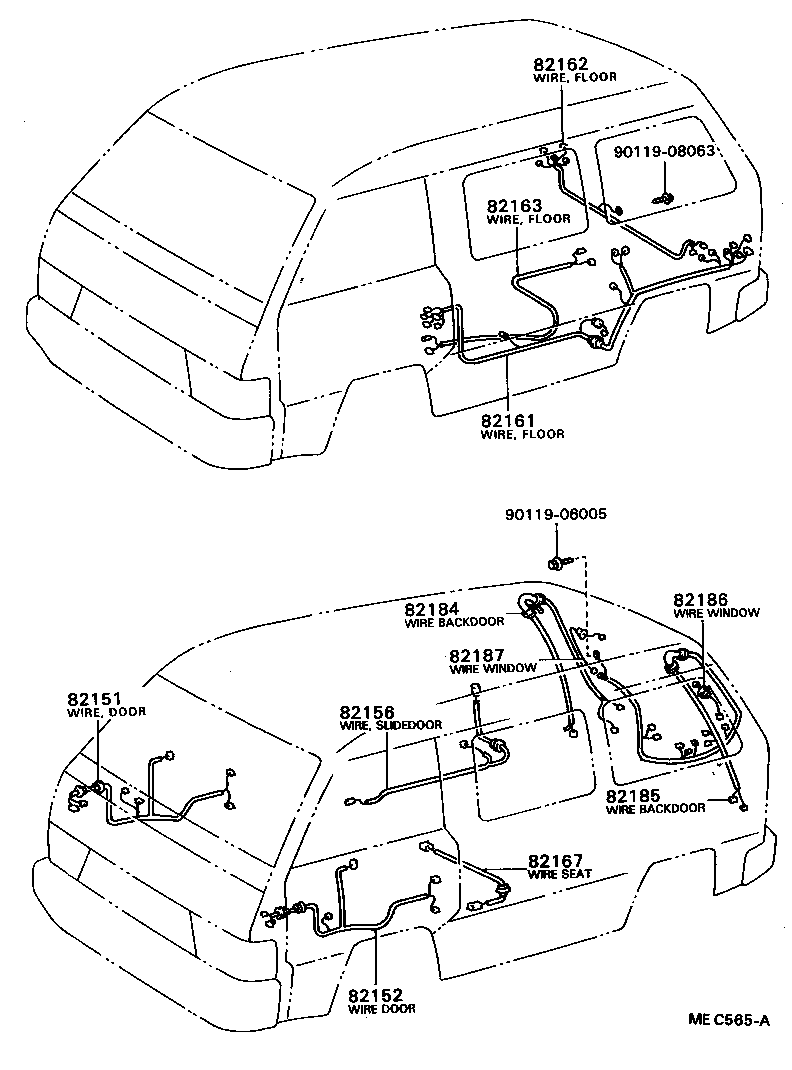

Figure MEC565A

MEC565A 1982-11 → —

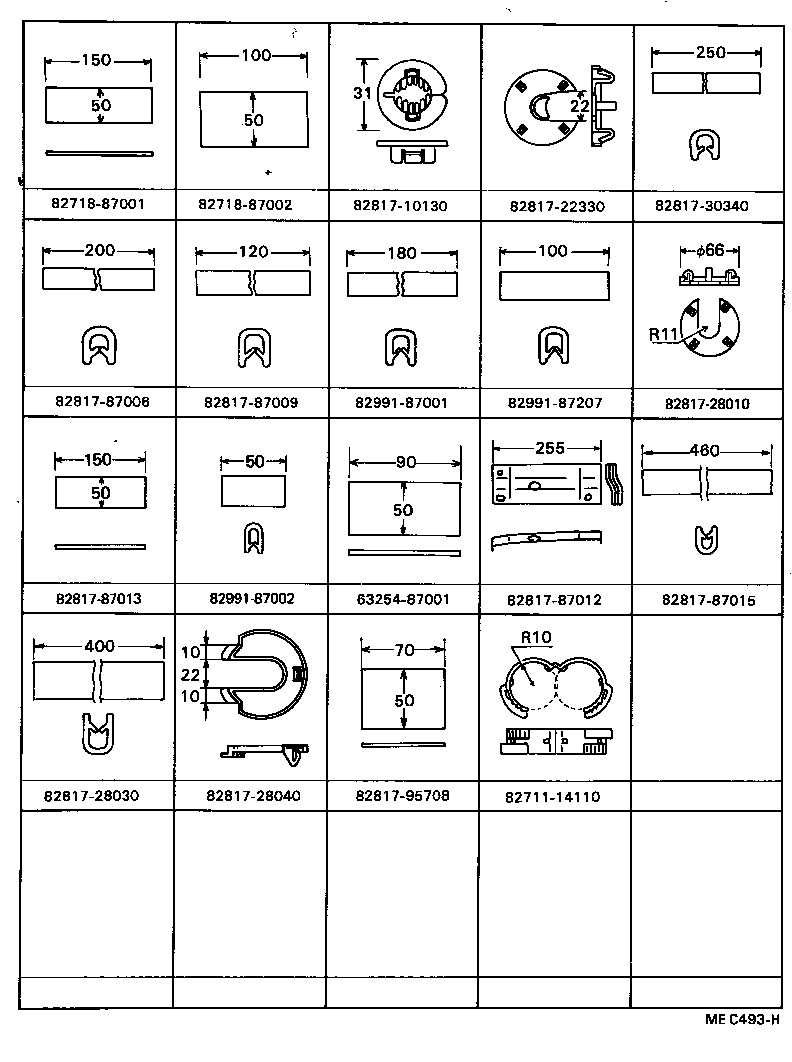

Figure MEC493H

MEC493H 1982-11 → —

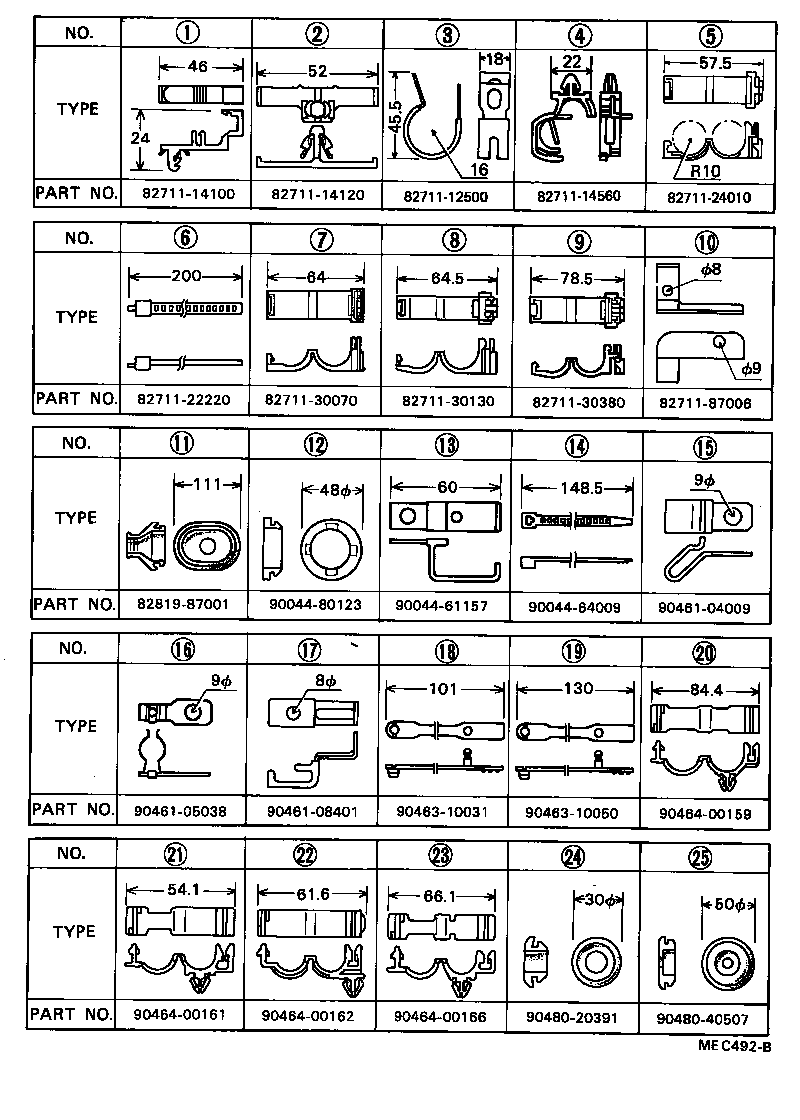

Figure MEC492B

MEC492B 1982-11 → —

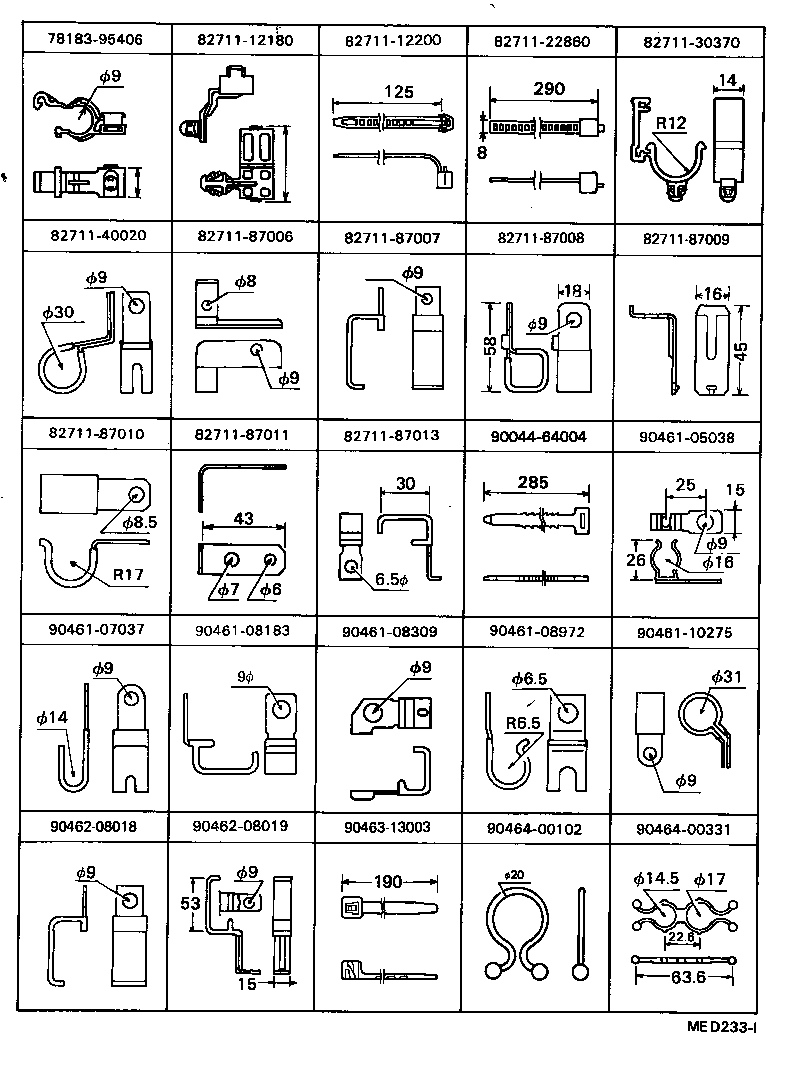

Figure MED233I

MED233I 1982-11 → —

Figure MEH737B

MEH737B 1982-11 → —

Figure MEM195

MEM195 1982-11 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82156	Wire, Slide Door
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82167	Wire, Seat, NO.1
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82210D	Fusible Link
82345	Diode
82620	Block Assy, Fusible Link
82671	Block, Junction
82821A	Cover, Connector
82823	Cap, Terminal, NO.1
82823A	Cap, Terminal, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
