Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe
Discontinued model
Data version 1988-12
Switch & Relay & Computer
109 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 27751 | Bracket, Generator Regulator |
| 28371 | Relay, Ignition, NO.1 |
| 28371A | Relay, Bulb Check |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |

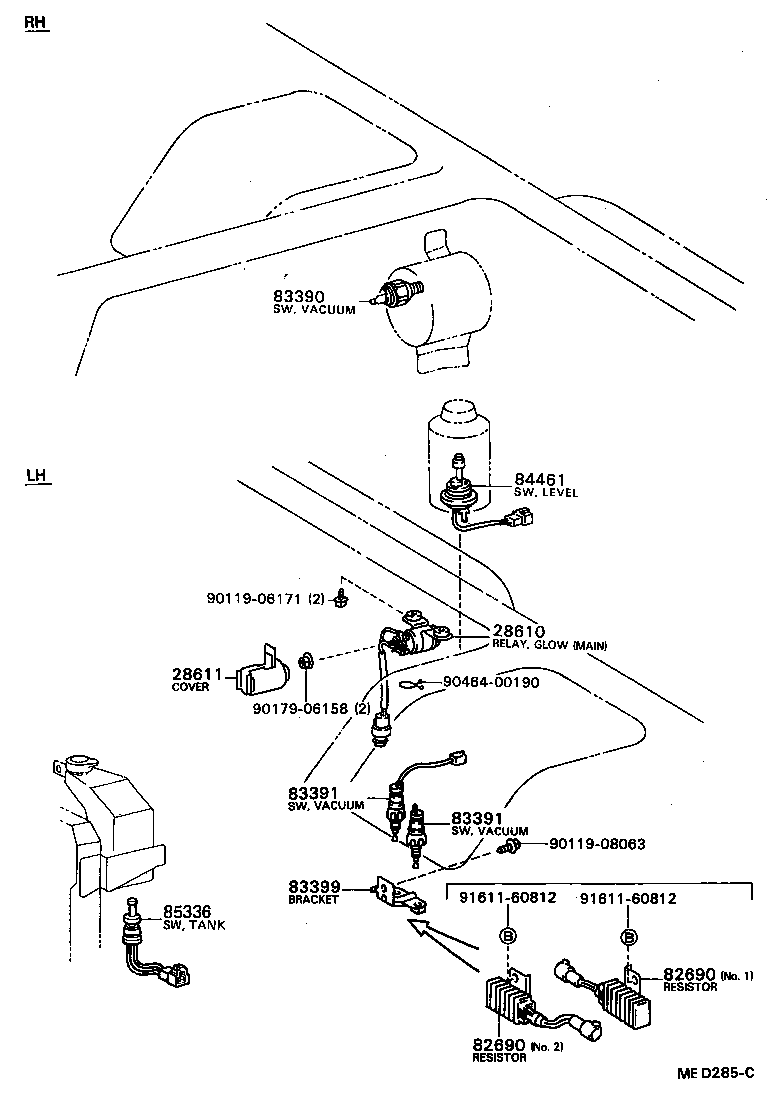

| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81944 | Cord, Optical Fiber |
| 81980 | Flasher Assy, Turn Signal |
| 81981 | Flasher Assy, Hazard Warning Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82642A | Relay, Running Light |
| 82643 | Relay, Dim-dip Lamp |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 82690 | Resistor Assy, Dim Dip Lamp |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83540 | Switch Assy, Brake Warning (FOR TANDEM MASTER CYLINDER) |
| 84052 | Switch Assy, Un-lock Warning |

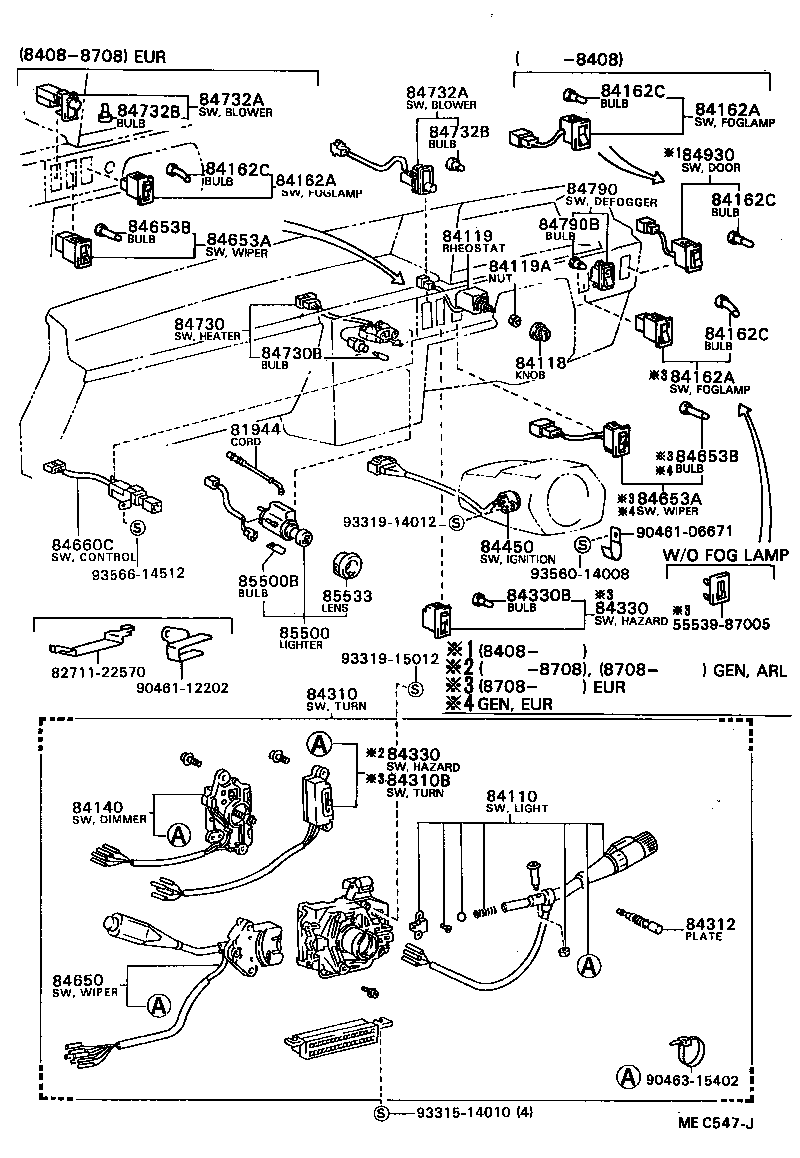

| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84261B | Junction, Slide Door Control,Male |
| 84262B | Junction, Slide Door Control, Female |
| 84310 | Switch Assy, Turn Signal |
| 84310B | Switch, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84653B | Bulb, Rear Wiper Switch |
| 84660C | Switch, Cooler |
| 84660E | Knob, Cooler Switch |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84732B | Bulb, Rear Heater Blower Switch |
| 84751 | Switch, Seat Heater |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

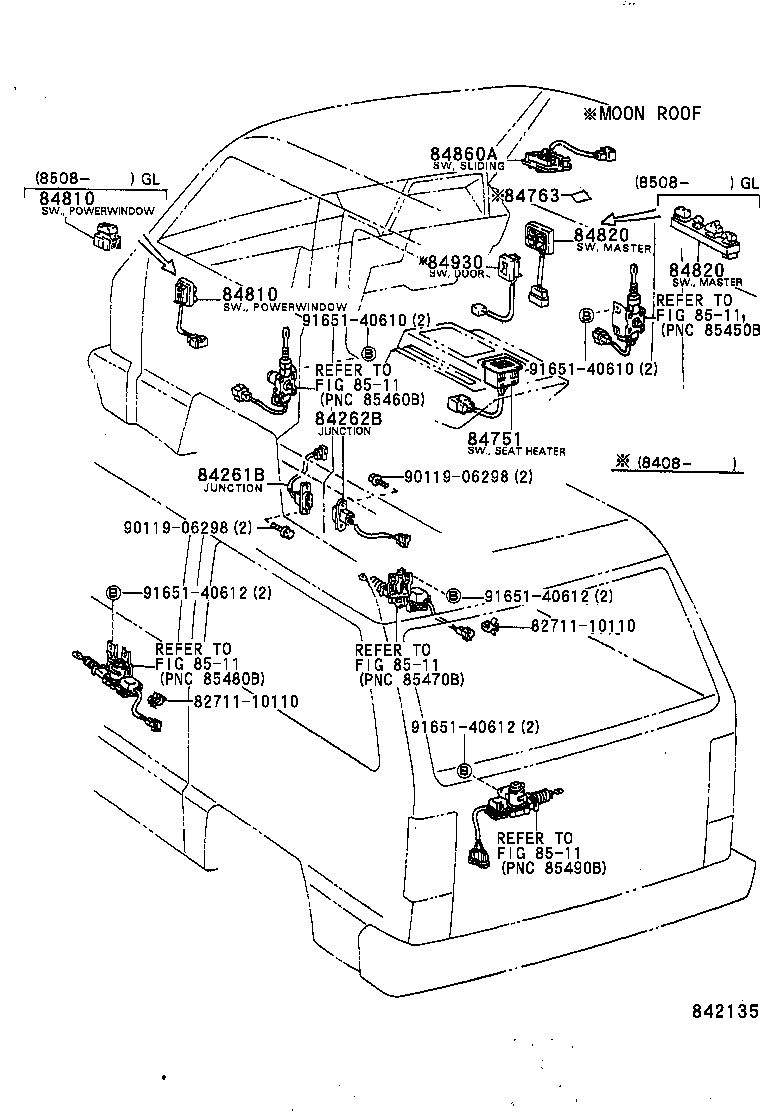

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84930 | Switch Assy, Door Control |
| 85336 | Switch Assy, Reserve Tank Level Warning |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85535 | Panel, Cigarette Lighter Heat Diffuse |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |

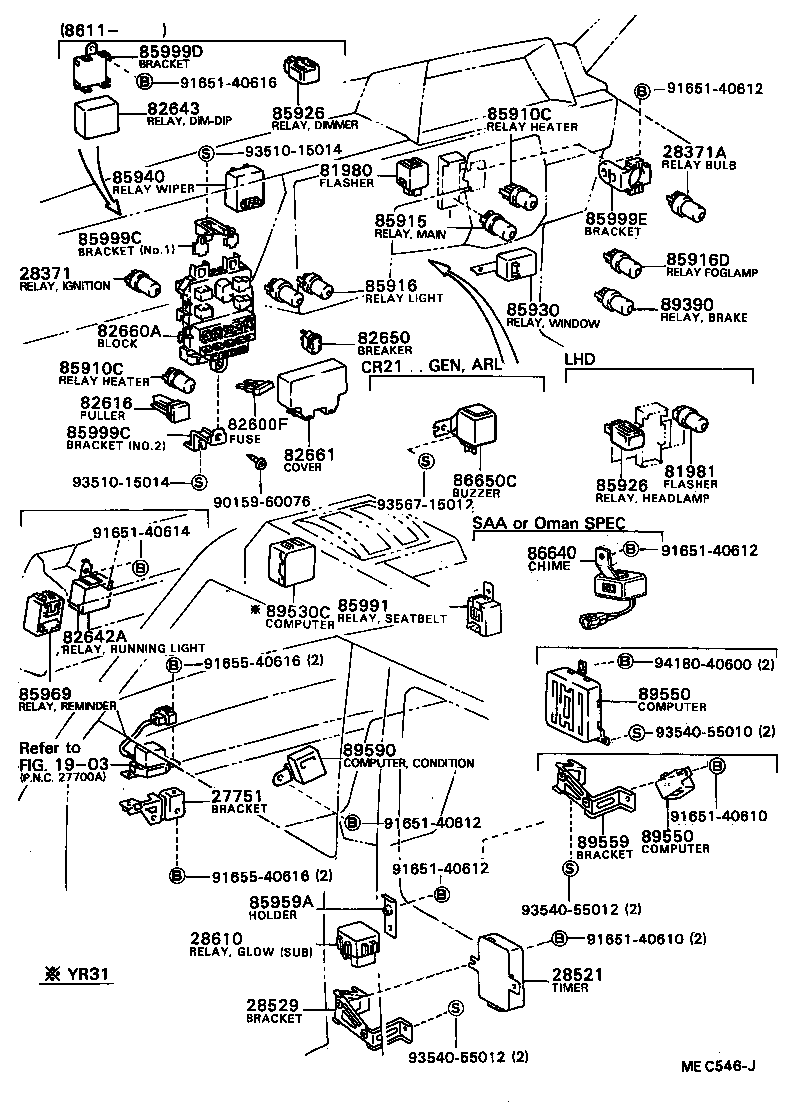

| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85926 | Relay, Headlamp Dimmer |
| 85930 | Relay Assy, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 85991 | Relay, Seat Belt Warning |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 85999E | Bracket, Relay, NO.5 |
| 86640 | Chime Assy |
| 86650C | Buzzer Assy, Sedimenter Warning |

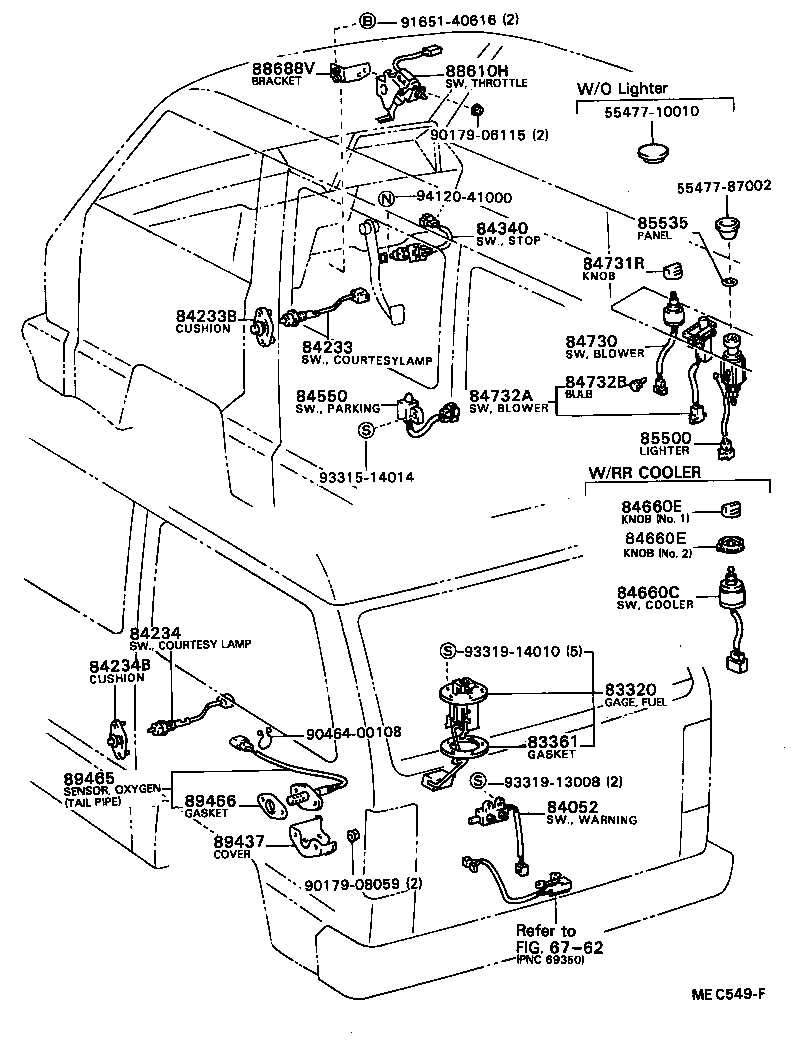

| 88610H | Switch Assy, Throttle Position |
| 88688V | Bracket, Throttle Position Switch |
| 89390 | Relay, Brake Warning |

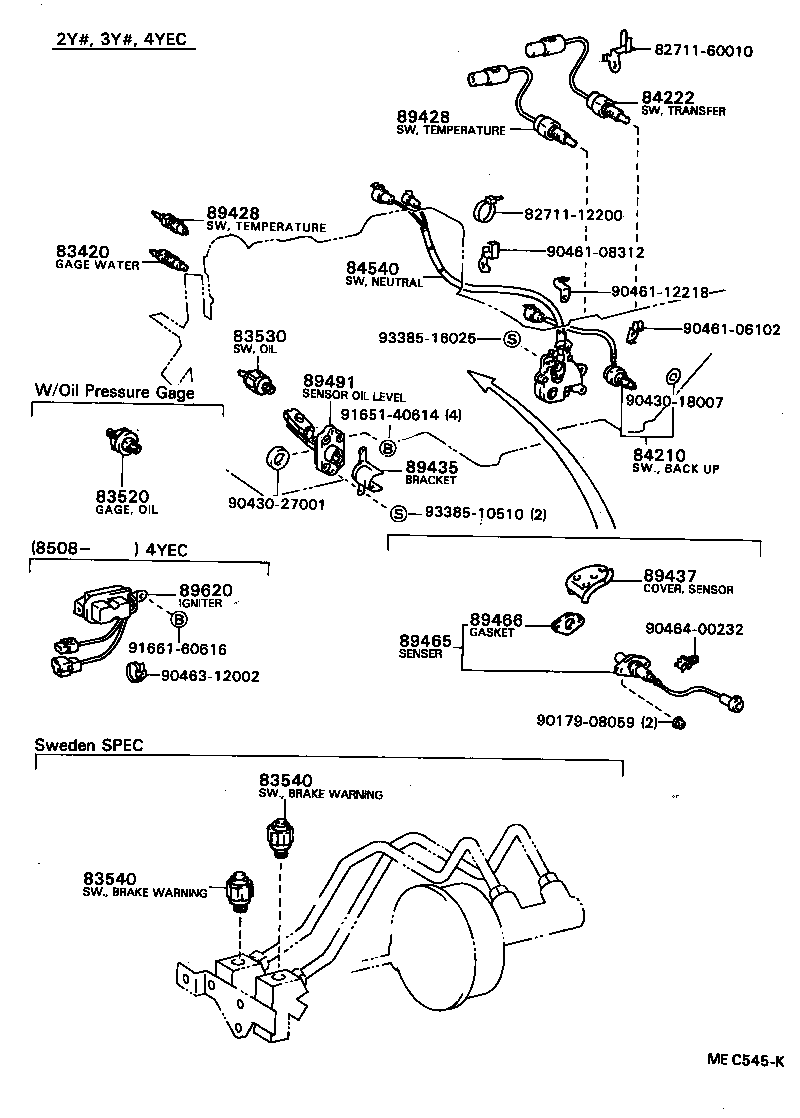

| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89435 | Bracket, Connector Cover |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89530C | Computer Assy, Transmission Control |
| 89550 | Computer Assy, Emission Control |
| 89559 | Bracket, Emission Control Computer |
| 89590 | Computer Assy, Condition Indicator |
| 89620 | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
