Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

21 part groups · 4 illustrations

Illustrations

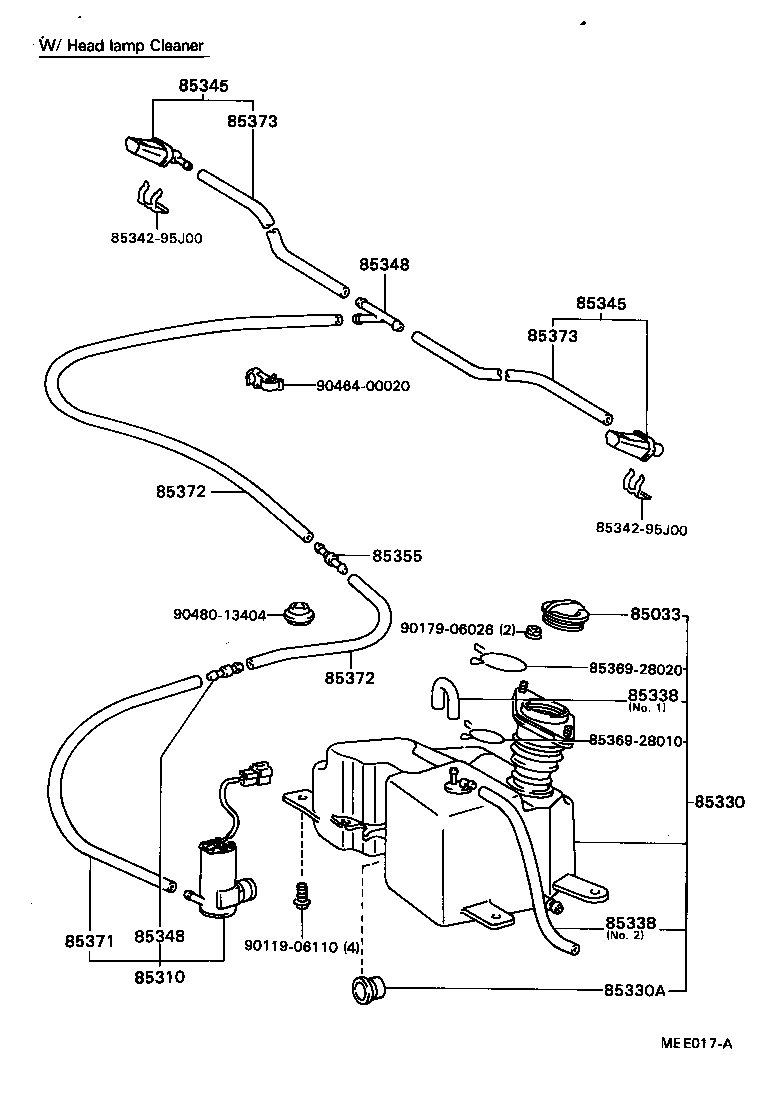

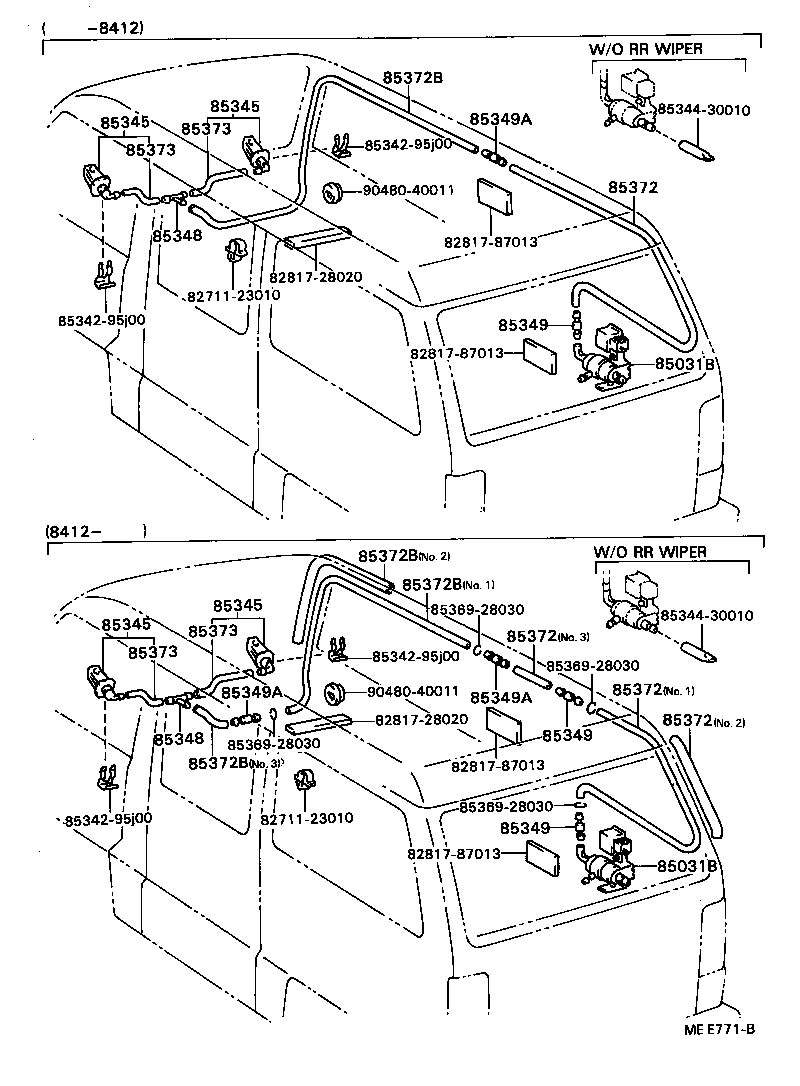

Figure MEC552F MEC552F 1982-11 → 1984-08 Figure MEE771B MEE771B 1984-08 → — Figure MEF746A MEF746A 1984-08 → — Figure MEE017A MEE017A 1982-11 → 1984-08

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85033 Cap Assy, Windshield Washer
85034 Wire, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85338 Hose, Breather
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349B Joint, Windshield Washer Hose, NO.3
85355 Valve, Windshield Washer Hose
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85375 Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
85375A Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
