Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 3 illustrations

Illustrations

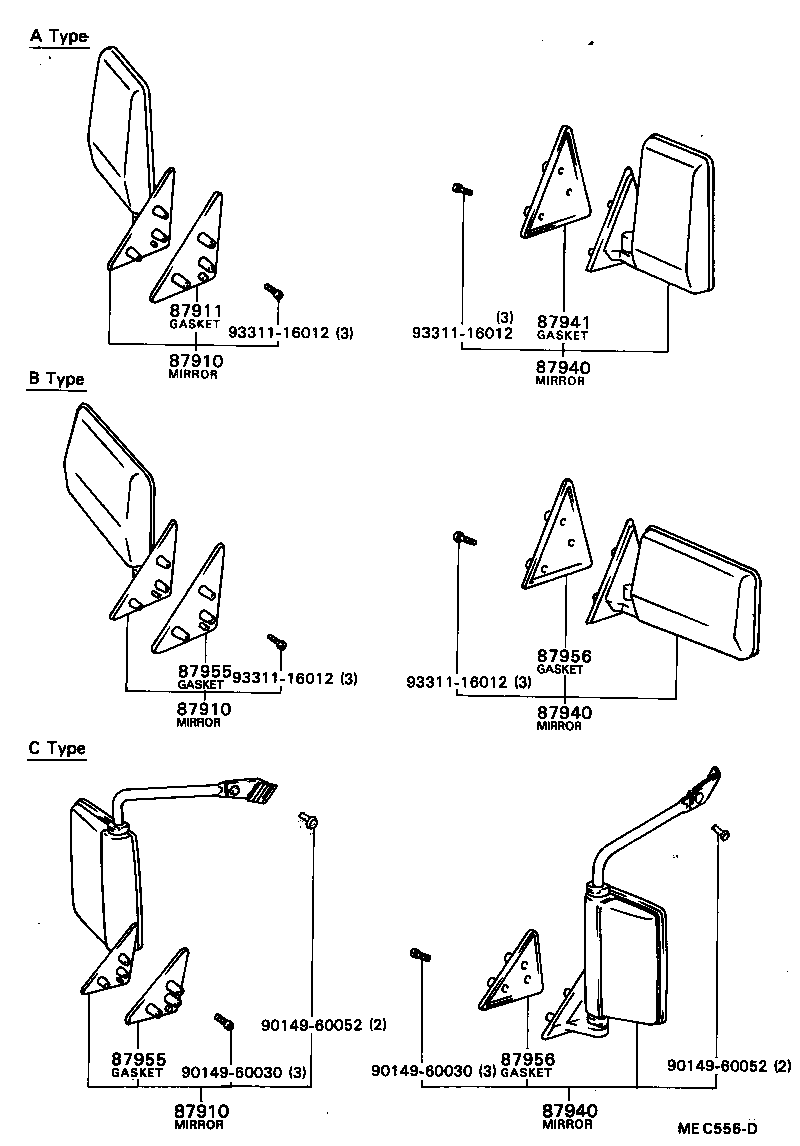

Figure MEE018D MEE018D 1982-11 → — Figure MEC556D MEC556D 1982-11 → — Figure MEC518A MEC518A 1982-11 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87811 Bracket, Inner RR View Mirror
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87950 Mirror Assy, Outer Under Rear View
87955 Gasket, Outer Rear View Mirror Base, Lower RH
87956 Gasket, Outer Rear View Mirror Base, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
