Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

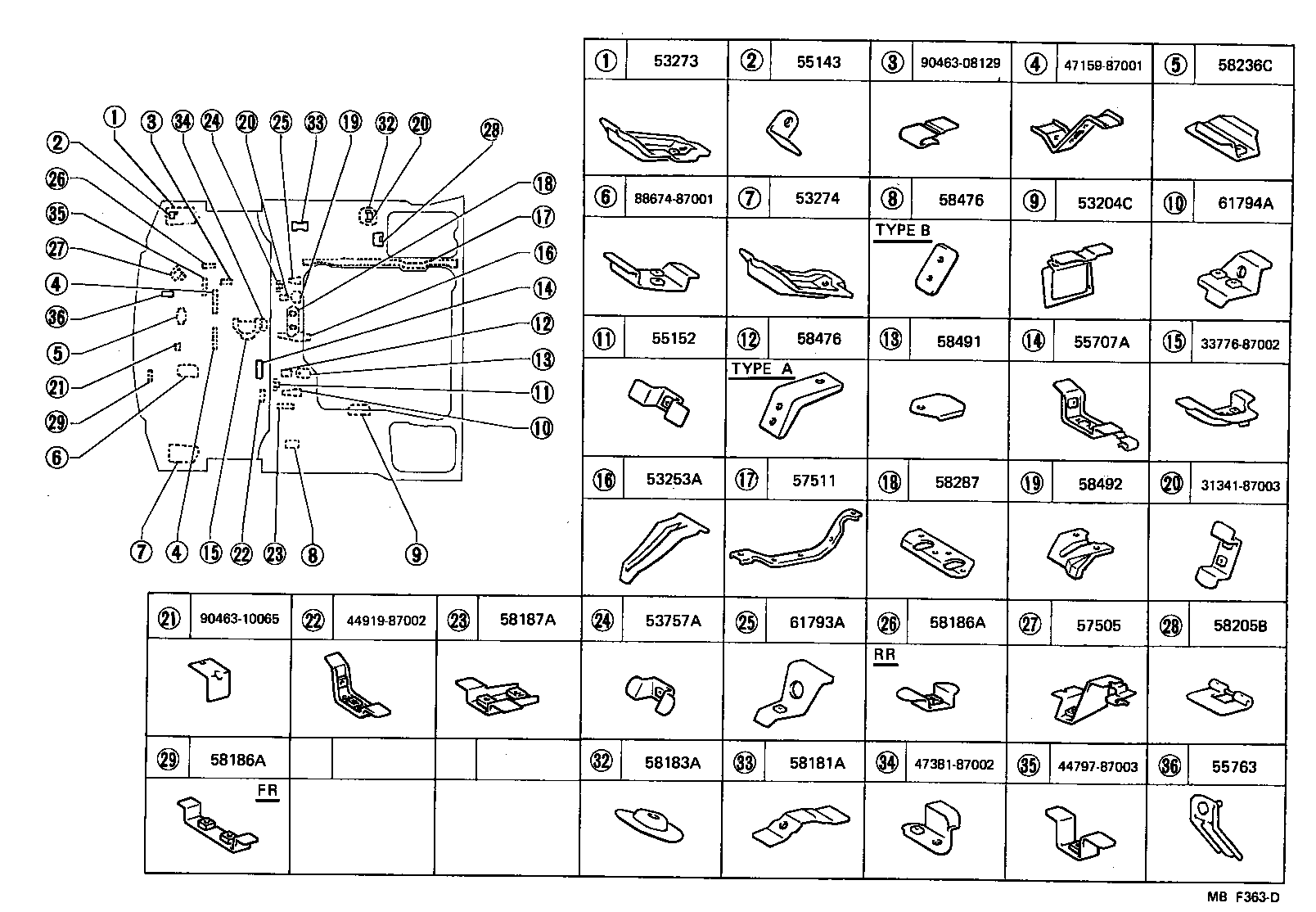

Exploded illustration MBF363D 53273 — BRACKET, FRONT BUMPER ARM MOUNTING, RH (2 parts) 55143 — BRACKET, COWL SIDE TRIM MOUNTING, NO.1 (1 parts) 9046308129 — not listed in this catalogue 58236C — BRACKET, CLUTCH TUBE (1 parts) 4715987001 — not listed in this catalogue 53274 — BRACKET, FRONT BUMPER ARM MOUNTING, LH (1 parts) 8867487001 — not listed in this catalogue 58476 — RETAINER, ENGINE SERVICE HOLE COVER CATCH (2 parts) 53204C — SUPPORT SUB-ASSY, RADIATOR RESERVER TANK (1 parts) 61794A — BRACKET, COOLER CONDENSER, NO.2 (1 parts) 55152 — BRACKET, 3 WAY ATTACHING (1 parts) 58476 — RETAINER, ENGINE SERVICE HOLE COVER CATCH (2 parts) 58491 — RETAINER, ENGINE COVER, NO.1 (1 parts) 55707A — BRACKET SUB-ASSY, COOLER MOUNTING (1 parts) 3377687002 — not listed in this catalogue 53253A — BRACKET, RADIATOR MOUNTING, UPPER (1 parts) 57511 — REINFORCEMENT, FRONT FLOOR, CENTER (1 parts) 58287 — RETAINER, SHIFT LEVER BOOT (1 parts) 58492 — RETAINER, ENGINE COVER, NO.2 (1 parts) 3134187003 — not listed in this catalogue 9046310065 — not listed in this catalogue 58187A — BRACKET, VACUUM TUBE CLAMP (1 parts) 53757A — BRACKET, HEATER HOSE MOUNTING (1 parts) 4491987002 — not listed in this catalogue 61793A — BRACKET, COOLER CONDENSER, NO.1 (2 parts) 58186A — BRACKET, BRAKE TUBE SET (2 parts) 57505 — BRACKET SUB-ASSY, PARKING BRAKE, NO.1 (1 parts) 58205B — HINGE SUB-ASSY, BATTERY SERVICE COVER MALE (1 parts) 58186A — BRACKET, BRAKE TUBE SET (2 parts) 58183A — RETAINER, SEAT RAIL, REAR RH (2 parts) 58181A — RETAINER, SEAT RAIL, FRONT (2 parts) 4738187002 — not listed in this catalogue 55763 — BRACKET, COOLER MOUNTING (1 parts) 4479787003 — not listed in this catalogue
MBF363D · 25 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
53204C — Support Sub-assy, Radiator Reserver Tank
53204-87002 Support Sub-assy, Radiator Reserver Tank
1983-08 → 1988-08 ended
YR2#,3# —
53253A — Bracket, Radiator Mounting, Upper
53253-87002 Bracket, Radiator Mounting, Upper
1983-08 → 1988-08 ended
YR2#,3# —
53273 — Bracket, Front Bumper Arm Mounting, RH
53273-28010 Bracket, Front Bumper Arm Mounting, RH
1983-08 → 1985-08 ended
YR2# —
53273-28020 Bracket, Front Bumper Arm Mounting, RH
1985-08 → 1988-08 ended
YR2#,3# —
53274 — Bracket, Front Bumper Arm Mounting, LH
53274-28010 Bracket, Front Bumper Arm Mounting, LH
1983-08 → 1988-08 ended
YR2#,3# —
53757A — Bracket, Heater Hose Mounting
53757-87003 Bracket, Heater Hose Mounting
1983-11 → 1988-08 ended
YR2#,3# —
55143 — Bracket, Cowl Side Trim Mounting, NO.1
55143-87001 Bracket, Cowl Side Trim Mounting, NO.1
1983-08 → 1988-08 ended
YR2#,3# —
55152 — Bracket, 3 Way Attaching
55152-87001 Bracket, 3 Way Attaching
1983-08 → 1985-08 ended
YR2# —
55707A — Bracket Sub-assy, Cooler Mounting
55707-28010 Bracket Sub-assy, Cooler Mounting
1983-08 → 1984-08 ended
YR21 —
55763 — Bracket, Cooler Mounting
55763-28010 Bracket, Cooler Mounting
1983-08 → 1988-08 ended
YR2#,3# —
57505 — Bracket Sub-assy, Parking Brake, NO.1
57505-87002 Bracket Sub-assy, Parking Brake, NO.1
1985-08 → 1988-08 ended
YR2#,3# —
57511 — Reinforcement, Front Floor, Center
57511-28020 Reinforcement, Front Floor, Center
1983-08 → 1988-08 ended
YR2#,3# —
58181A — Retainer, Seat Rail, Front
58181-28020 Retainer, Seat Rail, Front
1985-08 → 1988-08 ended
YR2#,3# —
58181-87005 Retainer, Seat Rail, Front
1983-08 → 1985-08 ended
YR2# —
58183A — Retainer, Seat Rail, Rear RH
58183-28010 Retainer, Seat Rail, Rear RH
1983-08 → 1985-08 ended
YR2# —
58183-28020 Retainer, Seat Rail, Rear RH
1985-08 → 1988-08 ended
YR2#,3# —
58186A — Bracket, Brake Tube Set
58186-28010 note Bracket, Brake Tube Set
1985-08 → 1988-08 ended
YR2#,3# —
58186-87001 note Bracket, Brake Tube Set
1985-08 → 1988-08 ended
YR2#,3# —
58187A — Bracket, Vacuum Tube Clamp
58187-87002 Bracket, Vacuum Tube Clamp
1985-08 → 1988-08 ended
YR2#,3# —
58205B — Hinge Sub-assy, Battery Service Cover Male
58205-87001 Hinge Sub-assy, Battery Service Cover Male
1983-08 → 1988-08 ended
YR2#,3# —
58236C — Bracket, Clutch Tube
58236-87004 Bracket, Clutch Tube
1983-08 → 1988-08 ended
YR2#,3# —
58287 — Retainer, Shift Lever Boot
58287-87004 Retainer, Shift Lever Boot
1983-08 → 1984-08 ended
YR2# —
58476 — Retainer, Engine Service Hole Cover Catch
58476-28030 note Retainer, Engine Service Hole Cover Catch
1983-08 → 1988-08 ended
YR2#,3# —
58476-87006 note Retainer, Engine Service Hole Cover Catch
1983-08 → 1988-08 ended
YR2#,3# —
58491 — Retainer, Engine Cover, NO.1
58491-87003 Retainer, Engine Cover, NO.1
1983-08 → 1988-08 ended
YR2#,3# —
58492 — Retainer, Engine Cover, NO.2
58492-87002 Retainer, Engine Cover, NO.2
1983-08 → 1988-08 ended
YR2#,3# —
61793A — Bracket, Cooler Condenser, NO.1
61793-87002 Bracket, Cooler Condenser, NO.1
1983-08 → 1985-08 ended
YR2# —
61793-87004 Bracket, Cooler Condenser, NO.1
1985-08 → 1988-08 ended
YR2#,3# —
61794A — Bracket, Cooler Condenser, NO.2
61794-87003 Bracket, Cooler Condenser, NO.2
1983-08 → 1988-08 ended
YR2#,3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
