Toyota Van
1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe
Discontinued model
Data version 1988-12

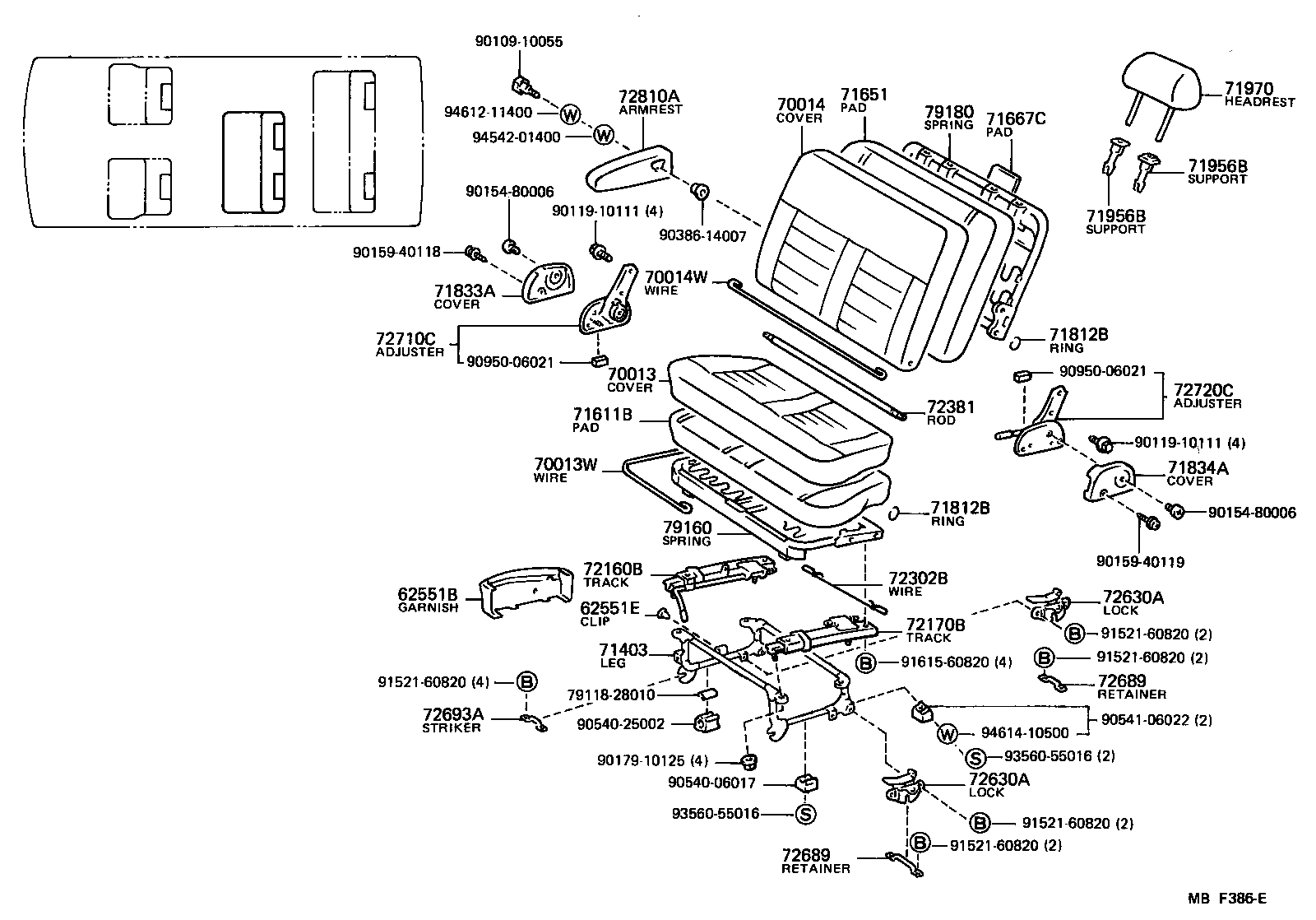

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62551B — Garnish, Rear Seat Side | ||||
| 62551-28020-02 note |
Garnish, Rear Seat Side
1983-08 → 1985-08
ended
|
YR21 | — | |
| 62551-28020-03 note |
Garnish, Rear Seat Side
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 62551-28020-03 note |
Garnish, Rear Seat Side
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 62551-28020-04 note |
Garnish, Rear Seat Side
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 62551-28020-06 note |
Garnish, Rear Seat Side
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 62551-28020-14 note |
Garnish, Rear Seat Side
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 62551E — Clip(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-10016-02 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1983-08 → 1984-08
ended
|
YR21 | — | |
| 90467-10016-04 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1983-08 → 1984-08
ended
|
YR21 LE | — | |
| 90467-10017-02 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1984-08 → 1985-08
ended
|
YR21 | — | |
| 90467-10017-14 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1984-08 → 1985-08
ended
|
YR21 LE | — | |
| 90467-10017-24 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 90467-10017-36 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 90467-10017-43 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 90467-10017-43 note |
Clip(FOR REAR SEAT SIDE GARNISH)
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 70013 — Cover Assy, NO.1 Seat Cushion | ||||
| 71066-28040-04 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-02
ended
|
YR22 LE | — | |
| 71066-28040-06 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-02
ended
|
YR22 LE | — | |
| 71075-28030 note |
Cover Assy, NO.1 Seat Cushion
1983-08 → 1984-08
ended
|
YR21 DLX | — | |
| 71075-28031-02 note |
Cover Assy, NO.1 Seat Cushion
1984-08 → 1985-08
ended
|
YR21 DLX | — | |
| 71075-28032-06 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-08
ended
|
YR22 DLX | — | |
| 71075-28033-06 note |
Cover Assy, NO.1 Seat Cushion
1986-08 → 1987-08
ended
|
YR22 DLX | — | |
| 71075-28034-03 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71075-28034-06 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71075-28040-02 note |
Cover Assy, NO.1 Seat Cushion
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71075-28040-04 note |
Cover Assy, NO.1 Seat Cushion
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71075-28041-04 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71075-28041-06 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71075-28042-03 note |
Cover Assy, NO.1 Seat Cushion
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71075-28042-06 note |
Cover Assy, NO.1 Seat Cushion
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71075-28043-03 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71075-28043-06 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71075-28060-04 note |
Cover Assy, NO.1 Seat Cushion
1986-02 → 1986-08
ended
|
YR22 LE | — | |
| 71075-28060-04 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-02
ended
|
YR22 LE | — | |
| 71075-28060-06 note |
Cover Assy, NO.1 Seat Cushion
1985-08 → 1986-02
ended
|
YR22 LE | — | |
| 71075-28060-06 note |
Cover Assy, NO.1 Seat Cushion
1986-02 → 1986-08
ended
|
YR22 LE | — | |
| 71075-28061-03 note |
Cover Assy, NO.1 Seat Cushion
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71075-28061-06 note |
Cover Assy, NO.1 Seat Cushion
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71075-28062-03 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71075-28062-06 note |
Cover Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 79011-28010 note |
Cover Assy, NO.1 Seat Cushion
1983-12 → 1985-08
ended
|
YR21 DLX USA | — | |
| 70013W — Wire, NO.1 Seat Cushion Cover | ||||
| 90580-20105 note |
Wire, NO.1 Seat Cushion Cover
1983-08 → 1985-08
ended
|
YR21 | — | |
| 90580-20110 note |
Wire, NO.1 Seat Cushion Cover
1983-08 → 1985-08
ended
|
YR21 | — | |
| 90580-25004 note |
Wire, NO.1 Seat Cushion Cover
1983-08 → 1985-08
ended
|
YR21 | — | |
| 70014 — Cover Assy, NO.1 Seatback | ||||
| 71077-28030 note |
Cover Assy, NO.1 Seatback
1983-08 → 1984-08
ended
|
YR21 DLX | — | |
| 71077-28031-02 note |
Cover Assy, NO.1 Seatback
1984-08 → 1985-08
ended
|
YR21 DLX | — | |
| 71077-28032-06 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 DLX | — | |
| 71077-28033-06 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22 DLX | — | |
| 71077-28034-03 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71077-28034-06 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71077-28040-02 note |
Cover Assy, NO.1 Seatback
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71077-28040-04 note |
Cover Assy, NO.1 Seatback
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71077-28041-04 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71077-28041-06 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71077-28042-03 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71077-28042-06 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71077-28043-03 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71077-28043-06 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71077-28060-04 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71077-28060-06 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71077-28061-03 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71077-28061-06 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71077-28062-03 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71077-28062-06 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71078-28040-04 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71078-28040-06 note |
Cover Assy, NO.1 Seatback
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71078-28041-03 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71078-28041-06 note |
Cover Assy, NO.1 Seatback
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71078-28042-03 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71078-28042-06 note |
Cover Assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 79013-28010 note |
Cover Assy, NO.1 Seatback
1983-12 → 1985-08
ended
|
YR21 DLX USA | — | |
| 70014W — Wire, NO.1 Seatback Cover | ||||
| 90580-20110 note |
Wire, NO.1 Seatback Cover
1983-08 → 1985-08
ended
|
YR21 | — | |
| 90580-25004 note |
Wire, NO.1 Seatback Cover
1983-08 → 1985-08
ended
|
YR21 | — | |
| 71403 — Leg Sub-assy, Rear NO.1 Seat | ||||
| 71403-28011 |
Leg Sub-assy, Rear NO.1 Seat
1987-09 → 1988-08
ended
|
YR22,31 | — | |
| 71611B — Pad, Rear NO.1 Seat Cushion | ||||
| 71611-28020 |
Pad, Rear NO.1 Seat Cushion
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 71611-28030 note |
Pad, Rear NO.1 Seat Cushion
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71612-28020 note |
Pad, Rear NO.1 Seat Cushion
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71651 — Pad, Rear NO.1 Seatback | ||||
| 71651-28020 |
Pad, Rear NO.1 Seatback
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 71651-28030 note |
Pad, Rear NO.1 Seatback
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71667C — Pad, Rear NO.1 Seatback, Center | ||||
| 71667-87001 |
Pad, Rear NO.1 Seatback, Center
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 71812B — Clip(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
Clip(FOR REAR SEAT CUSHION COVER)
1985-08 → 1988-08
ended
|
YR2#,3# | — | |
| 71833A — Cover, Rear Seat Reclining, NO.1 RH | ||||
| 71811-28010-02 note |
Cover, Rear Seat Reclining, NO.1 RH
1983-08 → 1985-08
ended
|
YR21 | — | |
| 71811-28010-03 note |
Cover, Rear Seat Reclining, NO.1 RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71811-28010-03 note |
Cover, Rear Seat Reclining, NO.1 RH
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 71811-28010-04 note |
Cover, Rear Seat Reclining, NO.1 RH
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71811-28010-06 note |
Cover, Rear Seat Reclining, NO.1 RH
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 71811-28010-14 note |
Cover, Rear Seat Reclining, NO.1 RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71833-28020-03 note |
Cover, Rear Seat Reclining, NO.1 RH
1986-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71833-28020-04 note |
Cover, Rear Seat Reclining, NO.1 RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71833-28020-06 note |
Cover, Rear Seat Reclining, NO.1 RH
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71834A — Cover, Rear Seat Reclining, NO.1 LH | ||||
| 71812-28010-02 note |
Cover, Rear Seat Reclining, NO.1 LH
1983-08 → 1985-08
ended
|
YR21 | — | |
| 71812-28010-03 note |
Cover, Rear Seat Reclining, NO.1 LH
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 71812-28010-03 note |
Cover, Rear Seat Reclining, NO.1 LH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71812-28010-04 note |
Cover, Rear Seat Reclining, NO.1 LH
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71812-28010-06 note |
Cover, Rear Seat Reclining, NO.1 LH
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 71812-28010-14 note |
Cover, Rear Seat Reclining, NO.1 LH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71812-28030-03 note |
Cover, Rear Seat Reclining, NO.1 LH
1986-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71812-28030-04 note |
Cover, Rear Seat Reclining, NO.1 LH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71812-28030-06 note |
Cover, Rear Seat Reclining, NO.1 LH
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71956B — Support, Rear Seat Headrest | ||||
| 71930-10060-02 note |
Support, Rear Seat Headrest
1983-08 → 1985-08
ended
|
YR21 | — | |
| 71930-10060-04 note |
Support, Rear Seat Headrest
1983-08 → 1986-08
ended
|
YR21,22 LE | — | |
| 71930-10060-16 note |
Support, Rear Seat Headrest
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 71930-10060-33 note |
Support, Rear Seat Headrest
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71930-10060-33 note |
Support, Rear Seat Headrest
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 71931-10010-02 note |
Support, Rear Seat Headrest
1983-08 → 1985-08
ended
|
YR21 | — | |
| 71931-10010-06 note |
Support, Rear Seat Headrest
1983-08 → 1986-08
ended
|
YR21,22 LE | — | |
| 71931-10010-16 note |
Support, Rear Seat Headrest
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 71931-10010-33 note |
Support, Rear Seat Headrest
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71931-10010-33 note |
Support, Rear Seat Headrest
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 71970 — Headrest Assy, Rear Seat | ||||
| 71910-28020-04 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71910-28020-06 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71910-28021-03 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71910-28021-06 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71910-28022-03 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71910-28022-06 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71910-32010-02 note |
Headrest Assy, Rear Seat
1983-08 → 1984-08
ended
|
YR21 DLX | — | |
| 71910-32100-02 note |
Headrest Assy, Rear Seat
1984-08 → 1985-08
ended
|
YR21 DLX | — | |
| 71910-32100-05 note |
Headrest Assy, Rear Seat
1985-08 → 1987-08
ended
|
YR22 DLX | — | |
| 71940-28010-02 note |
Headrest Assy, Rear Seat
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71940-28010-04 note |
Headrest Assy, Rear Seat
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 71940-28011-04 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71940-28011-06 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71940-28012-03 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71940-28012-06 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71940-28020-04 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71940-28020-06 note |
Headrest Assy, Rear Seat
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 71940-28021-03 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71940-28021-06 note |
Headrest Assy, Rear Seat
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 71940-28060-03 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71940-28060-06 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 71940-28070-03 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71940-28070-06 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71940-28080-03 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 71940-28080-06 note |
Headrest Assy, Rear Seat
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72160B — Track Assy, Rear NO.1 Seat, RH | ||||
| 72160-87001 |
Track Assy, Rear NO.1 Seat, RH
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72160-87005 |
Track Assy, Rear NO.1 Seat, RH
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72170B — Track Assy, Rear NO.1 Seat, LH | ||||
| 72170-87001 |
Track Assy, Rear NO.1 Seat, LH
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72170-87004 |
Track Assy, Rear NO.1 Seat, LH
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72302B — Wire Sub-assy, Rear Seat Track Equalizing | ||||
| 72302-87001 |
Wire Sub-assy, Rear Seat Track Equalizing
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72381 — Rod, Reclining Adjuster Equalizing, NO.1 | ||||
| 72381-28020 note |
Rod, Reclining Adjuster Equalizing, NO.1
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72381-87001 |
Rod, Reclining Adjuster Equalizing, NO.1
1983-08 → 1988-08
ended
|
YR21,22,27,31 | — | |
| 72630A — Lock Assy, Rear NO.1 Seat | ||||
| 72610-28020 |
Lock Assy, Rear NO.1 Seat
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72610-28030 |
Lock Assy, Rear NO.1 Seat
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72689 — Retainer, Seatback Lock Striker Cover | ||||
| 72691-28010 note |
Retainer, Seatback Lock Striker Cover
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72691-28020 note |
Retainer, Seatback Lock Striker Cover
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72692-28010 note |
Retainer, Seatback Lock Striker Cover
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72692-28020 note |
Retainer, Seatback Lock Striker Cover
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72693A — Striker, Rear Seat Cushion Lock, NO.3 | ||||
| 72693-28010 |
Striker, Rear Seat Cushion Lock, NO.3
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72693-28020 |
Striker, Rear Seat Cushion Lock, NO.3
1984-08 → 1985-08
ended
|
YR21 | — | |
| 72710C — Adjuster Assy, NO.1 Seat Reclining, RH | ||||
| 72730-28020-02 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72730-28020-04 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1983-08 → 1984-08
ended
|
YR21 LE | — | |
| 72730-28040-02 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1984-08 → 1985-08
ended
|
YR21 | — | |
| 72730-28040-03 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1987-08 → 1988-08
ended
|
YR22,31 | — | |
| 72730-28040-03 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 72730-28040-04 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1984-08 → 1985-08
ended
|
YR21 LE | — | |
| 72730-28040-06 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1985-08 → 1988-08
ended
|
YR22,31 | — | |
| 72730-28040-14 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72730-28050-03 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1986-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72730-28050-04 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72730-28050-06 note |
Adjuster Assy, NO.1 Seat Reclining, RH
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72720C — Adjuster Assy, NO.1 Seat Reclining, LH | ||||
| 72630-28030 note |
Adjuster Assy, NO.1 Seat Reclining, LH
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72740-28030 |
Adjuster Assy, NO.1 Seat Reclining, LH
1983-08 → 1984-08
ended
|
YR21 | — | |
| 72740-28050 |
Adjuster Assy, NO.1 Seat Reclining, LH
1984-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 72810A — Armrest Assy, Seat, RH | ||||
| 72810-28010 note |
Armrest Assy, Seat, RH
1983-08 → 1984-08
ended
|
YR21 DLX | — | |
| 72810-28010-02 note |
Armrest Assy, Seat, RH
1984-08 → 1985-08
ended
|
YR21 DLX | — | |
| 72810-28011-03 note |
Armrest Assy, Seat, RH
1987-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 72810-28011-06 note |
Armrest Assy, Seat, RH
1985-08 → 1988-08
ended
|
YR22,31 DLX | — | |
| 72810-28020-02 note |
Armrest Assy, Seat, RH
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 72810-28020-04 note |
Armrest Assy, Seat, RH
1983-08 → 1985-08
ended
|
YR21 LE | — | |
| 72810-28021-04 note |
Armrest Assy, Seat, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72810-28021-06 note |
Armrest Assy, Seat, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72810-28022-03 note |
Armrest Assy, Seat, RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 72810-28022-06 note |
Armrest Assy, Seat, RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 72810-28023-03 note |
Armrest Assy, Seat, RH
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72810-28023-06 note |
Armrest Assy, Seat, RH
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72810-28040-04 note |
Armrest Assy, Seat, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72810-28040-06 note |
Armrest Assy, Seat, RH
1985-08 → 1986-08
ended
|
YR22 LE | — | |
| 72810-28041-03 note |
Armrest Assy, Seat, RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 72810-28041-06 note |
Armrest Assy, Seat, RH
1986-08 → 1987-08
ended
|
YR22,31 LE | — | |
| 72810-28042-03 note |
Armrest Assy, Seat, RH
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 72810-28042-06 note |
Armrest Assy, Seat, RH
1987-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 79160 — Spring Assy, NO.1 Seat Cushion | ||||
| 79160-28020 |
Spring Assy, NO.1 Seat Cushion
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 79160-28030 note |
Spring Assy, NO.1 Seat Cushion
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 79170-28020 note |
Spring Assy, NO.1 Seat Cushion
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
| 79180 — Spring Assy, NO.1 Seatback | ||||
| 79180-28010 |
Spring Assy, NO.1 Seatback
1983-08 → 1988-08
ended
|
YR21,22,31 | — | |
| 79180-28020 note |
Spring Assy, NO.1 Seatback
1985-08 → 1988-08
ended
|
YR22,31 LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
