Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

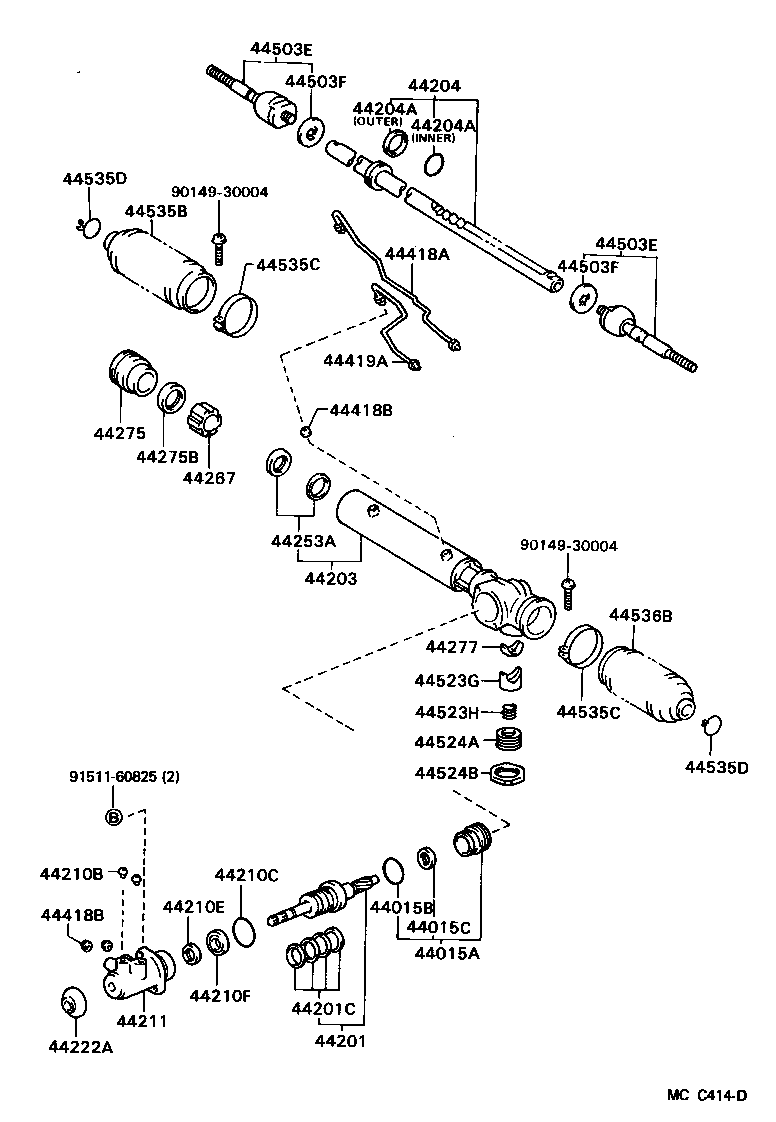

Exploded illustration MCC414D 44503E — END SUB-ASSY, STEERING RACK(FOR POWER STEERING) (3 parts) 44503F — WASHER, CLAW(FOR POWER STEERING RACK END) (1 parts) 44204 — RACK SUB-ASSY, POWER STEERING (2 parts) 44204A — RING(FOR RACK STEERING PISTON) (2 parts) 44204A — RING(FOR RACK STEERING PISTON) (2 parts) 44535D — CLIP(FOR POWER STEERING RACK BOOT) (1 parts) 9014930004 — not listed in this catalogue 44535B — BOOT, STEERING RACK NO.1(FOR POWER STEERING) (1 parts) 44503E — END SUB-ASSY, STEERING RACK(FOR POWER STEERING) (3 parts) 44418A — TUBE, STEERING RIGHT TURN PRESSURE (2 parts) 44535C — CLAMP(FOR POWER STEERING RACK BOOT) (1 parts) 44503F — WASHER, CLAW(FOR POWER STEERING RACK END) (1 parts) 44419A — TUBE, STEERING LEFT TURN PRESSURE (2 parts) 44418B — SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) (2 parts) 44275 — STOPPER, CYLINDER END (1 parts) 44275B — SEAL, OIL(FOR CYLINDER END STOPPER) (1 parts) 44267 — GUIDE, RACK END (1 parts) 44253A — SEAL, OIL(FOR POWER STEERING RACK HOUSING) (1 parts) 9014930004 — not listed in this catalogue 44203 — HOUSING SUB-ASSY, POWER STEERING RACK (3 parts) 44536B — BOOT, STEERING RACK NO.2(FOR POWER STEERING) (1 parts) 44277 — SEAT, RACK GUIDE (1 parts) 44523G — GUIDE, RACK(FOR POWER STEERING) (1 parts) 44523H — SPRING(FOR POWER STEERING RACK GUIDE) (1 parts) 44535C — CLAMP(FOR POWER STEERING RACK BOOT) (1 parts) 44524A — CAP, RACK GUIDE SPRING(FOR POWER STEERING) (1 parts) 44535D — CLIP(FOR POWER STEERING RACK BOOT) (1 parts) 44524B — NUT(FOR POWER STEERING RACK GUIDE CAP) (1 parts) 9151160825 — not listed in this catalogue 44210B — SEAT, UNION(FOR POWER STEERING CONTROL VALVE) (1 parts) 44210C — RING, O(FOR POWER STEERING CONTROL VALVE) (1 parts) 44210E — SEAL, OIL(FOR POWER STEERING CONTROL VALVE) (1 parts) 44015B — RING, O(FOR BEARING GUIDE NUT) (1 parts) 44418B — SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) (2 parts) 44015C — SEAL, OIL(FOR BEARING GUIDE NUT) (1 parts) 44015A — NUT SUB-ASSY, BEARING GUIDE (1 parts) 44210F — BEARING(FOR POWER STEERING CONTROL VALVE) (1 parts) 44201C — RING(FOR POWER STEERING CONTROL VALVE) (2 parts) 44211 — HOUSING, CONTROL VALVE (1 parts) 44201 — VALVE SUB-ASSY, POWER STEERING CONTROL (3 parts) 44222A — COVER, DUST(FOR POWER STEERING GEAR) (1 parts)
MCC414D · 38 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
44015A — Nut Sub-assy, Bearing Guide
44015-20010 Nut Sub-assy, Bearing Guide
1985-08 → 1988-08 ended
YR2#,3# —
44015B — Ring, O(FOR BEARING GUIDE NUT)
90301-43002 Ring, O(FOR BEARING GUIDE NUT)
1985-08 → 1988-08 ended
YR2#,3# —
44015C — Seal, Oil(FOR BEARING GUIDE NUT)
90310-25004 Seal, Oil(FOR BEARING GUIDE NUT)
1985-08 → 1988-08 ended
YR2#,3# —
44201 — Valve Sub-assy, Power Steering Control
44201-22010 Valve Sub-assy, Power Steering Control
1985-08 → 1988-08 ended
YR22 —
44201-28040 Valve Sub-assy, Power Steering Control
1985-08 → 1988-08 ended
YR29 —
44201-28060 Valve Sub-assy, Power Steering Control
1986-08 → 1988-08 ended
YR3# —
44201C — Ring(FOR POWER STEERING CONTROL VALVE)
90562-32002 Ring(FOR POWER STEERING CONTROL VALVE)
1985-08 → 1988-08 ended
YR2# —
90562-32003 Ring(FOR POWER STEERING CONTROL VALVE)
1986-08 → 1988-08 ended
YR3# —
44203 — Housing Sub-assy, Power Steering Rack
44203-28020 Housing Sub-assy, Power Steering Rack
1985-08 → 1988-08 ended
YR22 —
44203-28040 Housing Sub-assy, Power Steering Rack
1985-08 → 1988-08 ended
YR29 —
44203-28060 Housing Sub-assy, Power Steering Rack
1986-08 → 1988-08 ended
YR3# —
44204 — Rack Sub-assy, Power Steering
44204-28020 Rack Sub-assy, Power Steering
1985-08 → 1988-08 ended
YR2# —
44204-28040 Rack Sub-assy, Power Steering
1986-08 → 1988-08 ended
YR3# —
44204A — Ring(FOR RACK STEERING PISTON)
90301-39003 note Ring(FOR RACK STEERING PISTON)
1985-08 → 1988-08 ended
YR2#,3# —
90562-43001 note Ring(FOR RACK STEERING PISTON)
1985-08 → 1988-08 ended
YR2#,3# —
44210B — Seat, Union(FOR POWER STEERING CONTROL VALVE)
90410-06005 Seat, Union(FOR POWER STEERING CONTROL VALVE)
1985-08 → 1988-08 ended
YR2#,3# —
44210C — Ring, O(FOR POWER STEERING CONTROL VALVE)
90301-51001 Ring, O(FOR POWER STEERING CONTROL VALVE)
1985-08 → 1988-08 ended
YR2#,3# —
44210E — Seal, Oil(FOR POWER STEERING CONTROL VALVE)
90311-19002 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
1985-08 → 1988-08 ended
YR2#,3# —
44210F — Bearing(FOR POWER STEERING CONTROL VALVE)
90363-19003 Bearing(FOR POWER STEERING CONTROL VALVE)
1985-08 → 1988-08 ended
YR2#,3# —
44211 — Housing, Control Valve
44211-22020 Housing, Control Valve
1985-08 → 1988-08 ended
YR2#,3# —
44222A — Cover, Dust(FOR POWER STEERING GEAR)
45222-32010 Cover, Dust(FOR POWER STEERING GEAR)
1985-08 → 1988-08 ended
YR2#,3# —
44253A — Seal, Oil(FOR POWER STEERING RACK HOUSING)
90999-99132 Seal, Oil(FOR POWER STEERING RACK HOUSING)
1985-08 → 1988-08 ended
YR2#,3# —
44267 — Guide, Rack End
44267-28010 Guide, Rack End
1985-08 → 1988-08 ended
YR2#,3# —
44275 — Stopper, Cylinder End
44275-28010 Stopper, Cylinder End
1985-08 → 1988-08 ended
YR2#,3# —
44275B — Seal, Oil(FOR CYLINDER END STOPPER)
90310-30004 Seal, Oil(FOR CYLINDER END STOPPER)
1985-08 → 1988-08 ended
YR2#,3# —
44277 — Seat, Rack Guide
44277-28010 Seat, Rack Guide
1985-08 → 1988-08 ended
YR2#,3# —
44418A — Tube, Steering Right Turn Pressure
44419-28020 Tube, Steering Right Turn Pressure
1985-08 → 1988-08 ended
YR2# —
44419-28040 Tube, Steering Right Turn Pressure
1986-08 → 1988-08 ended
YR3# —
44418B — Seat, Union(FOR STEERING TURN PRESSURE TUBE)
90410-04001 note Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1985-08 → 1988-08 ended
YR2#,3# —
90410-04002 note Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1985-08 → 1988-08 ended
YR2#,3# —
44419A — Tube, Steering Left Turn Pressure
44418-28020 Tube, Steering Left Turn Pressure
1985-08 → 1988-08 ended
YR2# —
44418-28040 Tube, Steering Left Turn Pressure
1986-08 → 1988-08 ended
YR3# —
44503E — End Sub-assy, Steering Rack(FOR POWER STEERING)
45503-29016 End Sub-assy, Steering Rack(FOR POWER STEERING)
1985-08 → 1986-08 ended
YR2# —
45503-29085 End Sub-assy, Steering Rack(FOR POWER STEERING)
1986-08 → 1988-08 ended
YR3# —
45503-29125 End Sub-assy, Steering Rack(FOR POWER STEERING)
1986-08 → 1988-08 ended
YR2# —
44503F — Washer, Claw(FOR POWER STEERING RACK END)
90214-14005 Washer, Claw(FOR POWER STEERING RACK END)
1985-08 → 1988-08 ended
YR2#,3# —
44523G — Guide, Rack(FOR POWER STEERING)
45523-28010 Guide, Rack(FOR POWER STEERING)
1985-08 → 1988-08 ended
YR2#,3# —
44523H — Spring(FOR POWER STEERING RACK GUIDE)
90501-23024 Spring(FOR POWER STEERING RACK GUIDE)
1985-08 → 1988-08 ended
YR2#,3# —
44524A — Cap, Rack Guide Spring(FOR POWER STEERING)
45524-16010 Cap, Rack Guide Spring(FOR POWER STEERING)
1985-08 → 1988-08 ended
YR2#,3# —
44524B — Nut(FOR POWER STEERING RACK GUIDE CAP)
90179-36002 Nut(FOR POWER STEERING RACK GUIDE CAP)
1985-08 → 1988-08 ended
YR2#,3# —
44535B — Boot, Steering Rack NO.1(FOR POWER STEERING)
45535-28010 Boot, Steering Rack NO.1(FOR POWER STEERING)
1985-08 → 1988-08 ended
YR2#,3# —
44535C — Clamp(FOR POWER STEERING RACK BOOT)
90461-12298 Clamp(FOR POWER STEERING RACK BOOT)
1985-08 → 1988-08 ended
YR2#,3# —
44535D — Clip(FOR POWER STEERING RACK BOOT)
90467-18003 Clip(FOR POWER STEERING RACK BOOT)
1985-08 → 1988-08 ended
YR2#,3# —
44536B — Boot, Steering Rack NO.2(FOR POWER STEERING)
45535-28010 Boot, Steering Rack NO.2(FOR POWER STEERING)
1985-08 → 1988-08 ended
YR2#,3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
