Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 2 illustrations

Illustrations

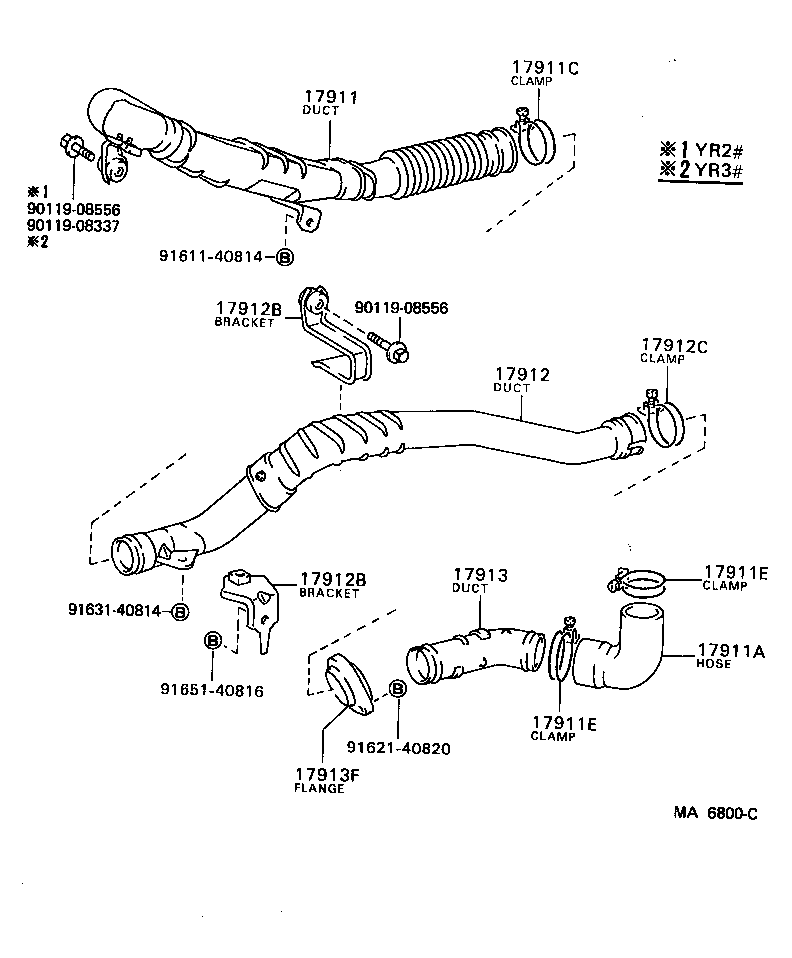

Figure MA6799D MA6799D 1983-08 → — Figure MA6800C MA6800C 1983-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17853 Insulator, Air Cleaner Bracket
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17911 Duct, Cool Air Intake, NO.1
17911A Hose, Cool Air Intake, NO.1
17911C Clamp, Cool Air Intake Duct, NO.1
17911E Clamp, Cool Air Intake Hose, NO.1
17912 Duct, Cool Air Intake, NO.2
17912B Bracket, Cool Air Intake Duct, NO.2
17912C Clamp, Cool Air Intake Duct, NO.2
17913 Duct, Cool Air Intake, NO.3
17913F Flange, Cool Air Intake Duct, NO.3
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
