Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 3 illustrations

Illustrations

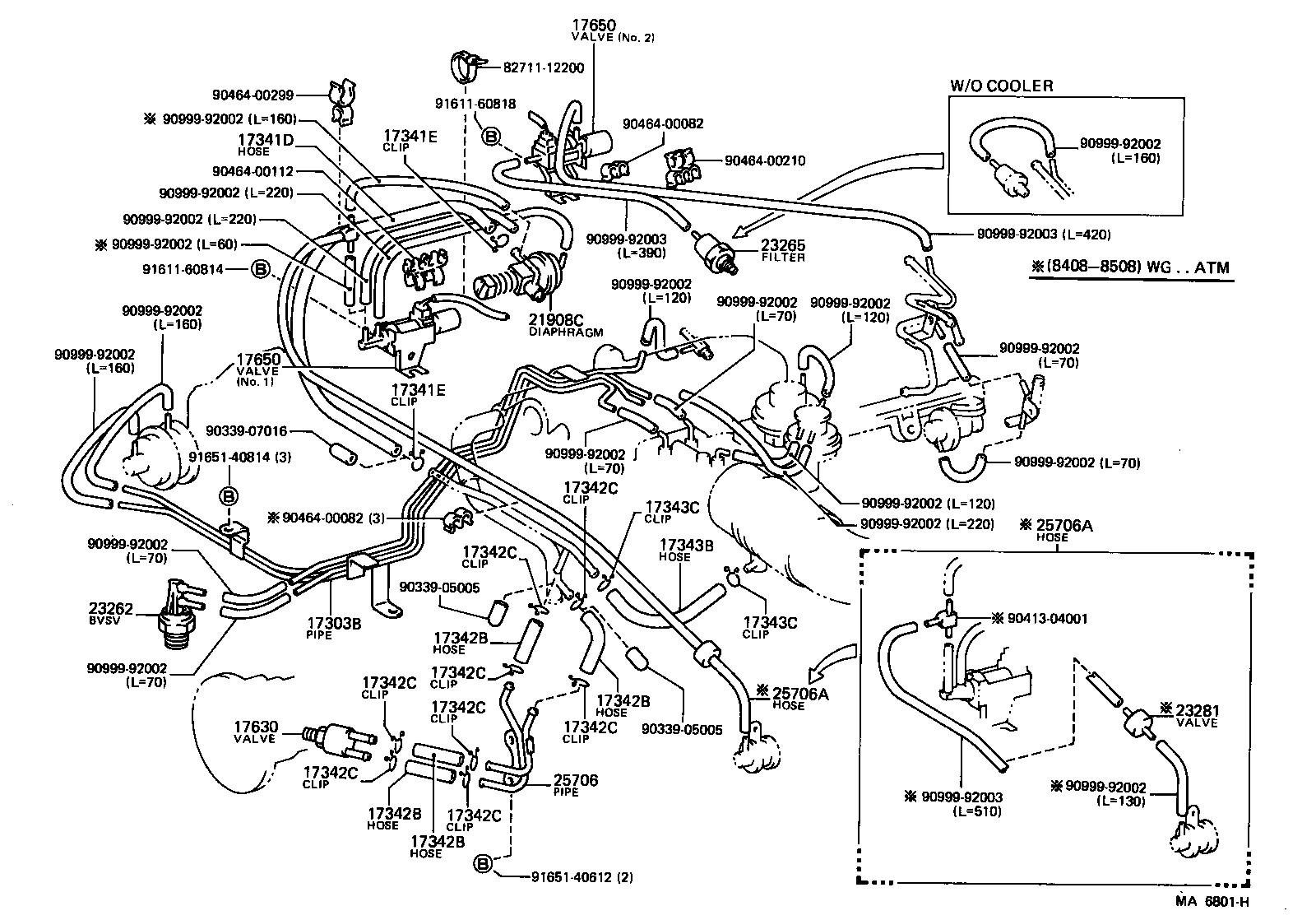

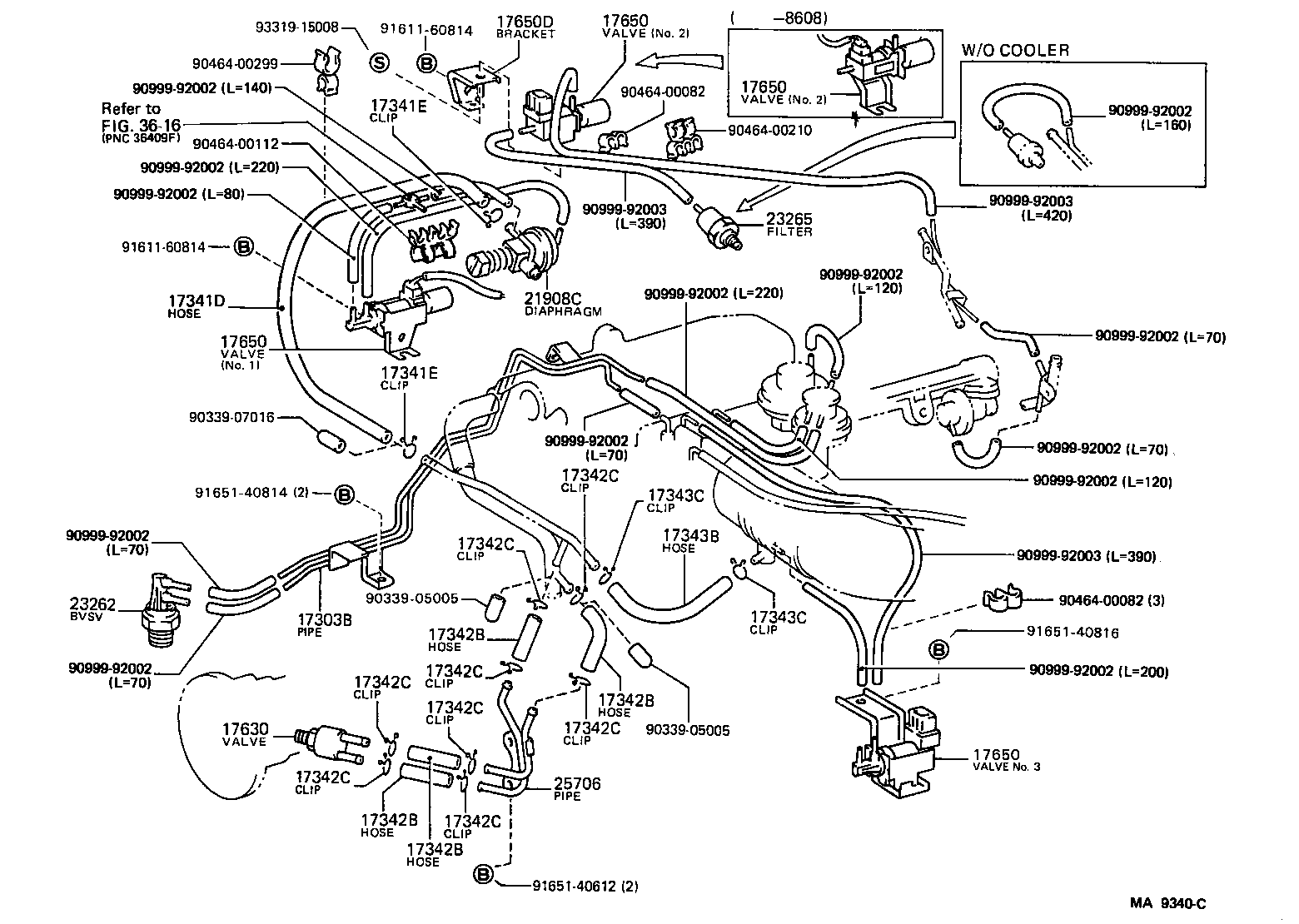

Figure MA9504B MA9504B 1983-08 → — Figure MA6801H MA6801H 1983-08 → 1985-08 Figure MA9340C MA9340C 1985-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
21908C Diaphragm Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25706A Device Sub-assy, Idle UP
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
