Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

24 part groups · 3 illustrations

Illustrations

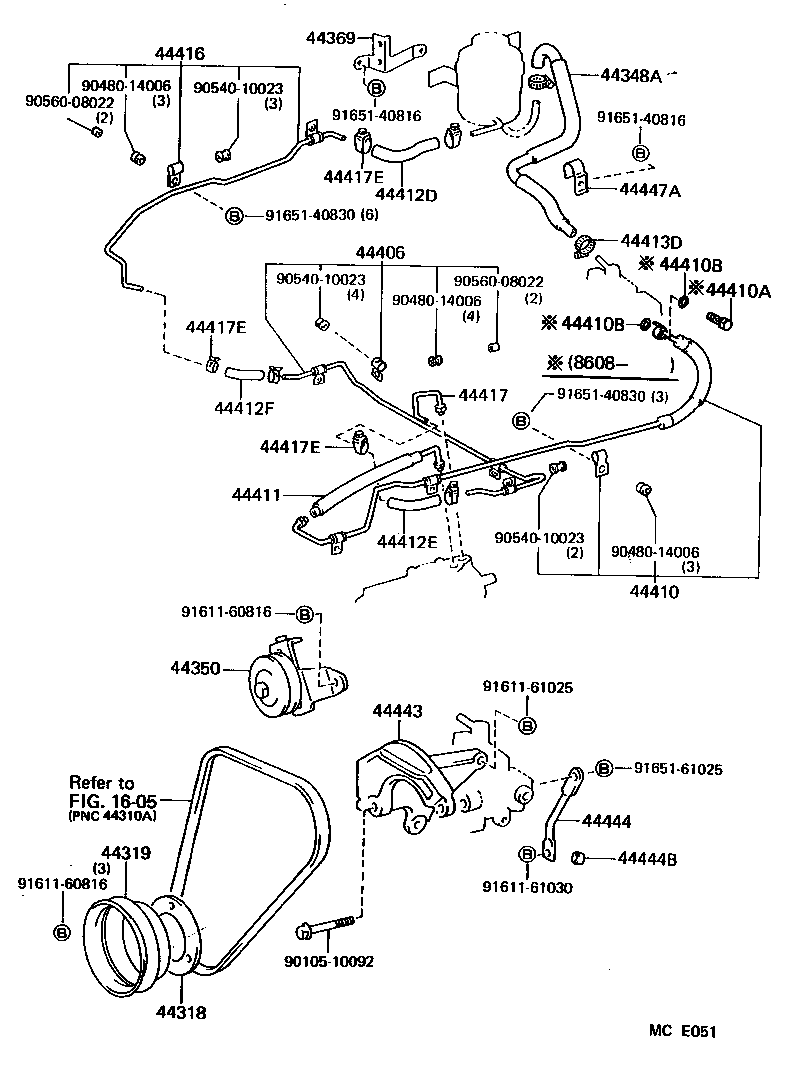

Figure MCA206C MCA206C 1983-08 → 1985-08 Figure MCE051 MCE051 1985-08 → — Figure MCD723A MCD723A 1986-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44413B Hose(FOR RESERVOIR TANK INLET)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416A Clamp(FOR RETURN HOSE)
44417 Tube, Return, NO.2
44417E Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
44443 Bracket, Pump
44444 Stay, Pump, Rear
44444B Collar (FOR PUMP REAR STAY)
44447A Bracket, Hose Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
