Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 2 illustrations

Illustrations

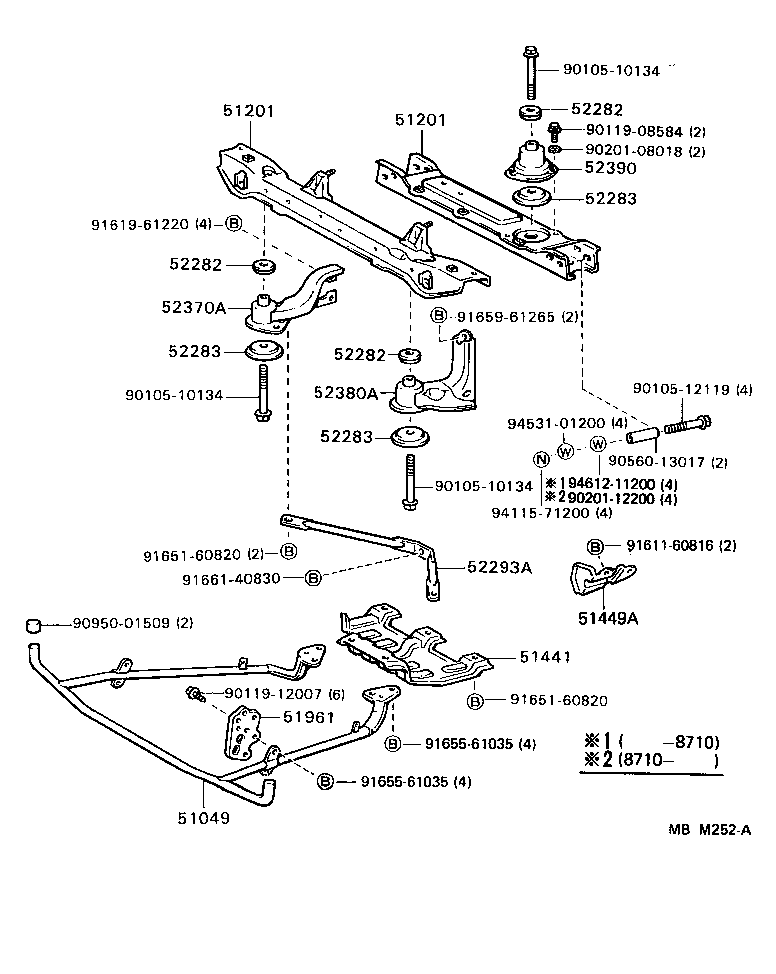

Figure MBF354F MBF354F 1983-08 → — Figure MBM252A MBM252A 1986-08 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51215 Reinforcement, Front Suspension Crossmember
51235 Bracket, Front Suspension Crossmember, RH
51236 Bracket, Front Suspension Crossmember, LH
51441 Cover, Engine Under, NO.1
51449A Cover, Engine Side Under, LH
51505B Support Sub-assy, Upper Control Arm, RH
51506B Support Sub-assy, Upper Control Arm, LH
51961 Hook, NO.1
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
