Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 4 illustrations

Illustrations

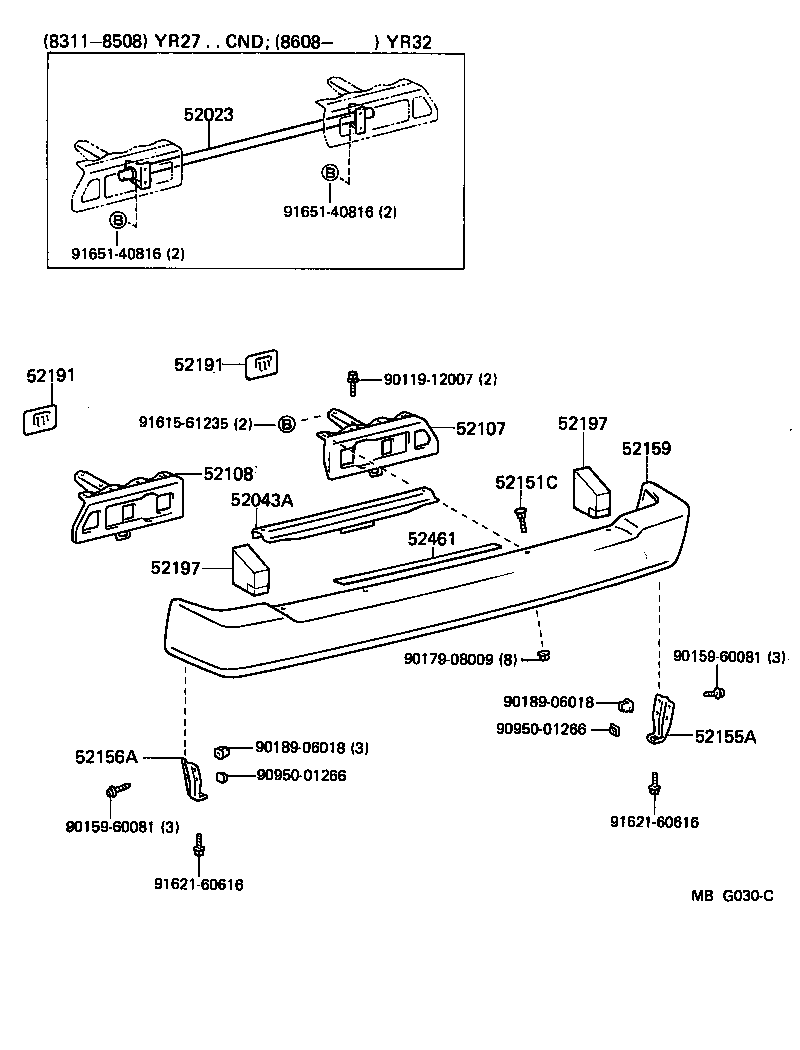

Figure MBF356A MBF356A 1983-08 → — Figure MBF356A MBF356A 1984-02 → 1985-08 Figure MBG030C MBG030C 1983-11 → 1985-08 Figure MBG030C MBG030C 1985-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52043A Reinforcement Sub-assy, Rear Bumper Bar NO.2
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52155A Support, Rear Bumper Side, RH
52155B Support, Rear Bumper Side, NO.2 RH
52156A Support, Rear Bumper Side, LH
52156B Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52191 Packing, Rear Bumper Stay
52197 Seal, Rear Bumper Lower TO Upper
52461 Pad, Rear Bumper, Center
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
