Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

20 part groups · 2 illustrations

Illustrations

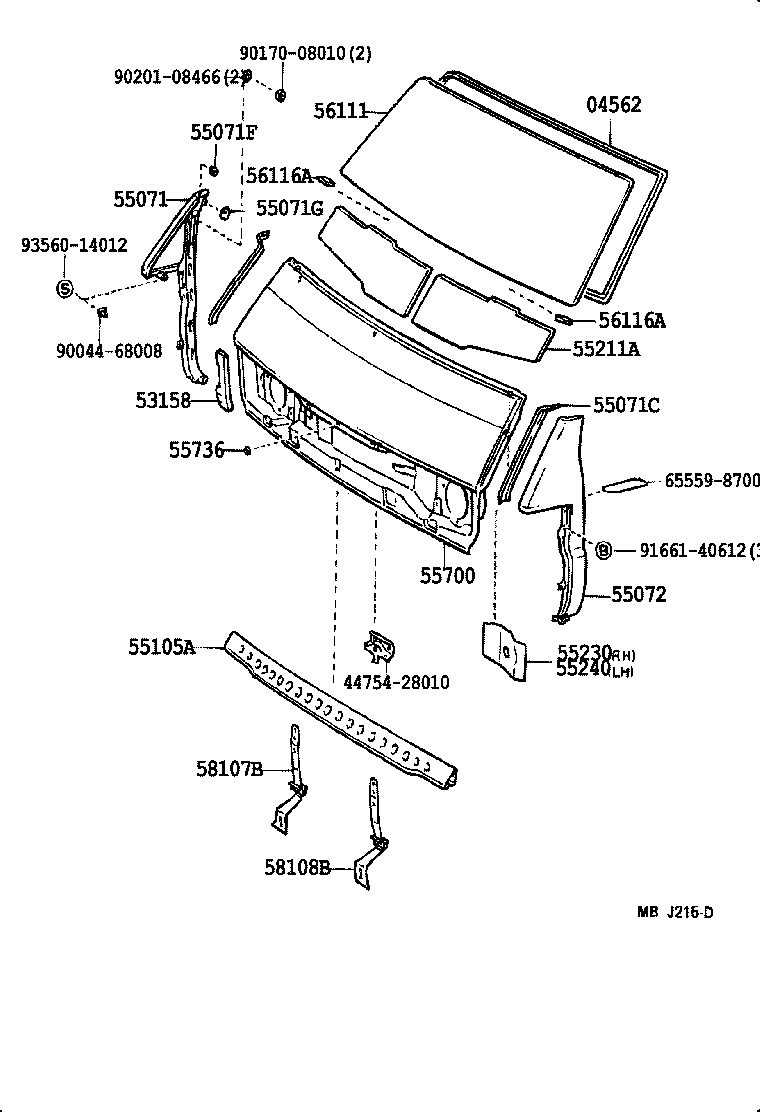

Figure MBF360D MBF360D 1983-08 → 1985-08 Figure 552635 552635 1985-08 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53158 Pad, Headlamp Door, RH
55071 Panel Sub-assy, Front Side, RH
55071C Protector, Front Side Panel, NO.1
55071E Protector, Front Side Panel, NO.3
55071F Protector, Front Side Panel, NO.4
55071G Retainer, Front Side Panel Set
55072 Panel Sub-assy, Front Side, LH
55105A Member Sub-assy, Front Panel
55174 Bracket, Brake Pedal Mounting, NO.2
55211A Silencer, Front Panel, Upper
55212A Silencer, Front Panel, Lower
55230 Silencer Assy, Headlamp Cover, RH
55240 Silencer Assy, Headlamp Cover, LH
55700 Panel Assy, Front
55736 Seal, Water Guard Plate
56111 Glass, Windshield
56116A Spacer, Windshield Glass
58107B Reinforcement Sub-assy, Front Cross TO Front Panel, RH
58108B Reinforcement Sub-assy, Front Cross TO Front Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
