Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 3 illustrations

Illustrations

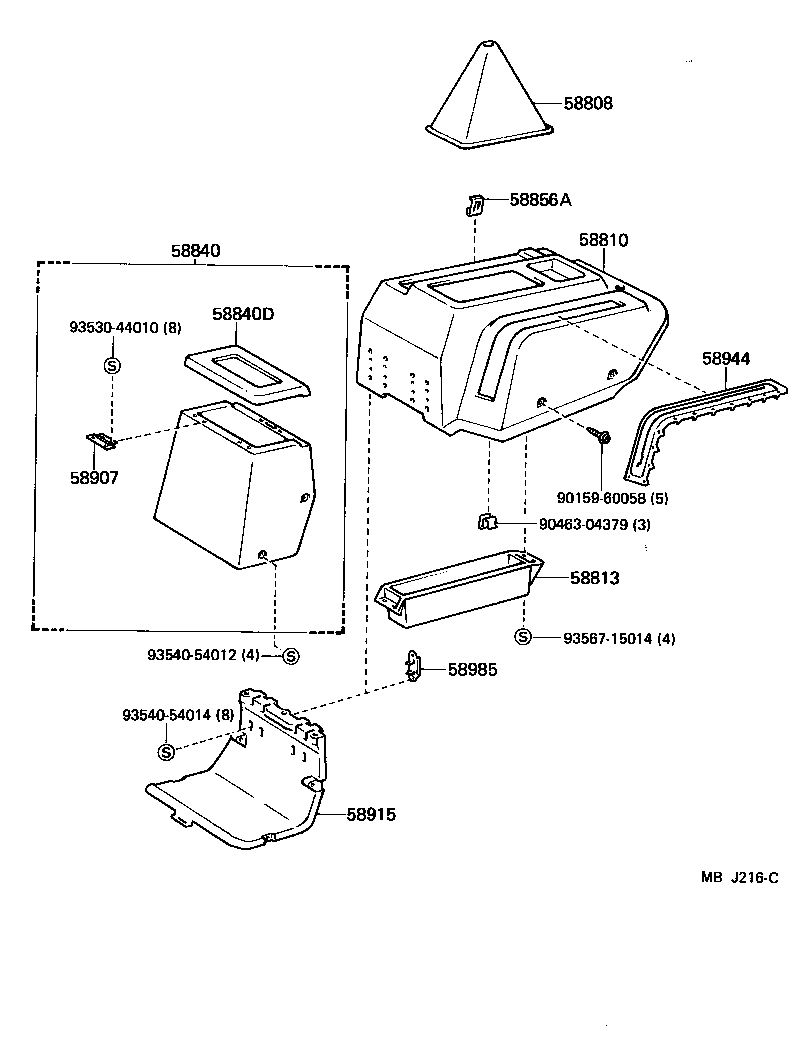

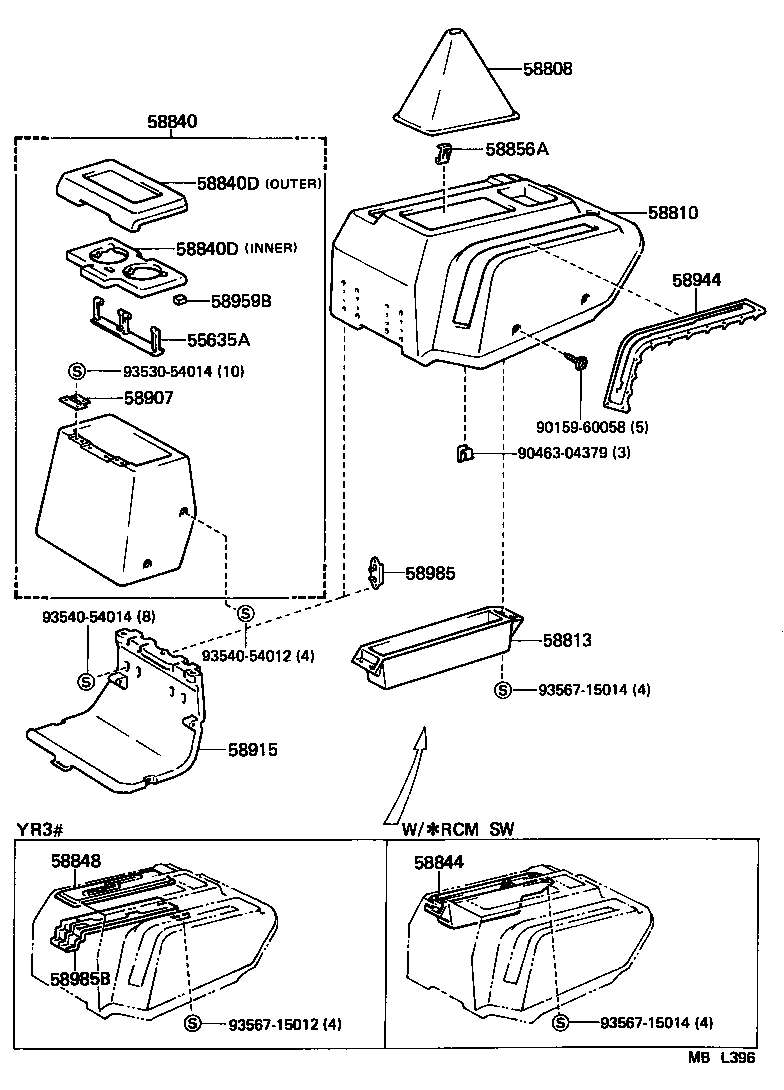

Figure MBF368B MBF368B 1983-08 → 1985-08 Figure MBJ216C MBJ216C 1985-08 → 1986-08 Figure MBL396 MBL396 1986-08 → —

Part groups

PNCDescription
55635A Support, Instrument Panel Cup Holder, NO.2
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58813 Box, Console, Upper
58840 Box Assy, Console Compartment
58840D Door, Console Compartment Box
58844 Bezel, Console Box
58848 Cover, Shift Lever Hole
58856A Holder, Console Box
58907 Hinge Sub-assy, Console Compartment Door
58915 Panel, Box Bottom
58944 Cover, Parking Brake Hole
58959B Cushion, Console Compartment Door
58985 Retainer, Console Box
58985B Retainer, Console Box, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
