Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12

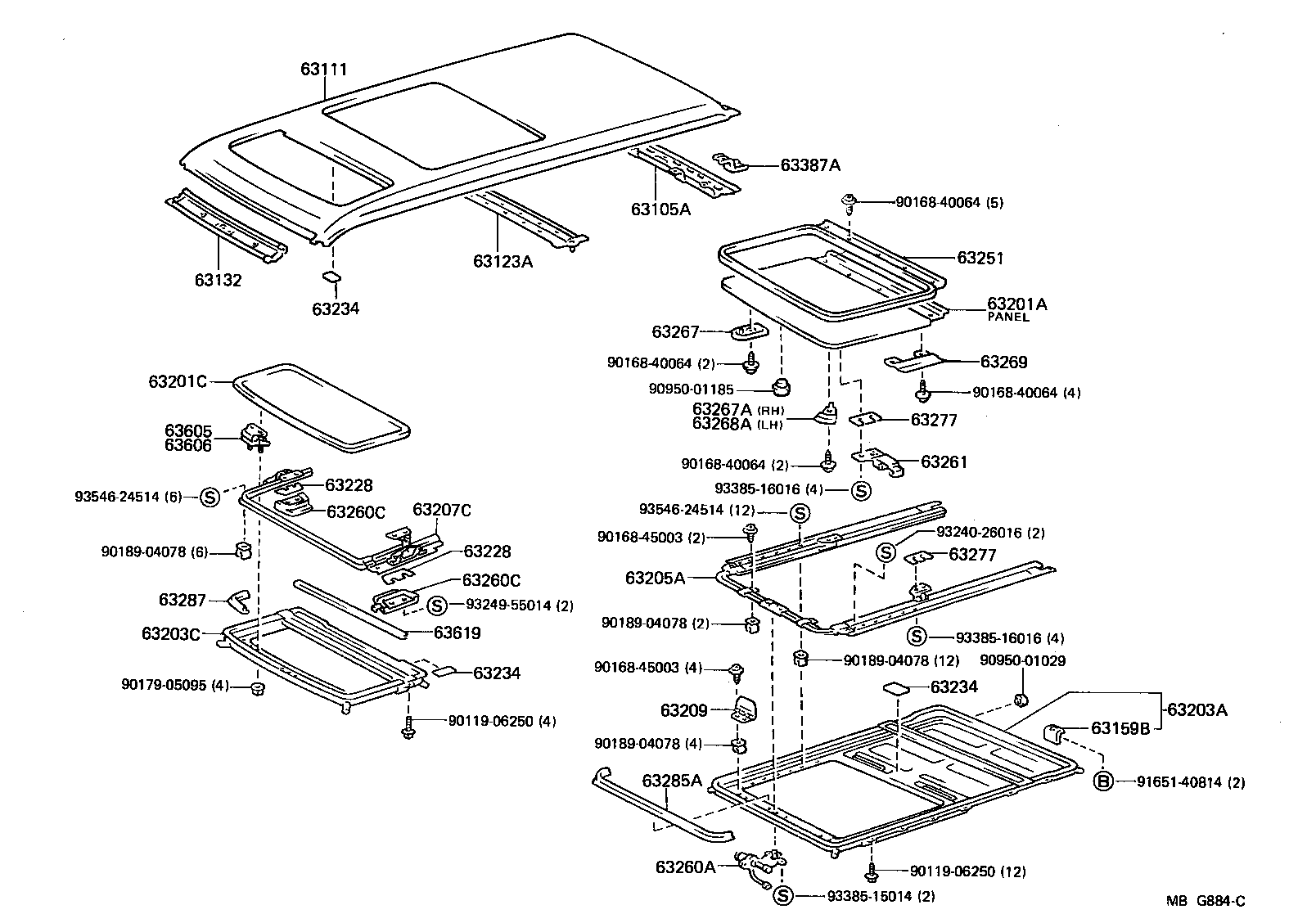

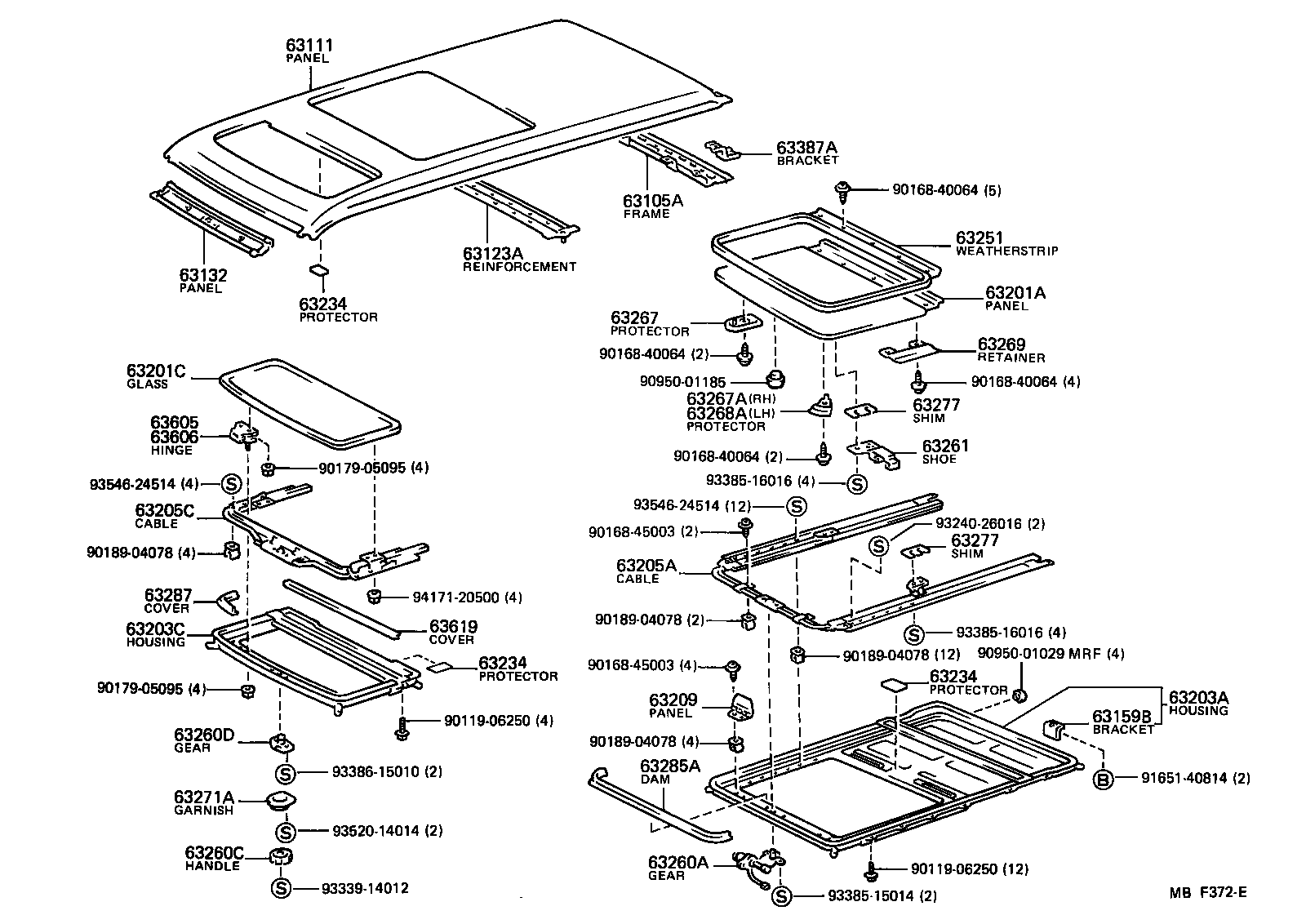

Roof Panel & Back Panel

40 part groups · 4 illustrations

PNC	Description
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63123A	Reinforcement, Roof Panel, Rear NO.1
63132	Panel, Windshield Header, Inner
63141G	Reinforcement, Roof Panel, NO.1
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63147A	Cushion, Roof TO Roof Reinforcement
63159B	Bracket, Sliding Roof, Rear
63201A	Panel Sub-assy, Sliding Roof OR Removable Roof
63201C	Glass Sub-assy, Tilt Roof
63203A	Housing Sub-assy, Sliding Roof OR Removable Roof
63203C	Housing Sub-assy, Tilt Roof
63205A	Cable Sub-assy, Sliding Roof Drive
63205C	Cable Sub-assy, Tilt Roof Drive
63207C	Rail Sub-assy, Tilt Roof Guide
63209	Panel Sub-assy, Roof Wind Deflector

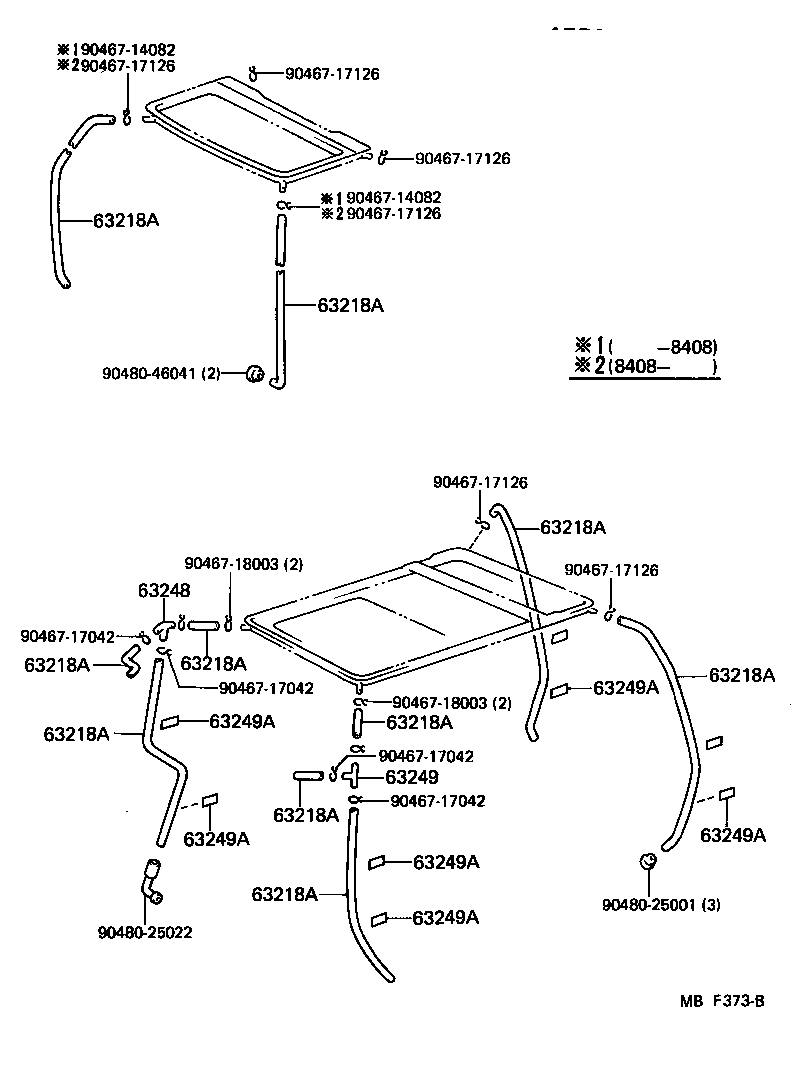

63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63228	Spacer, Slide Roof Lock, NO.1
63234	Protector, Slide Roof Housing
63248	Joint, Slide Roof Drain Hose, RH
63249	Joint, Slide Roof Drain Hose, LH
63249A	Supporter, Water Hose
63251	Weatherstrip, Sliding Roof Panel OR Removable Roof
63260A	Gear Sub-assy, Sliding Roof Drive
63260C	Handle Assy, Tilt Roof Lock
63260D	Gear Sub-assy, Tilt Roof Drive
63261	Shoe, Sliding Roof, Front
63267	Protector, Sliding Roof Weatherstrip
63267A	Protector, Sliding Roof Weatherstrip, RH
63268A	Protector, Sliding Roof Weatherstrip, LH
63269	Retainer, Sliding Roof Weatherstrip
63271A	Garnish, Tilt Roof Lock
63277	Shim, Sliding Roof Rail
63285A	Dam, Sliding Roof Housing
63287	Cover, Sliding Roof Housing Drain
63387A	Bracket, Roof Headlining Holder
63605	Hinge Sub-assy, Tilt Roof, RH
63606	Hinge Sub-assy, Tilt Roof, LH
63619	Cover, Tilt Roof Panel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
