Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

37 part groups · 3 illustrations

Illustrations

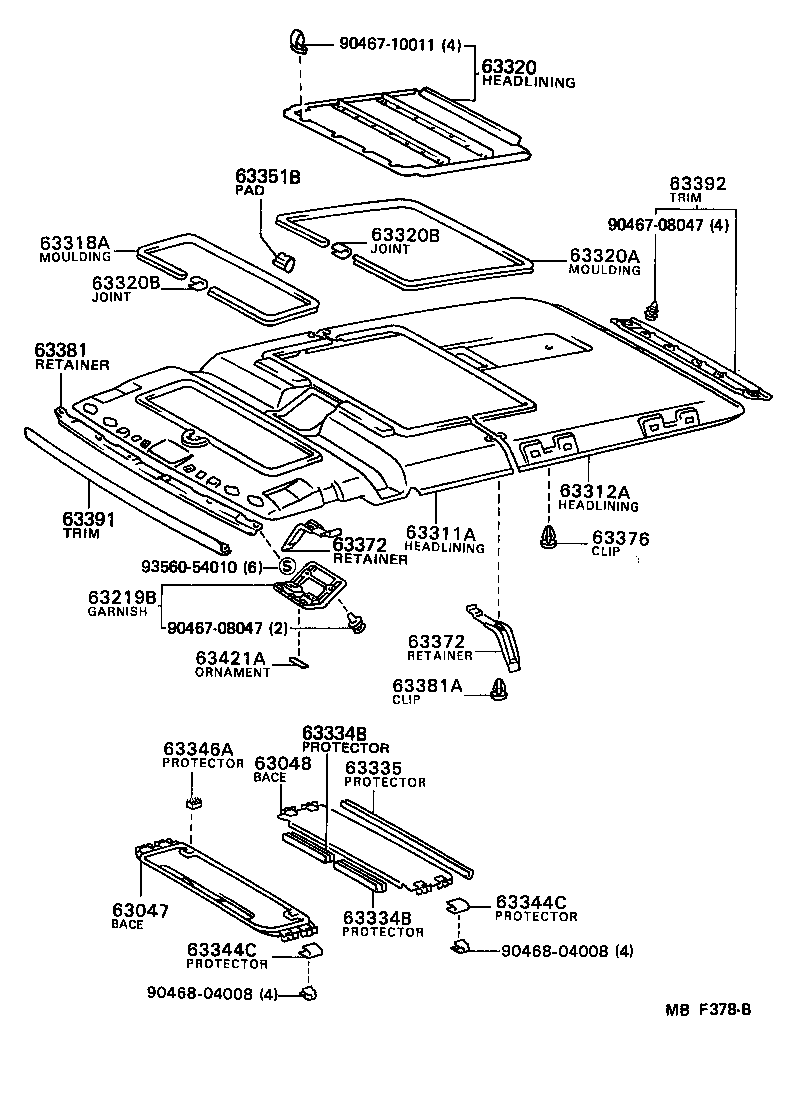

Figure MBF377C MBF377C 1983-08 → — Figure MBF378B MBF378B 1983-08 → — Figure MBG041A MBG041A 1983-11 → —

Part groups

PNCDescription
63047 Base Sub-assy, Sunshade Trim, Front NO.1
63048 Base Sub-assy, Sunshade Trim, Front NO.2
63219B Garnish, Sun Roof Switch
63304A Trim Sub-assy, Roof Headlining, Front
63305A Trim Sub-assy, Roof Headlining, NO.2
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311A Headlining, Roof NO.1
63312A Headlining, Roof, NO.2
63318A Moulding, Tilt Roof Opening Trim
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63334B Protector, Sunshade Trim, NO.1
63335 Protector, Sunshade Trim, NO.2
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63344C Protector, Sunshade Trim, NO.4
63346A Protector, Sunshade Trim, NO.6
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63367 Support, Roof Headlining, NO.7
63368 Support, Roof Headlining, NO.8
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63376 Clip, Headlining
63381 Retainer, Headlining, Front
63381A Clip, Headlining Retainer
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63421A Ornament, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
