Toyota Van
1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe
Discontinued model
Data version 1988-12
Fuel Tank & Tube

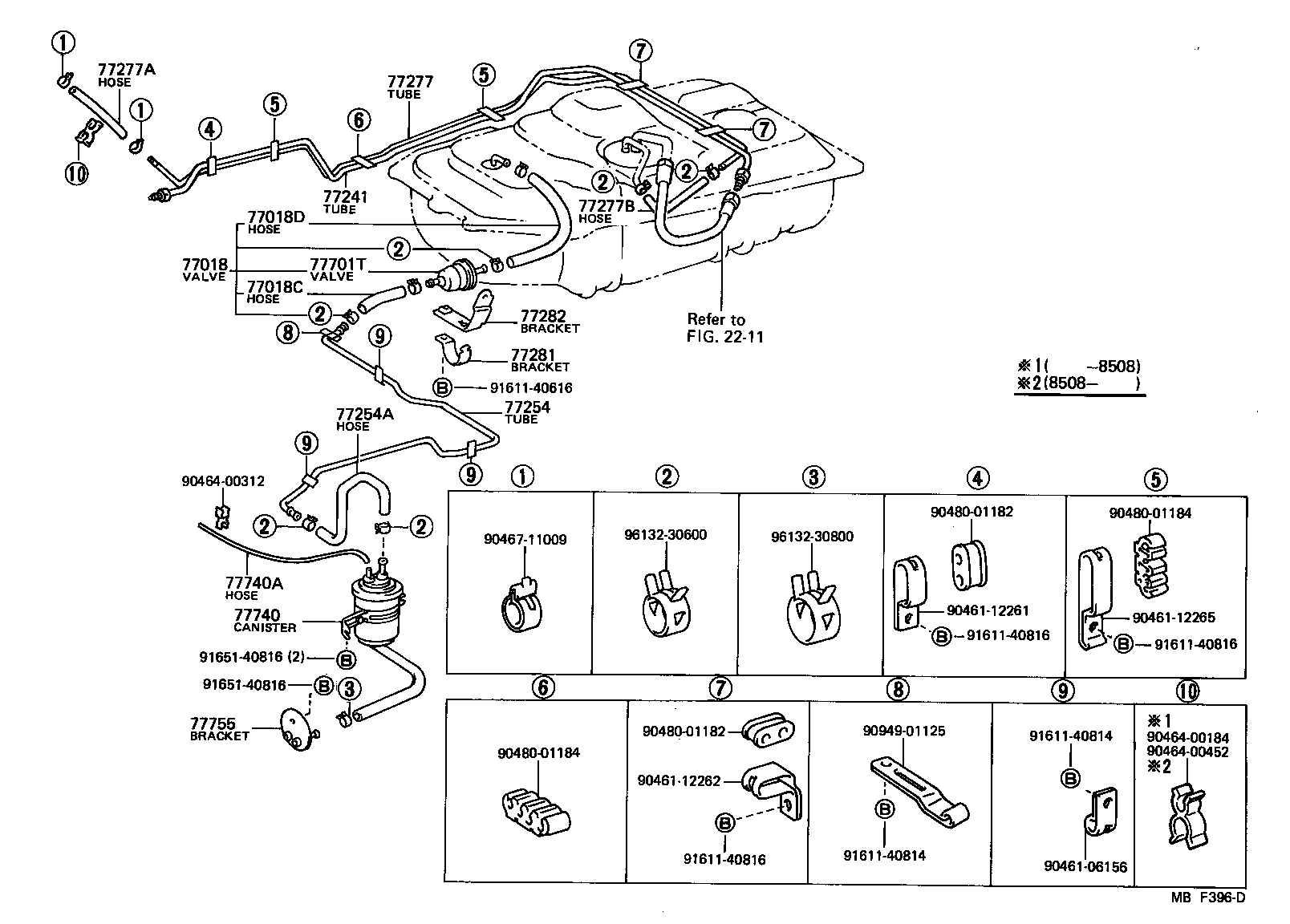

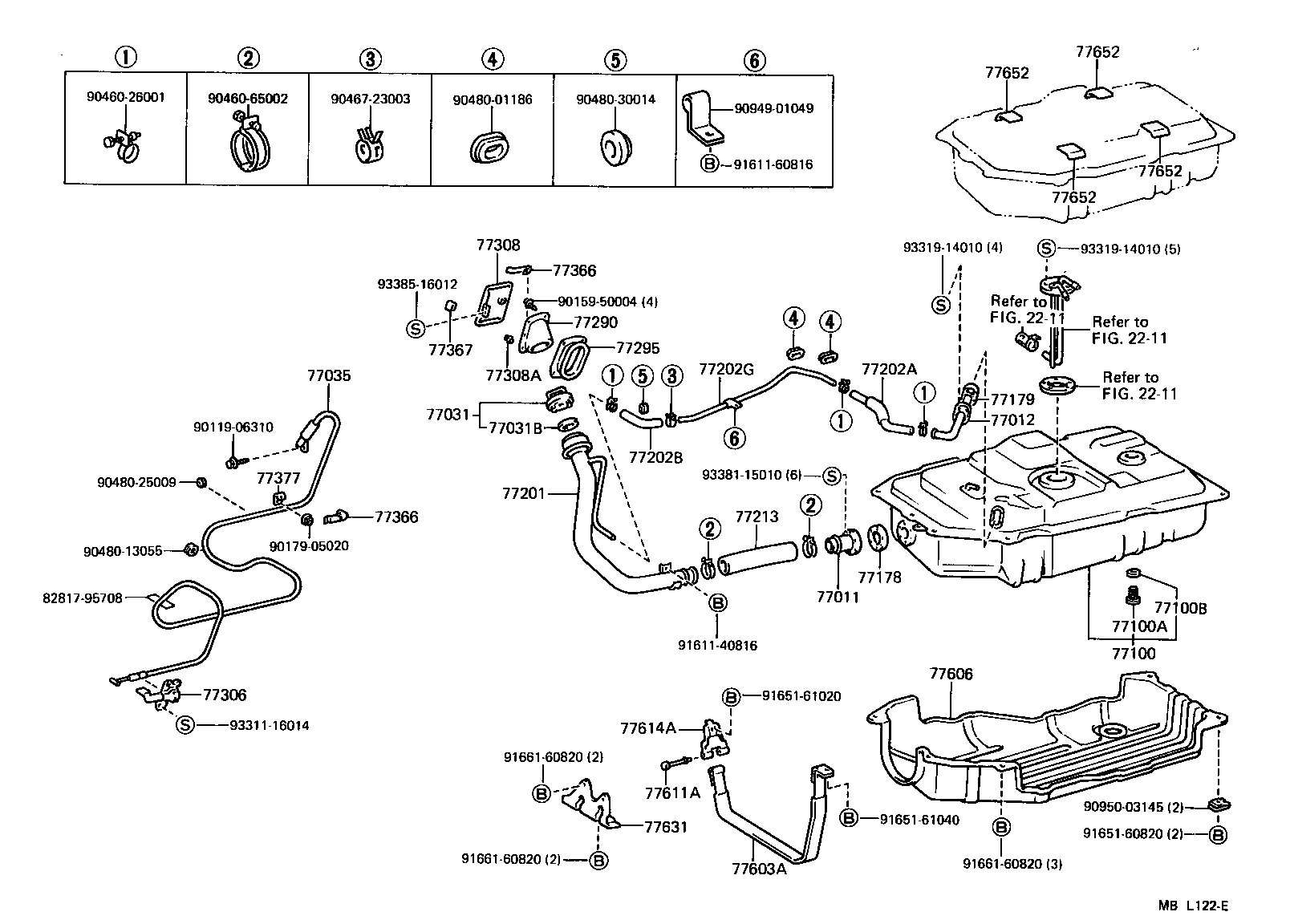

48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77018C | Hose, Fuel NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) |
| 77018D | Hose, Fuel NO.2 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179 | Retainer, Fuel Tank Mounting, Front |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77202B | Hose, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77202C | Hose, Fuel, NO.3 (FOR BREATHER TUBE) |
| 77202G | Tube, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77202H | Tube, Fuel, NO.3 (FOR BREATHER TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77282 | Bracket, Fuel Main Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295 | Shield, Fuel Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77367 | Stopper, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612 | Bracket Sub-assy, Fuel Tank |
| 77614A | Band, Fuel Tank, NO.2 RH |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77755 | Bracket, Charcoal Canister Outlet Hose |
