Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

19 part groups · 3 illustrations

Illustrations

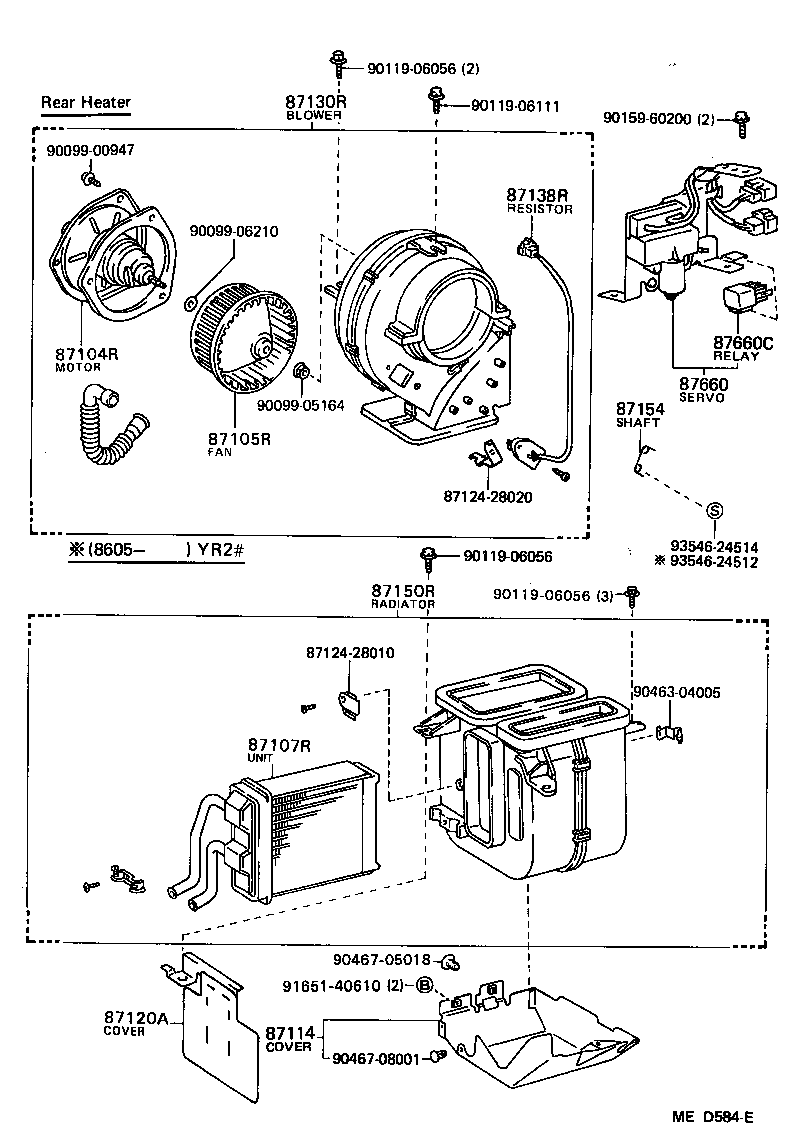

Figure MED583D MED583D 1983-08 → — Figure MED584E MED584E 1983-08 → — Figure MED585A MED585A 1983-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120A Cover, Rear Heater
87130 Blower Assy, Heater, Front
87130R Blower Assy, Rear Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87150R Radiator Assy, Rear Heater
87154 Shaft, Damper
87660 Servo Assy, Air Conditioner
87660C Relay, Servo
88625F Sensor, Temperature
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
