Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12

Heating & Air Conditioning - Control & Air Duct

46 part groups · 8 illustrations

PNC	Description
55906	Cable Sub-assy, Heater Control
55906A	Cable Sub-assy, Defroster Damper Control
55907A	Cable Sub-assy, Water Valve Control
55908A	Cable Sub-assy, Air Inlet Damper Control
55909A	Cable Sub-assy, Airmix Damper Control

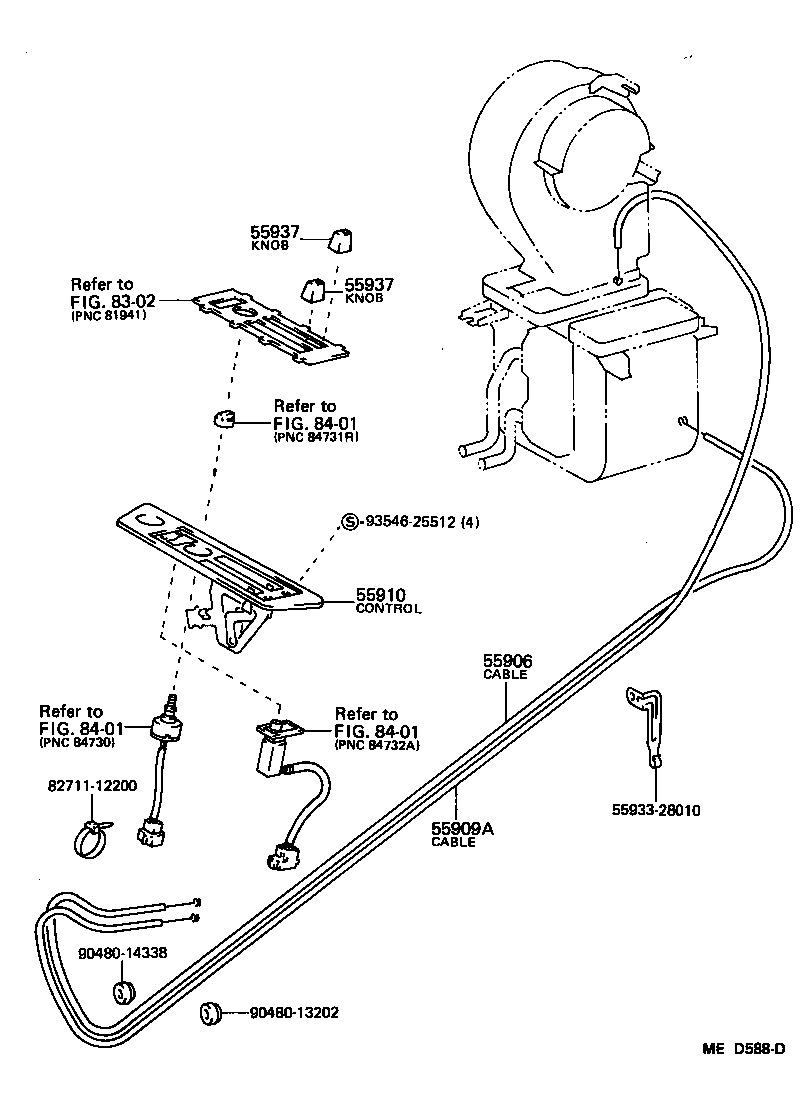

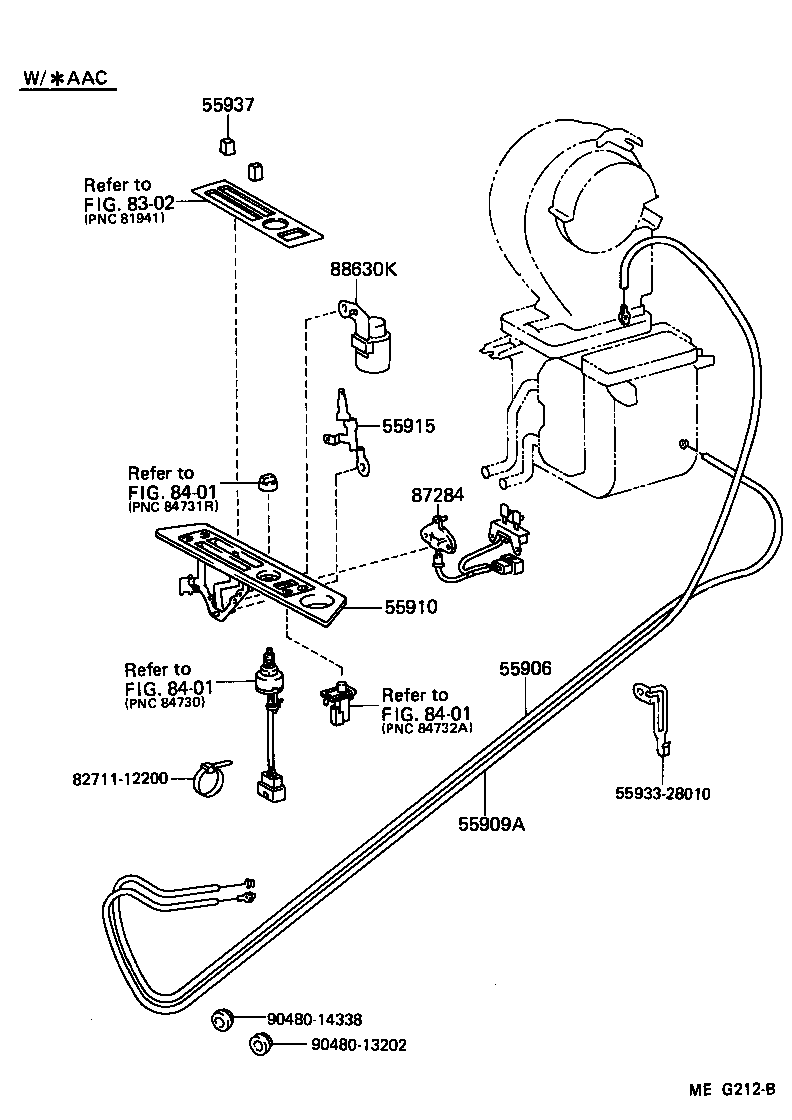

55910	Control Assy, Heater OR Boost Ventilator
55915	Lever, Cooler Control
55923	Retainer, Heater Control, Upper
55924	Retainer, Heater Control, Lower
55937	Knob, Heater Control Lever
87146	Retainer, Grille

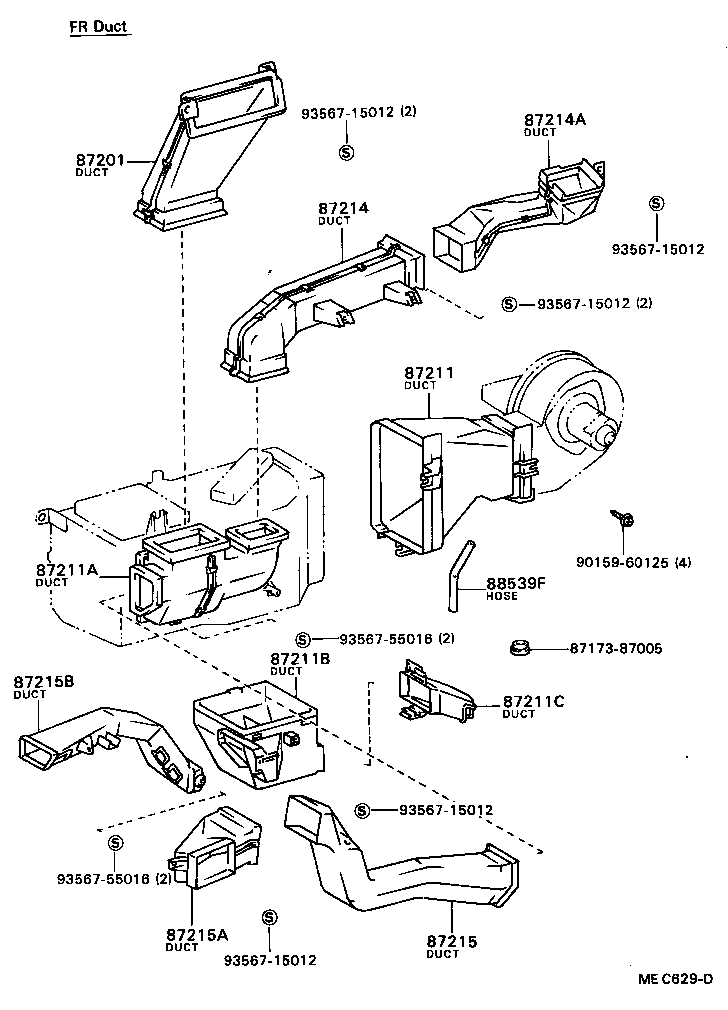

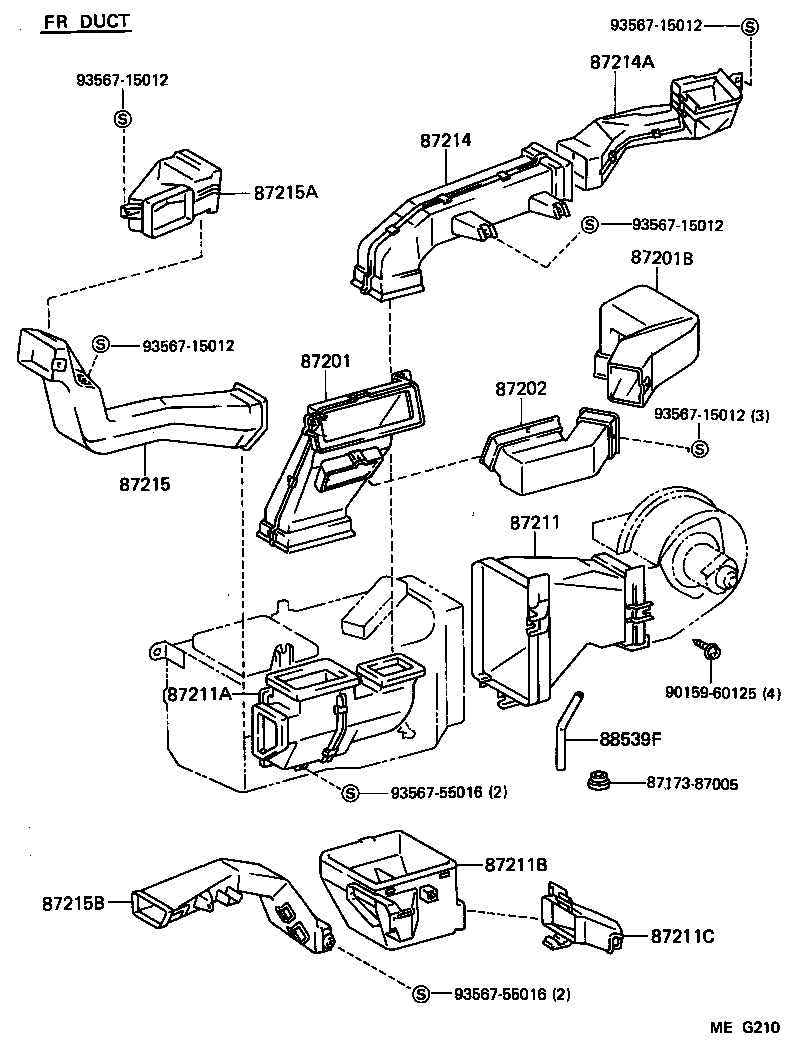

87201	Duct Sub-assy, Air, NO.1
87201B	Duct Sub-assy, Air, NO.2
87202	Duct, Heater Air

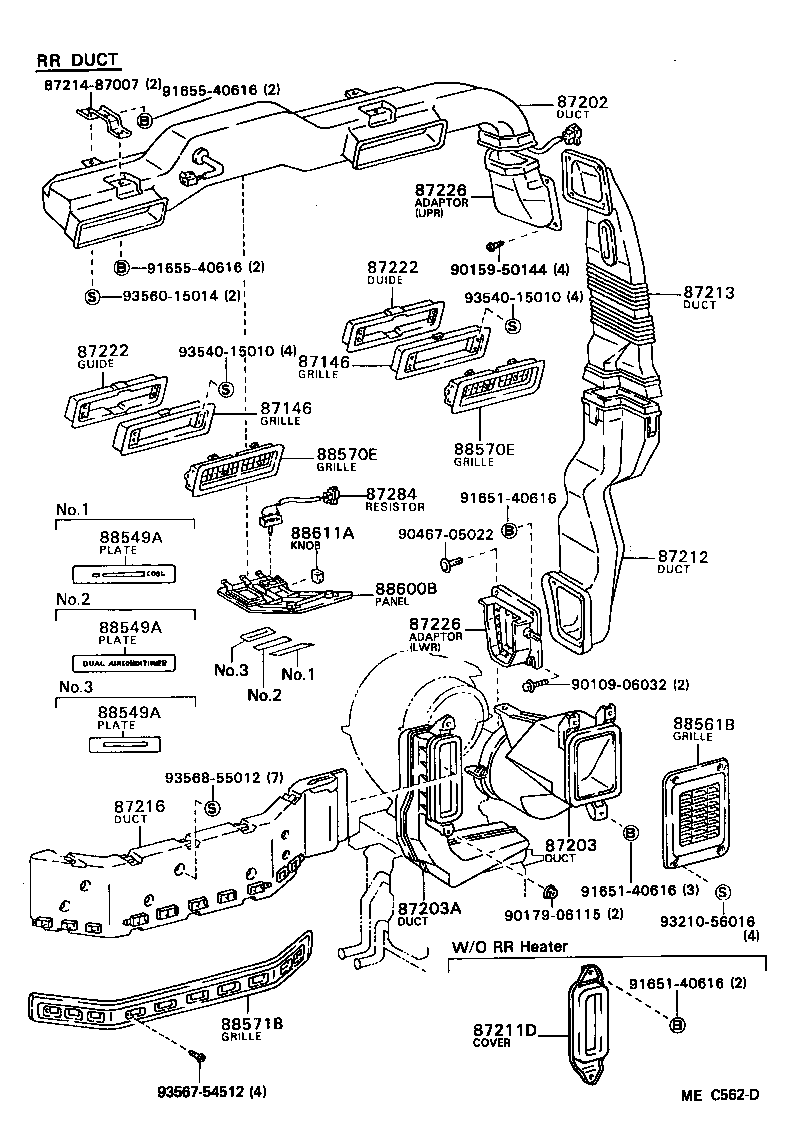

87203	Duct, Heater Air, Rear NO.1
87203A	Duct Assy, Heater Air, Rear
87211	Duct, Air, NO.1
87211A	Duct, Air, NO.2
87211B	Duct, Air, NO.3
87211C	Duct, Air, NO.4
87211D	Cover, Heater Air Duct Hole
87212	Duct, Air, Rear NO.1
87213	Duct, Air, Rear NO.2
87214	Duct, Air, Side NO.1 RH
87214A	Duct, Air, Side NO.2 RH
87215	Duct, Air, Side NO.1 LH
87215A	Duct, Air, Side NO.2 LH
87215B	Duct, Air, Side NO.3 LH
87216	Duct, Heater Interior Air (TO REAR)
87222	Guide, Air Duct, Rear
87226	Adapter, Air Duct
87284	Resistor Sub-assy, Variable
88539F	Hose, Drain
88549A	Plate, Caution
88561B	Grille, Cooler Air Inlet
88561C	Grille, Cooler Air Inlet

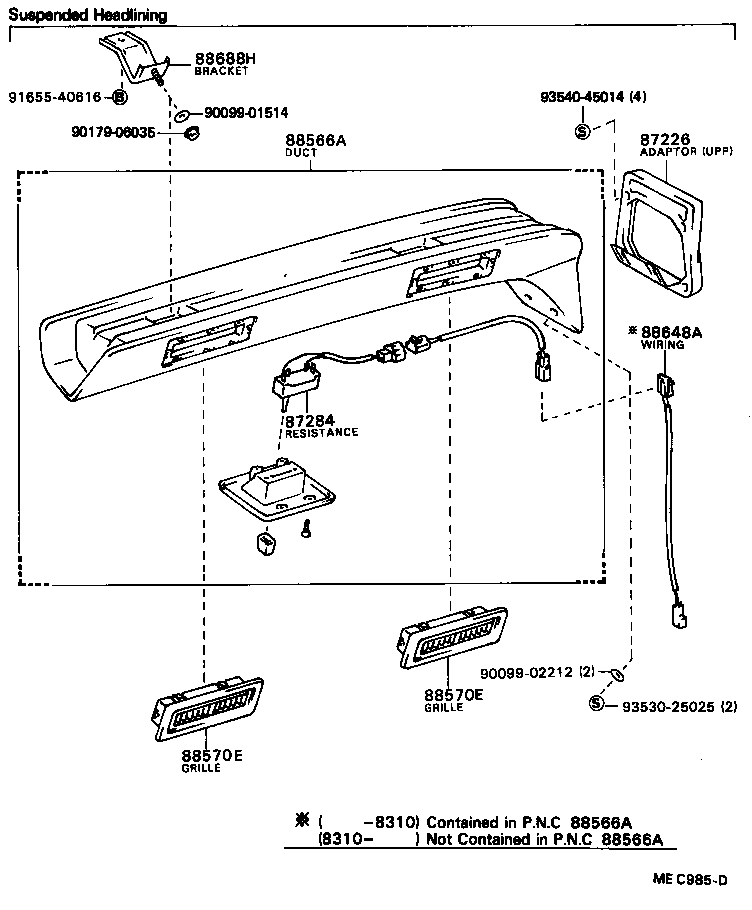

88566A	Duct, Cooler Air, NO.1
88570E	Grille Assy, Air Outlet
88571B	Grille, Air Outlet
88600B	Panel Assy, Control
88611A	Knob, Cooler Control Switch

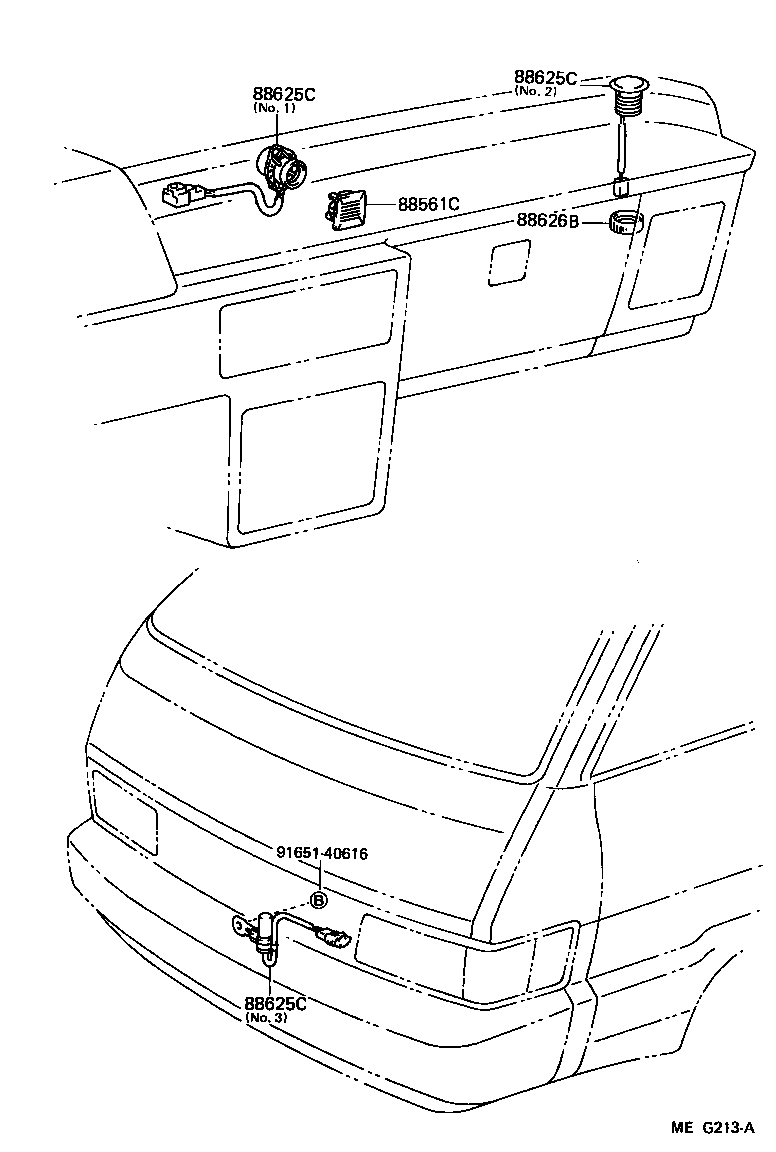

88625C	Thermistor, Cooler
88626B	Holder, Thermistor
88630K	Relay Assy
88648A	Wiring, Cooler
88688H	Bracket, Cooler Air Duct, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
