Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

54 part groups · 12 illustrations

Illustrations

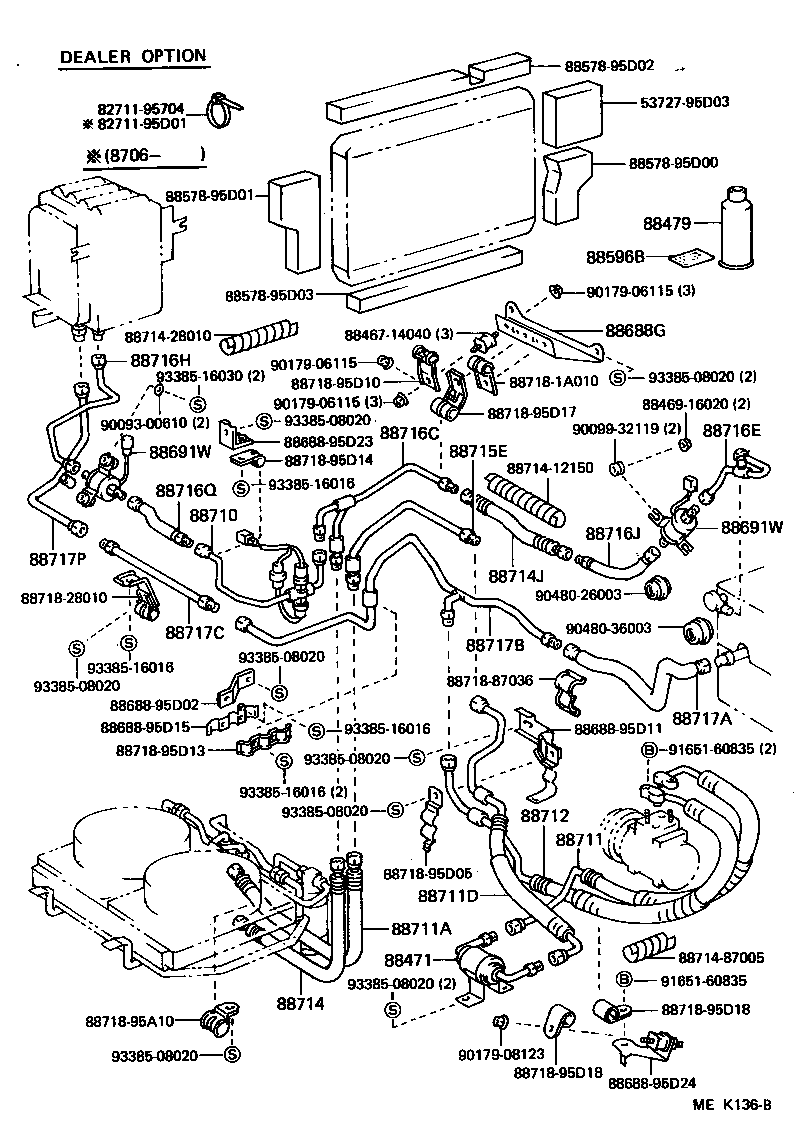

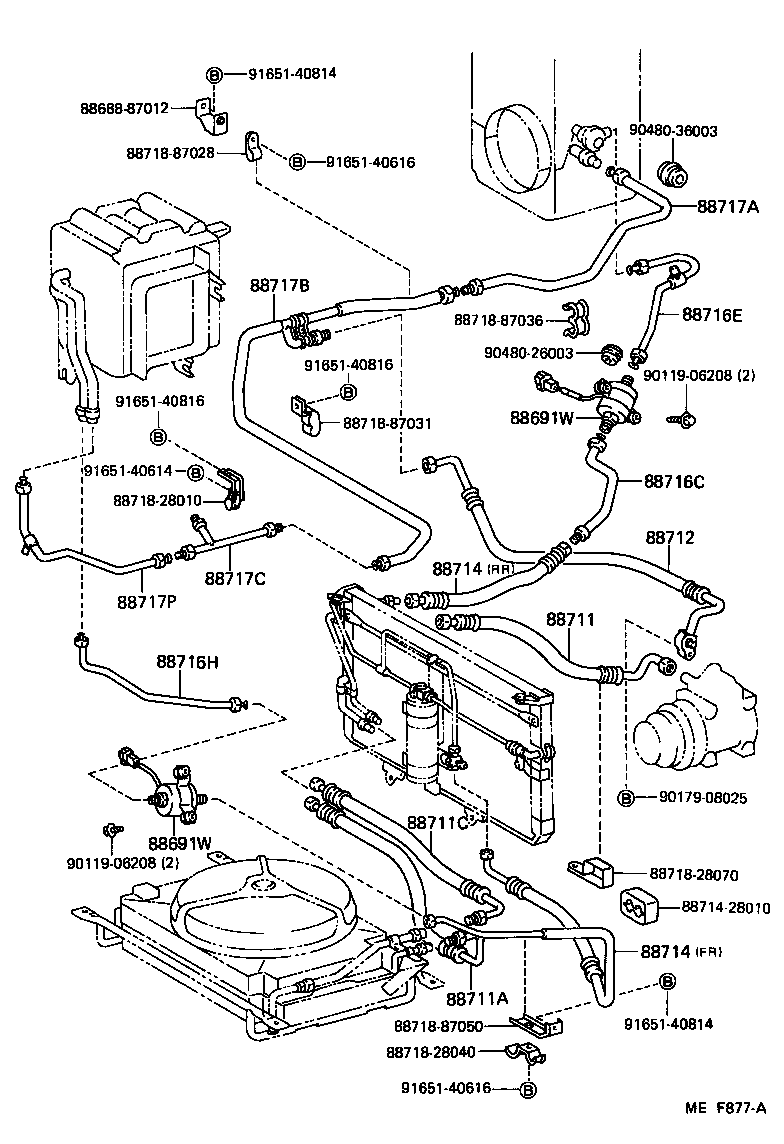

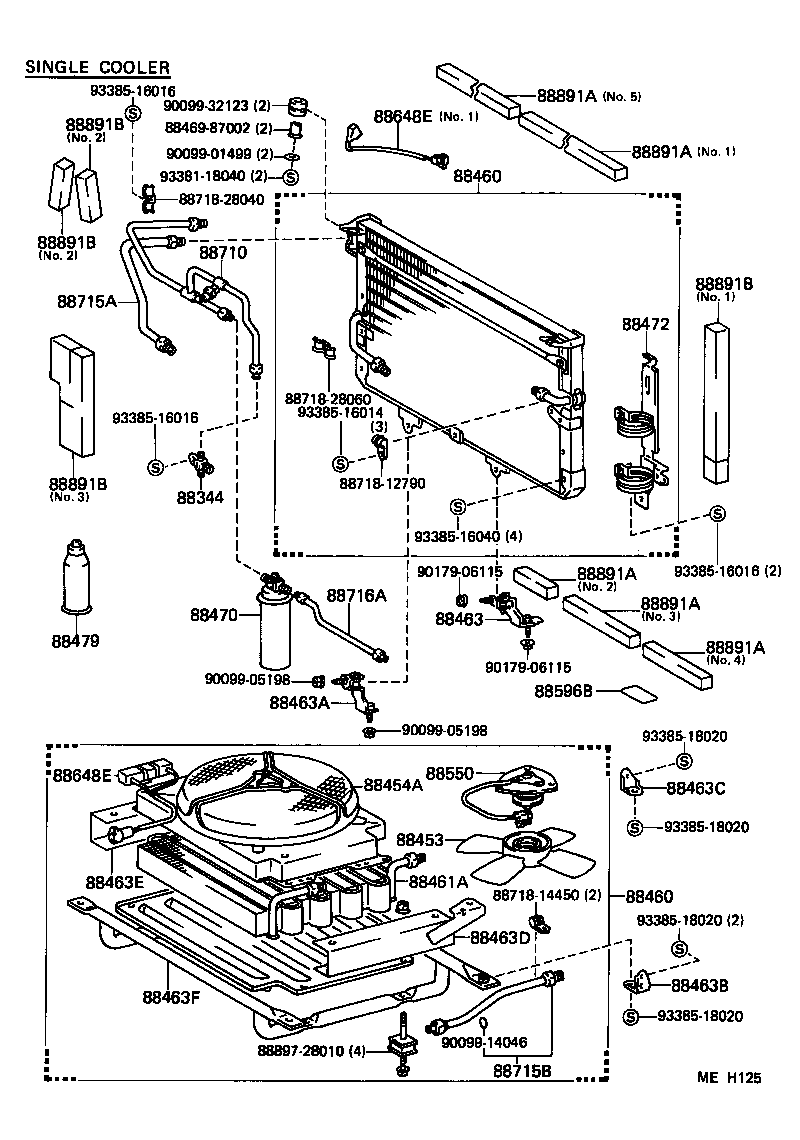

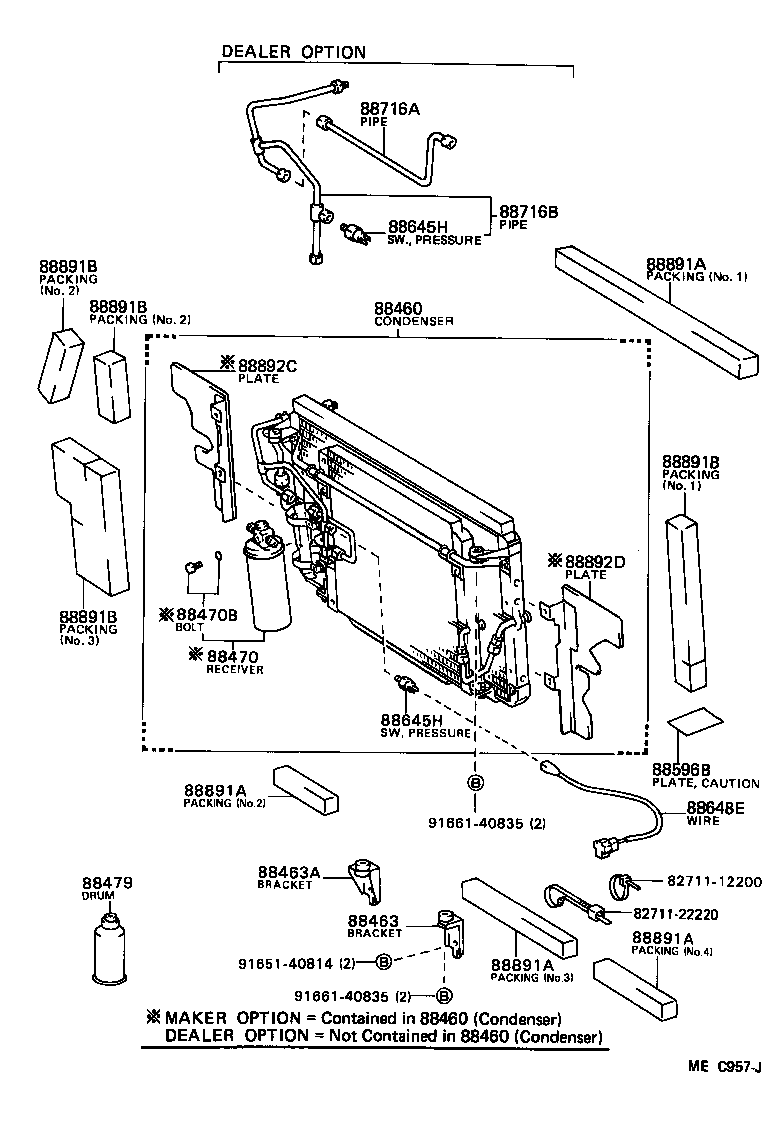

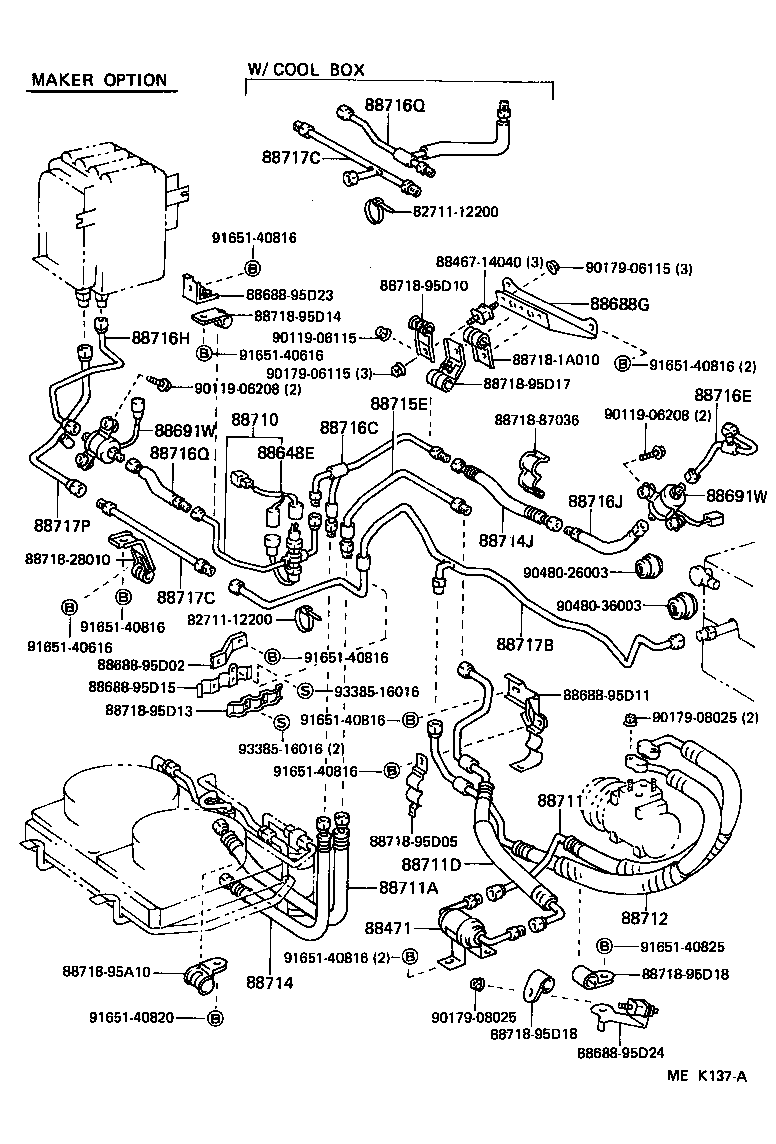

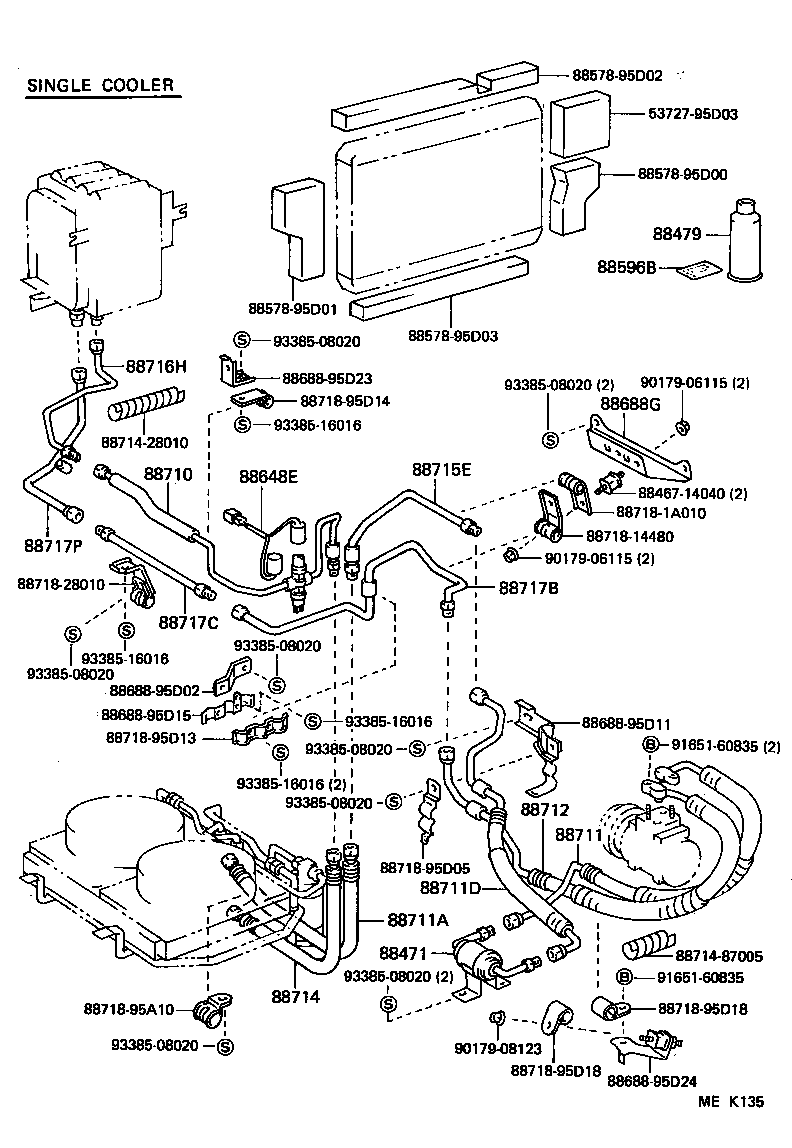

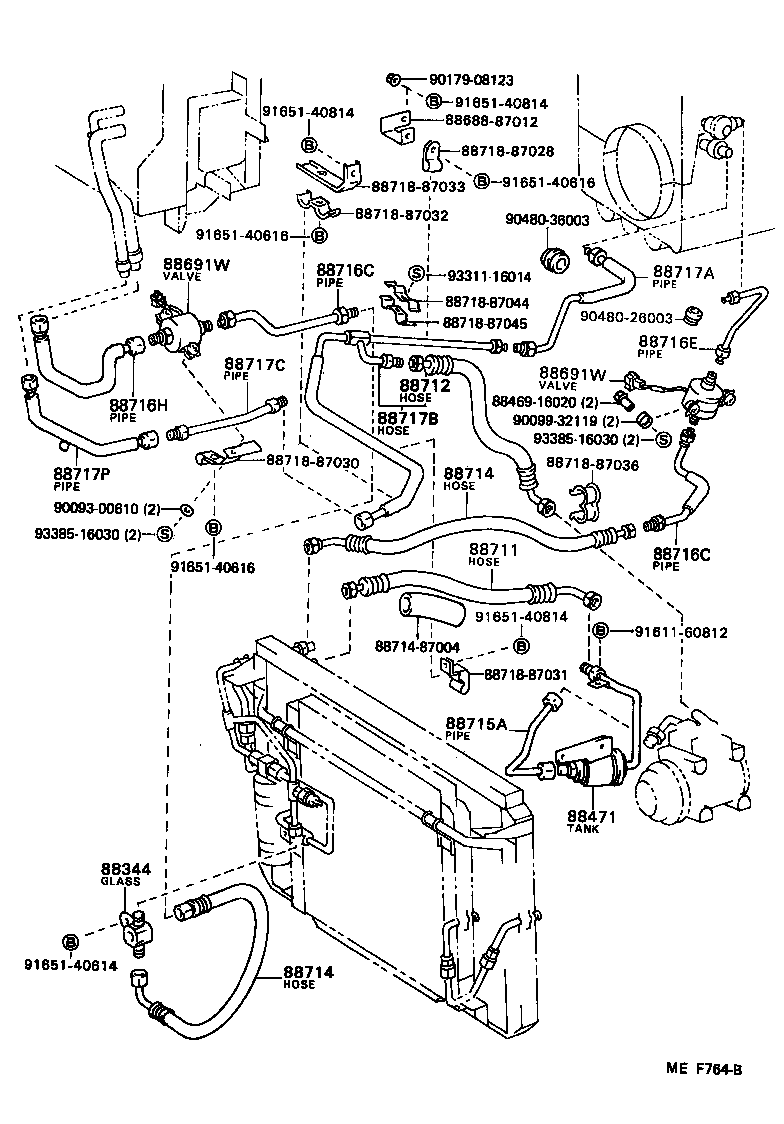

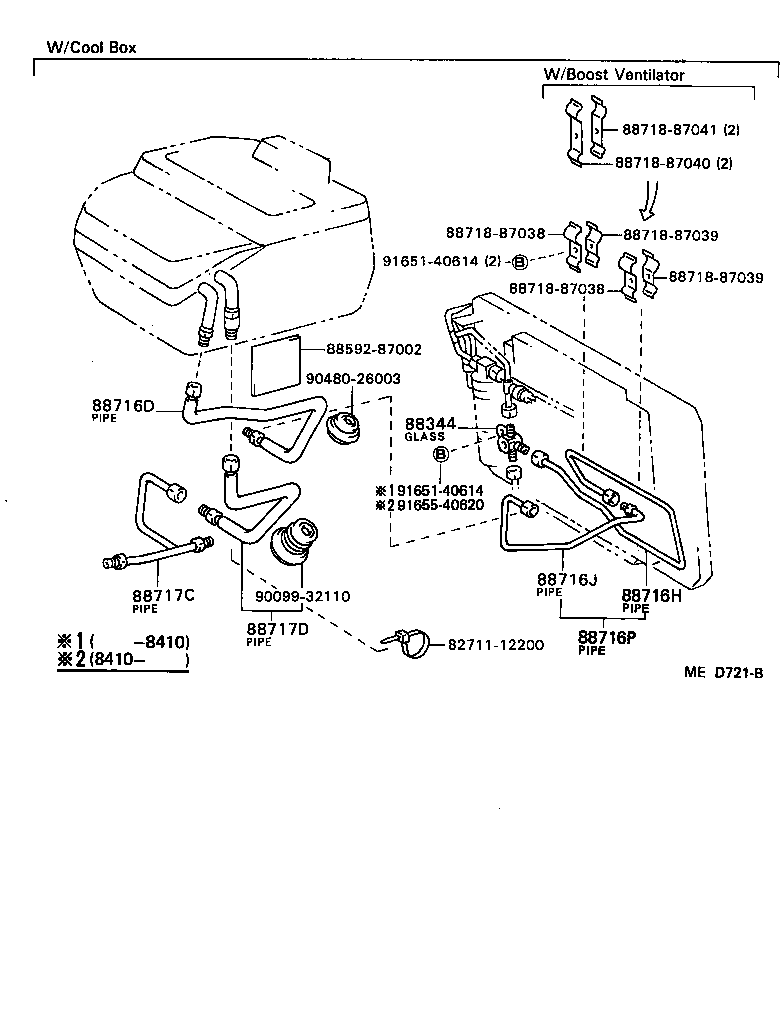

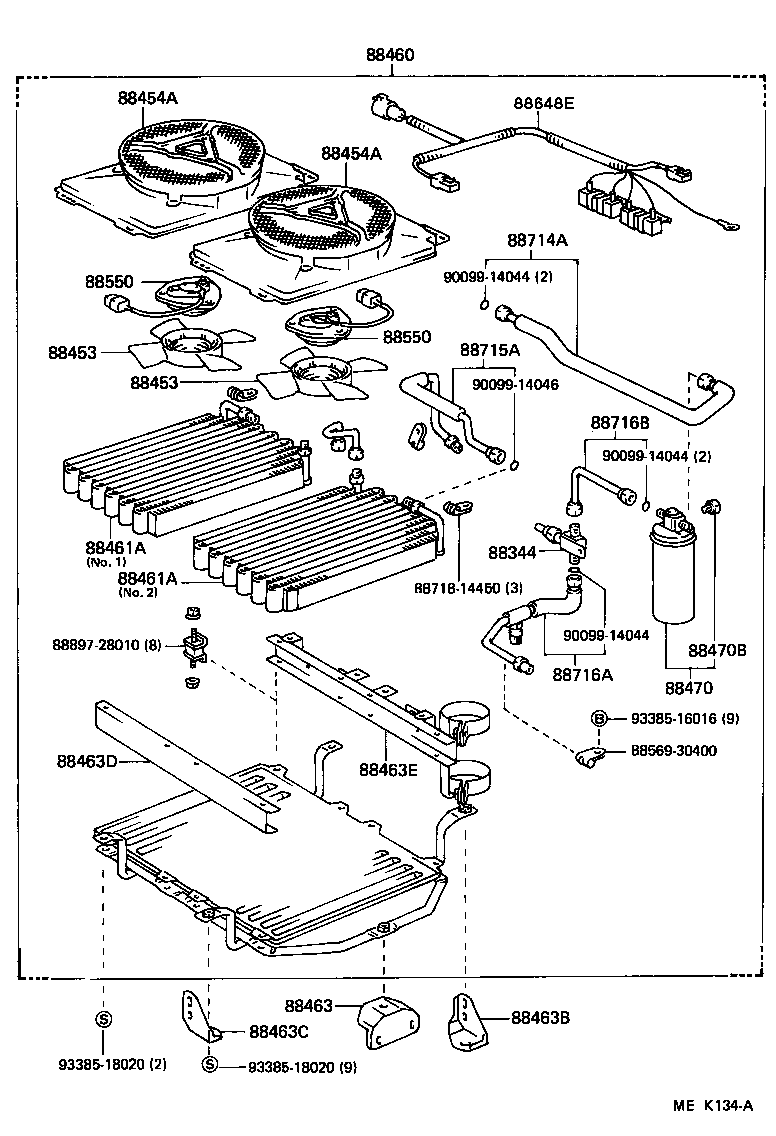

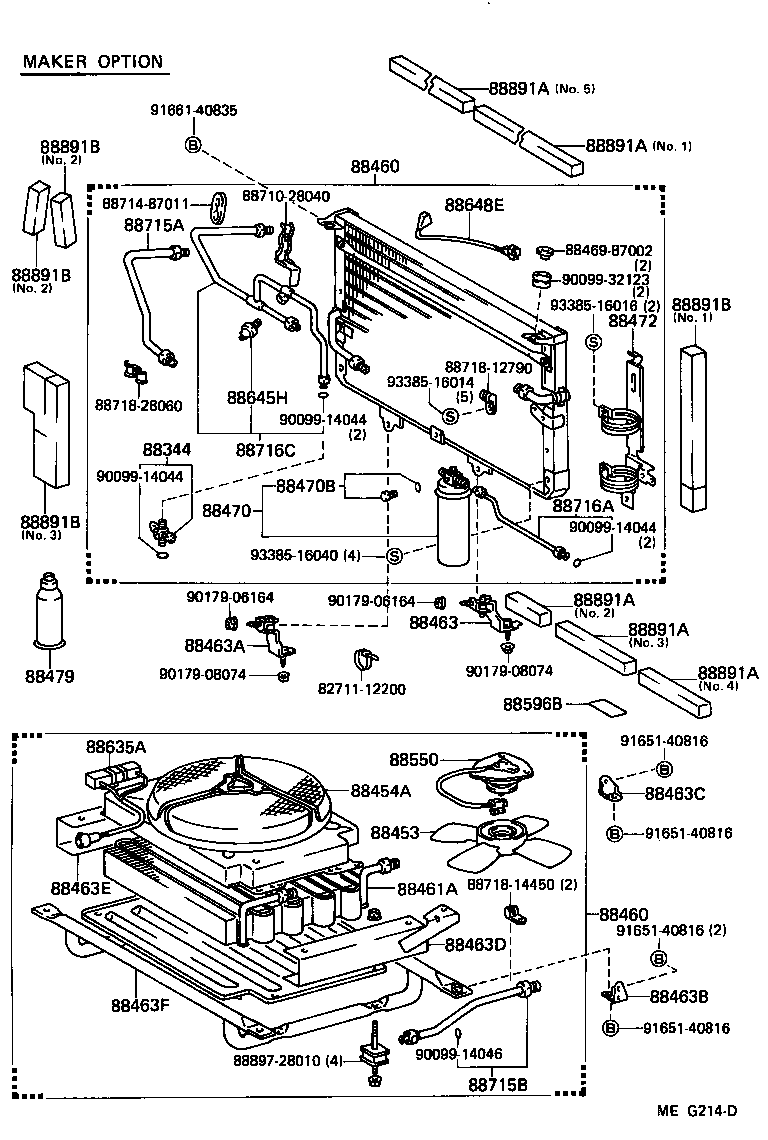

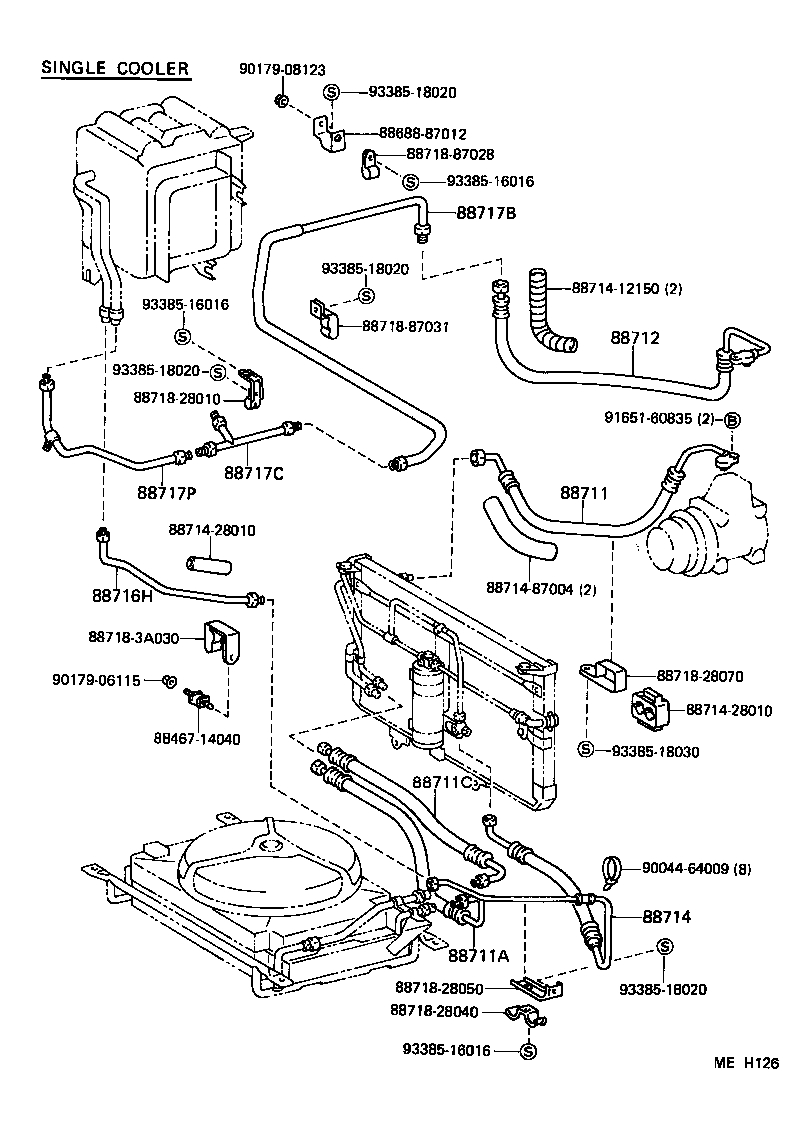

Figure MEF622A MEF622A 1984-08 → 1985-08 Figure MEC957J MEC957J 1983-08 → 1985-08 Figure MEG214D MEG214D 1985-08 → — Figure MEH125 MEH125 1985-08 → — Figure MEK134A MEK134A 1986-08 → — Figure MEK135 MEK135 1986-08 → — Figure MEF764B MEF764B 1983-08 → 1985-08 Figure MEH126 MEH126 1985-08 → — Figure MEF877A MEF877A 1985-08 → — Figure MEK136B MEK136B 1986-08 → — Figure MEK137A MEK137A 1986-08 → — Figure MED721B MED721B 1983-08 → —

Part groups

PNCDescription
88344 Glass Sub-assy, Sight
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88463D Bracket, Cooler Condenser, NO.5
88463E Bracket, Cooler Condenser, NO.6
88463F Bracket, Cooler Condenser, NO.7
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688G Bracket, Cooler Refrigerant Pipe
88691W Valve, Magnet
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88711D Hose, Cooler Refrigerant Discharge, NO.4
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88714J Hose, Cooler Refrigerant Liquid, NO.3
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717P Pipe, Cooler Refrigerant Suction, P
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88892C Plate, Condenser, NO.1
88892D Plate, Condenser, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
