Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

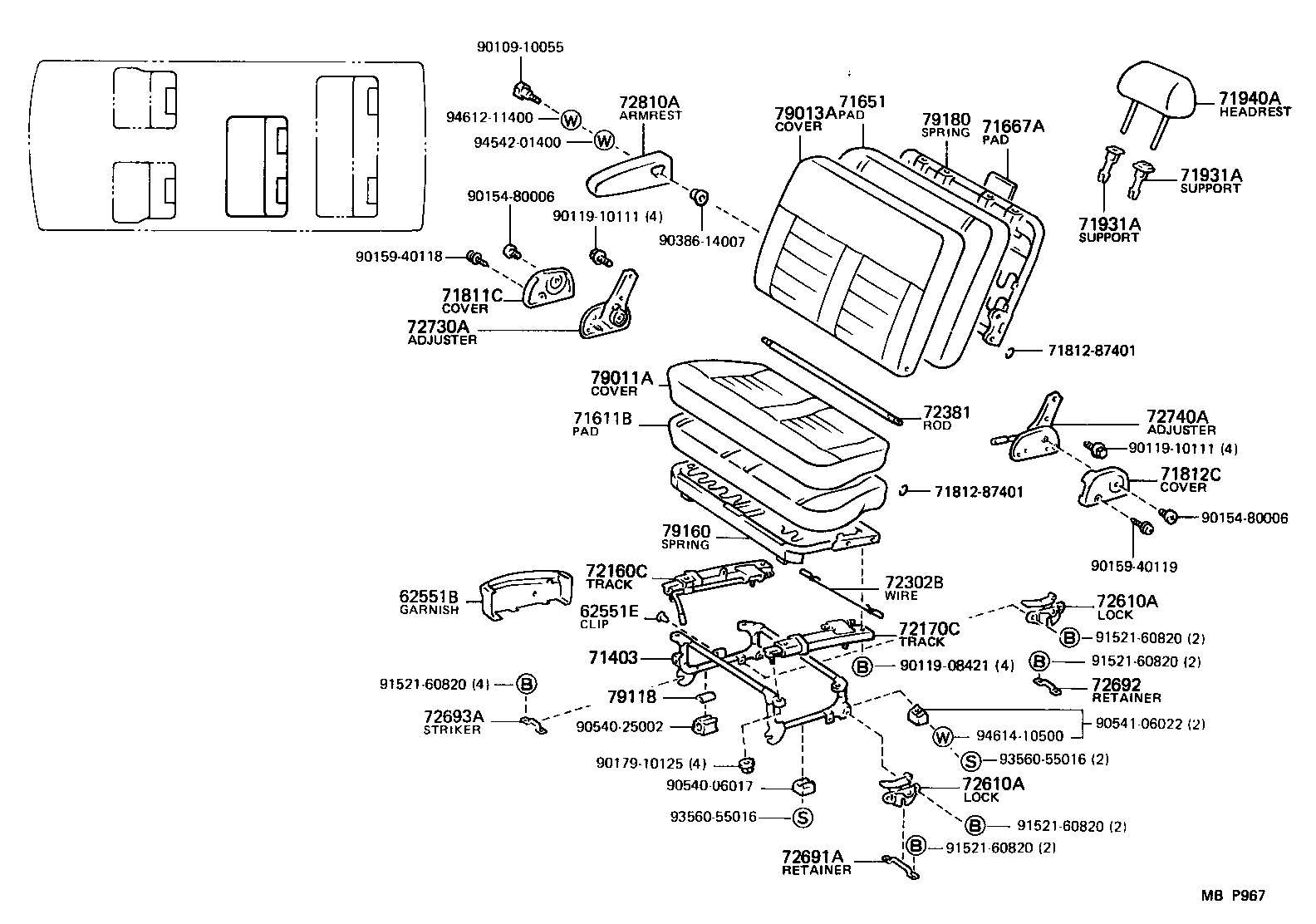

Exploded illustration MBP967 9010910055 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (9 parts) 72810A — ARMREST ASSY, SEAT, RH (9 parts) 71651 — PAD, REAR NO.1 SEATBACK (2 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (9 parts) 9461211400 — not listed in this catalogue 79180 — SPRING ASSY, NO.1 SEATBACK (2 parts) 71667A — PAD, REAR SEATBACK, CENTER A (2 parts) 9454201400 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 9015480006 — not listed in this catalogue 9011910111 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 9038614007 — not listed in this catalogue 9015940118 — not listed in this catalogue 71811C — COVER, RECLINING ADJUSTER, RH (6 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (6 parts) 7181287401 — not listed in this catalogue 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (9 parts) 72381 — ROD, RECLINING ADJUSTER EQUALIZING, NO.1 (2 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (4 parts) 71611B — PAD, REAR NO.1 SEAT CUSHION (2 parts) 9011910111 — not listed in this catalogue 71812C — COVER, RECLINING ADJUSTER, LH (6 parts) 7181287401 — not listed in this catalogue 9015480006 — not listed in this catalogue 79160 — SPRING ASSY, NO.1 SEAT CUSHION (2 parts) 9015940119 — not listed in this catalogue 72160C — TRACK ASSY, REAR NO.1 SEAT, OUTER RH (1 parts) 72302B — WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING (1 parts) 62551B — GARNISH, REAR SEAT SIDE (3 parts) 72610A — STRIKER ASSY, REAR SEATBACK LOCK (1 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (3 parts) 72170C — TRACK ASSY, REAR NO.1 SEAT, INNER RH (1 parts) 9152160820 — not listed in this catalogue 71403 — LEG SUB-ASSY, REAR NO.1 SEAT (1 parts) 9152160820 — not listed in this catalogue 9011908421 — not listed in this catalogue 72692 — STRIKER, REAR SEAT CUSHION LOCK, NO.2 (1 parts) 9152160820 — not listed in this catalogue 79118 — BRACKET, NO.1 SEAT LEG (2 parts) 72693A — STRIKER, REAR SEAT CUSHION LOCK, NO.3 (1 parts) 9054106022 — not listed in this catalogue 9054025002 — not listed in this catalogue 9461410500 — not listed in this catalogue 9356055016 — not listed in this catalogue 9017910125 — not listed in this catalogue 72610A — STRIKER ASSY, REAR SEATBACK LOCK (1 parts) 9054006017 — not listed in this catalogue 9356055016 — not listed in this catalogue 9152160820 — not listed in this catalogue 9152160820 — not listed in this catalogue 72691A — STRIKER, REAR SEAT CUSHION LOCK, NO.1 (2 parts)
MBP967 · 28 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
62551B — Garnish, Rear Seat Side
62551-28020-03 note Garnish, Rear Seat Side
1988-08 → 1990-01 ended
YR22,31 —
62551-28020-14 note Garnish, Rear Seat Side
1988-08 → 1990-01 ended
YR22,31 —
62551-28020-16 note Garnish, Rear Seat Side
1988-08 → 1990-01 ended
YR22,31 —
62551E — Clip(FOR REAR SEAT SIDE GARNISH)
90467-10017-24 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-08 → 1990-01 ended
YR22,31 —
90467-10017-43 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-08 → 1990-01 ended
YR22,31 —
90467-10017-56 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-08 → 1990-01 ended
YR22,31 —
71403 — Leg Sub-assy, Rear NO.1 Seat
71403-28011 Leg Sub-assy, Rear NO.1 Seat
1988-08 → 1990-01 ended
YR22,31 —
71611B — Pad, Rear NO.1 Seat Cushion
71611-28020 Pad, Rear NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
71611-28030 note Pad, Rear NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71651 — Pad, Rear NO.1 Seatback
71651-28020 Pad, Rear NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 —
71651-28030 note Pad, Rear NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71667A — Pad, Rear Seatback, Center A
71667-87001 note Pad, Rear Seatback, Center A
1988-08 → 1990-01 ended
YR22,31 LE —
71667-87001 Pad, Rear Seatback, Center A
1988-08 → 1990-01 ended
YR22,31 —
71811C — Cover, Reclining Adjuster, RH
71811-28010-03 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71811-28010-14 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71811-28010-26 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71833-28020-03 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71833-28020-04 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71833-28020-16 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71812C — Cover, Reclining Adjuster, LH
71812-28010-03 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71812-28010-14 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71812-28010-26 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71834-28010-03 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71834-28010-04 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71834-28010-16 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71931A — Support, Rear Seat Headrest
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71940A — Headrest Assy, Rear Seat
71940-28060-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-16 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28071-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
72160C — Track Assy, Rear NO.1 Seat, Outer RH
72160-87005 Track Assy, Rear NO.1 Seat, Outer RH
1988-08 → 1990-01 ended
YR22,31 —
72170C — Track Assy, Rear NO.1 Seat, Inner RH
72170-87004 Track Assy, Rear NO.1 Seat, Inner RH
1988-08 → 1990-01 ended
YR22,31 —
72302B — Wire Sub-assy, Rear Seat Track Equalizing
72302-87001 Wire Sub-assy, Rear Seat Track Equalizing
1988-08 → 1990-01 ended
YR22,31 —
72381 — Rod, Reclining Adjuster Equalizing, NO.1
72381-28020 note Rod, Reclining Adjuster Equalizing, NO.1
1988-08 → 1990-01 ended
YR22,31 LE —
72381-87001 Rod, Reclining Adjuster Equalizing, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72610A — Striker Assy, Rear Seatback Lock
72610-28030 Striker Assy, Rear Seatback Lock
1988-08 → 1990-01 ended
YR22,31 —
72691A — Striker, Rear Seat Cushion Lock, NO.1
72691-28020 note Striker, Rear Seat Cushion Lock, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72691-28020 note Striker, Rear Seat Cushion Lock, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72692 — Striker, Rear Seat Cushion Lock, NO.2
72692-28020 Striker, Rear Seat Cushion Lock, NO.2
1988-08 → 1990-01 ended
YR22,31 —
72693A — Striker, Rear Seat Cushion Lock, NO.3
72693-28020 Striker, Rear Seat Cushion Lock, NO.3
1988-08 → 1990-01 ended
YR22,31 —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-28040-03 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28040-14 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28040-16 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28050-03 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72730-28050-04 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72730-28050-16 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-28050 Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 —
72740-28060-03 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72740-28060-04 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72740-28060-16 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72810A — Armrest Assy, Seat, RH
72810-28011-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28011-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28011-16 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28024-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28024-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28024-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
79011A — Cover Sub-assy, NO.1 Seat Cushion
71075-28034-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28034-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28034-16 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28044-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28044-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28044-06 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-06 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79013A — Cover Sub-assy, NO.1 Seatback
71077-28034-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28034-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28034-16 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28044-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28044-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28044-06 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-06 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
79118 — Bracket, NO.1 Seat Leg
79118-28010 Bracket, NO.1 Seat Leg
1988-08 → 1990-01 ended
YR22,31 —
79118-28010 Bracket, NO.1 Seat Leg
1988-08 → 1990-01 ended
YR22,31 —
79160 — Spring Assy, NO.1 Seat Cushion
79160-28021 Spring Assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
79160-28040 note Spring Assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79180 — Spring Assy, NO.1 Seatback
79180-28010 Spring Assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 —
79180-28020 note Spring Assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
