Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

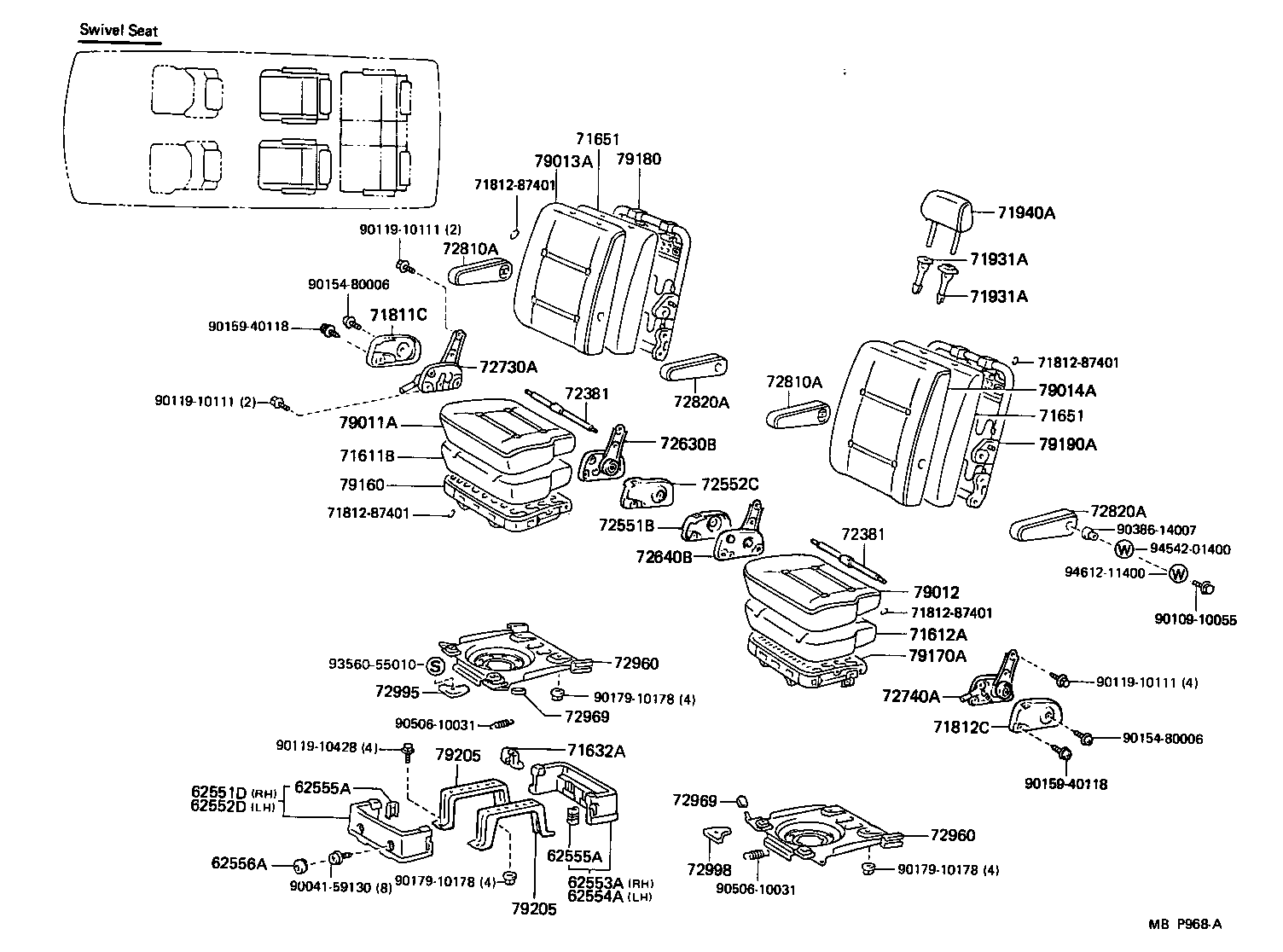

Exploded illustration MBP968A 71651 — PAD, REAR NO.1 SEATBACK (2 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (2 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (9 parts) 7181287401 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (9 parts) 9011910111 — not listed in this catalogue 72810A — ARMREST ASSY, SEAT, RH (9 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 9015480006 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71811C — COVER, RECLINING ADJUSTER, RH (6 parts) 9015940118 — not listed in this catalogue 7181287401 — not listed in this catalogue 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (6 parts) 72810A — ARMREST ASSY, SEAT, RH (9 parts) 79014A — COVER SUB-ASSY, NO.1 SEATBACK, LH (3 parts) 72381 — ROD, RECLINING ADJUSTER EQUALIZING, NO.1 (2 parts) 9011910111 — not listed in this catalogue 72820A — ARMREST ASSY, SEAT, LH (3 parts) 71651 — PAD, REAR NO.1 SEATBACK (2 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (9 parts) 72630B — ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH (1 parts) 79190A — SPRING ASSY, NO.1 SEATBACK, LH (1 parts) 71611B — PAD, REAR NO.1 SEAT CUSHION (2 parts) 72552C — COVER, RECLINING HINGE, LH (3 parts) 79160 — SPRING ASSY, NO.1 SEAT CUSHION (2 parts) 72820A — ARMREST ASSY, SEAT, LH (3 parts) 7181287401 — not listed in this catalogue 72551B — COVER, RECLINING HINGE, RH (3 parts) 9038614007 — not listed in this catalogue 72381 — ROD, RECLINING ADJUSTER EQUALIZING, NO.1 (2 parts) 9454201400 — not listed in this catalogue 72640B — ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH (1 parts) 9461211400 — not listed in this catalogue 79012 — COVER SUB-ASSY, NO.1 SEAT CUSHION, LH (3 parts) 7181287401 — not listed in this catalogue 9010910055 — not listed in this catalogue 71612A — PAD, REAR SEAT CUSHION, LH (1 parts) 79170A — SPRING ASSY, NO.1 SEAT CUSUION, LH (1 parts) 72960 — TABLE ASSY, REAR SEAT TURN (2 parts) 9356055010 — not listed in this catalogue 9011910111 — not listed in this catalogue 72995 — COVER, REAR SEAT CUSHION, RH (3 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (4 parts) 9017910178 — not listed in this catalogue 72969 — KNOB, REAR SEAT TURN LOCK (1 parts) 9050610031 — not listed in this catalogue 71812C — COVER, RECLINING ADJUSTER, LH (6 parts) 9015480006 — not listed in this catalogue 9011910428 — not listed in this catalogue 71632A — COVER, REAR SEAT, OUTER (3 parts) 79205 — LEG SUB-ASSY, NO.2 SEAT (2 parts) 9015940118 — not listed in this catalogue 62555A — KNOB, REAR SEAT SIDE GARNISH (2 parts) 62551D — GARNISH, REAR SEAT SIDE, RH (3 parts) 72969 — KNOB, REAR SEAT TURN LOCK (1 parts) 62552D — GARNISH, REAR SEAT SIDE, LH (3 parts) 72960 — TABLE ASSY, REAR SEAT TURN (2 parts) 62555A — KNOB, REAR SEAT SIDE GARNISH (2 parts) 62556A — CAP, REAR SEAT SIDE GARNISH (3 parts) 72998 — COVER, REAR SEAT CUSHION, LH (3 parts) 9017910178 — not listed in this catalogue 9017910178 — not listed in this catalogue 62553A — GARNISH, REAR SEAT SIDE, NO.2 RH (3 parts) 9004159130 — not listed in this catalogue 9050610031 — not listed in this catalogue 62554A — GARNISH, REAR SEAT SIDE, NO.2 LH (3 parts) 79205 — LEG SUB-ASSY, NO.2 SEAT (2 parts)
MBP968A · 45 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
131 parts on this figure
Part number Description Fitment Price
62551D — Garnish, Rear Seat Side, RH
62551-87004-03 note Garnish, Rear Seat Side, RH
1988-08 → 1990-01 ended
YR22,31 LE —
62551-87004-14 note Garnish, Rear Seat Side, RH
1988-08 → 1990-01 ended
YR22,31 LE —
62551-87004-16 note Garnish, Rear Seat Side, RH
1988-08 → 1990-01 ended
YR22,31 LE —
62552D — Garnish, Rear Seat Side, LH
62552-87004-03 note Garnish, Rear Seat Side, LH
1988-08 → 1990-01 ended
YR22,31 LE —
62552-87004-14 note Garnish, Rear Seat Side, LH
1988-08 → 1990-01 ended
YR22,31 LE —
62552-87004-16 note Garnish, Rear Seat Side, LH
1988-08 → 1990-01 ended
YR22,31 LE —
62553A — Garnish, Rear Seat Side, NO.2 RH
62553-87003-03 note Garnish, Rear Seat Side, NO.2 RH
1988-08 → 1990-01 ended
YR22,31 LE —
62553-87003-14 note Garnish, Rear Seat Side, NO.2 RH
1988-08 → 1990-01 ended
YR22,31 LE —
62553-87003-16 note Garnish, Rear Seat Side, NO.2 RH
1988-08 → 1990-01 ended
YR22,31 LE —
62554A — Garnish, Rear Seat Side, NO.2 LH
62554-87002-03 note Garnish, Rear Seat Side, NO.2 LH
1988-08 → 1990-01 ended
YR22,31 LE —
62554-87002-14 note Garnish, Rear Seat Side, NO.2 LH
1988-08 → 1990-01 ended
YR22,31 LE —
62554-87002-16 note Garnish, Rear Seat Side, NO.2 LH
1988-08 → 1990-01 ended
YR22,31 LE —
62555A — Knob, Rear Seat Side Garnish
62555-87001 note Knob, Rear Seat Side Garnish
1988-08 → 1990-01 ended
YR22,31 LE —
62555-87002 note Knob, Rear Seat Side Garnish
1988-08 → 1990-01 ended
YR22,31 LE —
62556A — Cap, Rear Seat Side Garnish
62556-87002-03 note Cap, Rear Seat Side Garnish
1988-08 → 1990-01 ended
YR22,31 LE —
62556-87002-14 note Cap, Rear Seat Side Garnish
1988-08 → 1990-01 ended
YR22,31 LE —
62556-87002-16 note Cap, Rear Seat Side Garnish
1988-08 → 1990-01 ended
YR22,31 LE —
71611B — Pad, Rear NO.1 Seat Cushion
71611-28020 Pad, Rear NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
71611-28030 note Pad, Rear NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71612A — Pad, Rear Seat Cushion, LH
71612-28020 Pad, Rear Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71632A — Cover, Rear Seat, Outer
71632-87003-03 note Cover, Rear Seat, Outer
1988-08 → 1990-01 ended
YR22,31 LE —
71632-87003-14 note Cover, Rear Seat, Outer
1988-08 → 1990-01 ended
YR22,31 LE —
71632-87003-16 note Cover, Rear Seat, Outer
1988-08 → 1990-01 ended
YR22,31 LE —
71651 — Pad, Rear NO.1 Seatback
71651-28020 Pad, Rear NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 —
71651-28030 note Pad, Rear NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71811C — Cover, Reclining Adjuster, RH
71811-28010-03 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71811-28010-14 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71811-28010-26 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 —
71833-28020-03 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71833-28020-04 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71833-28020-16 note Cover, Reclining Adjuster, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71812C — Cover, Reclining Adjuster, LH
71812-28010-03 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71812-28010-14 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71812-28010-26 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 —
71834-28010-03 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71834-28010-04 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71834-28010-16 note Cover, Reclining Adjuster, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71931A — Support, Rear Seat Headrest
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71940A — Headrest Assy, Rear Seat
71940-28060-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-16 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28071-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
72381 — Rod, Reclining Adjuster Equalizing, NO.1
72381-28020 note Rod, Reclining Adjuster Equalizing, NO.1
1988-08 → 1990-01 ended
YR22,31 LE —
72381-87001 Rod, Reclining Adjuster Equalizing, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72551B — Cover, Reclining Hinge, RH
71811-28030-03 note Cover, Reclining Hinge, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71811-28030-04 note Cover, Reclining Hinge, RH
1988-08 → 1990-01 ended
YR22,31 LE —
71811-28030-16 note Cover, Reclining Hinge, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72552C — Cover, Reclining Hinge, LH
71812-28030-03 note Cover, Reclining Hinge, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71812-28030-04 note Cover, Reclining Hinge, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71812-28030-16 note Cover, Reclining Hinge, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72630B — Adjuster Assy, Rear NO.1 Seat, Inner RH
72630-28030 note Adjuster Assy, Rear NO.1 Seat, Inner RH
1988-08 → 1990-01 ended
YR22,31 LE —
72640B — Adjuster Assy, Rear NO.1 Seat, Inner LH
72640-28030 Adjuster Assy, Rear NO.1 Seat, Inner LH
1988-08 → 1990-01 ended
YR22,31 LE —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-28040-03 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28040-14 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28040-16 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 —
72730-28050-03 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72730-28050-04 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72730-28050-16 note Adjuster Assy, Rear Seat Reclining, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-28050 Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 —
72740-28060-03 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72740-28060-04 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72740-28060-16 note Adjuster Assy, Rear Seat Reclining, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72810A — Armrest Assy, Seat, RH
72810-28011-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28011-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28011-16 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 DLX —
72810-28024-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28024-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28024-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-04 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72810-28043-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72820A — Armrest Assy, Seat, LH
72820-28023-03 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72820-28023-04 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72820-28023-06 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72960 — Table Assy, Rear Seat Turn
72960-28010 note Table Assy, Rear Seat Turn
1988-08 → 1990-01 ended
YR22,31 LE —
72970-28010 note Table Assy, Rear Seat Turn
1988-08 → 1990-01 ended
YR22,31 LE —
72969 — Knob, Rear Seat Turn Lock
72969-28010 Knob, Rear Seat Turn Lock
1988-08 → 1990-01 ended
YR22,31 LE —
72995 — Cover, Rear Seat Cushion, RH
72995-28020-03 note Cover, Rear Seat Cushion, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72995-28020-04 note Cover, Rear Seat Cushion, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72995-28020-16 note Cover, Rear Seat Cushion, RH
1988-08 → 1990-01 ended
YR22,31 LE —
72998 — Cover, Rear Seat Cushion, LH
72998-28010-03 note Cover, Rear Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72998-28010-04 note Cover, Rear Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
72998-28010-16 note Cover, Rear Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
79011A — Cover Sub-assy, NO.1 Seat Cushion
71075-28034-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28034-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28034-16 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71075-28044-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28044-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28044-06 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-03 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-04 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-06 note Cover Sub-assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79012 — Cover Sub-assy, NO.1 Seat Cushion, LH
71075-28063-03 note Cover Sub-assy, NO.1 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-04 note Cover Sub-assy, NO.1 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71075-28063-06 note Cover Sub-assy, NO.1 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
79013A — Cover Sub-assy, NO.1 Seatback
71077-28034-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28034-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28034-16 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71077-28044-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28044-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28044-06 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-03 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-04 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71077-28063-06 note Cover Sub-assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
79014A — Cover Sub-assy, NO.1 Seatback, LH
71078-28043-03 note Cover Sub-assy, NO.1 Seatback, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71078-28043-04 note Cover Sub-assy, NO.1 Seatback, LH
1988-08 → 1990-01 ended
YR22,31 LE —
71078-28043-06 note Cover Sub-assy, NO.1 Seatback, LH
1988-08 → 1990-01 ended
YR22,31 LE —
79160 — Spring Assy, NO.1 Seat Cushion
79160-28021 Spring Assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
79160-28040 note Spring Assy, NO.1 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79170A — Spring Assy, NO.1 Seat Cusuion, LH
79170-28030 Spring Assy, NO.1 Seat Cusuion, LH
1988-08 → 1990-01 ended
YR22,31 LE —
79180 — Spring Assy, NO.1 Seatback
79180-28010 Spring Assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 —
79180-28020 note Spring Assy, NO.1 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
79190A — Spring Assy, NO.1 Seatback, LH
79180-28020 Spring Assy, NO.1 Seatback, LH
1988-08 → 1990-01 ended
YR22,31 LE —
79205 — Leg Sub-assy, NO.2 Seat
71333-87004 note Leg Sub-assy, NO.2 Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71334-87002 note Leg Sub-assy, NO.2 Seat
1988-08 → 1990-01 ended
YR22,31 LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
