Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

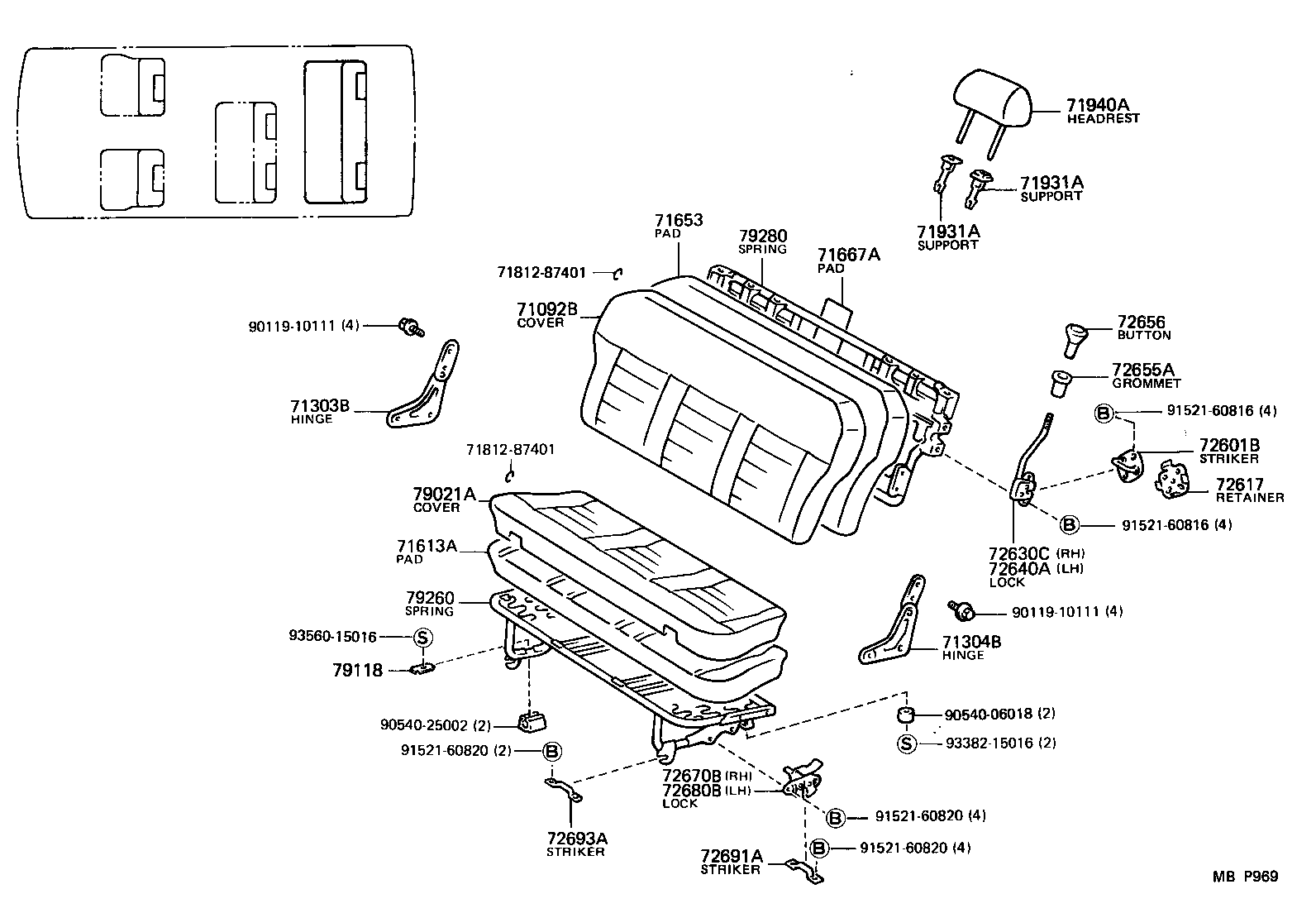

Exploded illustration MBP969 71940A — HEADREST ASSY, REAR SEAT (9 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71653 — PAD, REAR NO.2 SEATBACK (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 79280 — SPRING ASSY, NO.2 SEATBACK (1 parts) 71667A — PAD, REAR SEATBACK, CENTER A (2 parts) 7181287401 — not listed in this catalogue 71092B — COVER SUB-ASSY, NO.2 SEATBACK (9 parts) 72656 — BUTTON, REAR SEATBACK STOP RELEASE (3 parts) 9011910111 — not listed in this catalogue 72655A — GROMMET, REAR SEATBACK STOP BUTTON (3 parts) 71303B — HINGE SUB-ASSY, REAR NO.2 SEAT, RH (3 parts) 9152160816 — not listed in this catalogue 72601B — STRIKER SUB-ASSY, REAR SEATBACK LOCK (1 parts) 7181287401 — not listed in this catalogue 72617 — RETAINER, SEATBACK LOCK STRIKER COVER (1 parts) 79021A — COVER SUB-ASSY, NO.2 SEAT CUSHION (9 parts) 9152160816 — not listed in this catalogue 71613A — PAD, REAR NO.2 SEAT CUSHION (2 parts) 72630C — LOCK ASSY, REAR SEATBACK, RH (1 parts) 72640A — LOCK ASSY, REAR SEATBACK, LH (1 parts) 79260 — SPRING ASSY, NO.2 SEAT CUSHION (2 parts) 9011910111 — not listed in this catalogue 9356015016 — not listed in this catalogue 71304B — HINGE SUB-ASSY, REAR NO.2 SEAT, LH (3 parts) 79118 — BRACKET, NO.1 SEAT LEG (2 parts) 9054006018 — not listed in this catalogue 9054025002 — not listed in this catalogue 9338215016 — not listed in this catalogue 9152160820 — not listed in this catalogue 72670B — LOCK ASSY, REAR SEAT CUSHION, RH (1 parts) 72680B — LOCK ASSY, REAR SEAT CUSHION, LH (1 parts) 9152160820 — not listed in this catalogue 72693A — STRIKER, REAR SEAT CUSHION LOCK, NO.3 (1 parts) 9152160820 — not listed in this catalogue 72691A — STRIKER, REAR SEAT CUSHION LOCK, NO.1 (2 parts)
MBP969 · 23 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
71092B — Cover Sub-assy, NO.2 Seatback
71092-28014-03 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71092-28014-04 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71092-28014-16 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 DLX —
71092-28024-03 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71092-28024-04 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71092-28024-06 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71092-28033-03 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71092-28033-04 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71092-28033-06 note Cover Sub-assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71303B — Hinge Sub-assy, Rear NO.2 Seat, RH
71303-28011-03 note Hinge Sub-assy, Rear NO.2 Seat, RH
1988-08 → 1990-01 ended
YR22,31 —
71303-28011-14 note Hinge Sub-assy, Rear NO.2 Seat, RH
1988-08 → 1990-01 ended
YR22,31 —
71303-28011-16 note Hinge Sub-assy, Rear NO.2 Seat, RH
1988-08 → 1990-01 ended
YR22,31 —
71304B — Hinge Sub-assy, Rear NO.2 Seat, LH
71304-28011-03 note Hinge Sub-assy, Rear NO.2 Seat, LH
1988-08 → 1990-01 ended
YR22,31 —
71304-28011-14 note Hinge Sub-assy, Rear NO.2 Seat, LH
1988-08 → 1990-01 ended
YR22,31 —
71304-28011-16 note Hinge Sub-assy, Rear NO.2 Seat, LH
1988-08 → 1990-01 ended
YR22,31 —
71613A — Pad, Rear NO.2 Seat Cushion
71613-28010 Pad, Rear NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
71613-28020 note Pad, Rear NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71653 — Pad, Rear NO.2 Seatback
71653-28010 Pad, Rear NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 —
71653-28020 note Pad, Rear NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 LE —
71667A — Pad, Rear Seatback, Center A
71667-87001 note Pad, Rear Seatback, Center A
1988-08 → 1990-01 ended
YR22,31 LE —
71667-87001 Pad, Rear Seatback, Center A
1988-08 → 1990-01 ended
YR22,31 —
71931A — Support, Rear Seat Headrest
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71930-10060-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 —
71931-10010-44 note Support, Rear Seat Headrest
1988-08 → 1989-01 ended
YR22,31 LE —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR22,31 LE —
71940A — Headrest Assy, Rear Seat
71940-28060-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28060-16 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 DLX —
71940-28071-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28071-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-04 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
71940-28081-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22,31 LE —
72601B — Striker Sub-assy, Rear Seatback Lock
72601-16050 Striker Sub-assy, Rear Seatback Lock
1988-08 → 1990-01 ended
YR22,31 —
72617 — Retainer, Seatback Lock Striker Cover
72617-28010 Retainer, Seatback Lock Striker Cover
1988-08 → 1990-01 ended
YR22,31 —
72630C — Lock Assy, Rear Seatback, RH
72630-28020 Lock Assy, Rear Seatback, RH
1988-08 → 1990-01 ended
YR22,31 —
72640A — Lock Assy, Rear Seatback, LH
72640-28020 Lock Assy, Rear Seatback, LH
1988-08 → 1990-01 ended
YR22,31 —
72655A — Grommet, Rear Seatback Stop Button
72655-20020-20 note Grommet, Rear Seatback Stop Button
1988-08 → 1990-01 ended
YR22,31 —
72655-20020-23 note Grommet, Rear Seatback Stop Button
1988-08 → 1990-01 ended
YR22,31 —
72655-20020-57 note Grommet, Rear Seatback Stop Button
1988-08 → 1990-01 ended
YR22,31 —
72656 — Button, Rear Seatback Stop Release
72656-20010-23 note Button, Rear Seatback Stop Release
1988-08 → 1990-01 ended
YR22,31 —
72656-20010-30 note Button, Rear Seatback Stop Release
1988-08 → 1990-01 ended
YR22,31 —
72656-20010-58 note Button, Rear Seatback Stop Release
1988-08 → 1990-01 ended
YR22,31 —
72670B — Lock Assy, Rear Seat Cushion, RH
72670-28040 Lock Assy, Rear Seat Cushion, RH
1988-08 → 1990-01 ended
YR22,31 —
72680B — Lock Assy, Rear Seat Cushion, LH
72680-28040 Lock Assy, Rear Seat Cushion, LH
1988-08 → 1990-01 ended
YR22,31 —
72691A — Striker, Rear Seat Cushion Lock, NO.1
72691-28020 note Striker, Rear Seat Cushion Lock, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72691-28020 note Striker, Rear Seat Cushion Lock, NO.1
1988-08 → 1990-01 ended
YR22,31 —
72693A — Striker, Rear Seat Cushion Lock, NO.3
72693-28020 Striker, Rear Seat Cushion Lock, NO.3
1988-08 → 1990-01 ended
YR22,31 —
79021A — Cover Sub-assy, NO.2 Seat Cushion
71091-28014-03 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71091-28014-04 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71091-28014-16 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 DLX —
71091-28024-03 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71091-28024-04 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
71091-28024-06 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79021-28023-03 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79021-28023-04 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79021-28023-06 note Cover Sub-assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 LE —
79118 — Bracket, NO.1 Seat Leg
79118-28010 Bracket, NO.1 Seat Leg
1988-08 → 1990-01 ended
YR22,31 —
79118-28010 Bracket, NO.1 Seat Leg
1988-08 → 1990-01 ended
YR22,31 —
79260 — Spring Assy, NO.2 Seat Cushion
79260-28012-04 note Spring Assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
79260-28012-16 note Spring Assy, NO.2 Seat Cushion
1988-08 → 1990-01 ended
YR22,31 —
79280 — Spring Assy, NO.2 Seatback
79280-28010 Spring Assy, NO.2 Seatback
1988-08 → 1990-01 ended
YR22,31 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
