Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

11 part groups · 3 illustrations

Illustrations

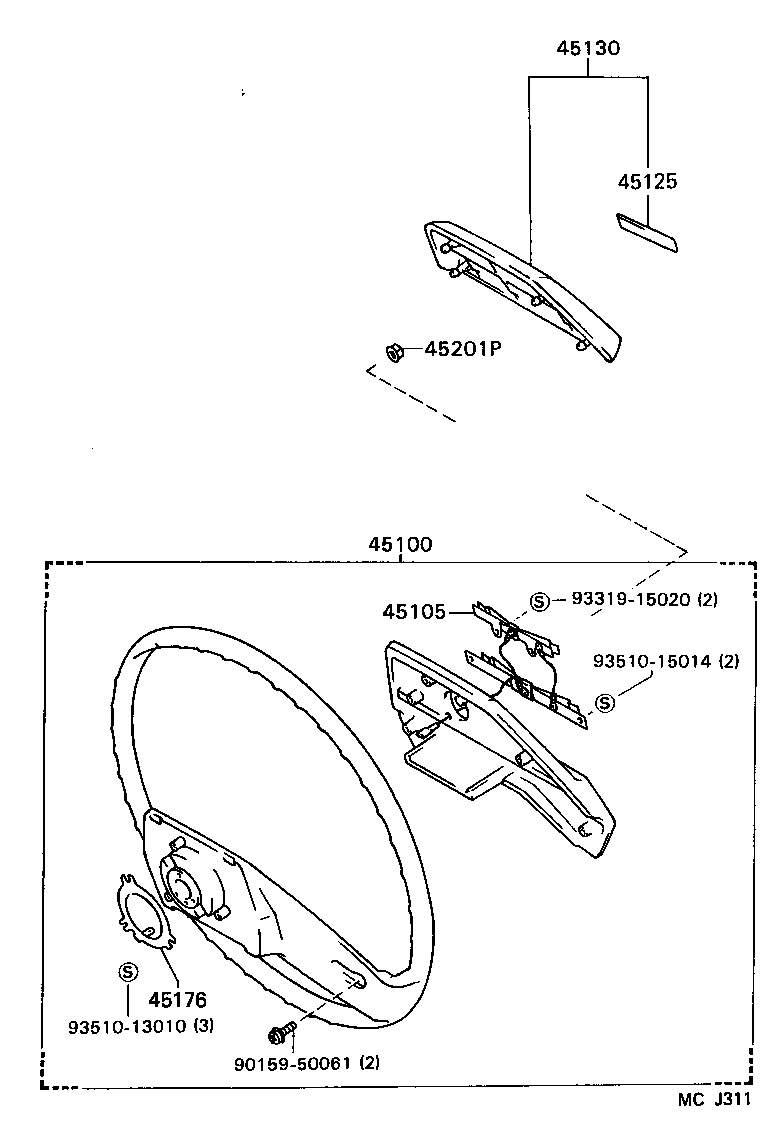

Figure MCG821A MCG821A 1988-08 → — Figure MCJ311 MCJ311 1988-08 → — Figure MCG907 MCG907 1988-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
