Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

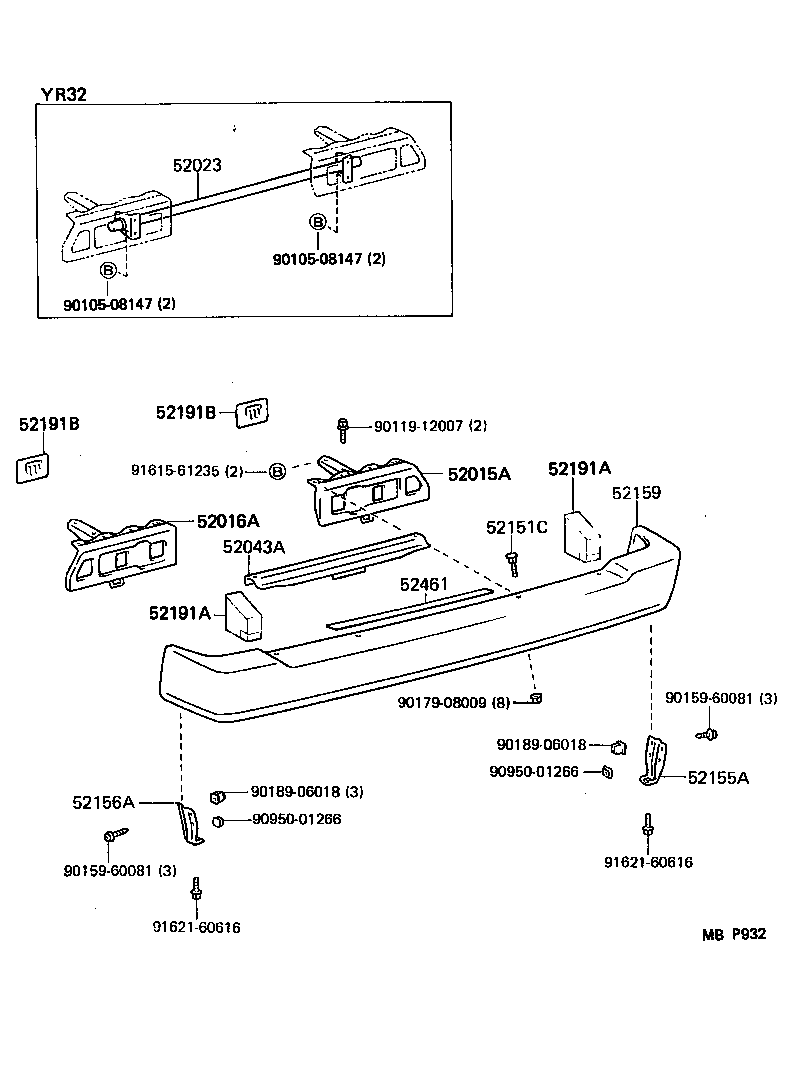

Figure MBP931 MBP931 1988-08 → — Figure MBP932 MBP932 1988-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52043A Reinforcement Sub-assy, Rear Bumper Bar NO.2
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52191A Seal, Rear Bumper Arm
52191B Grommet, Rear Bumper Stay
52461 Pad, Rear Bumper, Center
52551 Filler, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
