Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe
Discontinued model
Data version 1990-01

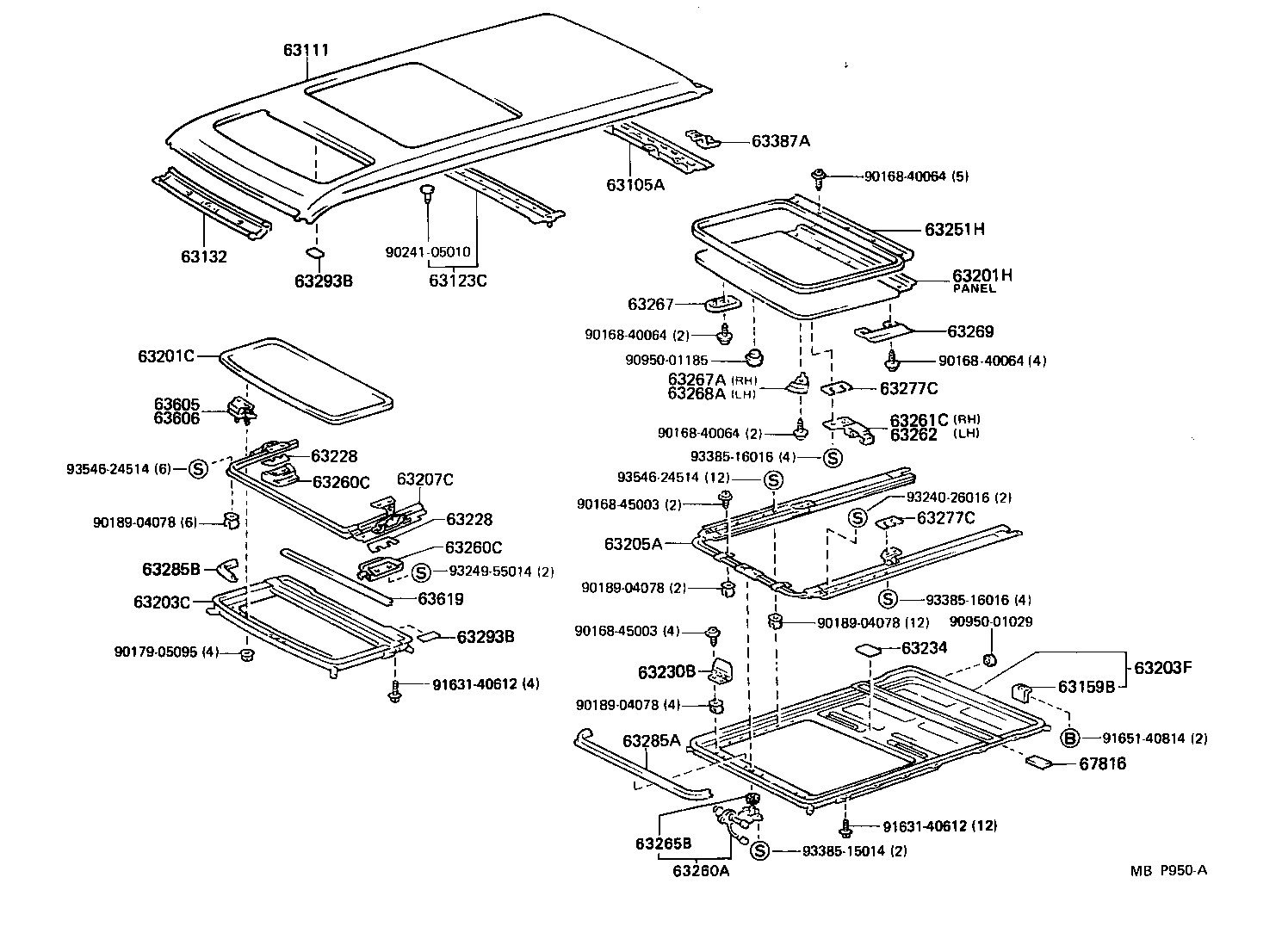

Roof Panel & Back Panel
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63123C | Reinforcement, Roof Panel |
| 63129A | Cushion, Roof Reinforcement |
| 63132 | Panel, Windshield Header, Inner |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63147A | Cushion, Roof TO Roof Reinforcement |
| 63159B | Bracket, Sliding Roof, Rear |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63201H | Panel Sub-assy, Slide Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63207C | Rail Sub-assy, Tilt Roof Guide |

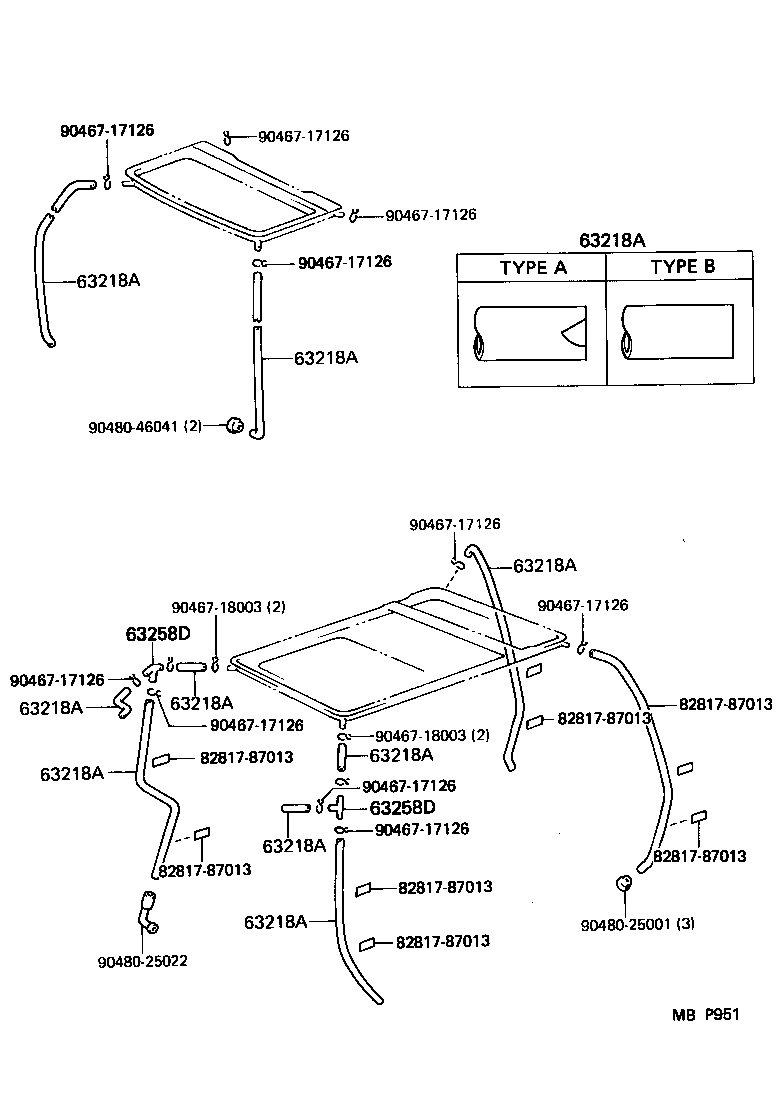

| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63228 | Spacer, Slide Roof Lock, NO.1 |
| 63230B | Panel Assy, Roof Wind Deflector |
| 63234 | Protector, Slide Roof Housing |
| 63251H | Weatherstrip, Sliding Roof |
| 63258D | Joint, Slide Roof Drain Hose |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63265B | Gear, Sliding Roof Drive |
| 63267 | Protector, Sliding Roof Weatherstrip |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63269 | Retainer, Sliding Roof Weatherstrip |
| 63277C | Shim, Sliding Roof Panel |
| 63285A | Dam, Sliding Roof Housing |
| 63285B | Cover, Sliding Roof Housing Drain, Front |
| 63293B | Protector, Slide Roof Silencer, NO.1 |
| 63387A | Bracket, Roof Headlining Holder |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63619 | Cover, Tilt Roof Panel |
| 67816 | Pad, Roof Panel, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
