Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe
Discontinued model
Data version 1990-01

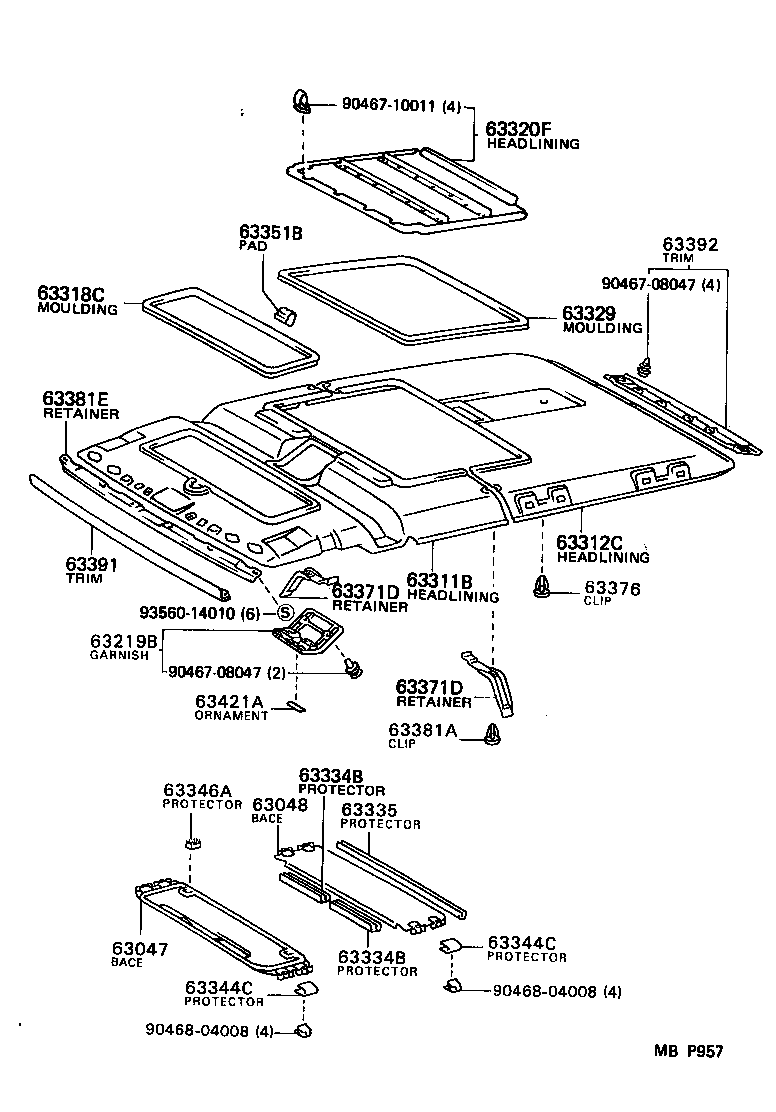

Roof Headlining & Silencer Pad
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63047 | Base Sub-assy, Sunshade Trim, Front NO.1 |
| 63048 | Base Sub-assy, Sunshade Trim, Front NO.2 |
| 63219B | Garnish, Sun Roof Switch |
| 63304A | Trim Sub-assy, Roof Headlining, Front |
| 63305A | Trim Sub-assy, Roof Headlining, NO.2 |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63311A | Headlining, Roof NO.1 |
| 63311B | Headlining, Roof, Front |
| 63312C | Headlining, Roof, Rear |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63320F | Headlining Assy, Sun Roof |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63334B | Protector, Sunshade Trim, NO.1 |
| 63335 | Protector, Sunshade Trim, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63344C | Protector, Sunshade Trim, NO.4 |
| 63346A | Protector, Sunshade Trim, NO.6 |
| 63351B | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63368 | Support, Roof Headlining, NO.8 |
| 63371D | Retainer, Roof Headlining Support |
| 63372C | Hook, Roof Headlining Support |
| 63376 | Clip, Headlining |
| 63381A | Clip, Headlining Retainer |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
| 63421A | Ornament, Roof Console |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
