Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 6 illustrations

Illustrations

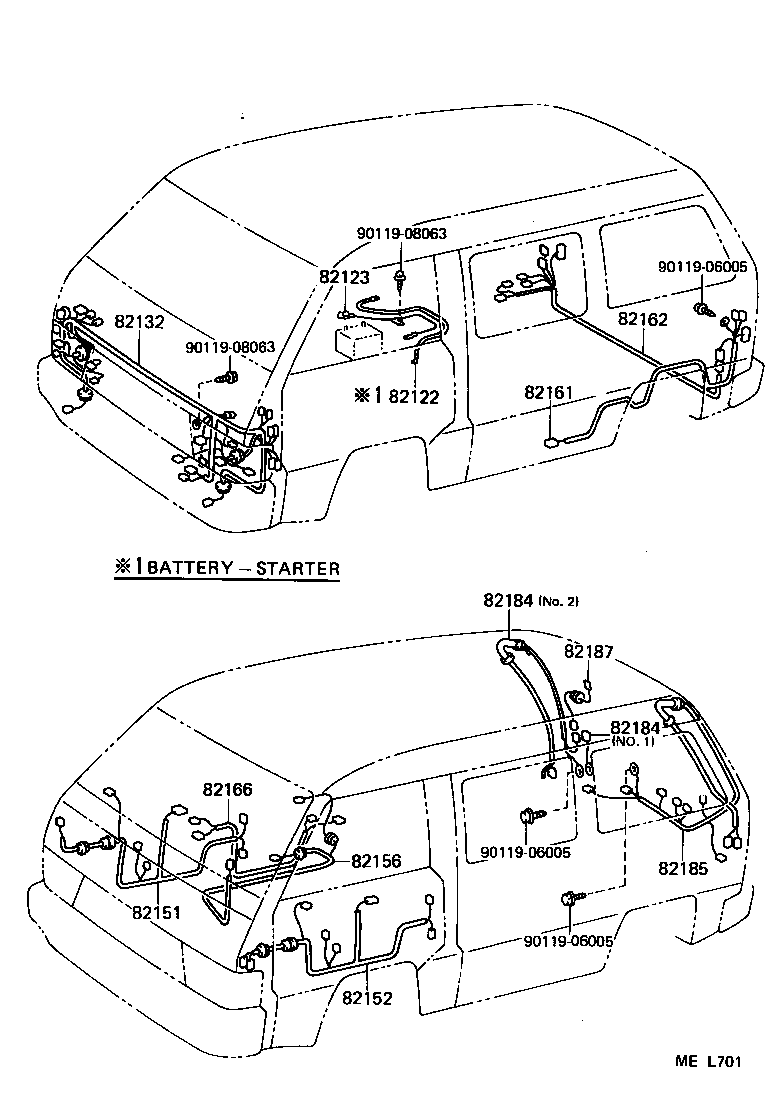

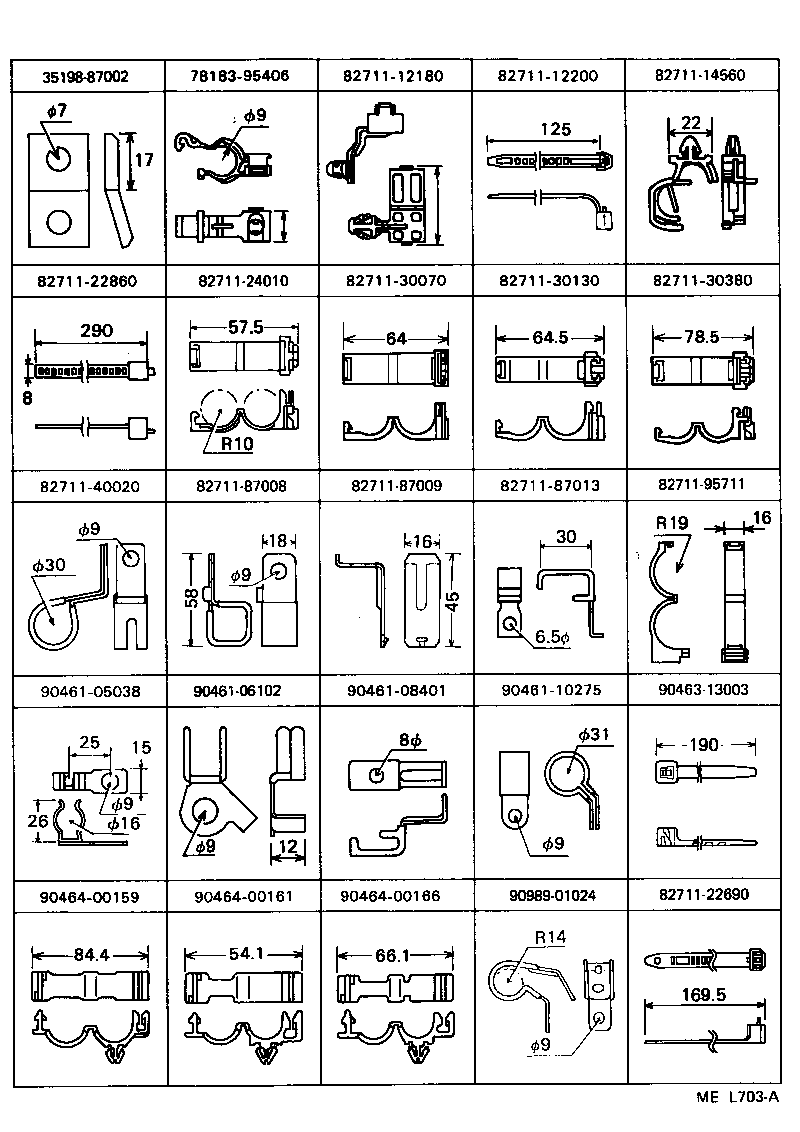

Figure MEL700A MEL700A 1988-08 → — Figure MEL701 MEL701 1988-08 → — Figure MEL702 MEL702 1988-08 → — Figure MEL703A MEL703A 1988-08 → — Figure MEN622 MEN622 1988-08 → — Figure MEL704 MEL704 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82156 Wire, Slide Door
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82345 Diode
82620 Block Assy, Fusible Link
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
