Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

22 part groups · 2 illustrations

Illustrations

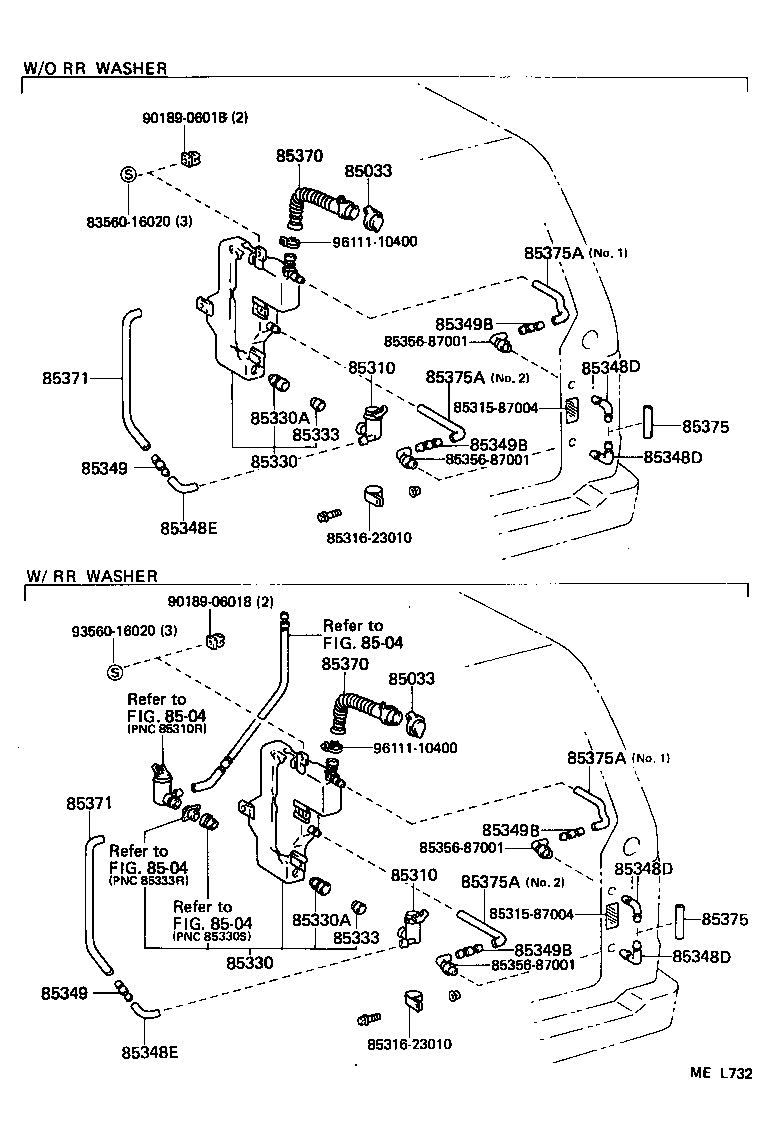

Figure MEL731B MEL731B 1988-08 → — Figure MEL732 MEL732 1988-08 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85033 Cap Assy, Windshield Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85342 Holder, Washer Nozzle
85344 Tube, Windshield Washer Hose, Stop
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349B Joint, Windshield Washer Hose, NO.3
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85375 Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
85375A Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
