Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe
Discontinued model
Data version 1990-01
Heating & Air Conditioning - Control & Air Duct
41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

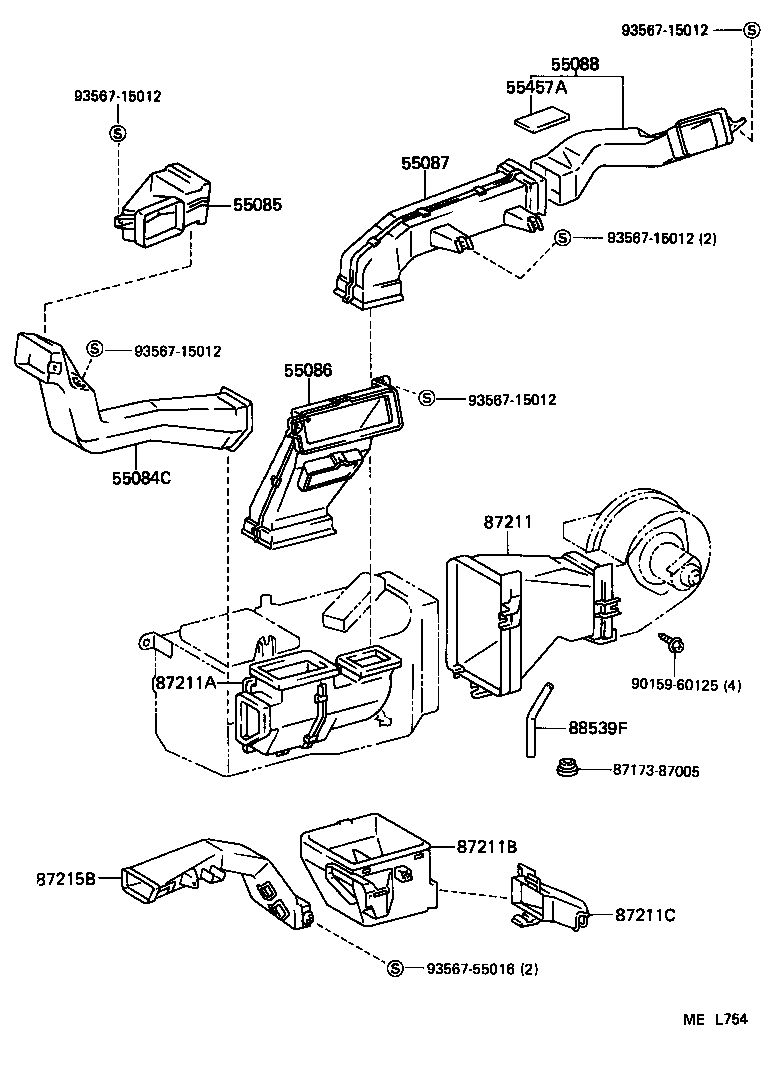

| 55084C | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55087 | Duct Sub-assy, Heater TO Register, NO.4 |
| 55088 | Duct Sub-assy, Heater TO Register, NO.5 |
| 55457A | Spacer, Instrument Panel Safety Pad |
| 55519 | Plate, Heater Control Name |
| 55519R | Plate, Heater Control Name |

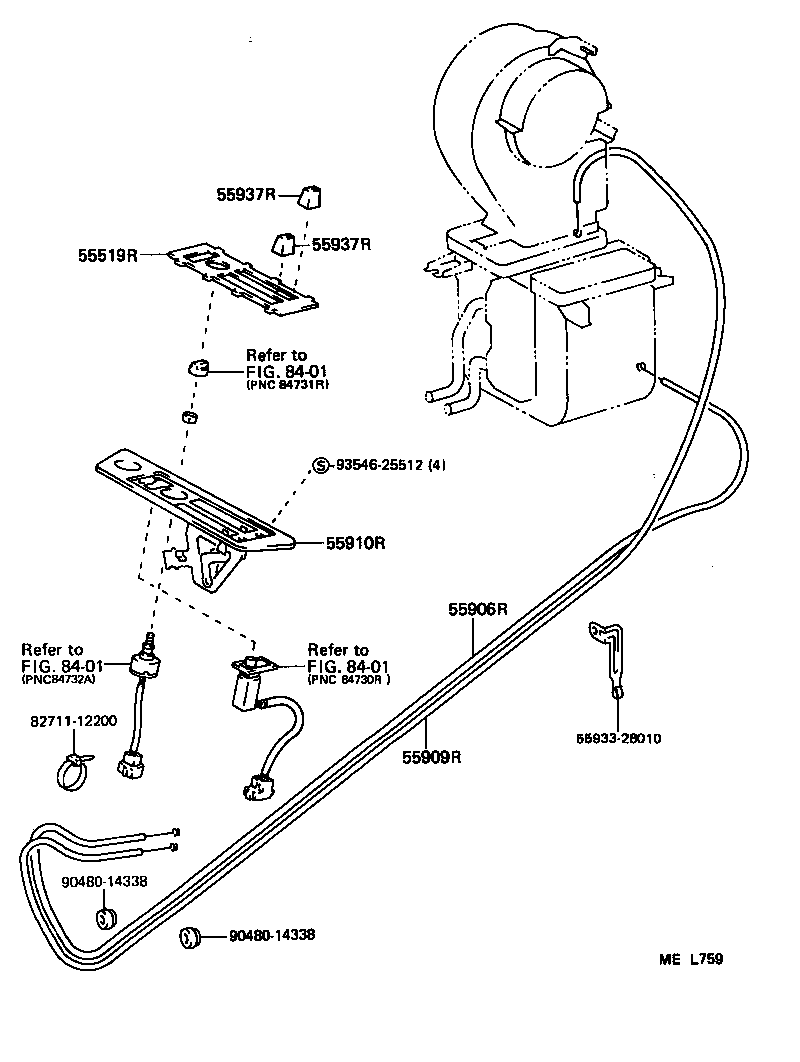

| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55906R | Cable Sub-assy, Heater Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55909R | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55910R | Control Assy, Heater |
| 55937 | Knob, Heater Control Lever |
| 55937R | Knob, Heater Control Lever |
| 87146 | Retainer, Grille |
| 87202 | Duct, Heater Air |
| 87203 | Duct, Heater Air, Rear NO.1 |
| 87203A | Duct Assy, Heater Air, Rear |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 87211D | Cover, Heater Air Duct Hole |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214K | Bracket, Air Duct |
| 87215B | Duct, Air, Side NO.3 LH |
| 87216 | Duct, Heater Interior Air (TO REAR) |
| 87222 | Guide, Air Duct, Rear |
| 87226 | Adapter, Air Duct |
| 87284 | Resistor Sub-assy, Variable |
| 88539F | Hose, Drain |
| 88561B | Grille, Cooler Air Inlet |
| 88566A | Duct, Cooler Air, NO.1 |
| 88570E | Grille Assy, Air Outlet |
| 88571B | Grille, Air Outlet |
| 88688H | Bracket, Cooler Air Duct, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
