Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · Europe
Discontinued model
Data version 1990-01
Heating & Air Conditioning - Cooler Piping
48 part groups · 6 illustrations
Part groups

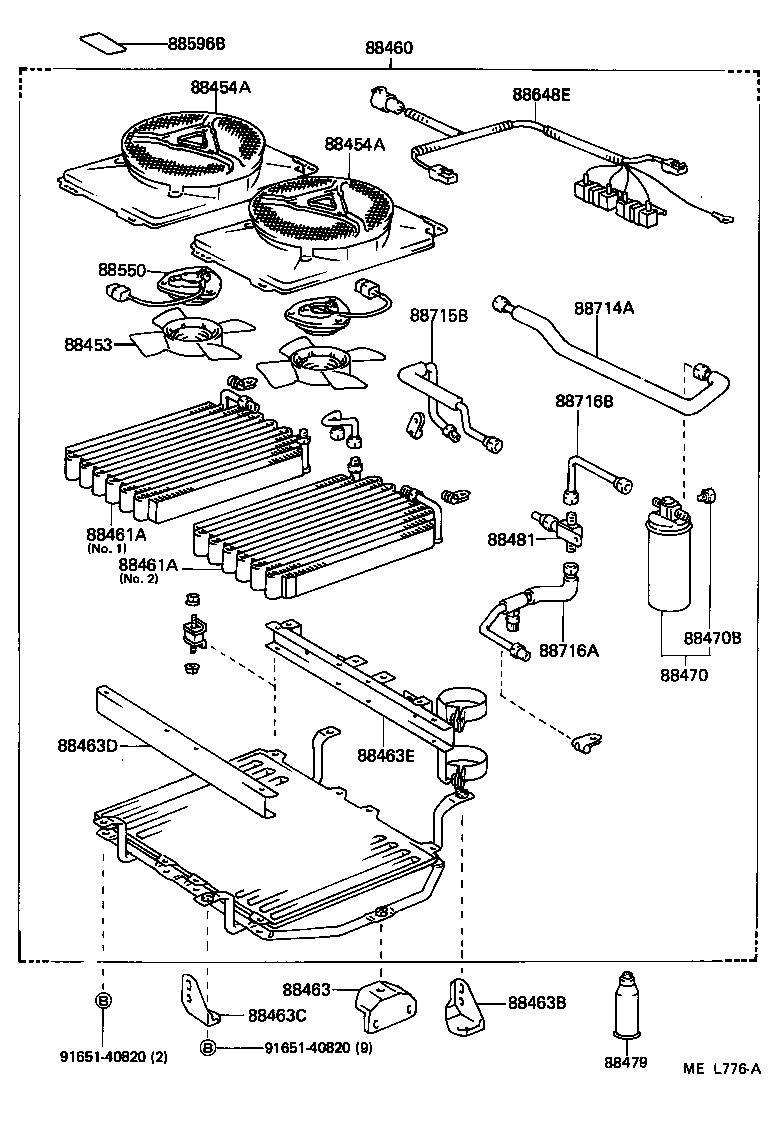

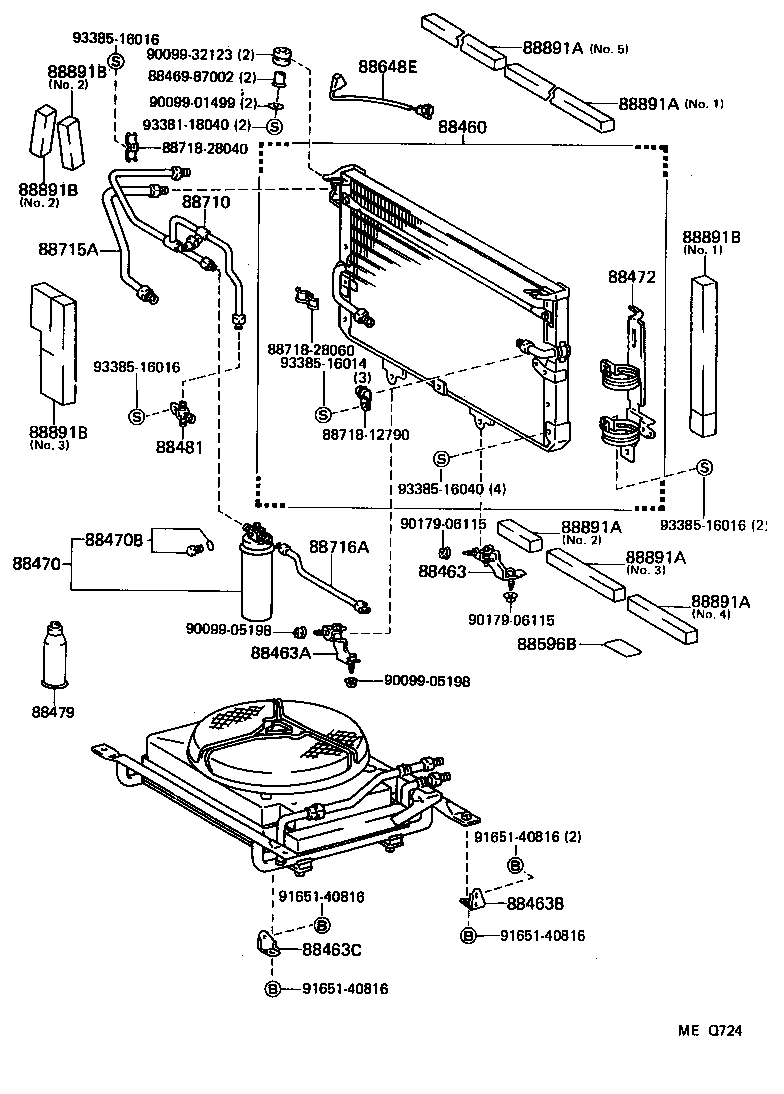

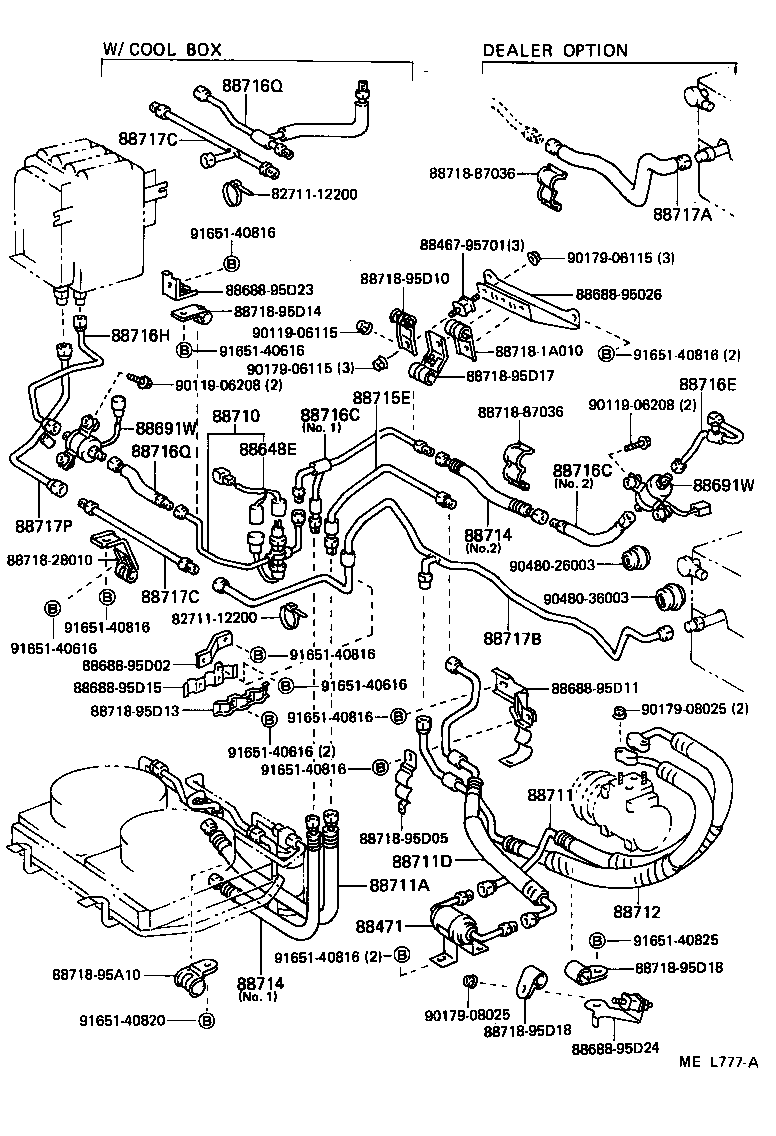

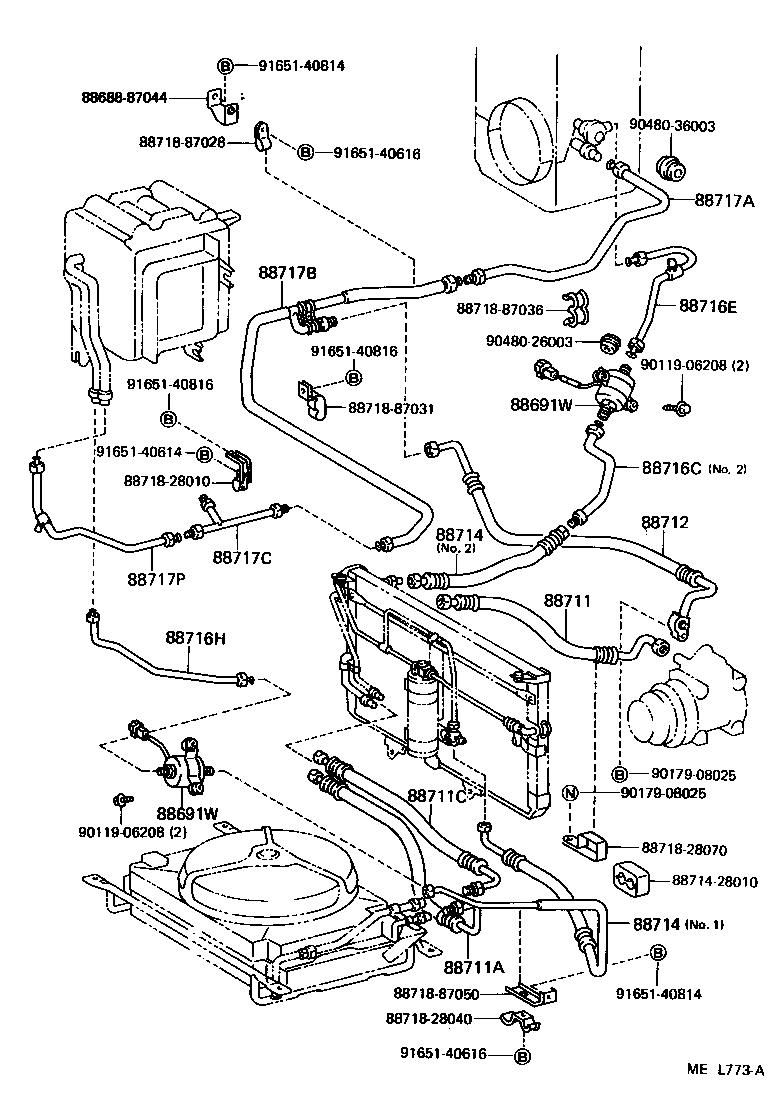

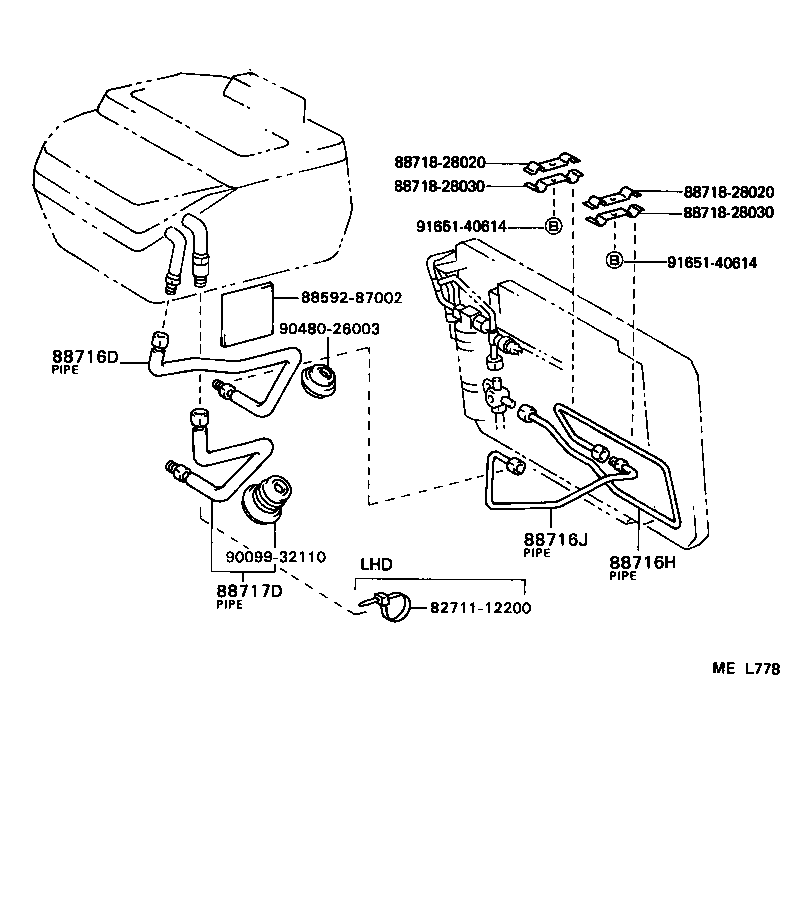

| PNC | Description |
|---|---|
| 88450 | Condenser Assy, W/Receiver |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88461A | Core, Cooler Condenser |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88463B | Bracket, Cooler Condenser, NO.3 |
| 88463C | Bracket, Cooler Condenser, NO.4 |
| 88463D | Bracket, Cooler Condenser, NO.5 |
| 88463E | Bracket, Cooler Condenser, NO.6 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88481 | Glass, Sight |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88596B | Plate, Caution, NO.1 |
| 88645H | Switch, Pressure NO.1 |
| 88648E | Wiring, Cooler |
| 88691W | Valve, Magnet |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88711C | Hose, Cooler Refrigerant Discharge, NO.3 |
| 88711D | Hose, Cooler Refrigerant Discharge, NO.4 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88714A | Hose, Cooler Refrigerant Liquid, NO.2 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88715B | Pipe, Cooler Refrigerant Discharge, B |
| 88715E | Pipe, Cooler Refrigerant Discharge, E |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88716J | Pipe, Cooler Refrigerant Liquid, J |
| 88716Q | Pipe, Cooler Refrigerant Liquid, Q |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88717D | Pipe, Cooler Refrigerant Suction, D |
| 88717P | Pipe, Cooler Refrigerant Suction, P |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
