Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

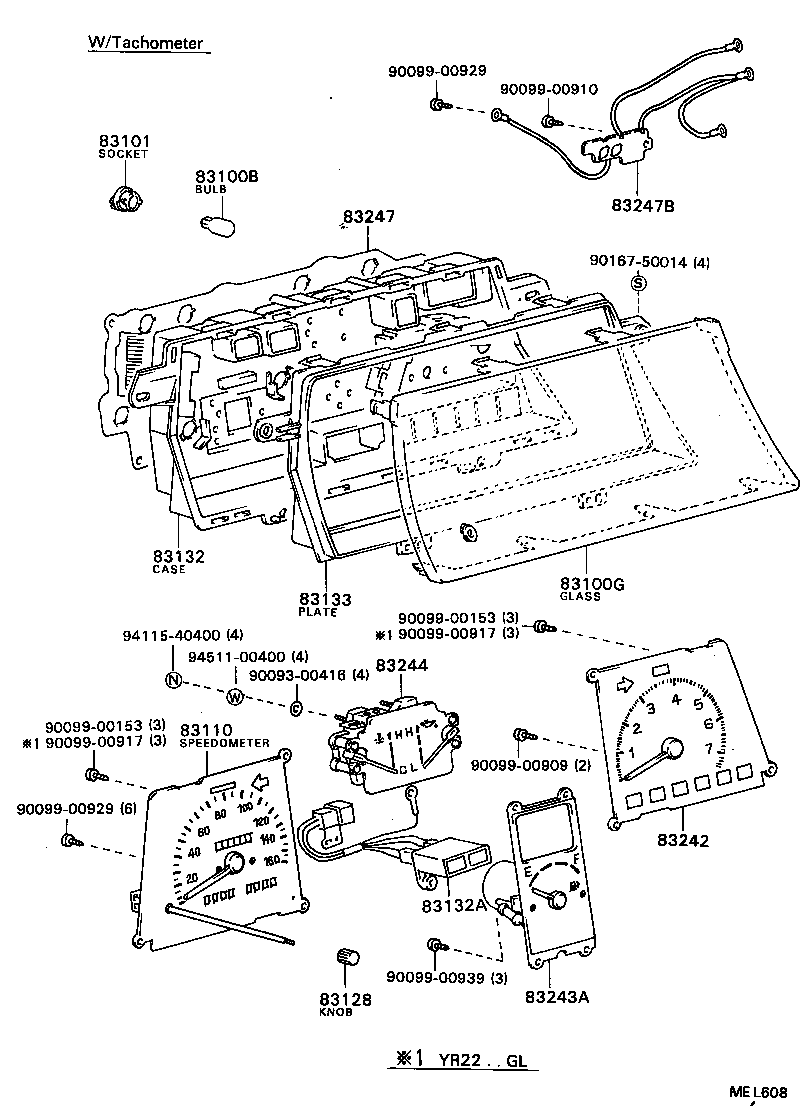

Exploded illustration MEL608 9009900929 — not listed in this catalogue 9009900910 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (9 parts) 83100B — BULB, COMBINATION METER, NO.1 (7 parts) 83247B — PLATE, METER CIRCUIT, NO.2 (2 parts) 83247 — PLATE, METER CIRCUIT (7 parts) 9016750014 — not listed in this catalogue 83132 — CASE, COMBINATION METER (5 parts) 83100G — GLASS, COMBINATION METER (4 parts) 83133 — PLATE, COMBINATION METER, NO.1 (5 parts) 9009900153 — not listed in this catalogue 9411540400 — not listed in this catalogue 9009900917 — not listed in this catalogue 9451100400 — not listed in this catalogue 83244 — GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER (3 parts) 9009300416 — not listed in this catalogue 9009900153 — not listed in this catalogue 83110 — SPEEDOMETER ASSY (5 parts) 9009900917 — not listed in this catalogue 9009900909 — not listed in this catalogue 9009900929 — not listed in this catalogue 83242 — TACHOMETER ASSY, ENGINE (6 parts) 83132A — CASE, METER (1 parts) 9009900939 — not listed in this catalogue 83243A — GAUGE SUB-ASSY, FUEL RECEIVER (4 parts) 83128 — KNOB, TRIP COUNTER (1 parts)
MEL608 · 13 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83109-28010 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR2#,31 —
90981-11018 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR22,31 DLX —
90981-11018 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR21 DLX —
90981-11018 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR2#,31 GL —
99132-12034 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR21 RHD —
99132-12034 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR31 GL;YR2# LHD —
99132-12034 note Bulb, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR31 DLX —
83100G — Glass, Combination Meter
83138-87003 note Glass, Combination Meter
1988-08 → 1990-01 ended
YR21 DLX —
83138-87003 note Glass, Combination Meter
1988-08 → 1990-01 ended
YR22,31 DLX —
83138-87005 Glass, Combination Meter
1988-08 → 1990-01 ended
YR2#,31 DLX —
83138-87007 Glass, Combination Meter
1988-08 → 1990-01 ended
YR2#,31 GL —
83101 — Socket Sub-assy, Combination Meter Bulb
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR22 5F GL —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR21 RHD —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR21 DLX —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR22 4FC;YR22 DLX;YR21,31 LHD +1 —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR31 DLX —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR22,31 DLX —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR21 DLX —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR2#,31 GL —
83101-28010 note Socket Sub-assy, Combination Meter Bulb
1988-08 → 1990-01 ended
YR22 5F GL —
83110 — Speedometer Assy
83110-28031 Speedometer Assy
1988-08 → 1990-01 ended
YR21 DLX —
83110-28061 Speedometer Assy
1988-08 → 1990-01 ended
YR22,31 DLX —
83110-28091 Speedometer Assy
1988-08 → 1990-01 ended
YR22,31 GL —
83110-28101 Speedometer Assy
1988-08 → 1990-01 ended
YR21 LHD GL —
83110-87019 Speedometer Assy
1988-08 → 1990-01 ended
YR21 RHD —
83128 — Knob, Trip Counter
83128-14510 Knob, Trip Counter
1988-08 → 1990-01 ended
YR2#,31 GL —
83132 — Case, Combination Meter
83132-28090 Case, Combination Meter
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
83132-28190 Case, Combination Meter
1988-08 → 1990-01 ended
YR22,31 DLX —
83132-28230 note Case, Combination Meter
1988-08 → 1990-01 ended
YR21 DLX —
83132-87031 Case, Combination Meter
1988-08 → 1990-01 ended
YR21 RHD —
83132-87039 Case, Combination Meter
1988-08 → 1990-01 ended
YR21 DLX —
83132A — Case, Meter
83132-95D01 Case, Meter
1988-08 → 1990-01 ended
YR31 GL —
83133 — Plate, Combination Meter, NO.1
83133-28090 note Plate, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR21 DLX —
83133-28130 Plate, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR22 DLX —
83133-87019 Plate, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR2#,31 GL —
83133-87025 Plate, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR21 DLX —
83133-95D13 Plate, Combination Meter, NO.1
1988-08 → 1990-01 ended
YR31 DLX —
83242 — Tachometer Assy, Engine
83242-28330 note Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR21 LHD GL —
83242-28410 Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR21 LHD GL —
83242-28450 Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR22 4FC —
83242-87033 Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR21 4FC —
83242-87037 Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR21 RHD 5F —
83242-95D09 Tachometer Assy, Engine
1988-08 → 1990-01 ended
YR22,31 5F GL —
83243A — Gauge Sub-assy, Fuel Receiver
83243-28010 Gauge Sub-assy, Fuel Receiver
1988-08 → 1990-01 ended
YR22 GL —
83243-87001 Gauge Sub-assy, Fuel Receiver
1988-08 → 1990-01 ended
YR21 GL —
83243-87005 Gauge Sub-assy, Fuel Receiver
1988-08 → 1990-01 ended
YR2#,31 DLX —
83243-95D05 Gauge Sub-assy, Fuel Receiver
1988-08 → 1990-01 ended
YR31 GL —
83244 — Gauge Sub-assy, Water Temperature Receiver
83244-28030 Gauge Sub-assy, Water Temperature Receiver
1988-08 → 1990-01 ended
YR2#,31 DLX —
83244-28050 Gauge Sub-assy, Water Temperature Receiver
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
83244-95D01 Gauge Sub-assy, Water Temperature Receiver
1988-08 → 1990-01 ended
YR21 RHD —
83247 — Plate, Meter Circuit
83247-28530 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR22,31 GL —
83247-28550 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR21 LHD GL —
83247-28630 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR21 DLX —
83247-28750 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR22 DLX —
83247-87039 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR21 4FC —
83247-87041 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR21 RHD 5F —
83247-95D21 Plate, Meter Circuit
1988-08 → 1990-01 ended
YR31 DLX —
83247B — Plate, Meter Circuit, NO.2
83247-28090 Plate, Meter Circuit, NO.2
1988-08 → 1990-01 ended
YR21 DLX —
83247-28290 Plate, Meter Circuit, NO.2
1988-08 → 1990-01 ended
YR2#,31 GL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
