Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

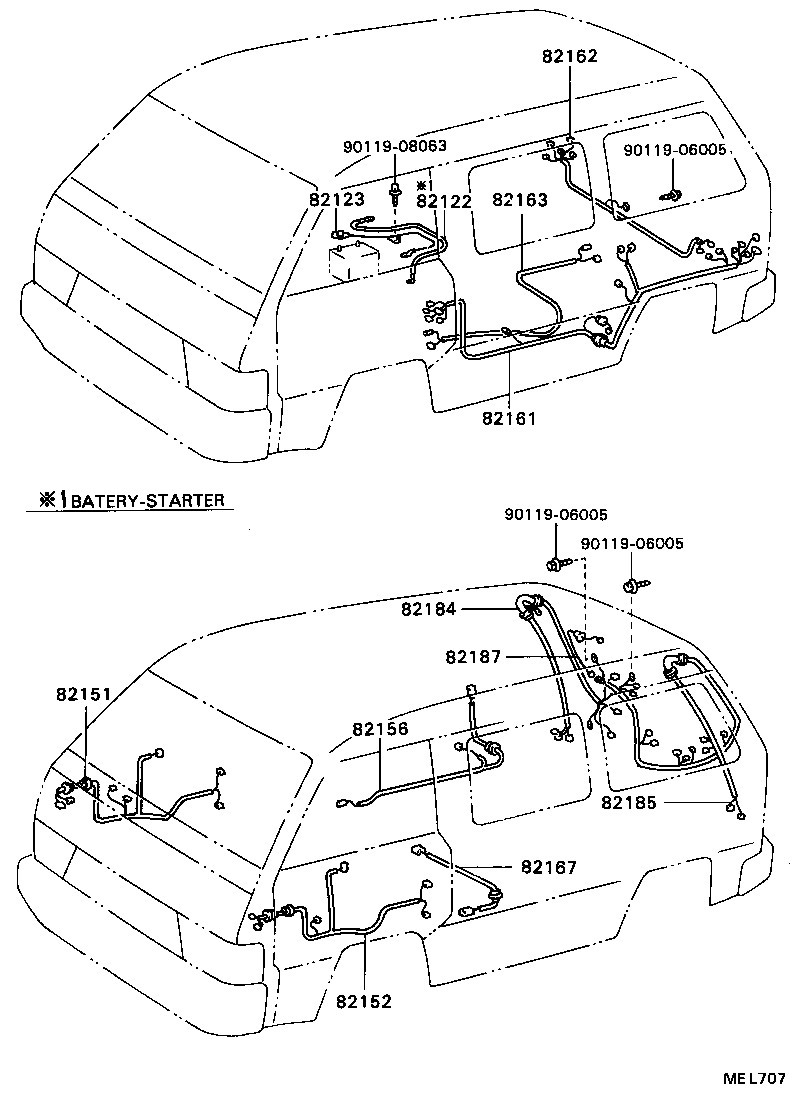

Exploded illustration MEL707 82162 — WIRE, FLOOR, NO.2 (2 parts) 9011908063 — not listed in this catalogue 9011906005 — not listed in this catalogue 82123 — WIRE, ENGINE, NO.3 (3 parts) 82163 — WIRE, FLOOR, NO.3 (3 parts) 82122 — WIRE, ENGINE, NO.2 (4 parts) 82161 — WIRE, FLOOR (2 parts) 9011906005 — not listed in this catalogue 9011906005 — not listed in this catalogue 82184 — WIRE, BACK DOOR, NO.1 (3 parts) 82187 — WIRE, REAR WINDOW, NO.2 (2 parts) 82151 — WIRE, FRONT DOOR, RH (4 parts) 82156 — WIRE, SLIDE DOOR (2 parts) 82185 — WIRE, BACK DOOR, NO.2 (2 parts) 82167 — WIRE, SEAT, NO.1 (4 parts) 82152 — WIRE, FRONT DOOR, LH (4 parts)
MEL707 · 12 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
82122 — Wire, Engine, NO.2
82122-28040 note Wire, Engine, NO.2
1988-08 → 1990-01 ended
YR2# LHD —
82122-87001 note Wire, Engine, NO.2
1988-08 → 1990-01 ended
YR21 RHD —
82122-87007 note Wire, Engine, NO.2
1988-08 → 1990-01 ended
YR2#,31 —
82122-95D05 note Wire, Engine, NO.2
1988-08 → 1990-01 ended
YR31 —
82123 — Wire, Engine, NO.3
82123-28010 Wire, Engine, NO.3
1988-08 → 1990-01 ended
YR2# LHD —
82123-87006 Wire, Engine, NO.3
1988-08 → 1990-01 ended
YR21 RHD —
82123-95D05 Wire, Engine, NO.3
1988-08 → 1990-01 ended
YR31 —
82151 — Wire, Front Door, RH
82151-28012 Wire, Front Door, RH
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
82151-28023 note Wire, Front Door, RH
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
82151-87016 note Wire, Front Door, RH
1988-08 → 1990-01 ended
YR21 RHD —
82151-87024 Wire, Front Door, RH
1988-08 → 1990-01 ended
YR21 RHD —
82152 — Wire, Front Door, LH
82152-28013 Wire, Front Door, LH
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
82152-28024 note Wire, Front Door, LH
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
82152-87021 Wire, Front Door, LH
1988-08 → 1990-01 ended
YR21 RHD —
82152-87024 note Wire, Front Door, LH
1988-08 → 1990-01 ended
YR21 RHD —
82156 — Wire, Slide Door
82156-28050 Wire, Slide Door
1988-08 → 1990-01 ended
YR2#,31 LHD GL —
82156-28060 Wire, Slide Door
1988-08 → 1990-01 ended
YR2#,31 DLX —
82161 — Wire, Floor
82161-28080 Wire, Floor
1988-08 → 1990-01 ended
YR2#,31 LHD —
82161-87047 Wire, Floor
1988-08 → 1990-01 ended
YR21 RHD —
82162 — Wire, Floor, NO.2
82162-28022 Wire, Floor, NO.2
1988-08 → 1990-01 ended
YR2#,31 LHD —
82162-87017 Wire, Floor, NO.2
1988-08 → 1990-01 ended
YR21 RHD —
82163 — Wire, Floor, NO.3
82163-28010 Wire, Floor, NO.3
1988-08 → 1990-01 ended
YR21 LHD —
82163-28031 Wire, Floor, NO.3
1988-08 → 1990-01 ended
YR22 —
82163-95D06 Wire, Floor, NO.3
1988-08 → 1990-01 ended
YR31 —
82167 — Wire, Seat, NO.1
82167-28010 Wire, Seat, NO.1
1988-08 → 1990-01 ended
YR22 DLX —
82167-28010 Wire, Seat, NO.1
1988-09 → 1990-01 ended
YR21 LHD GL —
82167-28010 Wire, Seat, NO.1
1988-08 → 1990-01 ended
YR22 5F GL —
82167-28010 Wire, Seat, NO.1
1988-08 → 1988-09 ended
YR21 LHD GL —
82184 — Wire, Back Door, NO.1
82184-87005 note Wire, Back Door, NO.1
1988-08 → 1990-01 ended
YR2#,31 DLX —
82184-87013 Wire, Back Door, NO.1
1988-08 → 1990-01 ended
YR2#,31 GL —
82184-87013 note Wire, Back Door, NO.1
1988-08 → 1990-01 ended
YR2#,31 DLX —
82185 — Wire, Back Door, NO.2
82185-87018 Wire, Back Door, NO.2
1988-08 → 1990-01 ended
YR2#,31 DLX —
82185-87021 Wire, Back Door, NO.2
1988-08 → 1990-01 ended
YR2#,31 GL —
82187 — Wire, Rear Window, NO.2
82187-87001 Wire, Rear Window, NO.2
1988-08 → 1990-01 ended
YR2#,31 GL —
82187-87001 Wire, Rear Window, NO.2
1988-08 → 1990-01 ended
YR2#,31 DLX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
