Toyota Model-f
1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe
Discontinued model
Data version 1990-06
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.

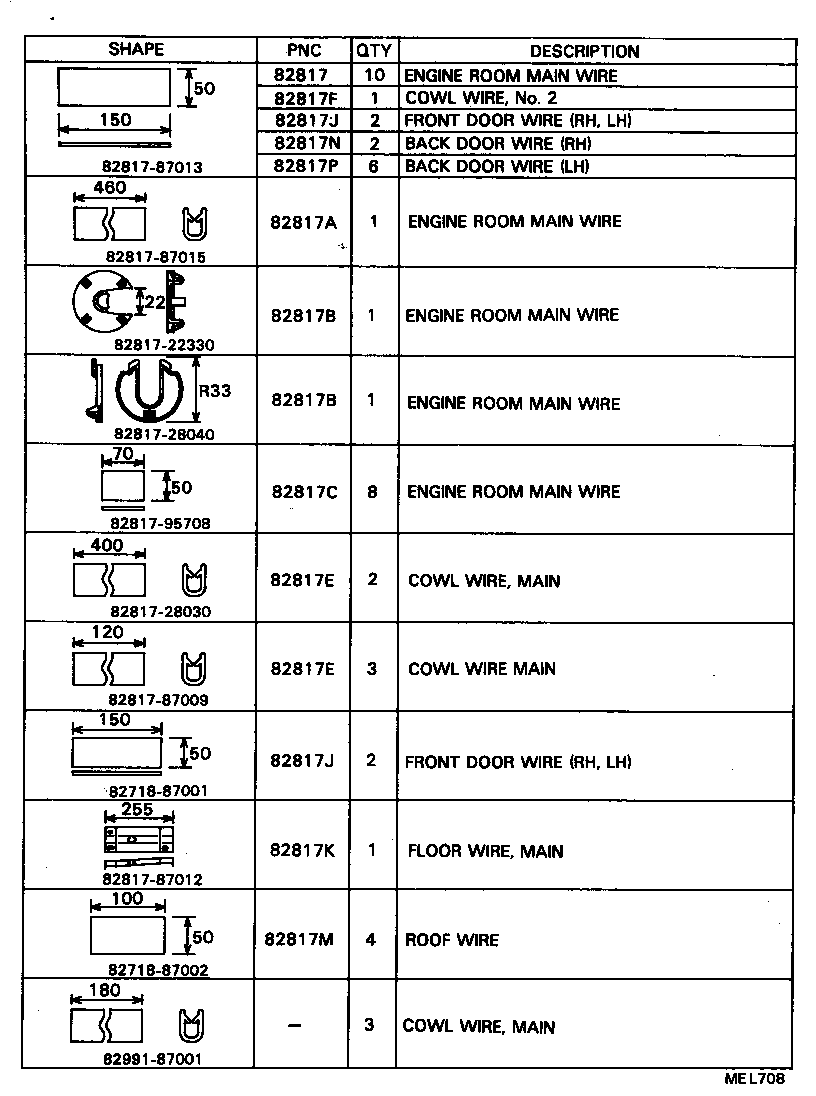

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1990-01
ended
|
YR2# LHD | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1990-01
ended
|
YR31 | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1990-01
ended
|
YR22 5F GL | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1990-01
ended
|
YR22 DLX | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-09 → 1990-01
ended
|
YR21 LHD GL | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.1
1988-08 → 1988-09
ended
|
YR21 LHD GL | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-87015 |
Protector, Wiring Harness, NO.2
1988-08 → 1990-01
ended
|
YR2#,31 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-22330 |
Protector, Wiring Harness, NO.3
1988-08 → 1990-01
ended
|
YR21 LHD | — | |
| 82817-28040 |
Protector, Wiring Harness, NO.3
1988-08 → 1990-01
ended
|
YR22,31 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-95708 |
Protector, Wiring Harness, NO.4
1988-09 → 1990-01
ended
|
YR21 LHD GL | — | |
| 82817-95708 |
Protector, Wiring Harness, NO.4
1988-08 → 1990-01
ended
|
YR22 DLX | — | |
| 82817-95708 |
Protector, Wiring Harness, NO.4
1988-08 → 1990-01
ended
|
YR22 5F GL | — | |
| 82817-95708 |
Protector, Wiring Harness, NO.4
1988-08 → 1988-09
ended
|
YR21 LHD GL | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-28030 |
Protector, Wiring Harness, NO.6
1988-08 → 1990-01
ended
|
YR2# LHD | — | |
| 82817-28030 |
Protector, Wiring Harness, NO.6
1988-08 → 1990-01
ended
|
YR31 | — | |
| 82817-87009 |
Protector, Wiring Harness, NO.6
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-87013 |
Protector, Wiring Harness, NO.7
1988-08 → 1990-01
ended
|
YR2#,31 LHD | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82718-87001 |
Protector, Wiring Harness, NO.9
1988-08 → 1990-01
ended
|
YR2#,31 LHD GL | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.9
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-87012 |
Protector, Wiring Harness, NO.10
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82718-87002 |
Protector, Wiring Harness, NO.12
1988-08 → 1990-01
ended
|
YR2# GL | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-87013 |
Protector, Wiring Harness, NO.13
1988-08 → 1990-01
ended
|
YR2#,31 LHD GL | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.13
1988-08 → 1990-01
ended
|
YR2#,31 DLX | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.13
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
| 82817P — Protector, Wiring Harness, NO.14 | ||||
| 82817-87013 |
Protector, Wiring Harness, NO.14
1988-08 → 1990-01
ended
|
YR2#,31 LHD | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.14
1988-08 → 1990-01
ended
|
YR21 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
