Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

23 part groups · 2 illustrations

Illustrations

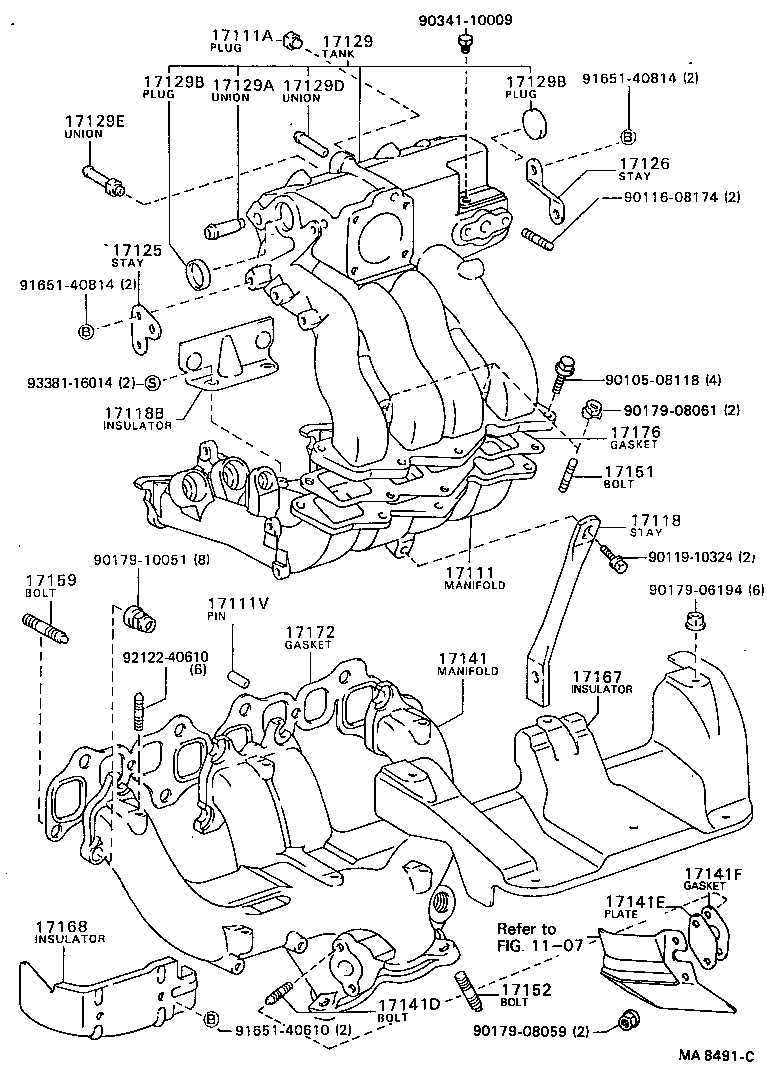

Figure MAB212 MAB212 1988-08 → — Figure MA8491C MA8491C 1988-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17176 Gasket, Air Surge Tank TO Intake Manifold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
