Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 2 illustrations

Illustrations

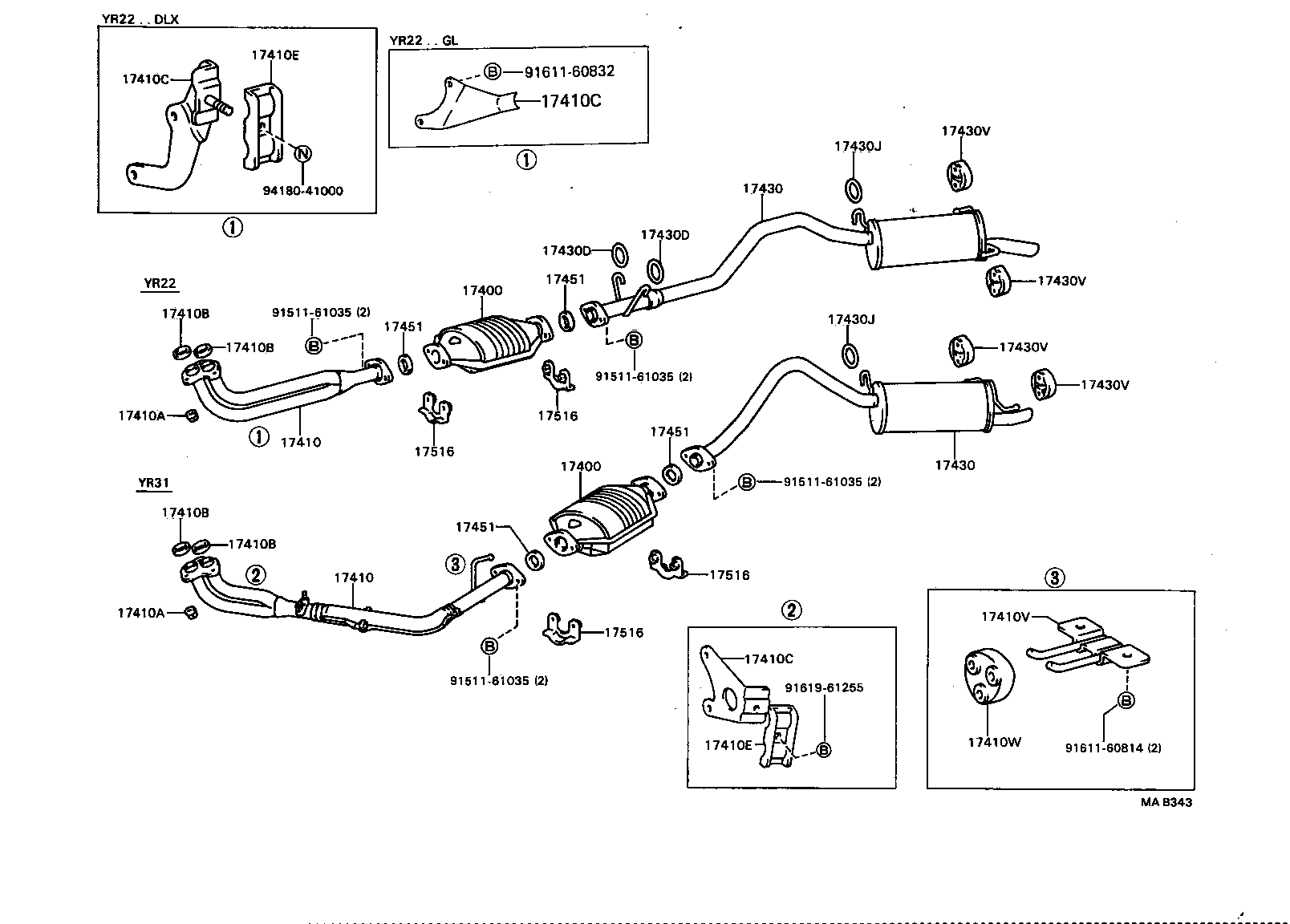

Figure MAB341A MAB341A 1988-08 → — Figure MAB343 MAB343 1988-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17516 Retainer, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
