Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 3 illustrations

Illustrations

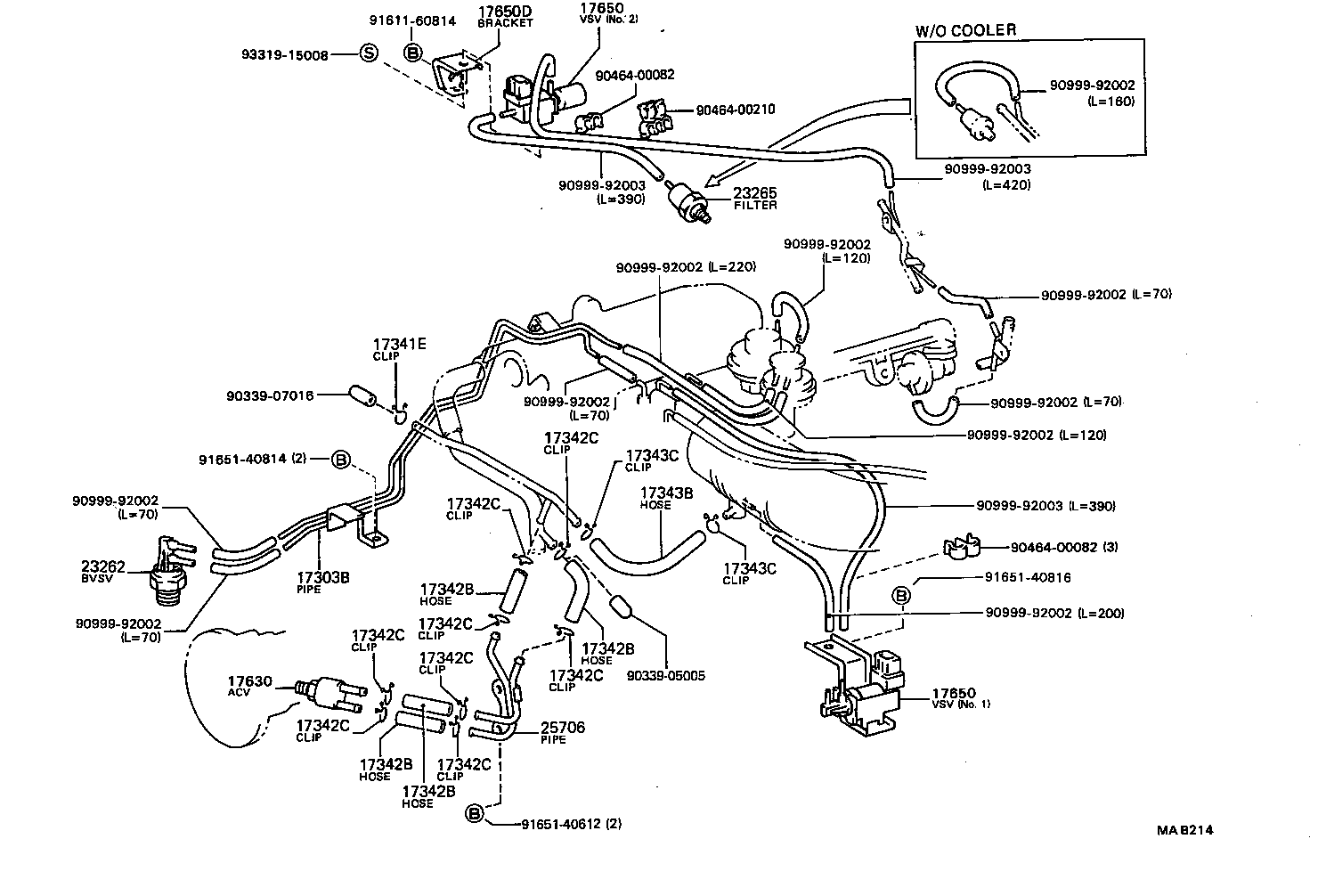

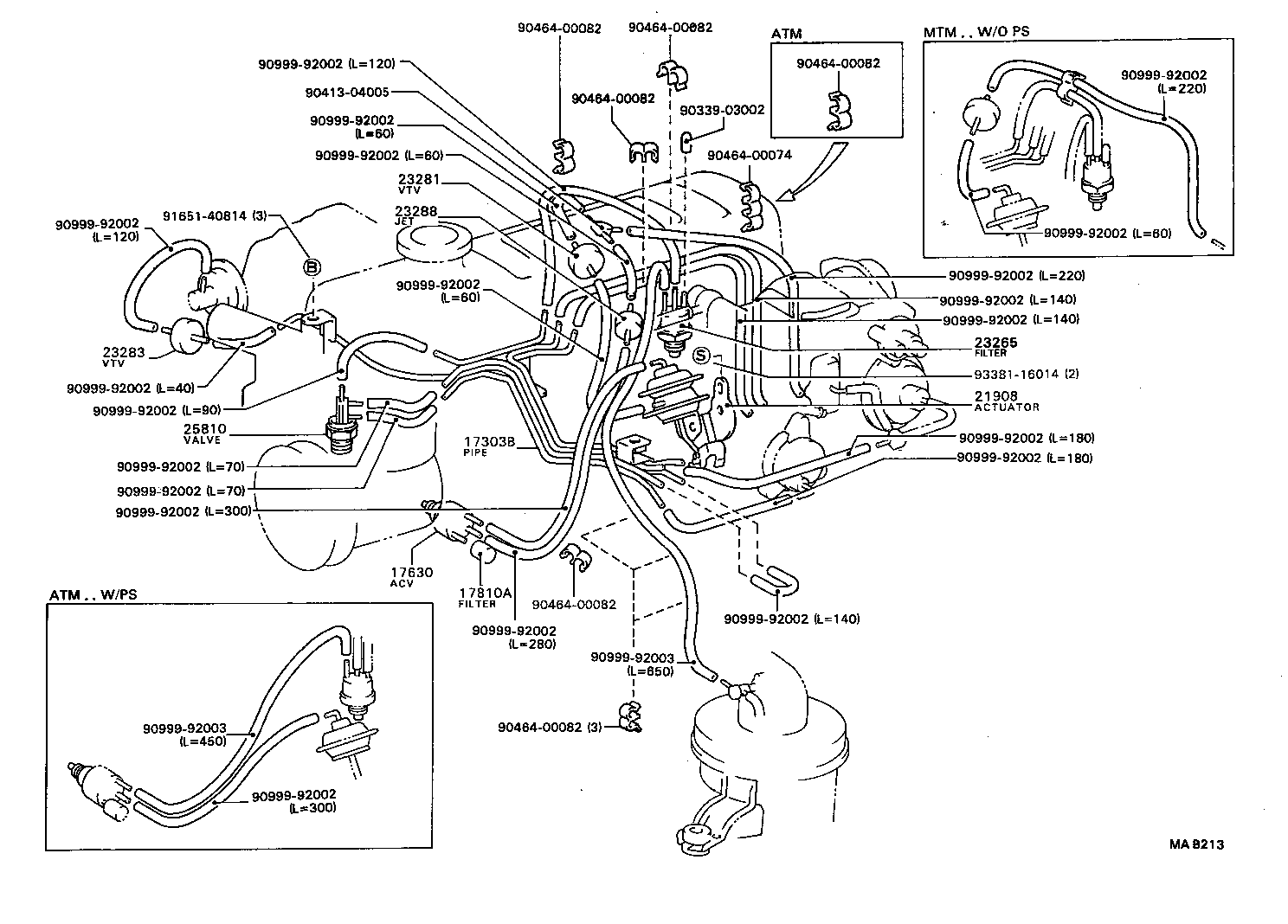

Figure MA9504B MA9504B 1988-08 → — Figure MAB213 MAB213 1988-08 → — Figure MAB214 MAB214 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17810A Filter Assy, Air
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
