Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

22 part groups · 5 illustrations

Illustrations

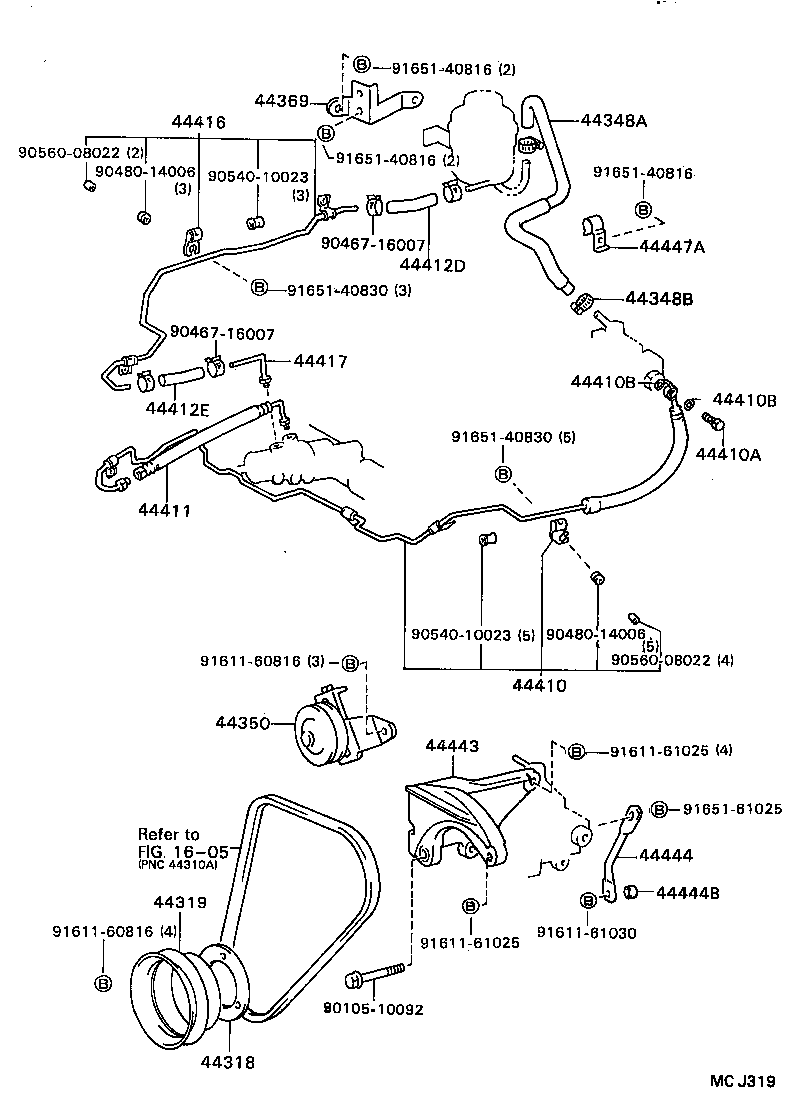

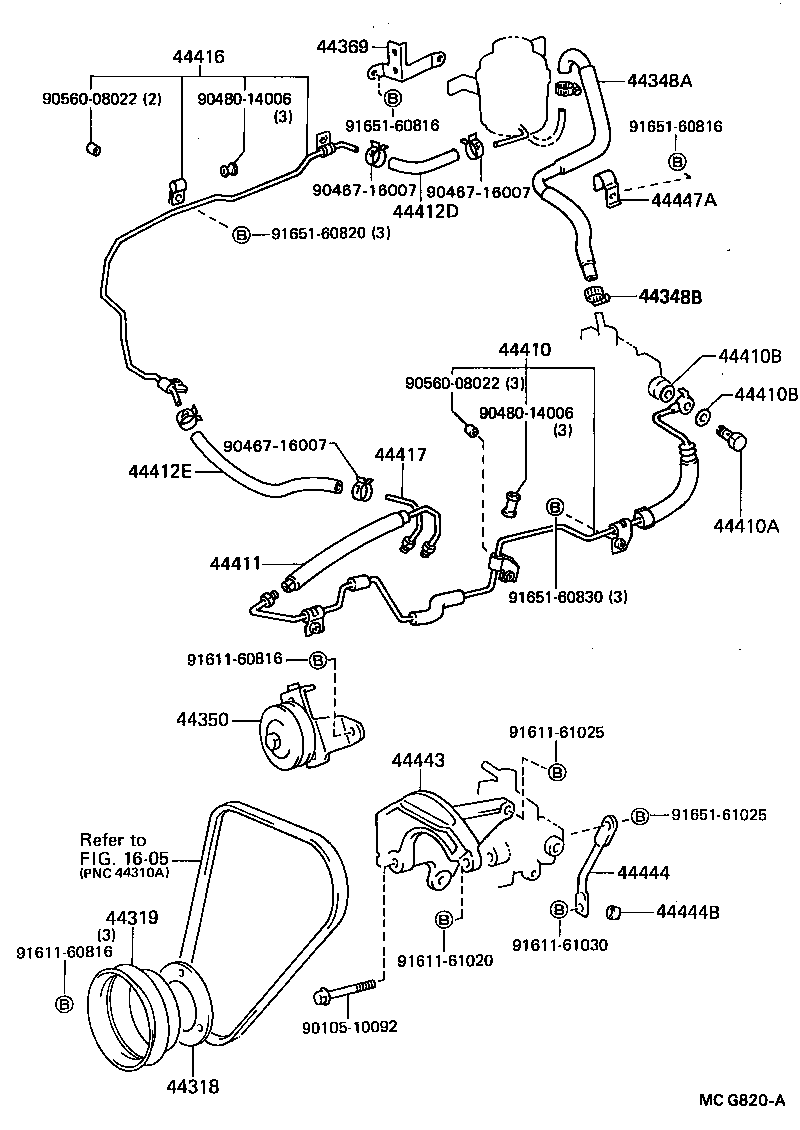

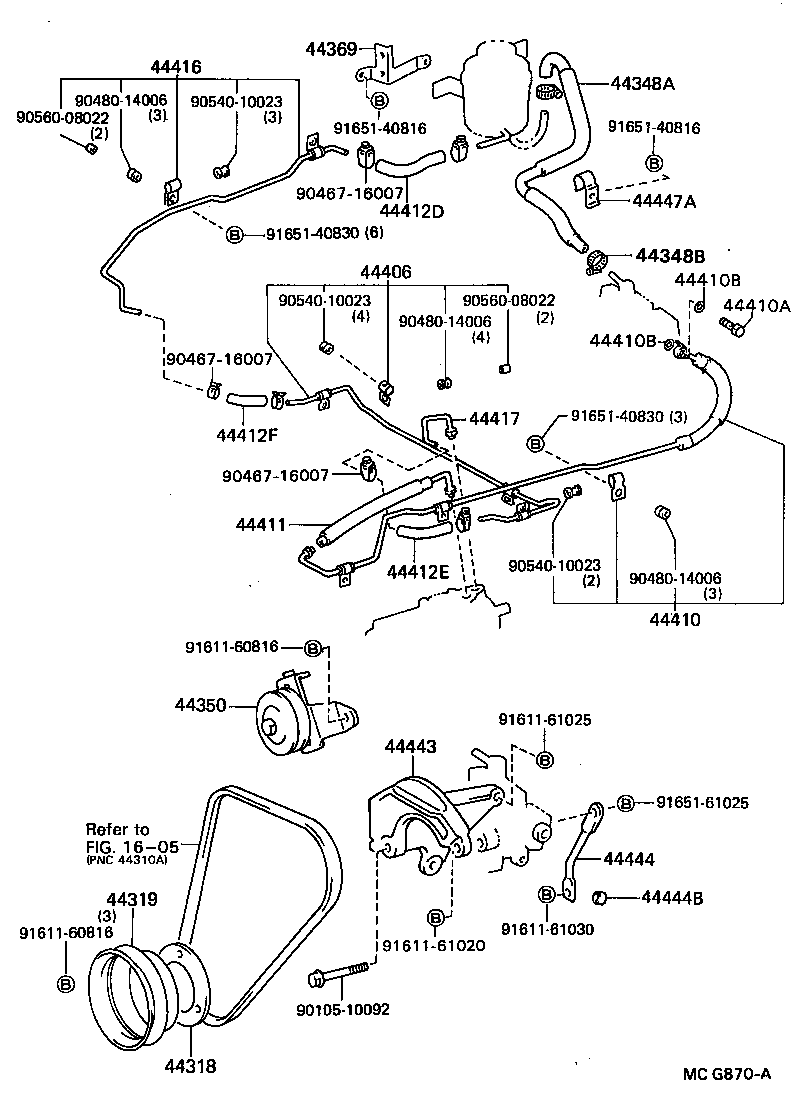

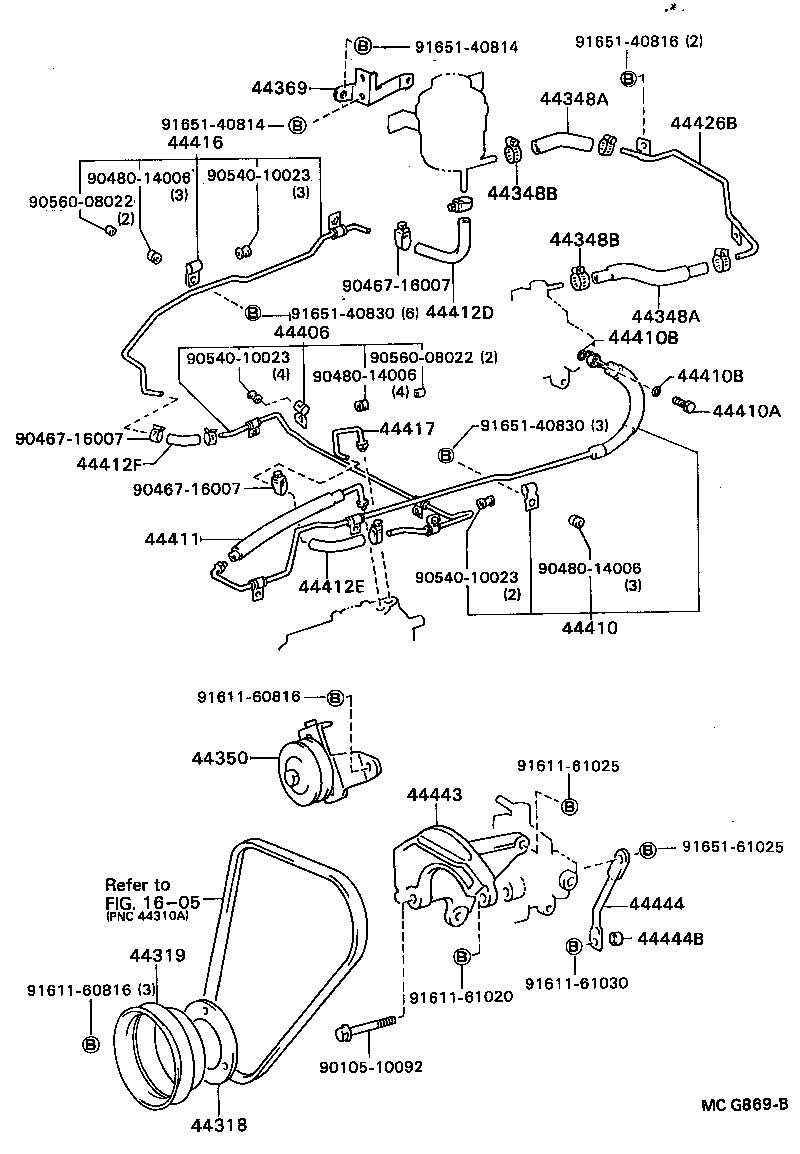

Figure MCG661A MCG661A 1988-08 → — Figure MCG869B MCG869B 1988-08 → — Figure MCG870A MCG870A 1988-08 → — Figure MCJ319 MCJ319 1988-08 → — Figure MCG820A MCG820A 1988-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44426B Tube, Oil Reservoir TO Pump
44443 Bracket, Pump
44444 Stay, Pump, Rear
44444B Collar (FOR PUMP REAR STAY)
44447A Bracket, Hose Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
