Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

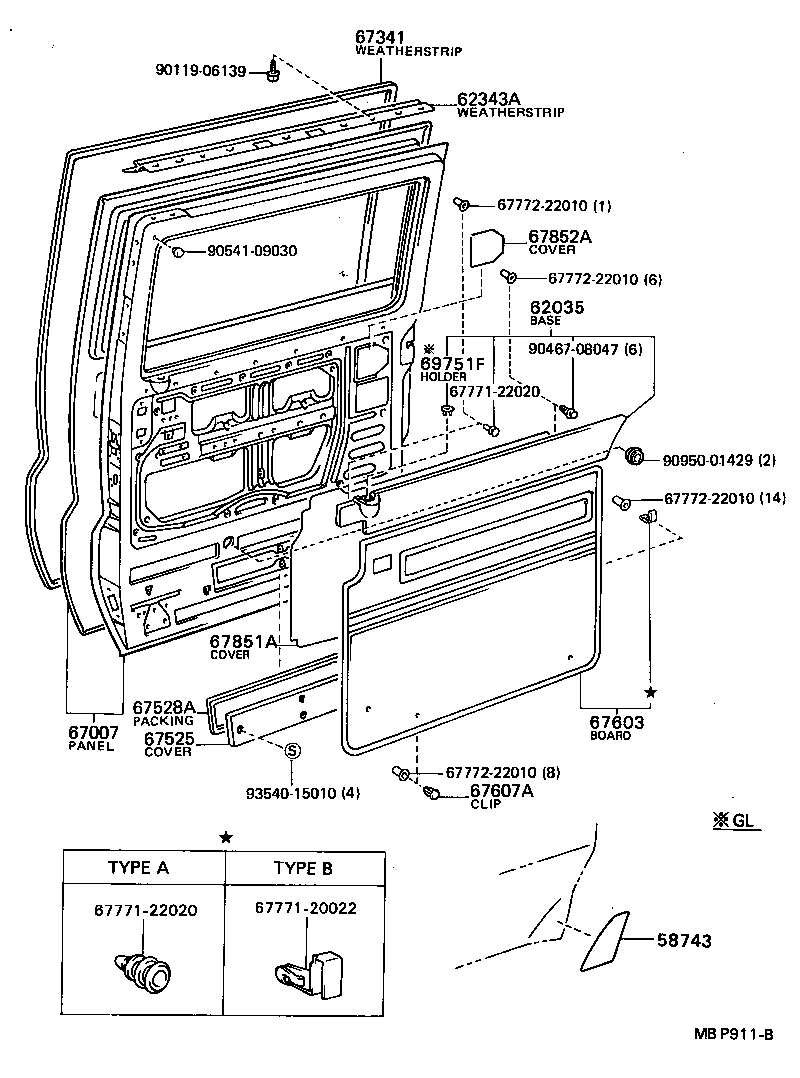

Figure MBP862A MBP862A 1988-08 → — Figure MBP911B MBP911B 1988-08 → —

Part groups

PNCDescription
58743 Protecter, Slide Door Panel, RH
58744 Protecter, Slide Door Panel, LH
62035 Trim Sub-assy, Rear Door Trim, Upper RH
62036 Trim Sub-assy, Rear Door Trim, Upper LH
62343A Weatherstrip, Slide Door, NO.2
67007 Panel Sub-assy, Slide Door, RH
67008 Panel Sub-assy, Slide Door, LH
67341 Weatherstrip, Slide Door, RH
67342 Weatherstrip, Slide Door, LH
67525 Cover, Slide Door Panel, Lower
67528A Packing, Slide Door Lower Cover
67603 Board Sub-assy, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67607A Clip(FOR SLIDE DOOR TRIM BOARD)
67851A Cover, Slide Door Service Hole, NO.1
67852A Cover, Slide Door Service Hole, NO.2
69751F Holder, Rear Door Lock Control Knob
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
