Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31 · catalogue 651530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

131 part groups · 7 illustrations

Illustrations

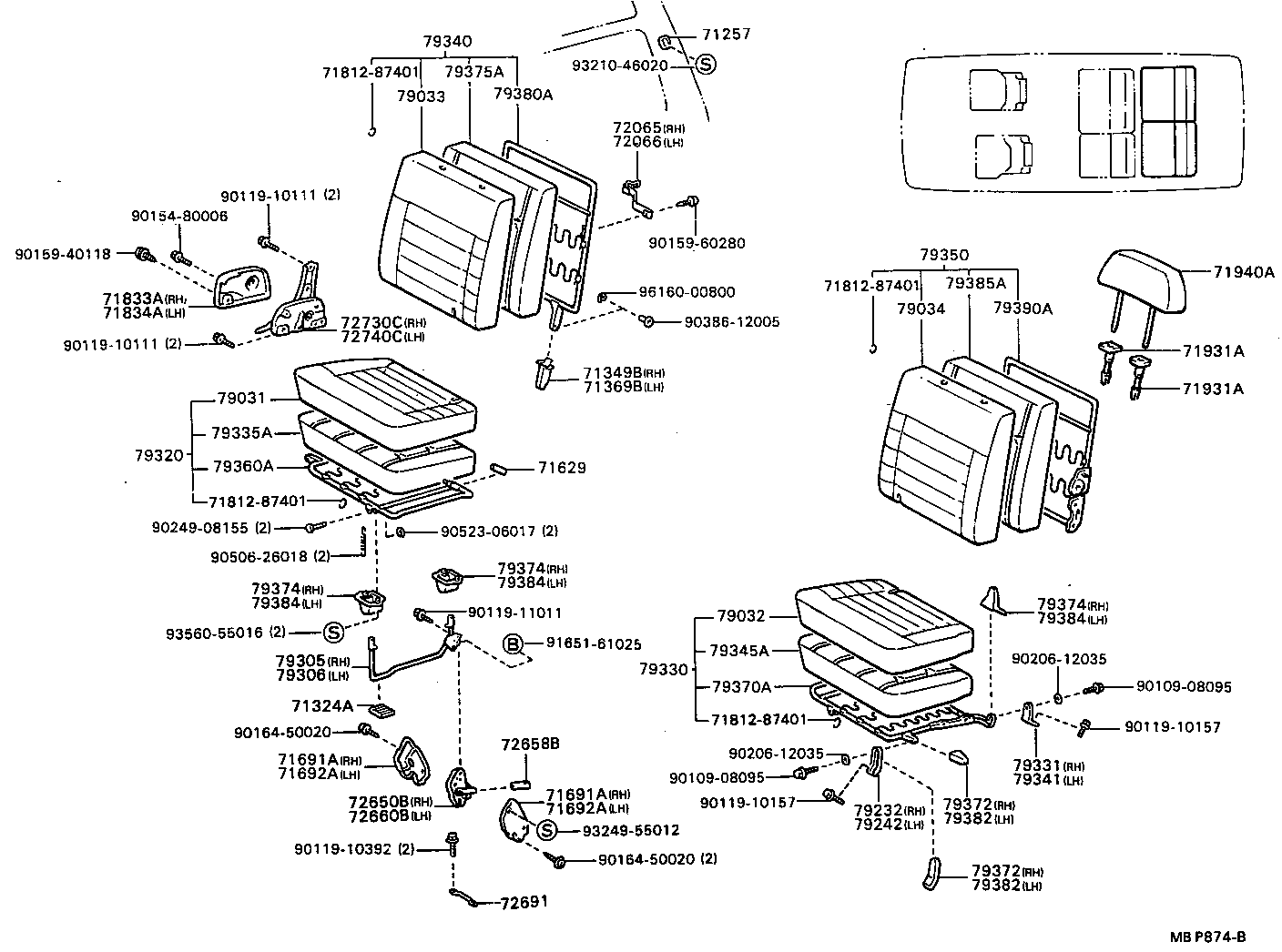

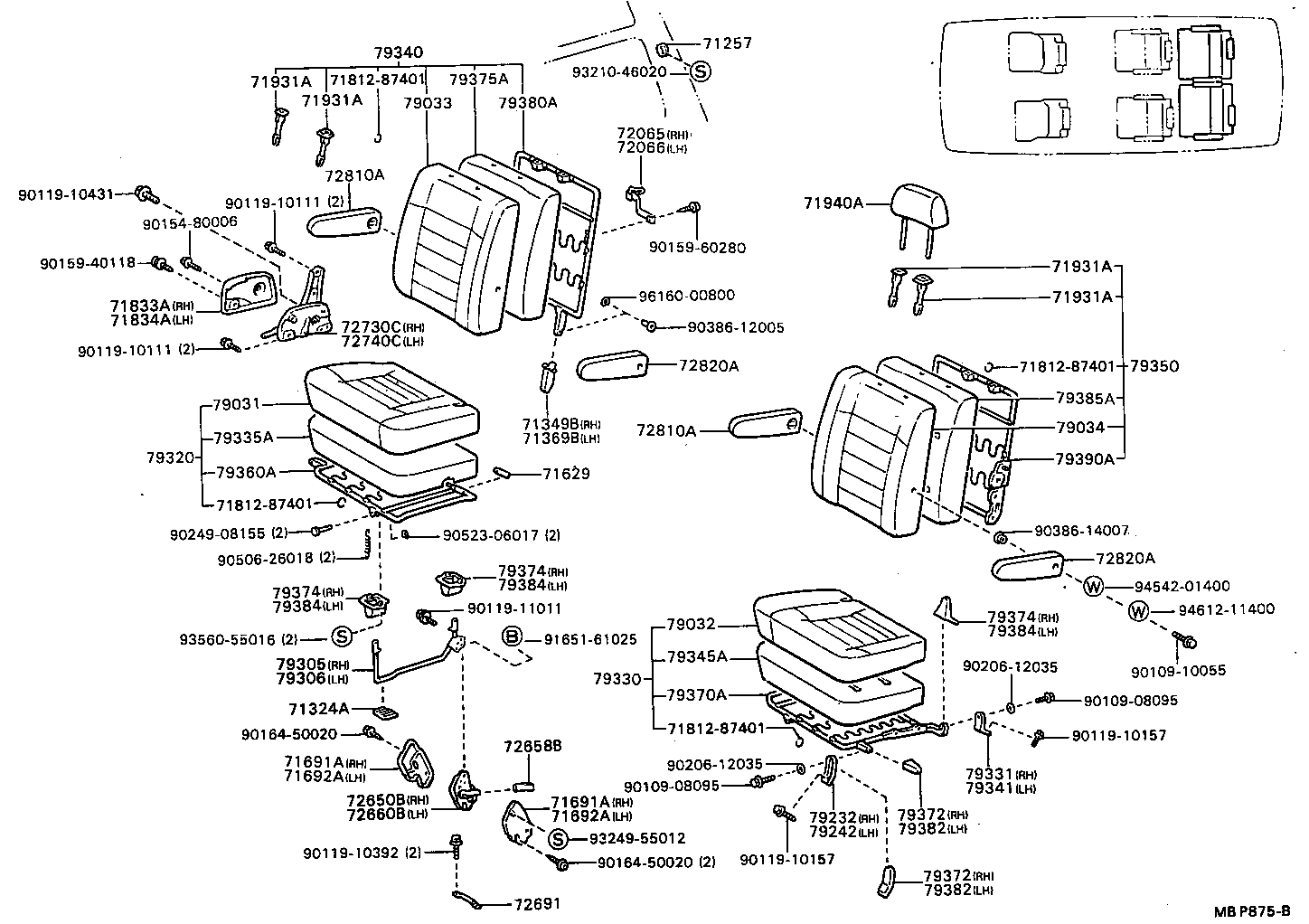

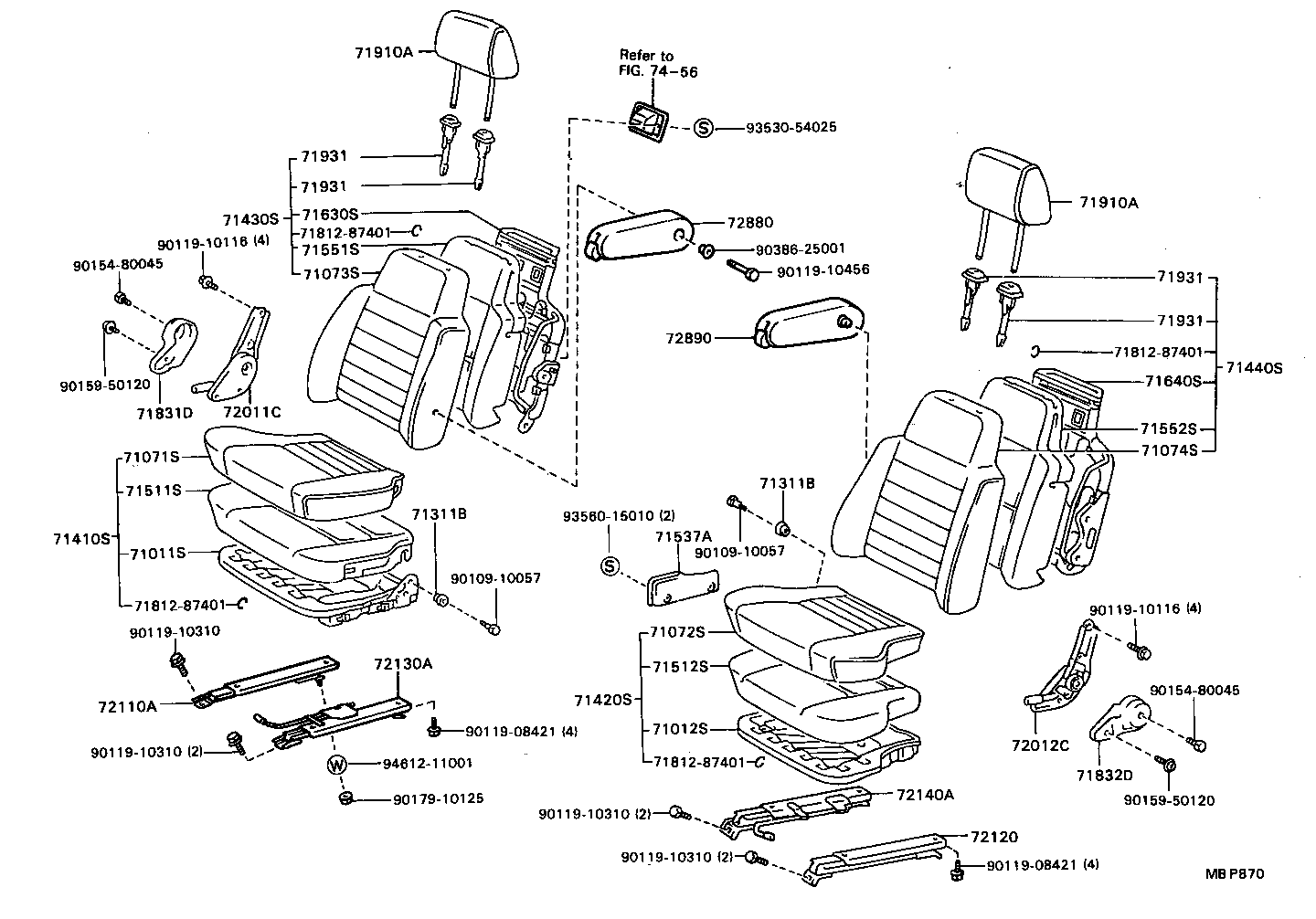

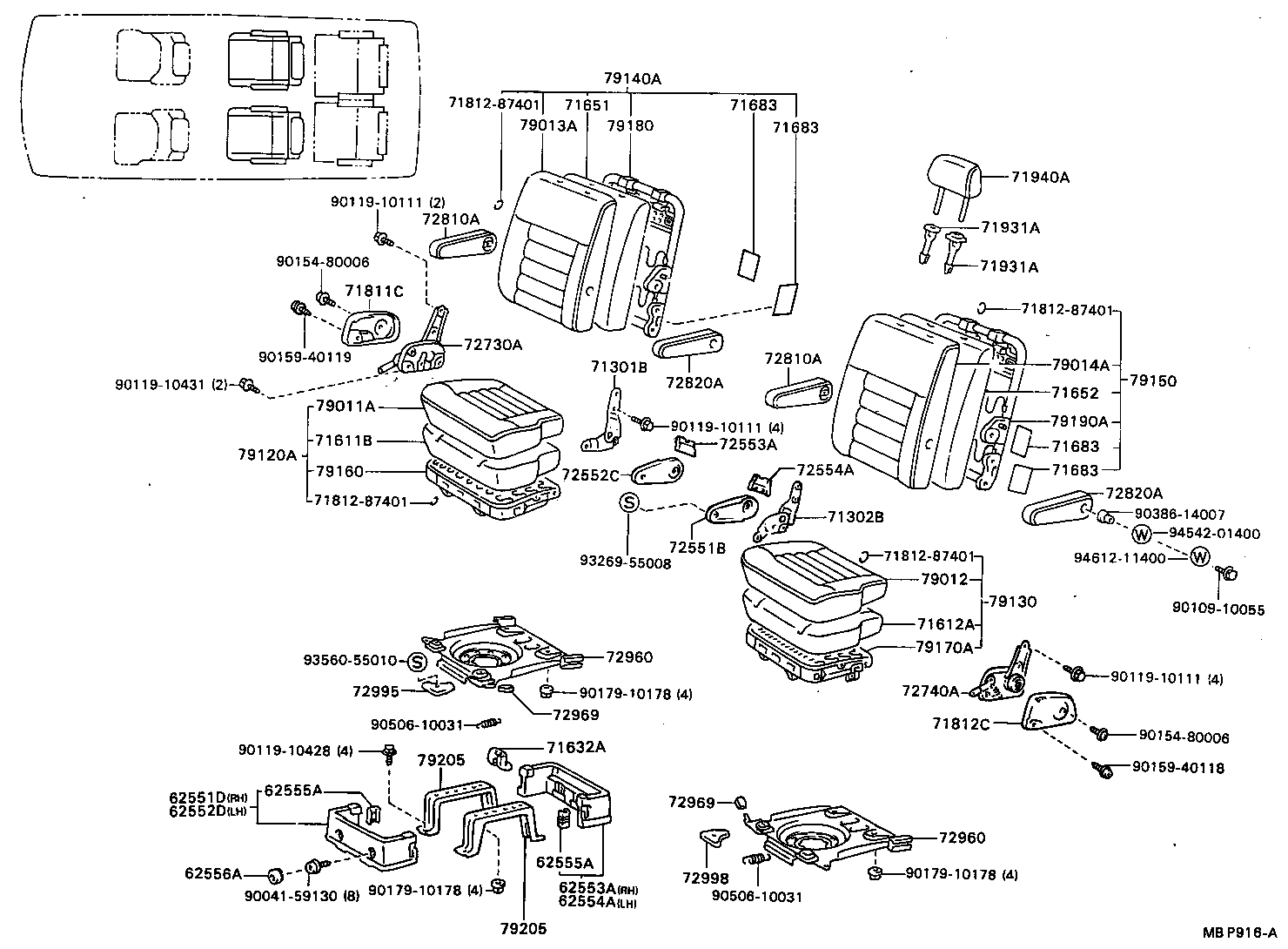

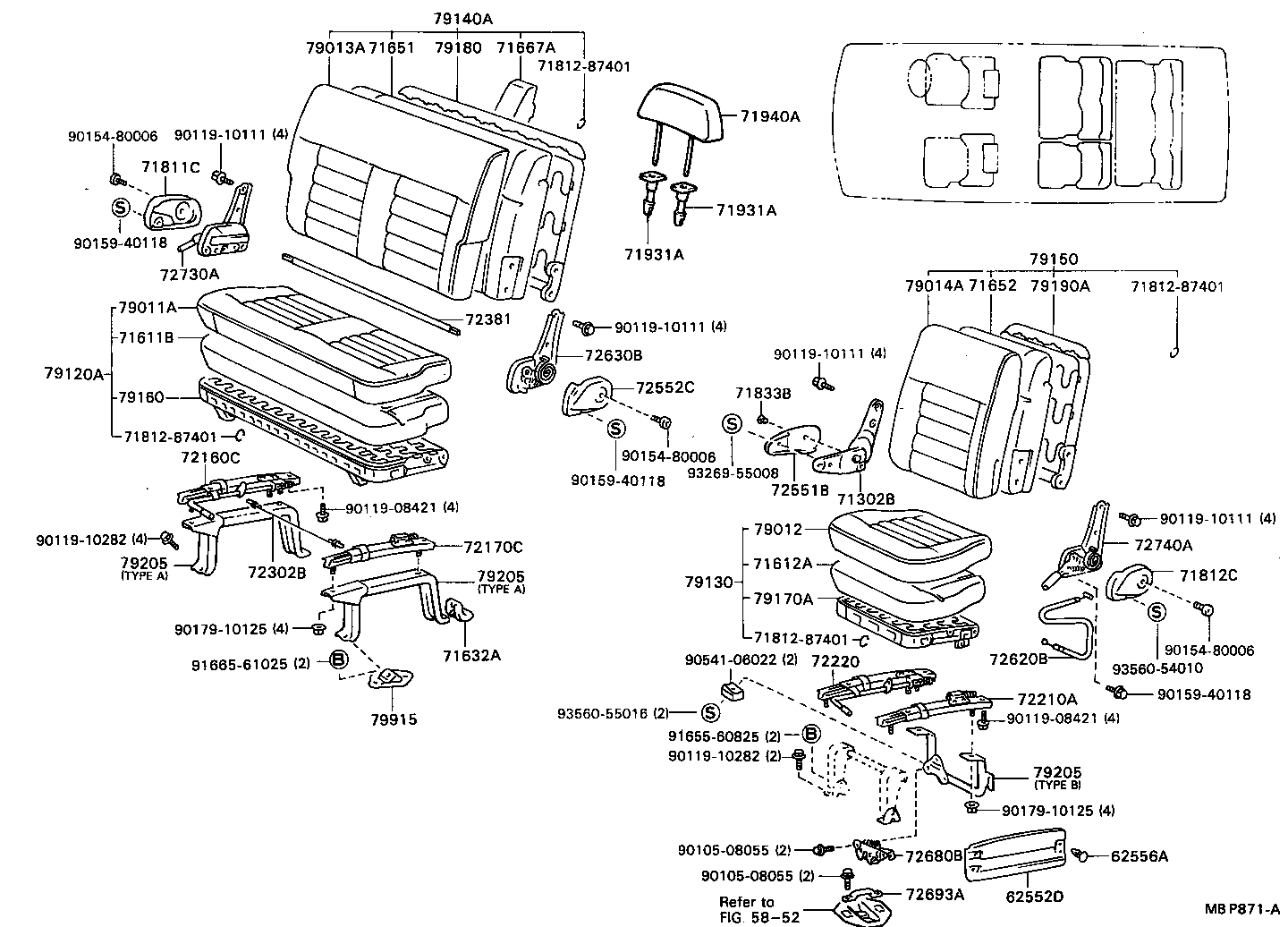

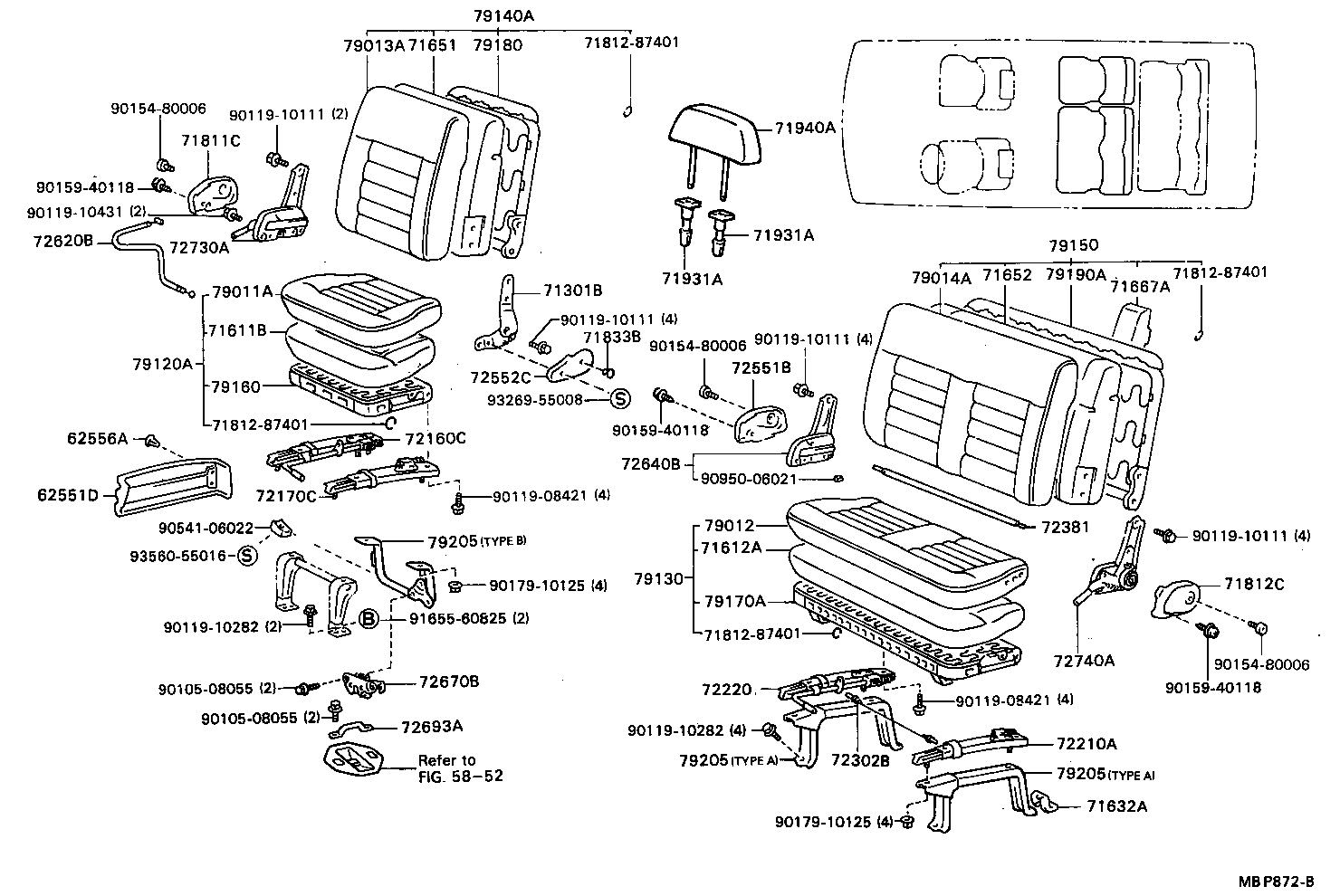

Figure MBP869 MBP869 1988-08 → — Figure MBP870 MBP870 1988-08 → — Figure MBP871A MBP871A 1988-08 → — Figure MBP872B MBP872B 1988-08 → — Figure MBP916A MBP916A 1988-08 → — Figure MBP874B MBP874B 1988-08 → — Figure MBP875B MBP875B 1988-08 → —

Part groups

PNCDescription
62551D Garnish, Rear Seat Side, RH
62552D Garnish, Rear Seat Side, LH
62553A Garnish, Rear Seat Side, NO.2 RH
62554A Garnish, Rear Seat Side, NO.2 LH
62555A Knob, Rear Seat Side Garnish
62556A Cap, Rear Seat Side Garnish
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71257 Plate, Rear Seatback Anchor
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71311B Bush (FOR FRONT SEAT HINGE PIN)
71324A Cushion, Rear Seat
71349B Cover, Rear Seatback Stay, RH
71369B Cover, Rear Seatback Stay, LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611B Pad, Rear NO.1 Seat Cushion
71612A Pad, Rear Seat Cushion, LH
71629 Cover, Rear Seat Cushion Hinge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71632A Cover, Rear Seat, Outer
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71652 Pad, Rear NO.1 Seatback
71667A Pad, Rear Seatback, Center A
71683 Pad, Rear Seatback Corner, C
71691A Cover, Rear NO.3 Seat Lock, RH
71692A Cover, Rear NO.3 Seat Lock, LH
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833B Clip (FOR REAR SEAT RECLINING COVER)
71834A Cover, Rear Seat Reclining, NO.1 LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72160C Track Assy, Rear NO.1 Seat, Outer RH
72170C Track Assy, Rear NO.1 Seat, Inner RH
72210A Track Assy, Rear NO.1 Seat, Outer RH
72220 Track Assy, Rear NO.1 Seat, Inner LH
72302B Wire Sub-assy, Rear Seat Track Equalizing
72381 Rod, Reclining Adjuster Equalizing, NO.1
72551B Cover, Reclining Hinge, RH
72552C Cover, Reclining Hinge, LH
72553A Protector, Reclining Cover, RH
72554A Protector, Reclining Cover, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72630B Adjuster Assy, Rear NO.1 Seat, Inner RH
72640B Adjuster Assy, Rear NO.1 Seat, Inner LH
72650B Lock Assy, Rear NO.3 Seat, RH
72658B Knob, Rear Seat Lock Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72691 Striker, Rear NO.3 Seat Lock
72693A Striker, Rear Seat Cushion Lock, NO.3
72730A Adjuster Assy, Rear Seat Reclining, RH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72960 Table Assy, Rear Seat Turn
72969 Knob, Rear Seat Turn Lock
72995 Cover, Rear Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
79011A Cover Sub-assy, NO.1 Seat Cushion
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013A Cover Sub-assy, NO.1 Seatback
79014A Cover Sub-assy, NO.1 Seatback, LH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79120A Cushion Assy, NO.1 Seat
79130 Cushion Assy, NO.1 Seat, LH
79140A Back Assy, NO.1 Seat
79150 Back Assy, NO.1 Seat, LH
79160 Spring Assy, NO.1 Seat Cushion
79170A Spring Assy, NO.1 Seat Cusuion, LH
79180 Spring Assy, NO.1 Seatback
79190A Spring Assy, NO.1 Seatback, LH
79205 Leg Sub-assy, NO.2 Seat
79232 Leg, Rear NO.2 Seat, RH
79242 Leg, Rear NO.2 Seat, LH
79305 Leg Sub-assy, NO.3 Seat
79306 Leg Sub Assy, NO.3 Seat, LH
79320 Cushion Assy, NO.3 Seat, RH
79330 Cushion Assy, NO.3 Seat, LH
79331 Leg, NO.3 Seat, Outer RH
79335A Pad, NO.3 Seat Cushion, RH
79340 Back Assy, NO.3 Seat, RH
79341 Leg, NO.3 Seat, Outer LH
79345A Pad, NO.3 Seat Cushion, LH
79350 Back Assy, NO.3 Seat, LH
79360A Spring Assy, NO.3 Seat Cushion, RH
79370A Spring Assy, NO.3 Seat Cushion, LH
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79380A Spring Assy, NO.3 Seatback, RH
79382 Cover, NO.3 Seat Front Bracket, LH
79384 Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79390A Spring Assy, NO.3 Seatback, LH
79915 Bracket, Seat Leg
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
