Toyota Liteace Van Wagon

1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

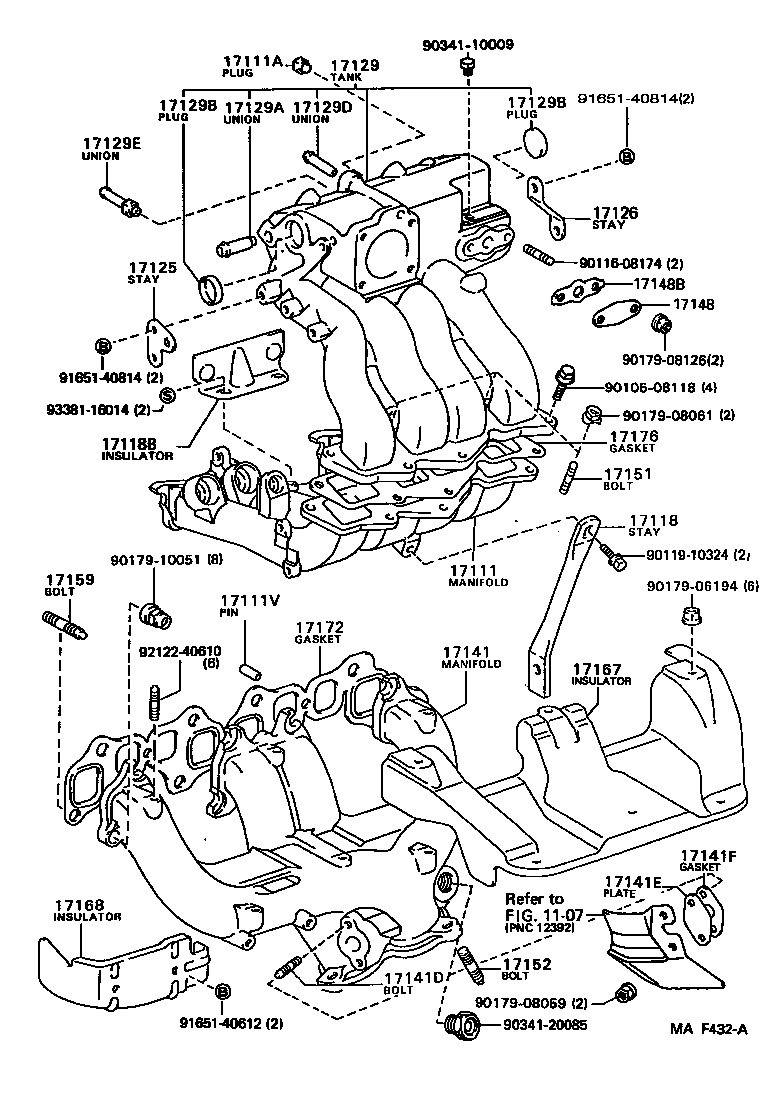

Exploded illustration MAF432A 9034110009 — not listed in this catalogue 17111A — PLUG, NO.1 (1 parts) 17129 — TANK, INTAKE AIR SURGE (1 parts) 9165140814 — not listed in this catalogue 17129B — PLUG (1 parts) 17129B — PLUG (1 parts) 17129A — UNION, NO.1 (1 parts) 17129D — UNION, NO.2 (1 parts) 17129E — UNION, NO.3 (1 parts) 17126 — STAY, SURGE TANK, NO.2 (1 parts) 9011608174 — not listed in this catalogue 17125 — STAY, SURGE TANK, NO.1 (1 parts) 17148B — GASKET, EGR INLET (1 parts) 17148 — PLATE, EXHAUST MANIFOLD(FOR EGR INLET) (1 parts) 9017908126 — not listed in this catalogue 9165140814 — not listed in this catalogue 9010508118 — not listed in this catalogue 9338116014 — not listed in this catalogue 9017908061 — not listed in this catalogue 17176 — GASKET, AIR SURGE TANK TO INTAKE MANIFOLD (1 parts) 17118B — INSULATOR, INTAKE MANIFOLD (1 parts) 17151 — BOLT, STUD(FOR MANIFOLD TO CARBURETOR) (2 parts) 17118 — STAY, MANIFOLD (1 parts) 9011910324 — not listed in this catalogue 9017910051 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (2 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (4 parts) 9017906194 — not listed in this catalogue 17111V — PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) (1 parts) 17172 — GASKET, MANIFOLD TO CYLINDER HEAD (2 parts) 9212240610 — not listed in this catalogue 17141 — MANIFOLD, EXHAUST (2 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (3 parts) 17141F — GASKET(FOR EXHAUST MANIFOLD PLATE) (1 parts) 17141E — PLATE, EXHAUST MANIFOLD (1 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (1 parts) 1107 — not listed in this catalogue 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (5 parts) 17141D — BOLT, STUD(FOR OXYGEN SENSOR) (1 parts) 9017908059 — not listed in this catalogue 9165140612 — not listed in this catalogue 9034120085 — not listed in this catalogue
MAF432A · 26 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-64080 Manifold, Intake
1992-01 → 1995-01 ended
2C CR2# —
17111-73011 Manifold, Intake
1992-01 → 1995-01 ended
4YEC YR2# —
17111A — Plug, NO.1
90345-51006 Plug, NO.1
1992-01 → 1995-01 ended
4YEC YR2# —
17111V — Pin, Straight(FOR INTAKE MANIFOLD SETTING)
90250-08120 Pin, Straight(FOR INTAKE MANIFOLD SETTING)
1992-01 → 1995-01 ended
4YEC YR2# —
17118 — Stay, Manifold
17118-73010 Stay, Manifold
1992-01 → 1995-01 ended
4YEC YR2# —
17118B — Insulator, Intake Manifold
17853-73012 Insulator, Intake Manifold
1992-01 → 1995-01 ended
4YEC YR2# —
17125 — Stay, Surge Tank, NO.1
17125-73010 Stay, Surge Tank, NO.1
1992-01 → 1995-01 ended
4YEC YR2# —
17126 — Stay, Surge Tank, NO.2
17126-73010 Stay, Surge Tank, NO.2
1992-01 → 1995-01 ended
4YEC YR2# —
17129 — Tank, Intake Air Surge
17109-73020 Tank, Intake Air Surge
1992-01 → 1995-01 ended
4YEC YR2# —
17129A — Union, NO.1
90405-14003 Union, NO.1
1992-01 → 1995-01 ended
4YEC YR2# —
17129B — Plug
96411-43500 Plug
1992-01 → 1995-01 ended
4YEC YR2# —
17129D — Union, NO.2
90405-10010 Union, NO.2
1992-01 → 1995-01 ended
4YEC YR2# —
17129E — Union, NO.3
90404-51237 Union, NO.3
1992-01 → 1995-01 ended
4YEC YR2# —
17141 — Manifold, Exhaust
17141-64012 Manifold, Exhaust
1992-01 → 1995-01 ended
2C CR2# —
17141-72010 Manifold, Exhaust
1992-01 → 1995-01 ended
4YEC YR2# —
17141D — Bolt, Stud(FOR OXYGEN SENSOR)
90116-08128 Bolt, Stud(FOR OXYGEN SENSOR)
1992-01 → 1995-01 ended
4YEC YR2# —
17141E — Plate, Exhaust Manifold
17148-41010 Plate, Exhaust Manifold
1992-01 → 1995-01 ended
4YEC YR2# —
17141F — Gasket(FOR EXHAUST MANIFOLD PLATE)
89466-20020 Gasket(FOR EXHAUST MANIFOLD PLATE)
1992-01 → 1995-01 ended
4YEC YR2# —
17148 — Plate, Exhaust Manifold(FOR EGR INLET)
25617-73010 Plate, Exhaust Manifold(FOR EGR INLET)
1994-05 → 1995-01 ended
4YEC YR2# —
17148B — Gasket, Egr Inlet
25627-73010 Gasket, Egr Inlet
1994-05 → 1995-01 ended
4YEC YR2# —
17151 — Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
90116-08010 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1992-01 → 1994-05 ended
5K KR2# —
92132-40825 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1992-01 → 1995-01 ended
4YEC YR2# —
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1992-01 → 1993-09 ended
2C CR2# —
90116-10087 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1992-01 → 1994-05 ended
5K KR2# —
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1992-01 → 1995-01 ended
4YEC YR2# —
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1994-03 → 1995-01 ended
2C CR2# —
90126-10003 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1993-09 → 1994-03 ended
2C CR2# —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1992-01 → 1995-01 ended
4YEC YR2# —
90116-10095 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1992-01 → 1995-01 ended
2C CR2# —
92122-60820 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1992-01 → 1995-01 ended
2C CR2# —
92122-61028 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1992-01 → 1994-05 ended
5K KR2# —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-64020 Insulator, Exhaust Manifold Heat, NO.1
1992-01 → 1994-08 ended
2C CR2# —
17167-64100 Insulator, Exhaust Manifold Heat, NO.1
1994-08 → 1995-01 ended
2C CR2# —
17167-73011 Insulator, Exhaust Manifold Heat, NO.1
1992-01 → 1995-01 ended
4YEC YR2# —
17168 — Insulator, Exhaust Manifold Heat, NO.2
12521-72010 Insulator, Exhaust Manifold Heat, NO.2
1992-01 → 1995-01 ended
4YEC YR2# —
17172 — Gasket, Manifold TO Cylinder Head
17172-13030 Gasket, Manifold TO Cylinder Head
1992-01 → 1994-05 ended
5K KR2# —
17172-73010 Gasket, Manifold TO Cylinder Head
1992-01 → 1995-01 ended
4YEC YR2# —
17176 — Gasket, Air Surge Tank TO Intake Manifold
17176-73012 Gasket, Air Surge Tank TO Intake Manifold
1992-01 → 1995-01 ended
4YEC YR2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
