Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10

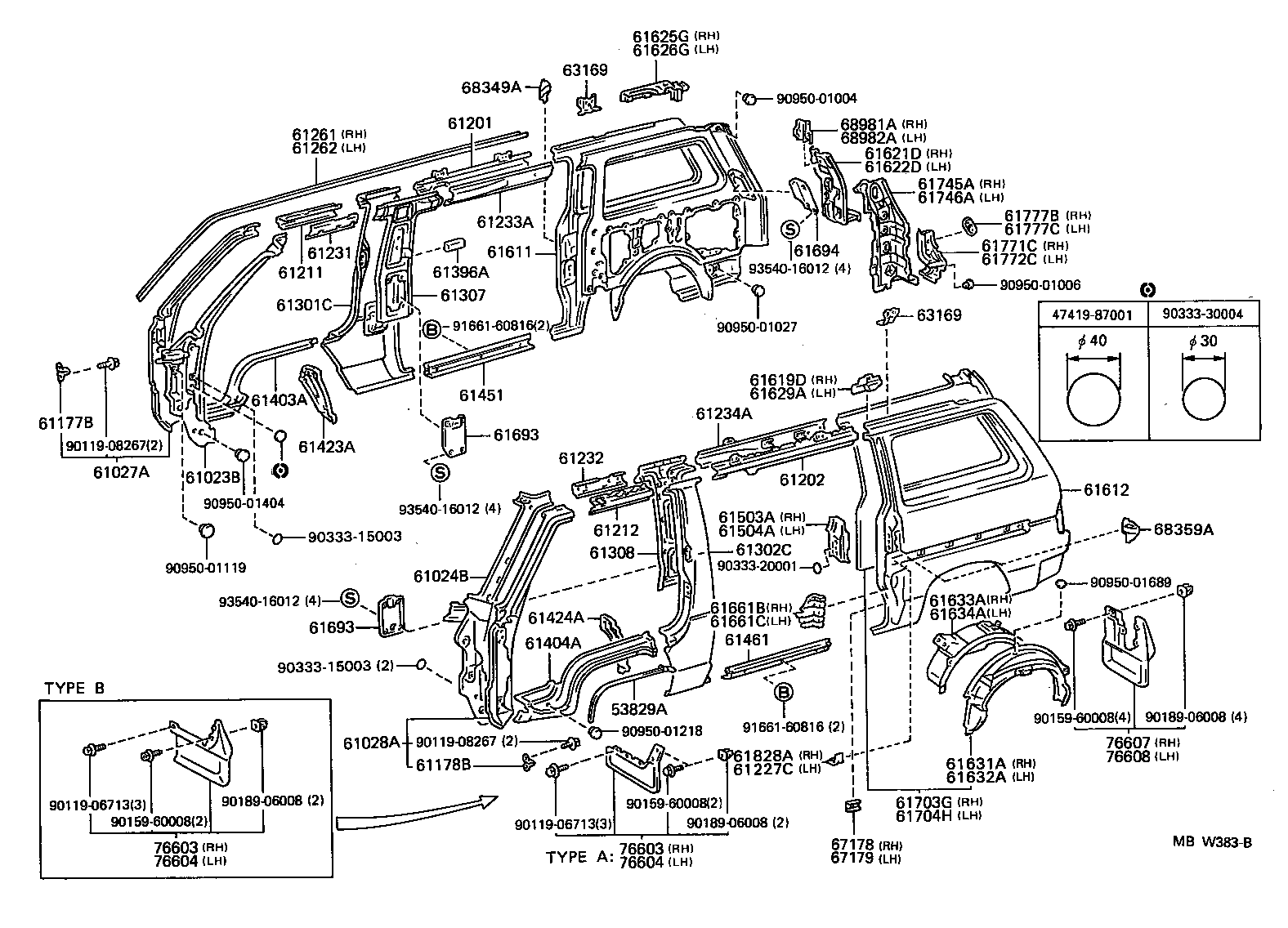

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53829A — Protector, Front Fender, Lower | ||||
| 53829-28020 |
Protector, Front Fender, Lower
1992-01 → 1994-08
ended
|
CR2#,KR2#,YR2# | — | |
| 61023B — Pillar Sub-assy, Front Body, Inner RH | ||||
| 61023-28090 |
Pillar Sub-assy, Front Body, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD | — | |
| 61023-28100 note |
Pillar Sub-assy, Front Body, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD | — | |
| 61023-28100 |
Pillar Sub-assy, Front Body, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61023-28110 |
Pillar Sub-assy, Front Body, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61024B — Pillar Sub-assy, Front Body, Inner LH | ||||
| 61024-28090 |
Pillar Sub-assy, Front Body, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61024-28100 |
Pillar Sub-assy, Front Body, Inner LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61024-28110 note |
Pillar Sub-assy, Front Body, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61027A — Pillar Sub-assy, Front Body, Outer RH | ||||
| 61027-28060 |
Pillar Sub-assy, Front Body, Outer RH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61027-28070 |
Pillar Sub-assy, Front Body, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61028A — Pillar Sub-assy, Front Body, Outer LH | ||||
| 61028-28110 |
Pillar Sub-assy, Front Body, Outer LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61028-28150 |
Pillar Sub-assy, Front Body, Outer LH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61177B — Bracket, Door Check Arm | ||||
| 61177-28010 |
Bracket, Door Check Arm
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61178B — Bracket, Door Check Arm | ||||
| 61177-28010 |
Bracket, Door Check Arm
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61201 — Rail Sub-assy, Roof Side, RH | ||||
| 61201-28060 |
Rail Sub-assy, Roof Side, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD MRF | — | |
| 61201-28100 |
Rail Sub-assy, Roof Side, RH
1992-01 → 1994-05
ended
|
KR27 5D | — | |
| 61202 — Rail Sub-assy, Roof Side, LH | ||||
| 61202-28080 |
Rail Sub-assy, Roof Side, LH
1992-01 → 1995-01
ended
|
CR27 5D;CR27,KR27 RHD | — | |
| 61202-28100 |
Rail Sub-assy, Roof Side, LH
1992-01 → 1994-05
ended
|
KR27 5D | — | |
| 61211 — Rail, Roof Side, Outer RH | ||||
| 61211-87005 |
Rail, Roof Side, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61212 — Rail, Roof Side, Outer LH | ||||
| 61212-87007 |
Rail, Roof Side, Outer LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61227C — Bracket, Rear Door Rail | ||||
| 61227-87001 |
Bracket, Rear Door Rail
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61231 — Rail, Roof Side, Inner RH | ||||
| 61231-87002 |
Rail, Roof Side, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61231-87003 |
Rail, Roof Side, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61232 — Rail, Roof Side, Inner LH | ||||
| 61232-87002 |
Rail, Roof Side, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61232-87003 |
Rail, Roof Side, Inner LH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61233A — Rail, Roof Side, Inner NO.2 RH | ||||
| 61207-28020 |
Rail, Roof Side, Inner NO.2 RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 05S,08S | — | |
| 61233-28020 |
Rail, Roof Side, Inner NO.2 RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61233-28020 note |
Rail, Roof Side, Inner NO.2 RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61234A — Rail, Roof Side, Inner NO.2 LH | ||||
| 61234-28010 |
Rail, Roof Side, Inner NO.2 LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61261 — Channel, Roof Drip, RH | ||||
| 61261-28020 |
Channel, Roof Drip, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61262 — Channel, Roof Drip, LH | ||||
| 61262-28020 |
Channel, Roof Drip, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61301C — Pillar Sub-assy, Center Body, Outer RH | ||||
| 61301-28100 |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61301-28100 note |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61301-28110 |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 05S,08S | — | |
| 61301-28120 note |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61301-28120 note |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61301-28130 note |
Pillar Sub-assy, Center Body, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 05S,08S | — | |
| 61302C — Pillar Sub-assy, Center Body, Outer LH | ||||
| 61302-28040 |
Pillar Sub-assy, Center Body, Outer LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61302-28070 note |
Pillar Sub-assy, Center Body, Outer LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61307 — Pillar Sub-assy, Center Body, Inner RH | ||||
| 61307-28060 |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD | — | |
| 61307-28070 |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61307-28080 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61307-28100 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD | — | |
| 61307-28110 note |
Pillar Sub-assy, Center Body, Inner RH
1994-08 → 1995-01
ended
|
CR27,YR29 LHD | — | |
| 61307-28110 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1994-08
ended
|
YR29 02S;CR27,KR27 LHD | — | |
| 61307-28110 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1994-08
ended
|
YR29 05S | — | |
| 61307-28150 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1994-08
ended
|
YR29 05S | — | |
| 61307-28150 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1994-08
ended
|
CR27 05S;KR27 LHD;YR29 02S | — | |
| 61307-28150 note |
Pillar Sub-assy, Center Body, Inner RH
1994-08 → 1995-01
ended
|
YR29;CR27 05S | — | |
| 61307-28150 note |
Pillar Sub-assy, Center Body, Inner RH
1992-01 → 1995-01
ended
|
CR27 LHD 02S | — | |
| 61308 — Pillar Sub-assy, Center Body, Inner LH | ||||
| 61308-28060 |
Pillar Sub-assy, Center Body, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D | — | |
| 61308-28070 note |
Pillar Sub-assy, Center Body, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D | — | |
| 61308-28090 |
Pillar Sub-assy, Center Body, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61396A — Dust Proof, Center Pillar | ||||
| 61396-28010 |
Dust Proof, Center Pillar
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61396-28010 note |
Dust Proof, Center Pillar
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D | — | |
| 61396-87002 |
Dust Proof, Center Pillar
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61396-87002 note |
Dust Proof, Center Pillar
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D | — | |
| 61396-87002 |
Dust Proof, Center Pillar
1992-01 → 1995-01
ended
|
CR27,KR27 5D | — | |
| 61403A — Panel Sub-assy, Fender, RH | ||||
| 61403-28010 |
Panel Sub-assy, Fender, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61404A — Panel Sub-assy, Fender, LH | ||||
| 61404-28010 |
Panel Sub-assy, Fender, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61423A — Panel, Fender, Inner Lower RH | ||||
| 61423-28010 |
Panel, Fender, Inner Lower RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61424A — Panel, Fender, Inner Lower LH | ||||
| 61424-28010 |
Panel, Fender, Inner Lower LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61451 — Panel, Rocker, Outer RH | ||||
| 61451-28010 |
Panel, Rocker, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61461 — Panel, Rocker, Outer LH | ||||
| 61461-28010 |
Panel, Rocker, Outer LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61503A — Reinforce Sub-assy, Slide Door Lock Striker, RH | ||||
| 61503-28050 |
Reinforce Sub-assy, Slide Door Lock Striker, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61504A — Reinforce Sub-assy, Slide Door Lock Striker, LH | ||||
| 61504-28070 |
Reinforce Sub-assy, Slide Door Lock Striker, LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61611 — Panel, Quarter, RH | ||||
| 61611-28070 |
Panel, Quarter, RH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61611-28090 |
Panel, Quarter, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 05S,08S | — | |
| 61611-28100 |
Panel, Quarter, RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61612 — Panel, Quarter, LH | ||||
| 61612-28090 |
Panel, Quarter, LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61612-28110 |
Panel, Quarter, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 05S,08S | — | |
| 61612-28120 |
Panel, Quarter, LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D 02S | — | |
| 61619D — Reinforcement, Quarter Panel, RH | ||||
| 61619-28010 |
Reinforcement, Quarter Panel, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61619-28020 |
Reinforcement, Quarter Panel, RH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61621D — Trough, Back Door Opening, RH | ||||
| 61621-28010 |
Trough, Back Door Opening, RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61621-28020 |
Trough, Back Door Opening, RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61621-28020 note |
Trough, Back Door Opening, RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61622D — Trough, Back Door Opening, LH | ||||
| 61622-28010 |
Trough, Back Door Opening, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61625G — Extension, Quarter Panel, Rear RH | ||||
| 61625-28010 |
Extension, Quarter Panel, Rear RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61625-28010 note |
Extension, Quarter Panel, Rear RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61625-28030 |
Extension, Quarter Panel, Rear RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61626G — Extension, Quarter Panel, Rear LH | ||||
| 61626-28010 |
Extension, Quarter Panel, Rear LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61629A — Reinforcement, Quarter Panel, LH | ||||
| 61629-28010 |
Reinforcement, Quarter Panel, LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61629-28020 |
Reinforcement, Quarter Panel, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD 4D | — | |
| 61631A — Panel, Quarter Wheel House, Outer RH | ||||
| 61631-28010 |
Panel, Quarter Wheel House, Outer RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61632A — Panel, Quarter Wheel House, Outer LH | ||||
| 61604-28010 |
Panel, Quarter Wheel House, Outer LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61633A — Panel, Quarter Wheel House, Inner RH | ||||
| 61607-28030 |
Panel, Quarter Wheel House, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61633-87003 |
Panel, Quarter Wheel House, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61634A — Panel, Quarter Wheel House, Inner LH | ||||
| 61608-28020 |
Panel, Quarter Wheel House, Inner LH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61634-87003 |
Panel, Quarter Wheel House, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61661B — Plate, Quarter Panel Outer Extension, Lower Front | ||||
| 61661-28010 |
Plate, Quarter Panel Outer Extension, Lower Front
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 61661C — Plate, Quarter Panel Outer Extension, Lower Front LH | ||||
| 61662-28010 |
Plate, Quarter Panel Outer Extension, Lower Front LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61693 — Cover, Center Body Pillar Inner | ||||
| 67843-87002 note |
Cover, Center Body Pillar Inner
1992-01 → 1993-10
ended
|
CR2#,KR2#,YR2# | — | |
| 67843-87002 note |
Cover, Center Body Pillar Inner
1993-10 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 67844-87002 note |
Cover, Center Body Pillar Inner
1992-01 → 1993-10
ended
|
CR2#,KR2#,YR2# | — | |
| 67844-87002 note |
Cover, Center Body Pillar Inner
1993-10 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61694 — Cover, Quarter Inner, NO.1 | ||||
| 67841-28010 note |
Cover, Quarter Inner, NO.1
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 67842-28010 note |
Cover, Quarter Inner, NO.1
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61703G — Panel Sub-assy, Quarter, Inner RH | ||||
| 61703-28410 |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61703-28420 |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61703-28430 |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61703-28440 |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27 RHD | — | |
| 61703-28550 note |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61703-28770 note |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61703-28800 note |
Panel Sub-assy, Quarter, Inner RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 02S | — | |
| 61703-28830 note |
Panel Sub-assy, Quarter, Inner RH
1992-05 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61703-28840 note |
Panel Sub-assy, Quarter, Inner RH
1992-05 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61704H — Panel Sub-assy, Quarter, Inner LH | ||||
| 61704-28430 |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D 02S | — | |
| 61704-28530 |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61704-28550 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D 02S | — | |
| 61704-28720 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 61704-28760 |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61704-28770 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61704-28780 |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 05S | — | |
| 61704-28790 note |
Panel Sub-assy, Quarter, Inner LH
1992-06 → 1994-08
ended
|
YR29 05S | — | |
| 61704-28790 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1992-06
ended
|
CR27,KR27 05S | — | |
| 61704-28790 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1992-06
ended
|
YR29 05S | — | |
| 61704-28790 note |
Panel Sub-assy, Quarter, Inner LH
1994-08 → 1995-01
ended
|
CR27,YR29 05S | — | |
| 61704-28790 note |
Panel Sub-assy, Quarter, Inner LH
1992-06 → 1994-08
ended
|
CR27,KR27 05S | — | |
| 61704-28800 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1994-08
ended
|
YR29 05S | — | |
| 61704-28800 note |
Panel Sub-assy, Quarter, Inner LH
1992-01 → 1995-01
ended
|
CR27,KR27 05S | — | |
| 61704-28800 note |
Panel Sub-assy, Quarter, Inner LH
1994-08 → 1995-01
ended
|
YR29 05S | — | |
| 61704-28840 note |
Panel Sub-assy, Quarter, Inner LH
1992-06 → 1995-01
ended
|
CR27,KR27,YR29 LHD 4D 02S | — | |
| 61704-28850 note |
Panel Sub-assy, Quarter, Inner LH
1992-06 → 1995-01
ended
|
CR27 LHD 4D 02S | — | |
| 61704-28850 note |
Panel Sub-assy, Quarter, Inner LH
1992-06 → 1995-01
ended
|
KR27,YR29 LHD 4D 02S | — | |
| 61745A — Reinforcement, Back Door Opening, Lower RH | ||||
| 61745-28020 |
Reinforcement, Back Door Opening, Lower RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61746A — Reinforcement, Back Door Opening, Lower LH | ||||
| 61746-28020 |
Reinforcement, Back Door Opening, Lower LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61771C — Frame, Back Door Opening Side, RH | ||||
| 61771-28010 |
Frame, Back Door Opening Side, RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61771-28020 |
Frame, Back Door Opening Side, RH
1992-01 → 1995-01
ended
|
CR21,KR21,YR22 | — | |
| 61771-28020 note |
Frame, Back Door Opening Side, RH
1992-01 → 1995-01
ended
|
CR27,KR27,YR29 | — | |
| 61772C — Frame, Back Door Opening Side, LH | ||||
| 61772-28010 |
Frame, Back Door Opening Side, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61777B — Reinforce, Back Door Side Stopper Female, RH | ||||
| 61777-28010 |
Reinforce, Back Door Side Stopper Female, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61777C — Reinforce, Back Door Side Stopper Female, LH | ||||
| 61777-28010 |
Reinforce, Back Door Side Stopper Female, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 61828A — Bracket, Rear Door Rail, Center RH | ||||
| 61828-87001 |
Bracket, Rear Door Rail, Center RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 63169 — Retainer, Roof Reinforcement, NO.2 | ||||
| 63169-87001 note |
Retainer, Roof Reinforcement, NO.2
1992-04 → 1995-01
ended
|
CR2#,KR2#,YR2# MRF | — | |
| 63169-87001 note |
Retainer, Roof Reinforcement, NO.2
1992-01 → 1992-04
ended
|
CR27,KR27,YR29 MRF | — | |
| 63169-87001 note |
Retainer, Roof Reinforcement, NO.2
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# 4D | — | |
| 63169-87001 note |
Retainer, Roof Reinforcement, NO.2
1992-01 → 1992-04
ended
|
CR21,KR21,YR22 | — | |
| 63169-87001 note |
Retainer, Roof Reinforcement, NO.2
1992-01 → 1992-04
ended
|
CR27,KR27,YR29 05S | — | |
| 67178 — Retainer, Rear Door Switch, RH | ||||
| 74681-28020 |
Retainer, Rear Door Switch, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 67179 — Retainer, Rear Door Switch, LH | ||||
| 74681-28020 |
Retainer, Rear Door Switch, LH
1992-01 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 68349A — Bracket, Slide Door Center Rail, RH | ||||
| 68349-28010 |
Bracket, Slide Door Center Rail, RH
1992-04 → 1995-01
ended
|
CR2#,KR2#,YR2# LHD | — | |
| 68359A — Bracket, Slide Door Center Rail, LH | ||||
| 68359-28010 |
Bracket, Slide Door Center Rail, LH
1992-04 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 RHD | — | |
| 68981A — Retainer, Back Door Stay, RH | ||||
| 68981-28010 |
Retainer, Back Door Stay, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 68982A — Retainer, Back Door Stay, LH | ||||
| 68982-28010 |
Retainer, Back Door Stay, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 76603 — Mudguard Sub-assy, Front Fender, RH | ||||
| 53881-29005 note |
Mudguard Sub-assy, Front Fender, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 76603-29225 note |
Mudguard Sub-assy, Front Fender, RH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 76604 — Mudguard Sub-assy, Front Fender, LH | ||||
| 53881-29005 note |
Mudguard Sub-assy, Front Fender, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 76604-29225 note |
Mudguard Sub-assy, Front Fender, LH
1992-01 → 1995-01
ended
|
CR2#,KR2#,YR2# | — | |
| 76607 — Mudguard Sub-assy, Quarter Panel, Rear RH | ||||
| 76607-29285 |
Mudguard Sub-assy, Quarter Panel, Rear RH
1992-01 → 1993-09
ended
|
CR27,KR27 LHD 4D 02S | — | |
| 76607-29285 |
Mudguard Sub-assy, Quarter Panel, Rear RH
1992-01 → 1993-09
ended
|
CR27,KR27 5D;CR27,KR27 05S;CR27,KR27 RHD;CR21,KR21,YR2# | — | |
| 76607-29355 |
Mudguard Sub-assy, Quarter Panel, Rear RH
1993-09 → 1995-01
ended
|
CR27,KR27 LHD 4D 02S | — | |
| 76607-29355 |
Mudguard Sub-assy, Quarter Panel, Rear RH
1993-09 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 05S;CR27,KR27 RHD;CR21,KR21,YR2# | — | |
| 76608 — Mudguard Sub-assy, Quarter Panel, Rear LH | ||||
| 76608-29295 |
Mudguard Sub-assy, Quarter Panel, Rear LH
1992-01 → 1993-09
ended
|
CR27,KR27 LHD 4D 02S | — | |
| 76608-29295 |
Mudguard Sub-assy, Quarter Panel, Rear LH
1992-01 → 1993-09
ended
|
CR27,KR27 5D;CR27,KR27 05S;CR27,KR27 RHD;CR21,KR21,YR2# | — | |
| 76608-29365 |
Mudguard Sub-assy, Quarter Panel, Rear LH
1993-09 → 1995-01
ended
|
CR27,KR27 LHD 4D 02S | — | |
| 76608-29365 |
Mudguard Sub-assy, Quarter Panel, Rear LH
1993-09 → 1995-01
ended
|
CR27,KR27 5D;CR27,KR27 05S;CR27,KR27 RHD;CR21,KR21,YR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
