Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10

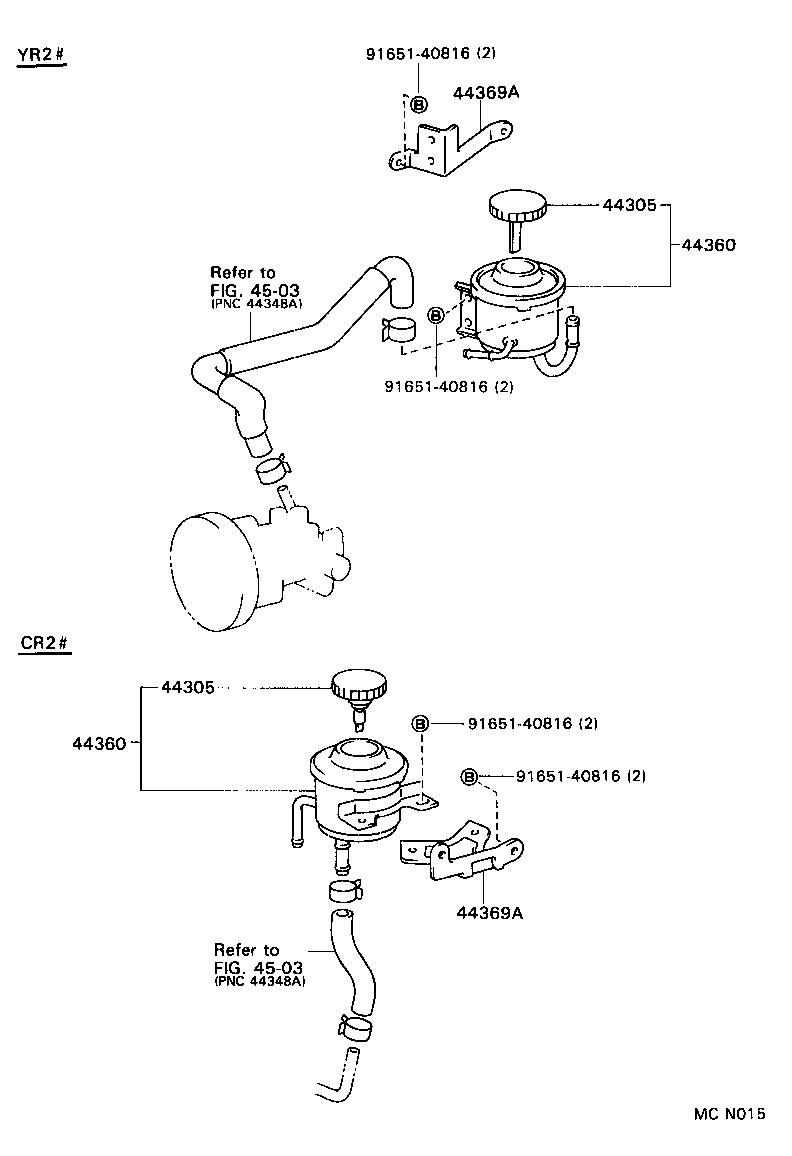

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-22040 |
Cap Sub-assy, Vane Pump Oil Reservoir
1992-01 → 1995-01
ended
|
CR2#,YR2# | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-28040 |
Reservoir Assy, Vane Pump Oil
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44360-28051 |
Reservoir Assy, Vane Pump Oil
1992-01 → 1995-01
ended
|
YR2# | — | |
| 44369A — Bracket, Oil Reservoir, NO.1 | ||||
| 44369-28011 |
Bracket, Oil Reservoir, NO.1
1992-01 → 1995-01
ended
|
YR2# | — | |
| 44369-28050 |
Bracket, Oil Reservoir, NO.1
1992-01 → 1995-01
ended
|
CR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
