Toyota Liteace Van Wagon
1992-01 → 1995-01 · chassis CR2#,KR2#,YR2# · catalogue 651540 · Europe
Discontinued model
Data version 1995-10

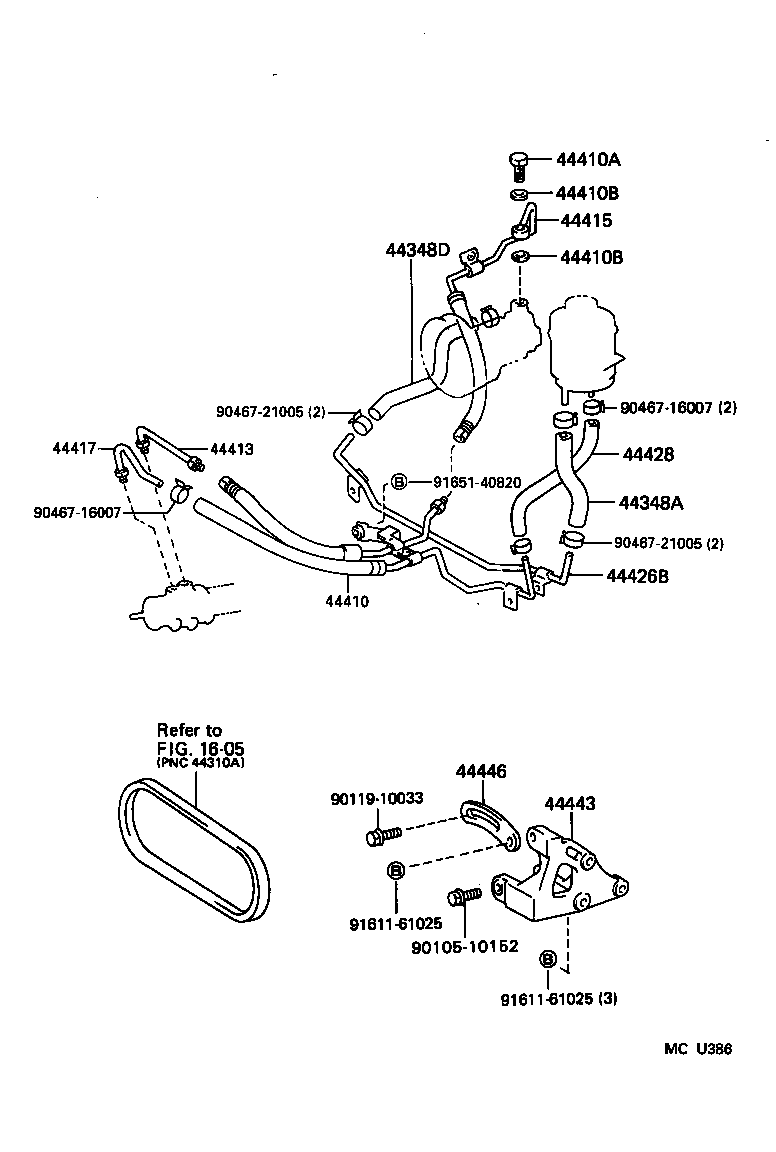

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-28040 |
Hose, Oil Reservoir TO Pump, NO.1
1992-01 → 1995-01
ended
|
YR2# | — | |
| 44348-28160 |
Hose, Oil Reservoir TO Pump, NO.1
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44348D — Hose, Oil Reservoir TO Pump, NO.2 | ||||
| 44348-28110 |
Hose, Oil Reservoir TO Pump, NO.2
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-28171 |
Tube Assy, Pressure Feed
1992-01 → 1995-01
ended
|
YR2# | — | |
| 44410-28270 |
Tube Assy, Pressure Feed
1992-01 → 1994-08
ended
|
CR27 RHD | — | |
| 44410-28280 |
Tube Assy, Pressure Feed
1992-01 → 1995-01
ended
|
CR2# LHD | — | |
| 44410-28390 |
Tube Assy, Pressure Feed
1994-08 → 1995-01
ended
|
CR27 RHD | — | |
| 44410A — Bolt, Union(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1992-01 → 1995-01
ended
|
CR2#,YR2# | — | |
| 44410B — Gasket(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
Gasket(FOR PRESSURE FEED TUBE)
1992-01 → 1995-01
ended
|
CR2#,YR2# | — | |
| 44413 — Tube, Pressure Feed, NO.1 | ||||
| 44413-28200 |
Tube, Pressure Feed, NO.1
1994-08 → 1995-01
ended
|
CR27 RHD | — | |
| 44415 — Hose, Pressure Feed, NO.2 | ||||
| 44415-28060 |
Hose, Pressure Feed, NO.2
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44417 — Tube, Return, NO.2 | ||||
| 44417-28190 |
Tube, Return, NO.2
1992-01 → 1995-01
ended
|
CR2#,YR2# LHD | — | |
| 44417-28210 |
Tube, Return, NO.2
1992-01 → 1994-08
ended
|
CR27 RHD | — | |
| 44417-28300 |
Tube, Return, NO.2
1994-08 → 1995-01
ended
|
CR27 RHD | — | |
| 44426B — Tube, Oil Reservoir TO Pump | ||||
| 44426-28060 |
Tube, Oil Reservoir TO Pump
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44428 — Hose, Return, NO.2 | ||||
| 44428-28010 |
Hose, Return, NO.2
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44443 — Bracket, Pump | ||||
| 44443-14030 |
Bracket, Pump
1992-01 → 1995-01
ended
|
CR2# | — | |
| 44443-28021 |
Bracket, Pump
1992-01 → 1995-01
ended
|
YR2# | — | |
| 44446 — Strut, Adjusting | ||||
| 44446-14010 |
Strut, Adjusting
1992-01 → 1995-01
ended
|
CR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
